MRFS01 Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver
£31.99

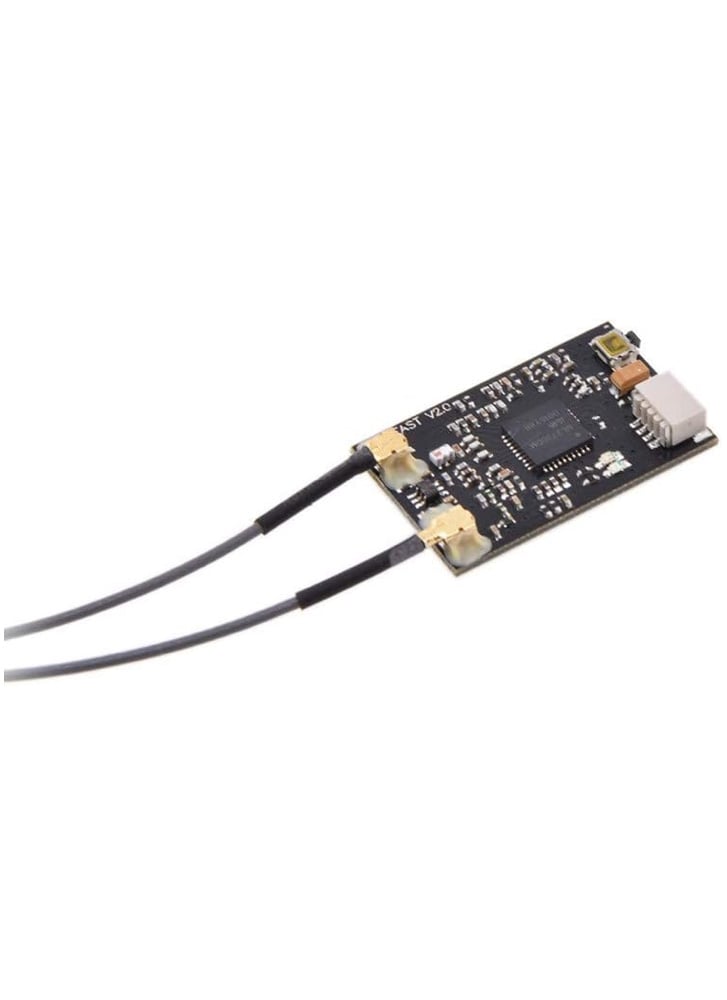

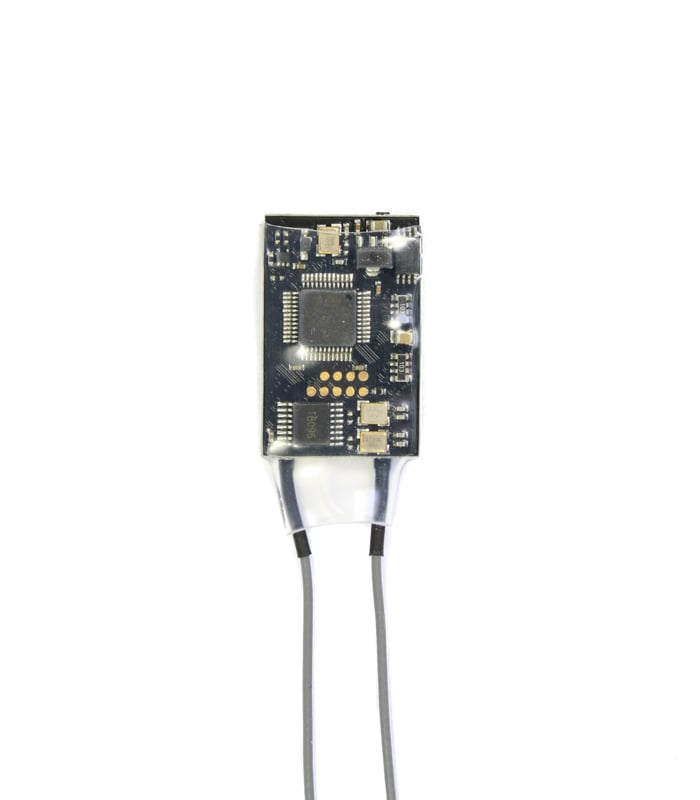

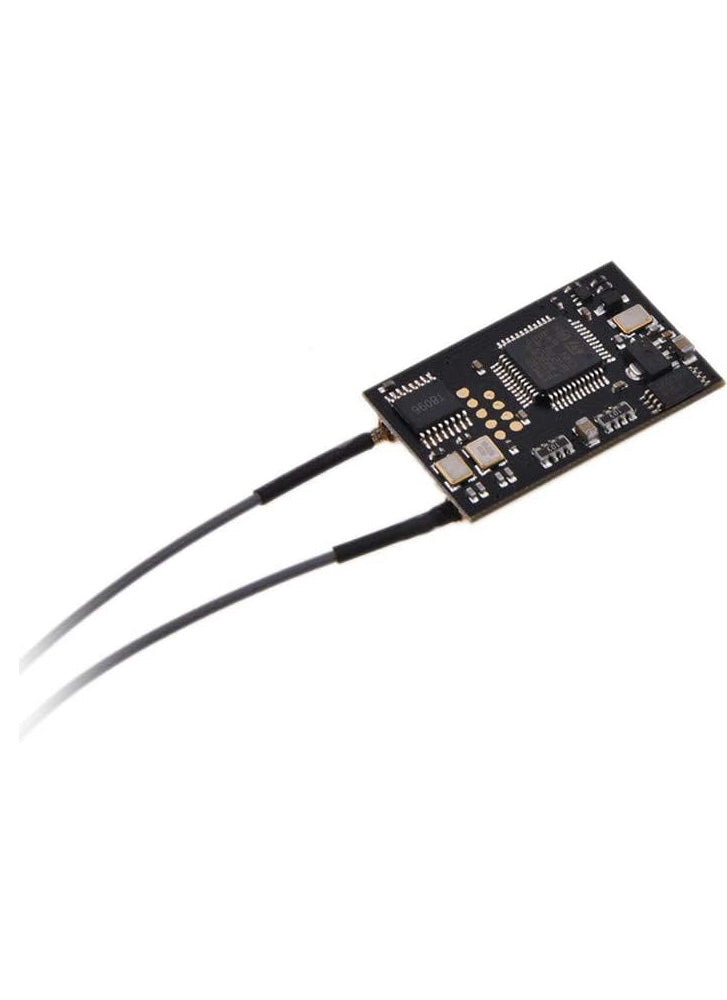

The MRFS01 is a micro 2.4GHz receiver compatible with Futaba’s FASST protocol, offering up to 16 channels via SBUS. Its lightweight, compact design makes it ideal for tight builds like racing drones and micro aircraft. It features a high-quality power amplifier for excellent reception sensitivity, dual antennas for reliable signal coverage, and RSSI output (PWM) for real-time signal strength monitoring. With direct SBUS output to flight controllers, the MRFS01 delivers streamlined wiring and dependable performance in a compact package.
Compatibility:
The Rx is compatible with 2.4Ghz FASST radios: 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc
Binding with a transmitter:
1. Turn on Transmitter.
2. Connect the battery to the receiver while pressing receiver is F/S button.
3. The LED on the receiver will change to solid green, it indicates the binding is completed and successful
How to switch between HS mode and FS Mode:
HS:High Speed
FS:Fast Speed
Turn the transmitter off, connect the battery to the receiver, press the F/S button of receiver for 6 seconds and then release. The red LED will flash fast in HS Mode and slow in FS Mode. Repeat to alternate modes.
WARNING: HS mode is only applied for high-speed digital servos. Other servos should select FS mode.
Specifications
- Output Channel: 16CH
- Receiving mode: FASST
- Output signal: S-BUS(16CH) + RSSI(PWM
- Servo frame rate: 14ms(FS-normal speed mode) / 7ms(HS-high speed mode)
- Suitable for: Futaba 6EX / 7C / TM-7 / TM-8 / T8FG / T10C / TM-10 / T10CG / T12Z / T12FG / TM-14 / T14MZ / 14SG transmitter
- Input Voltage: 4.8V-8.4V
- Working Temperature range: -10-80℃

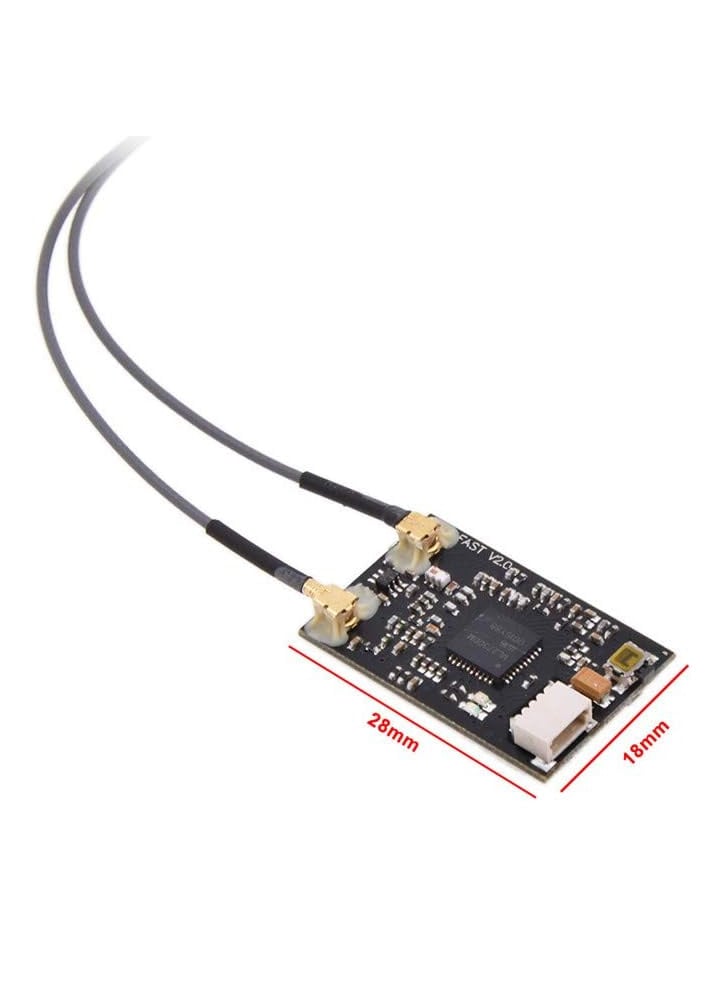

- Dimension: 28x18x5mm
- Weight 3.8g
In the box
- 1x MRFS01 receiver

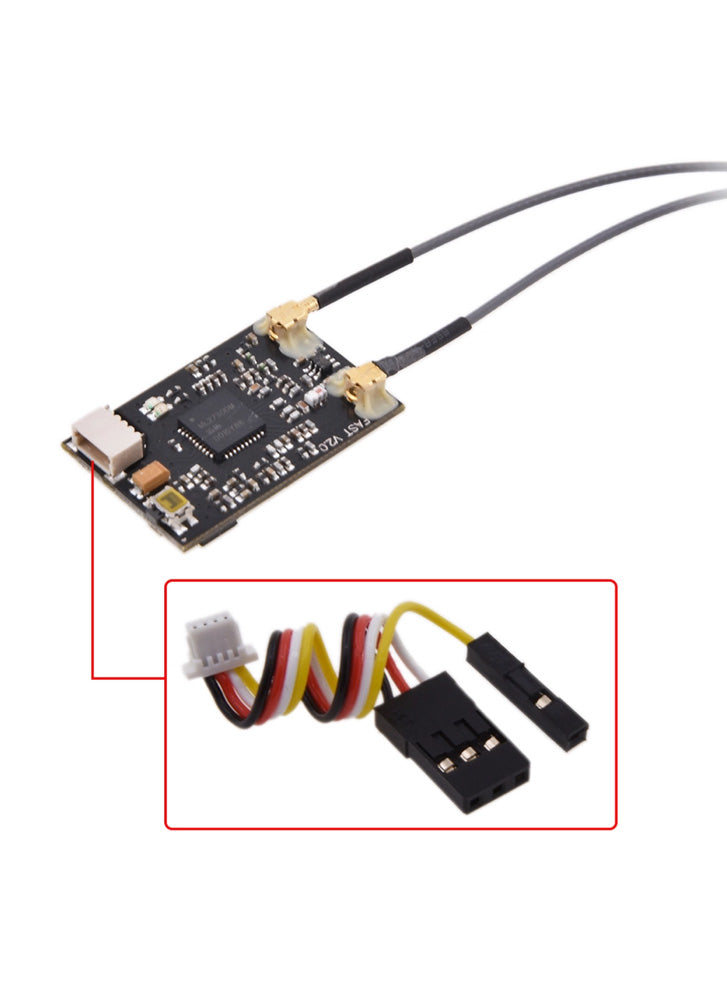

- 1x SBUS Cable
