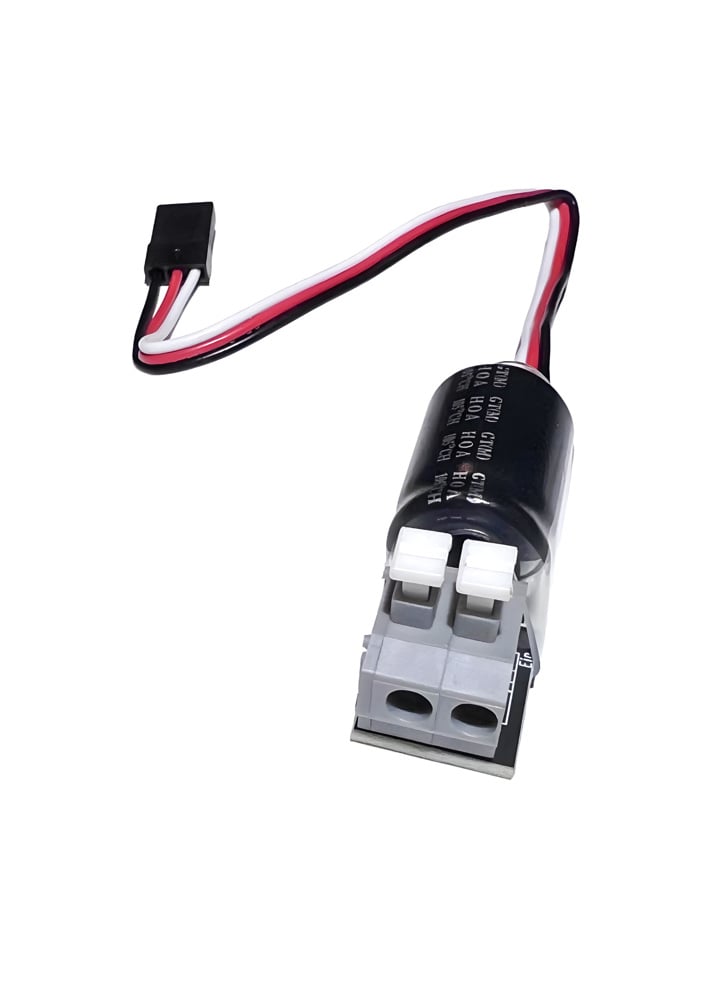

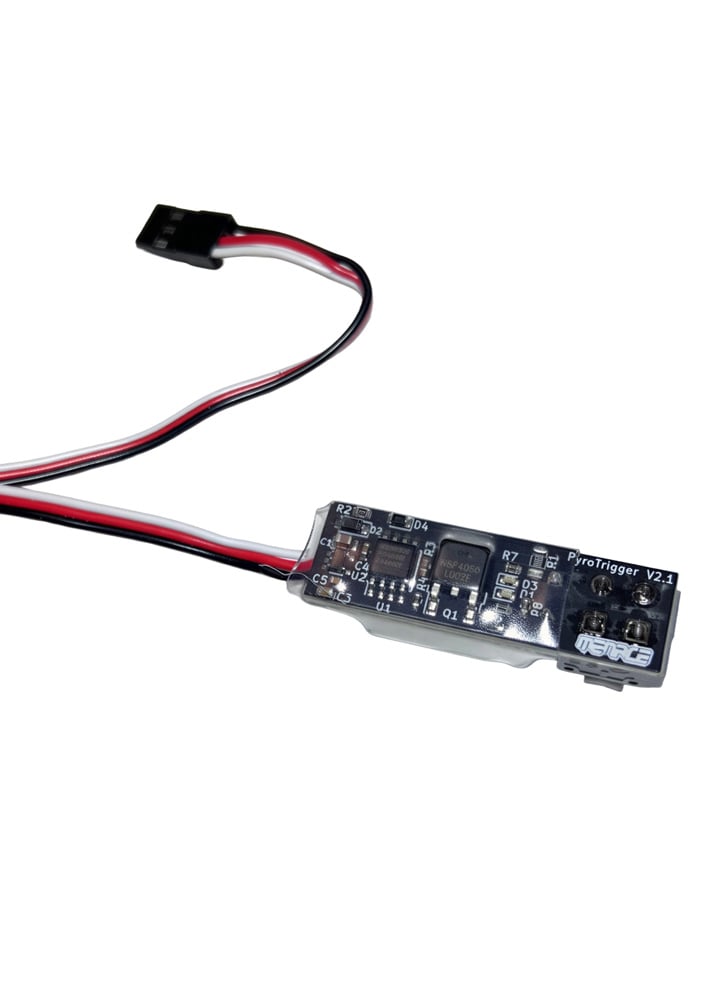

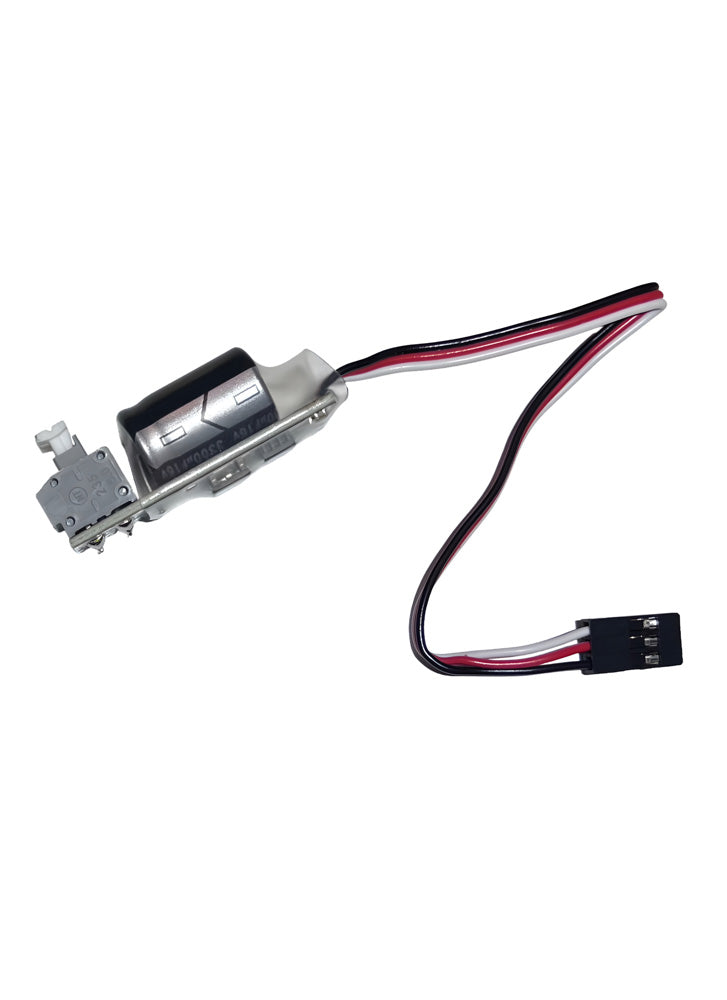

Menace RC PyroTRIGGER Receiver-Powered PWM Smoke Ignition Module

£14.45

The Menace RC PyroTRIGGER is a compact, receiver-powered ignition module designed to add dramatic smoke effects to electric RC models. Controlled directly from an auxiliary channel on your RC transmitter, it requires no separate battery or external power source.

Using an internal reservoir capacitor, the PyroTRIGGER charges safely from the receiver’s 5V supply. When activated, the stored energy is released instantly to fire an e-match (not included), igniting a smoke grenade on command. This approach delivers reliable ignition without placing heavy current demands on your receiver or BEC.

Spring terminal outputs make wiring quick and straightforward, allowing fast connection or replacement of the e-match without soldering. This makes setup, maintenance, and re-arming between flights simple and reliable.

A built-in startup delay allows the receiver to initialise and the capacitor to fully charge before the unit becomes active, reducing the risk of accidental firing during power-up. Clear LED status indicators show connection, arming state, signal issues, and successful firing.

The PyroTRIGGER is lightweight, compact, and easy to integrate into fixed-wing aircraft, FPV platforms, and custom electric builds. Multiple units can also be daisy-chained from a single auxiliary channel for sequential smoke deployment.

For mounting, a dedicated 3D-printed smoke holder design is available, and a detailed step-by-step setup guide is provided to walk you through converting and installing a smoke grenade safely and correctly .

Features

• Controlled via an aux channel on your RC transmitter, it needs no extra power source.
• Thanks to its smart reservoir capacitor, it charges off your receiver’s 5V supply.
• When you hit the switch, the capacitor unleashes the current needed to ignite smoke — giving your model that epic, realistic effect.
• Simple. Lightweight. Powerful.
• 3D Printed Smoke Holder
• https://www.thingiverse.com/thing:7140509
• Instructions to set up a smoke grenade
• https://www.instructables.com/How-to-Add-Smoke-Effects-to-Your-Electric-RC-Plane/

Please note Smoke grenade and e-match are not included. This product is intended for experienced hobbyists only. Always follow the supplied manual and setup guide, and observe local laws and safety regulations when using pyrotechnic devices. Ensure the radio transmitter is powered on first, with all switches in the OFF position, before powering the mode

Specifications

• Input voltage range    4.75V to 9.0V
• Max current loading   152mA pk with 5V supply.
• Start up delay time 6.5 seconds
• Signal PWM arm:  <1250uS more than 1000mS
• Signal PWM fire:  >1750uS more than 250mS
• Charge time. 6.5 seconds
• Weight: 10.5g including cable.
• Dimensions: L43.0 x W13.5 x H16.0 mm
• Input connection: Type JR universal servo
• Output connection: Spring terminals

In the box

• 1x Menace PyroTrigger
