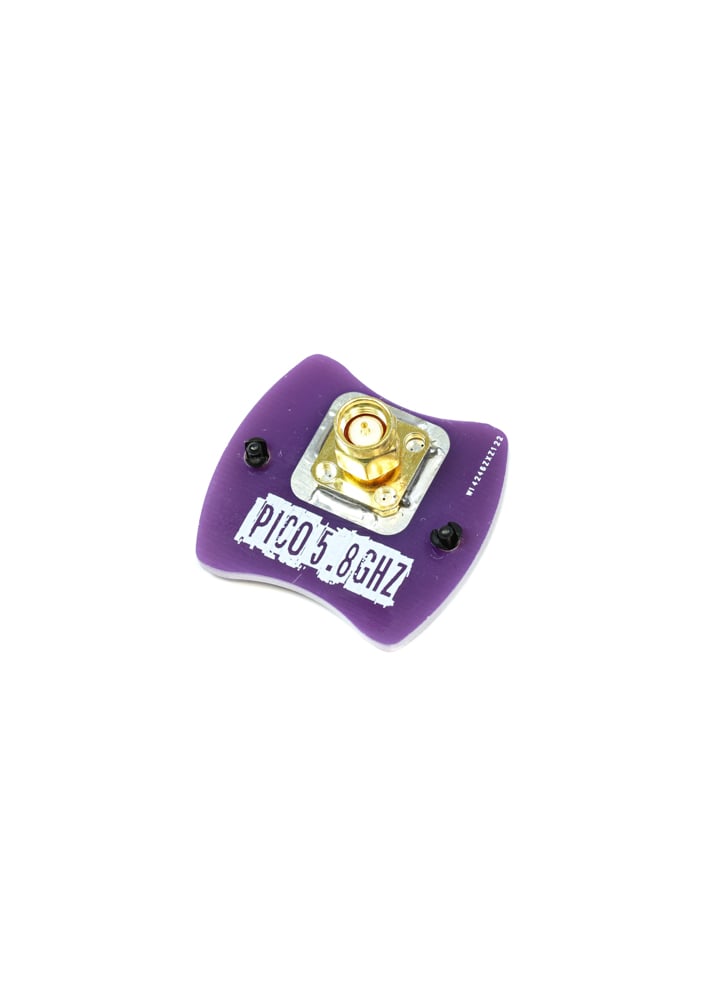

Menace PicoPatch 5.8Ghz FPV Polarised 9.4dBi Patch Antenna
£12.95
This latest Patch Antenna from Menace RC, the PicoPatch looks set to become a favourite among FPV pilots as it ticks all of the right boxes and has received excellent reviews. It’s very compact, well made and most importantly delivers exceptional range. On a 25mW VTX the estimated range of the patch is nearly 900m, which is roughly 300m more than the Menace Invader Patch Antenna!
Both RHCP and LHCP versions are available. If you have a RHCP antenna on your drone you need the RHCP version and vice versa.
This antenna is custom-designed in the UK by Menace RC.
Features
- Highest Sensitivity for increased range

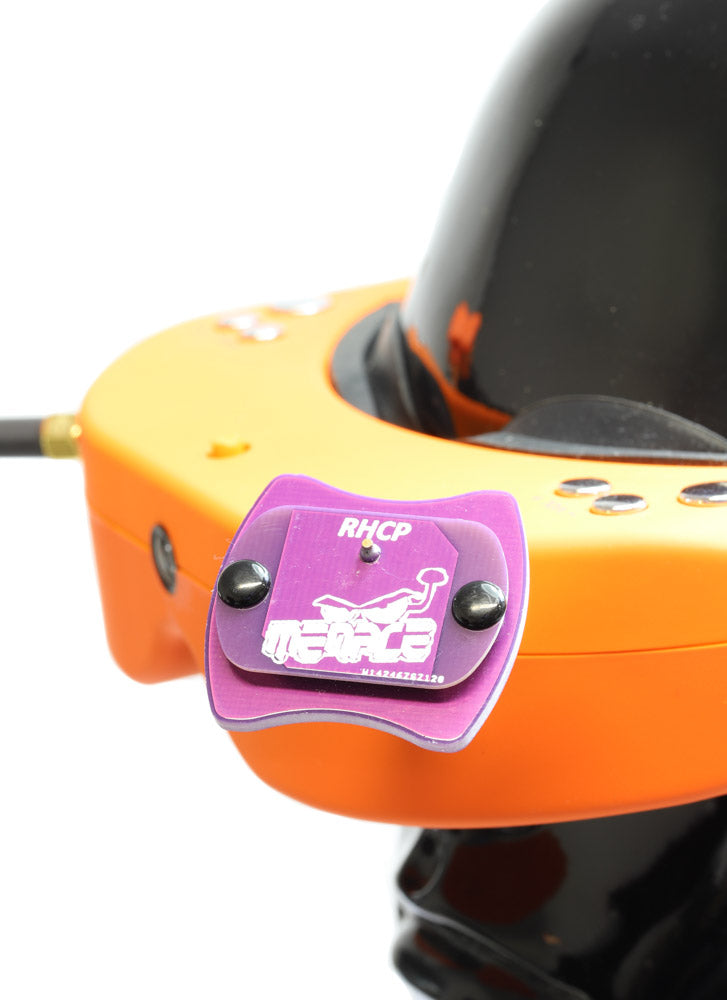

- Ergonomic design to fit diversity modules on goggles
- Compact low profile design makes it easier to fit in your goggle case without removing it
- Circular Polarized for left or right hand
- Great for diversity setups.
Real World:
25mW Range tested to 1.33km
60% increase in range over a 5db patch
20% increase in range over a 8db patch
38% increase range over the Invader patch
Reduced multipath propagation compared to 360 degree omni style receiving antenna’s.
Mount your patch antenna at the best angle for reception with our 45-Degree SMA Adapter .
Specifications
- Frequency Range: 5645 – 5945 Mhz
- Gain: 9.4 dBi
- Beam Width: 61° at -3db points

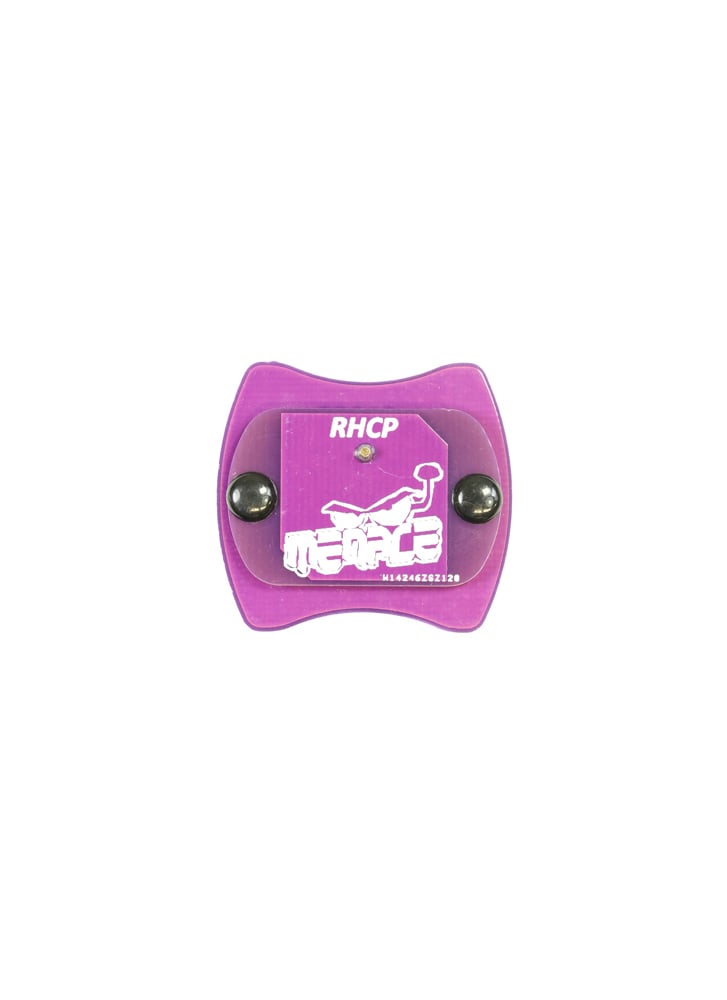

- Right Hand Circular Polarised
- SMA Connector

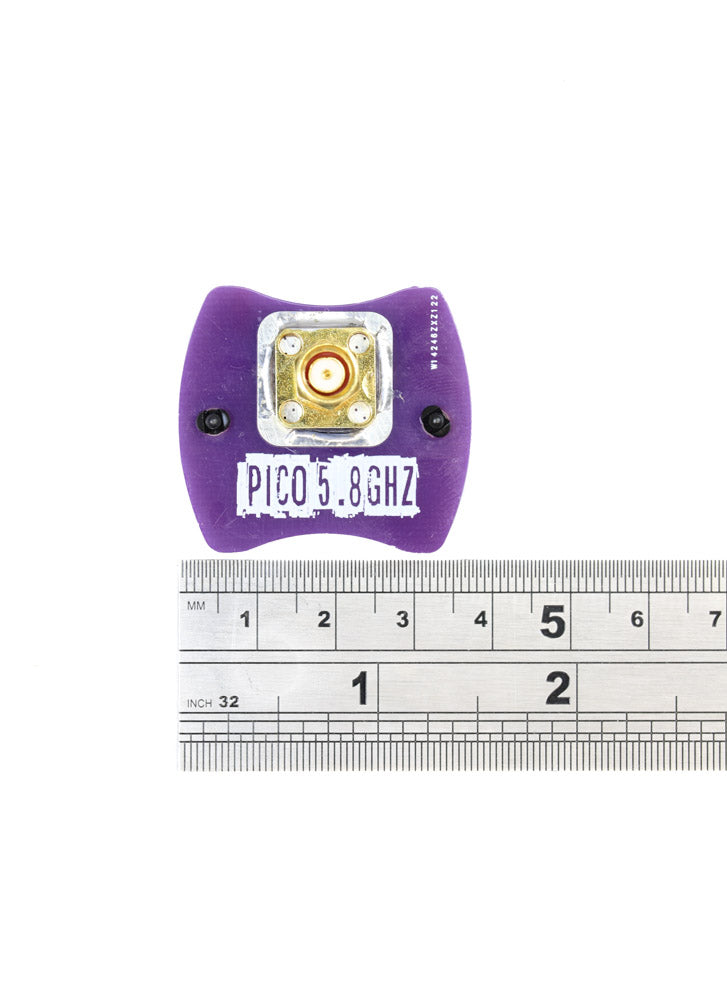

- Dimensions: 37.0mm x 33.6mm x 19.2mm
- Weight: 10 grams

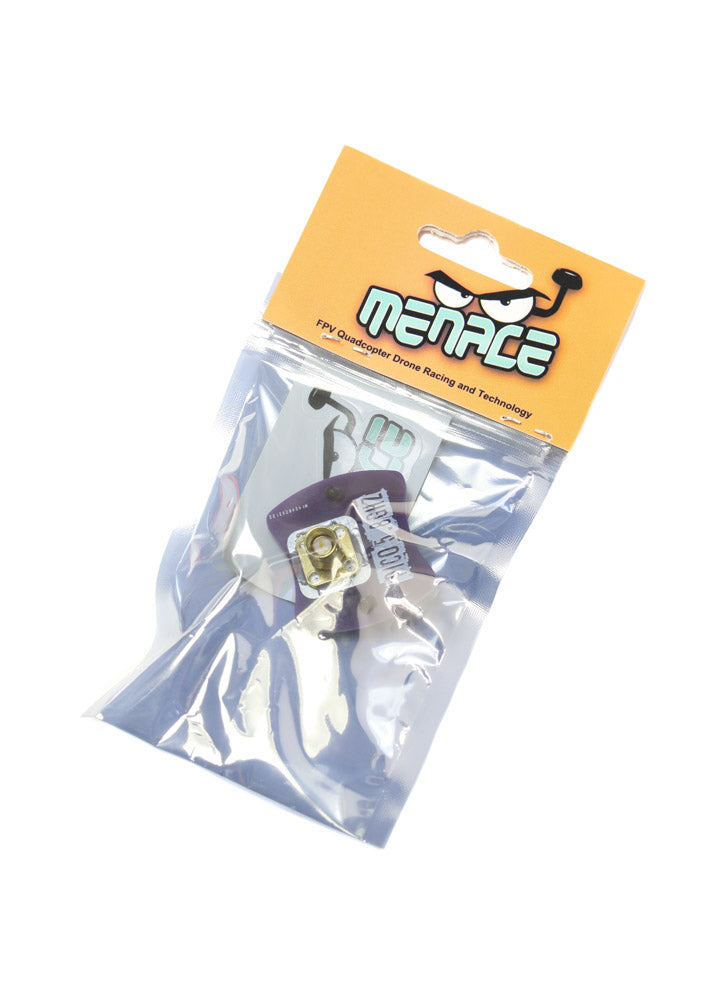

In the box
- 1x 5.8Ghz Menace PicoPatch Antenna (RHCP)
