Menace FPV Goggle Antenna Pack 5.8Ghz – RHCP / LHCP
£22.50
The Menace FPV Goggle Pack is a one purchase simple solution to get you the best experience in FPV straight out of the box. Take the guess work out of selecting your goggle antenna’s and use this proven combination of the high performance Pico Patch antenna with the tall over the head Periscope Omni Antenna.

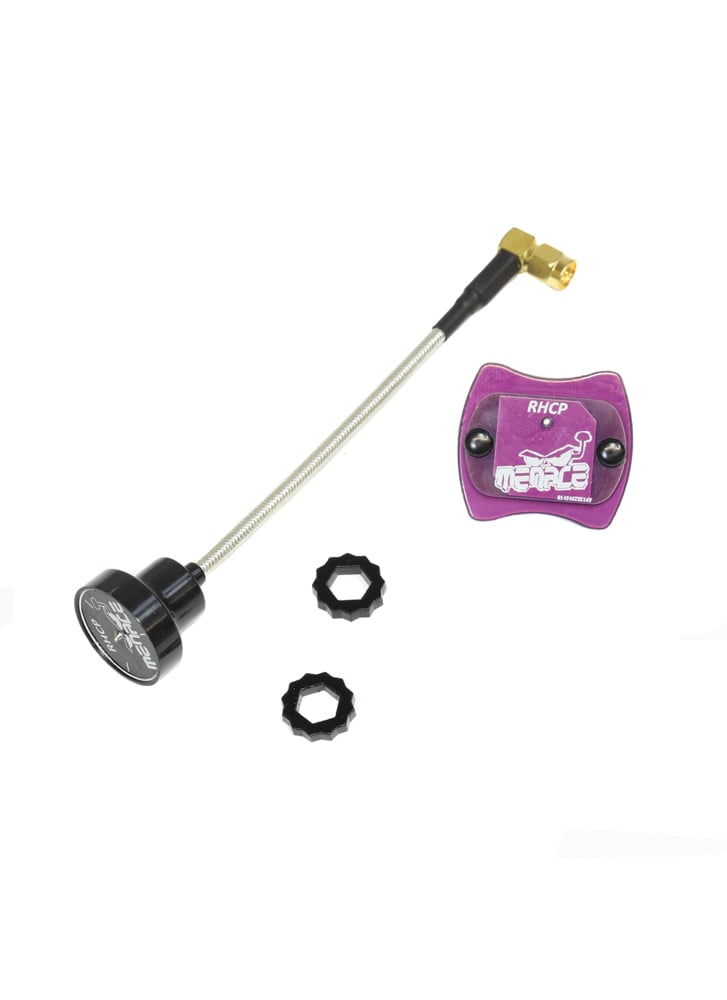

If your starting out or looking to upgrade your FPV setup then the Goggle Pack is for you. In the pack you get;
1x Pico Patch Antenna
1x Periscope Omni Antenna
2x SMA finger spinners
We sell both Right Hand (RHCP) and Left Hand (LHCP) Circularly Polarised Versions – please select as required.
Specifications
- Frequency Range: 5645 – 5945 Mhz
- Gain: 9.4 dBi
- Beam Width: 61° at -3db points
- (Check polar plot comparison invader actual angular db)
- Left or Right Hand Circular Polarised (LHCP or RHCP)
- SMA Connector (Fits Fatshark Goggles)
- Dimensions: 37.0mm x 33.6mm x 19.2mm
- Weight: 10 grams
- Centre frequency 5.8 GHz
- Frequency Range: 5550 – 6050 MHz
- Matching S11 < -20dB, VSWR <1.22
- Gain: 1.09dB with efficiency: 92%
- Axial Ratio <1.3
- Beam width: 360 degrees
- Left or Right Hand Circular Polarised ( LHCP or RHCP)
- SMA 90 Degree Connector
- Height: 138mm
- Weight: 14grams
In the box
- 1x Menace FPV Goggle Antenna Pack (RHCP)
