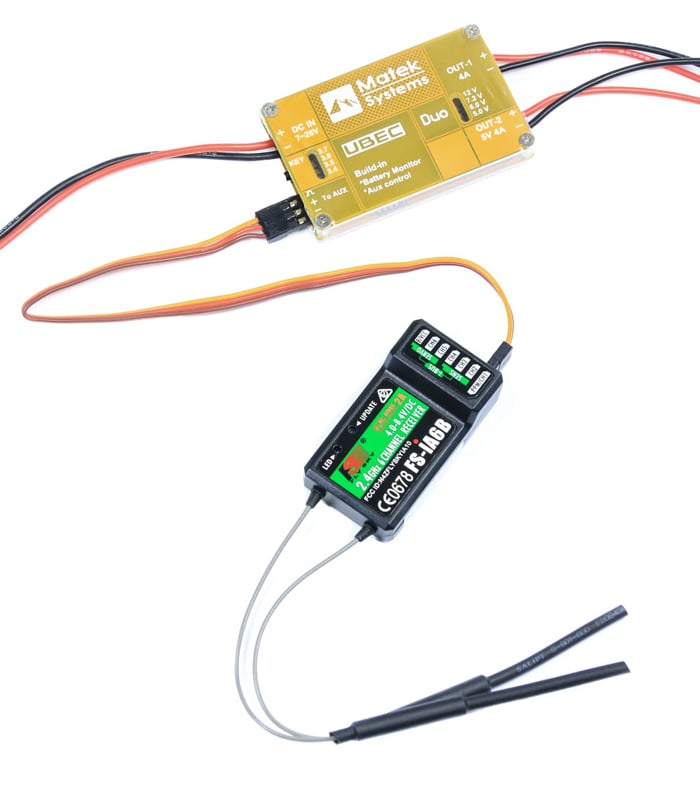

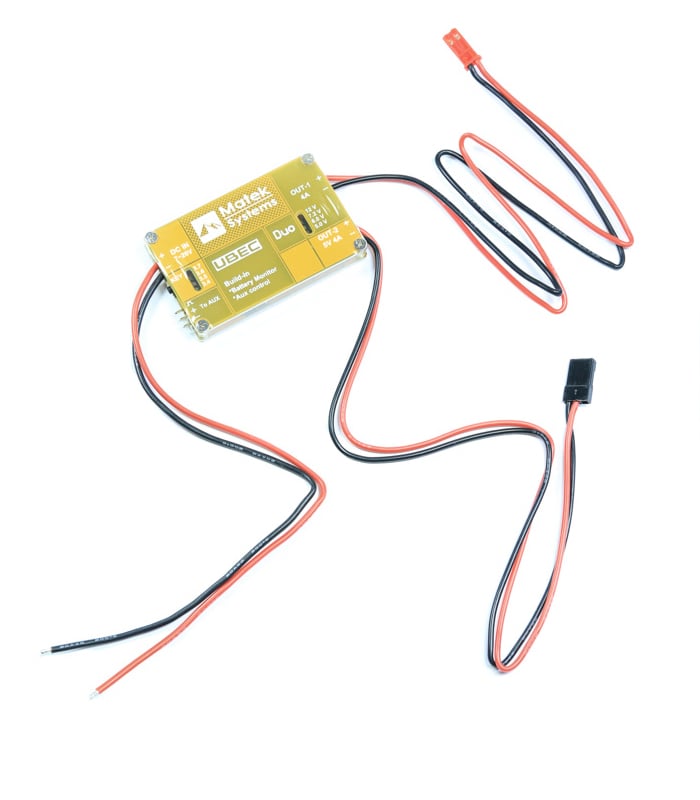

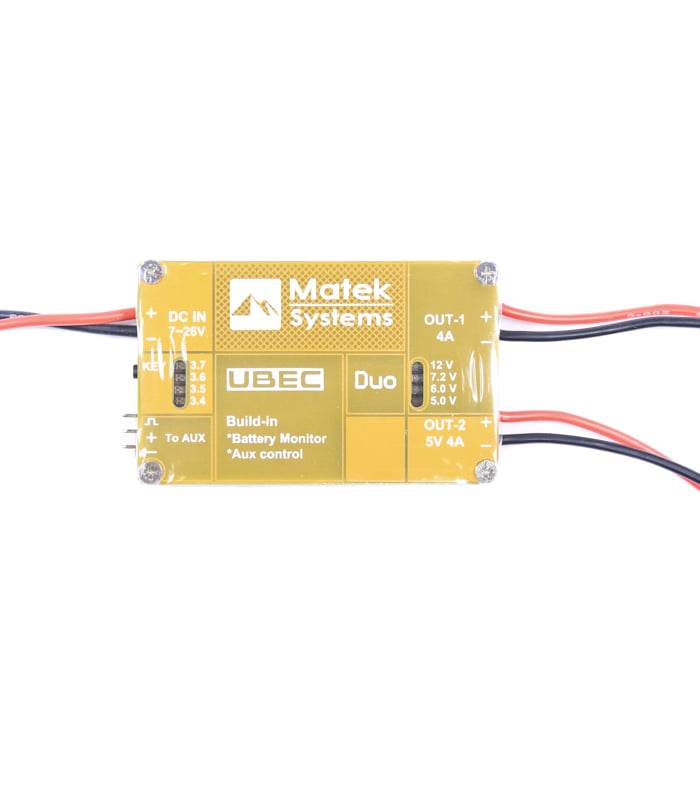

Matek UBEC DUO Dual 4A/5~12V & 4A/5V Outputs with Aux Control
£17.99
We sell a lot of different voltage regulators on Flying Tech, but the Matek UBEC DUO is the one that stands out from them all, simply because it does most things and of course being made by Matek you know it will be reliable.
It provides voltage regulation, noise filtering, voltage monitoring and a RC power on / off function.
The UBEC itself is a 2-6S high-efficiency switching voltage regulator with dual output connectivity, which allows you to power flight tech and additional accessories independently. One output channel is capable of supplying a constant 4Amps at 5V for your RX or Flight Controller. The other channel offers 4Amps with a selectable voltage: output 5V, 6V, 7.2V &12V. This channel also features an inbuilt power switch that is operated by a spare Aux Channel on your radio control. It can be used to power and switch on/off a wide variety of equipment, such as Multi-rotor Gimbals, Video Transmitters, FPV camera systems, HV Servos, navigation/landing lights, bomb drops, etc.
Features
- Switch-mode buck regulator
- Two independent output channels
- 5V Output & 5-12V Output both rated at 4A
- Built-in Aux control (On/Off) function
- Low input voltage alarm & threshold setting
- Output Short-circuit protection
Specifications
- Input voltage range: 7~26V (2~6S LiPoly battery)
- Out-1: 5V, 6V, 7.2V, 12V (adjustable), 0~4A, Max 6A, inbuilt Aux control switch
- Out-2: 5V, 0~4A, Max 6A
- Efficiency: up to 95%
- Standby current: 10mA
- LiPoly voltage alarm setting: 3.4V, 3.5V, 3.6V. 3.7V/Cell & OFF
- Input cable: 20cm (Silicone 20 AWG)
- Output cable: 30cm (2pairs, Silicone, 22AWG)
- Size: 58x36x8mm
- Weight: 32g
In the box
- 1x Matek UBEC DUO
- 1x Aux Control Servo Extension Cable
