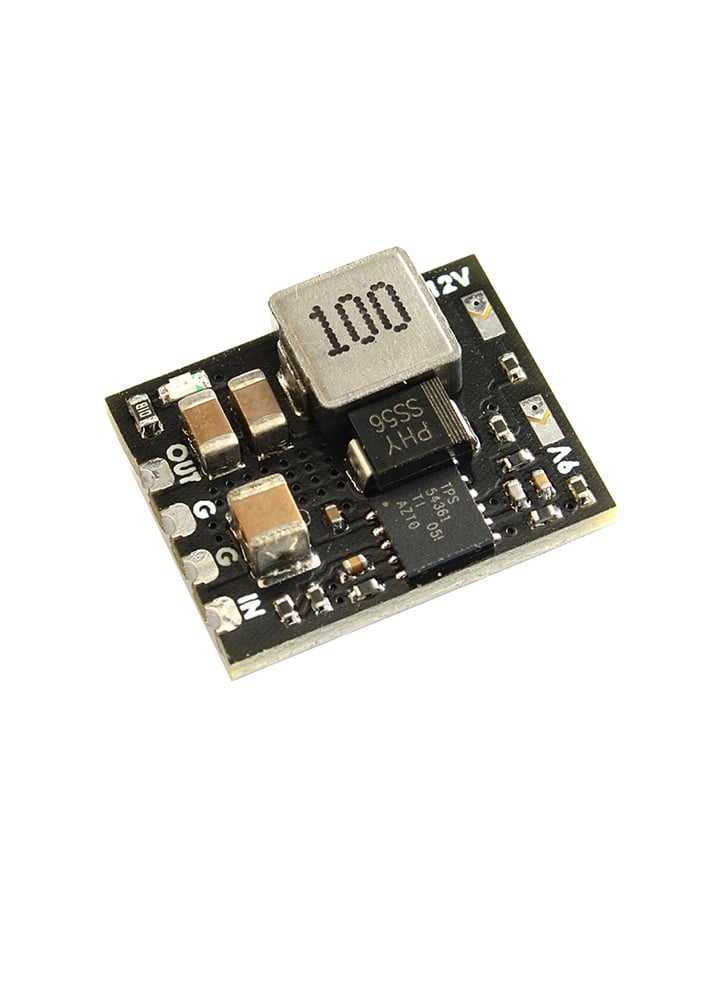

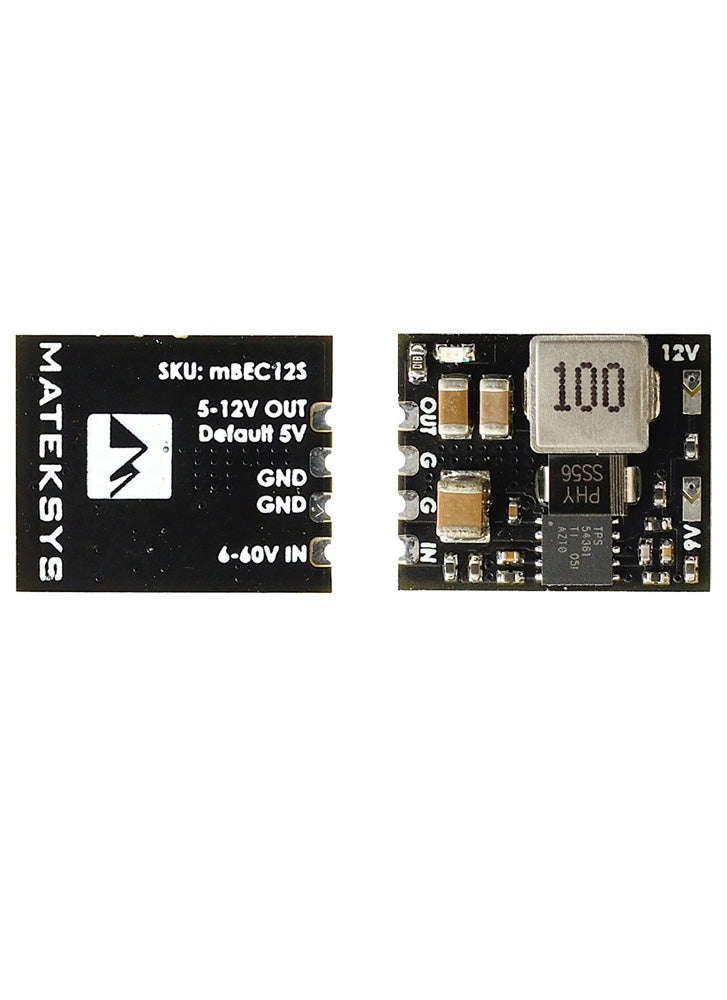

Matek Step Down Micro BEC 6-60V Input – Output 5/9/12V

£8.70

The Matek Micro BEC 6-60V is a syncronous step-down converter with selectable 5V, 9V or 12V output (default 5V). The voltage output of this BEC is selected by a simple solder tab; by default it is set to output 5 volts.The Matek Micro BEC is rated for 1.3A-2.8A continuous current depending on input/output voltage.

Specifications

• Wide 6V to 60V Operating input range
• Start up voltage >=6.7V
• VOut 5V, 9V or 12V ADJ. Default is 5V
• Duty Cycle 100%
• Cont current: Input voltage and heat depending
• Stand current: <5mA
• OCP Protection and Hiccup
• Thermal shutdown
• Output short-circuit tolerant
• No protection for reversed input polarity
• Size and Weight: 18x15x4.5mm 2g

In the box

• 1x Matek Step Down Micro BEC 5V/9/12V (1Pc)
