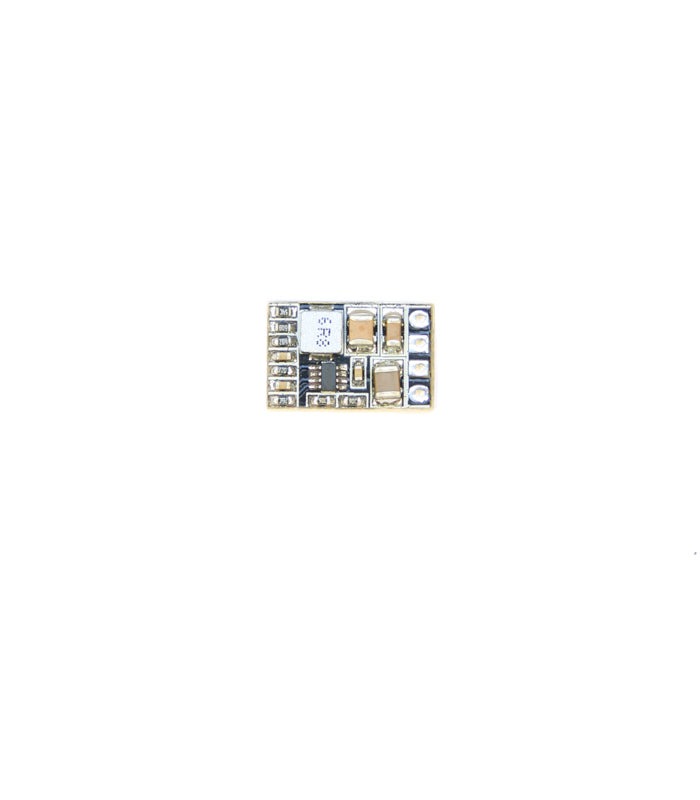

Matek Step Down Micro BEC 1.5A 7-21V Input – Output 5/12V
£5.50
Pretty much every multirotor build requires some sort of voltage regulator to step down the flight battery voltage to a level which is compatible with flight electronics and FPV gear, often running at 5 or 12 volts. This micro BEC (battery eliminator circuit) does just that, it takes an input voltage of 7 – 21 volts and steps it down to either 5 or 12 volts, rated up to 1.5amps. Unlike other regulators which use a potentiometer to control the voltage and require a millimeter to set, the voltage output of this BEC is selected by a simple solder tab; by default it is set to output 5 volts, with the solder tabs connected it will output 12 volts.
If you need a 6S Compatible mini BEC look HERE .
Specifications
- Input Voltage Range: 7-21v
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
- Voltage Out: 5V or 12V Adj. Default is 5V.
- VOut Load Regulation: 2% Standby current: <5mA Maximum Duty Cycle: 95%
- Output Ripple: 20mV(VIn=16V, [email protected] ) 40mV(VIn=16V, [email protected] )
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (5 seconds/minute)
- Pins distance: 2.54mm

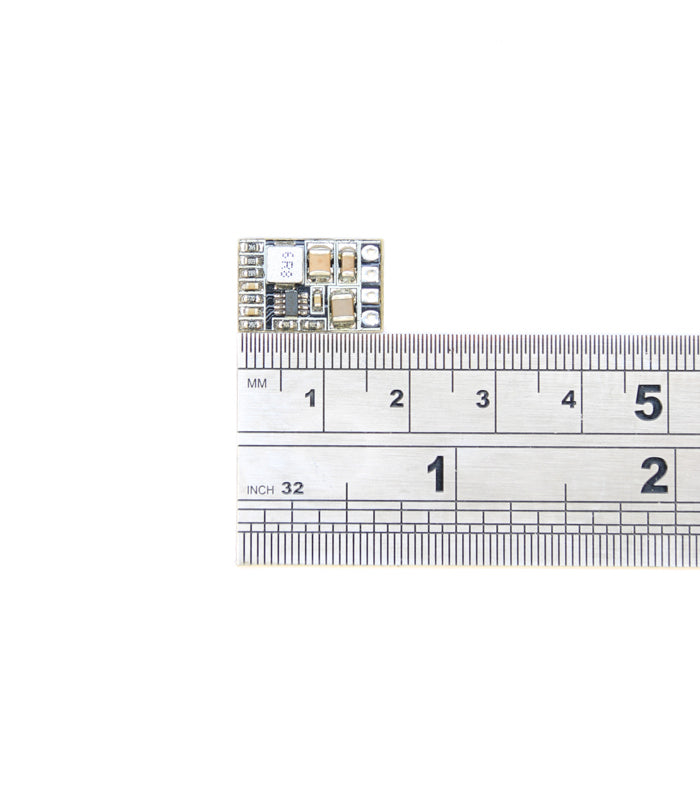

- Size: 11x17x3mm
- Weight: 1g
In the box
- 1x Matek Step Down Micro BEC
