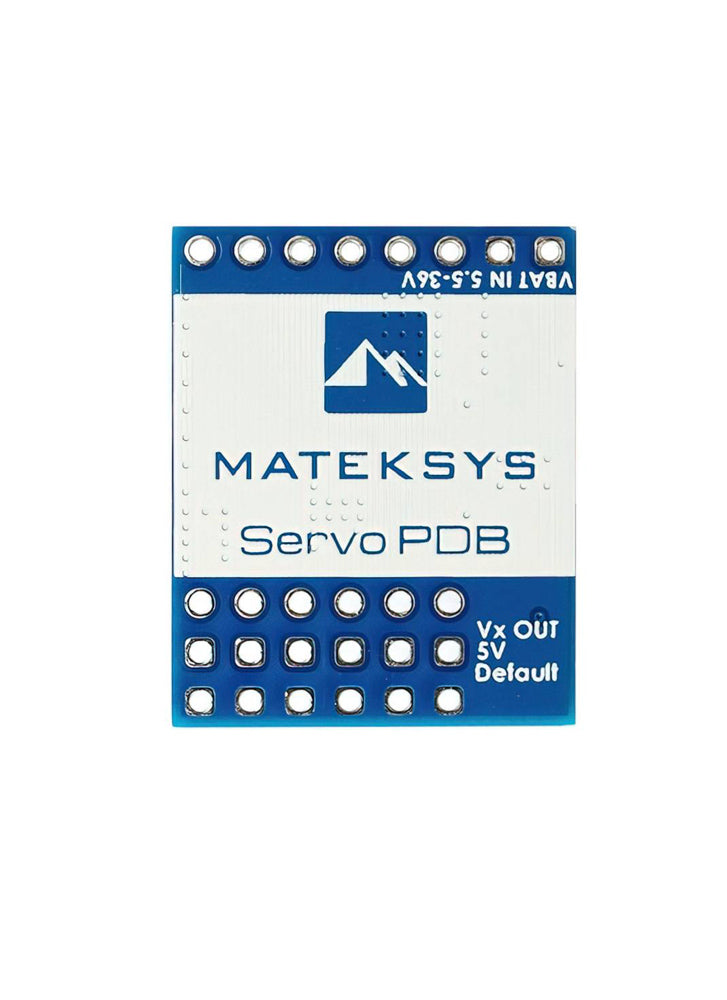

Matek Servo PDB with BEC 5.5-36V to 5-8.2V

£9.90

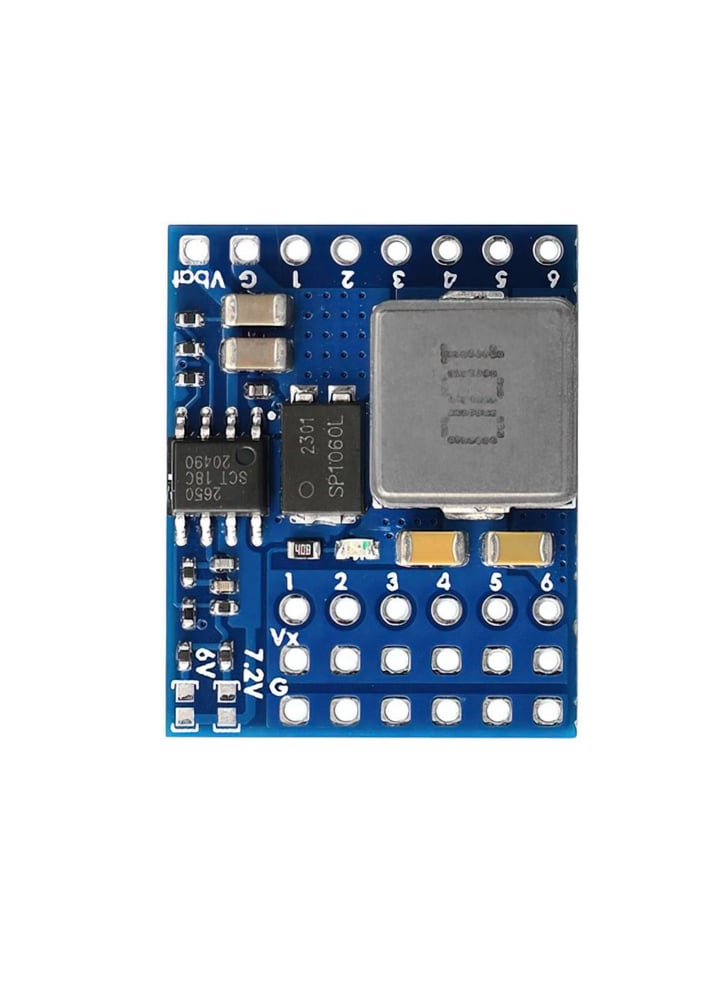

The Matek Servo PDB provides clean voltage regulation for servos and other accessories that require 5-8.2V. The board is useful for applications where the flight controller is without dedicated BEC to power servos or big-scale RC airplanes that have high power demands. The Servo PDB allows servos/escs to be powered external to a flight controller or receiver. It provides 6-PWM outputs and features an onboard BEC with adjustable 5V,6V,7.2V,8.2V output. The Servo PDB is rated at 4A continuous and 7A burst.

Applications :

Flight controllers without dedicated BEC for servos

Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Specifications

• Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
• Vx for servos: 5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
• Output Short-circuit tolerant: 3 seconds
• Continuous load current: 4A / 7A Burst
• Operating Input Range: 5.5V to 36V
• Pins distance: 2.54mm
• Size: 26 x 21 x 5mm
• Weight: 4g

In the box

• 1x Matek Servo PDB w/ BEC 5.5-36V to 5-8.2V (SVPDB-8S)
• 1x Dupont 2.54mm pins
