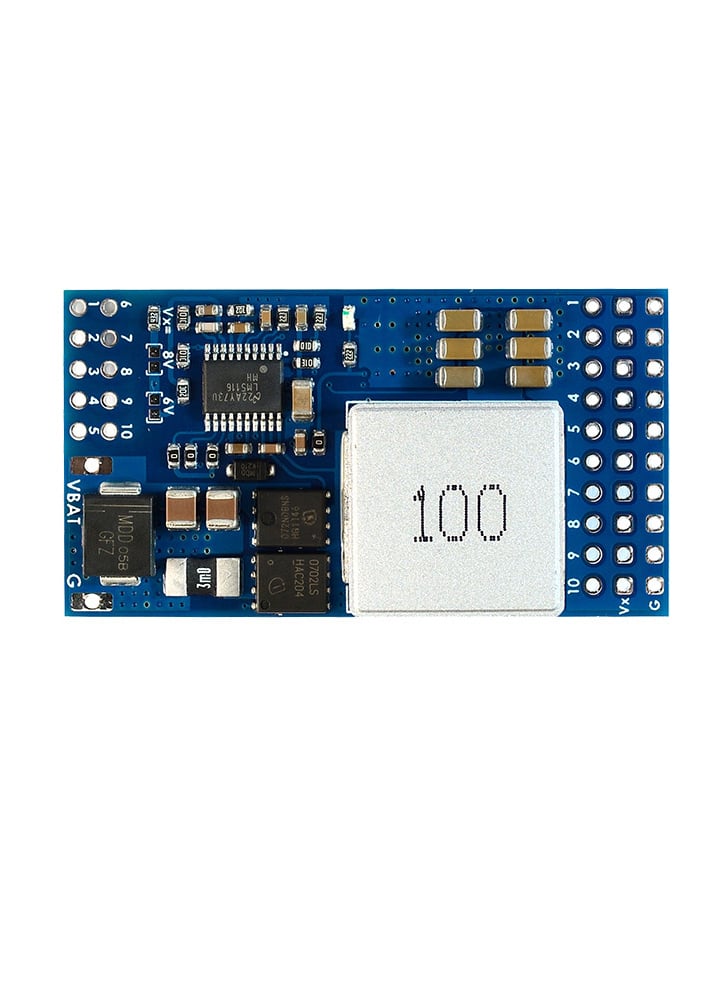

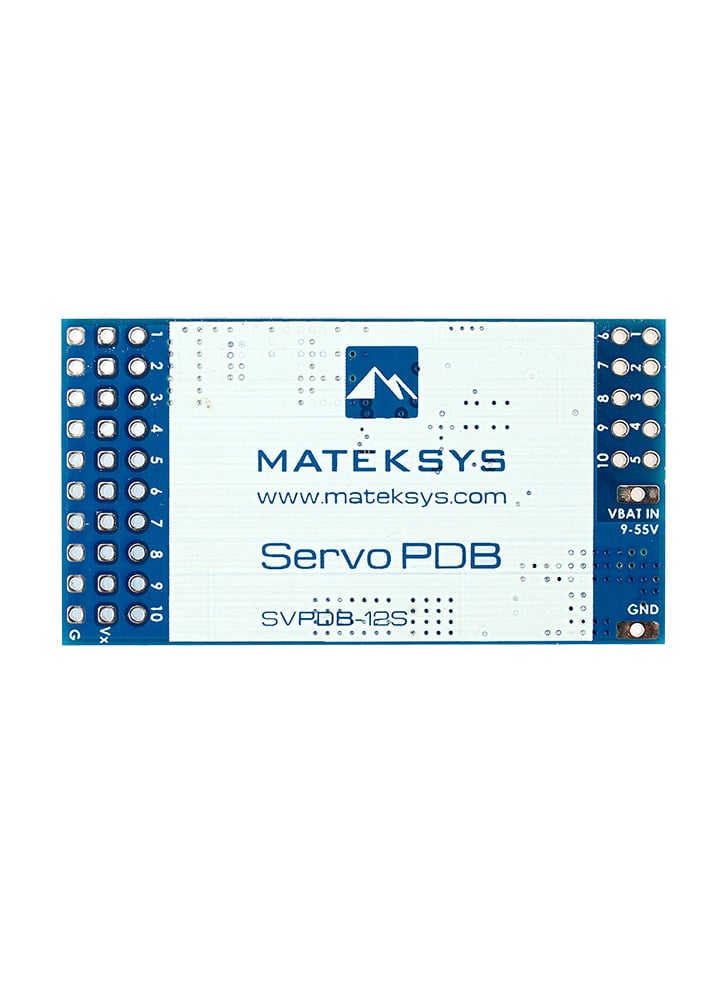

Matek Servo PDB with 12A BEC 9-55V to 5/6/8V

£15.30

The Matek Servo PDB provides clean voltage regulation for servos and other accessories that require 5/6/8V. The board is useful for applications where the flight controller is without dedicated BEC to power servos or big-scale RC airplanes that have high power demands. The Servo PDB allows servos/escs to be powered external to a flight controller or receiver. It provides 10-PWM outputs and features an onboard BEC with adjustable 5V,6V,8V output. The Servo PDB is rated at 12A continuous and 20A burst.

Applications :

Flight controllers without dedicated BEC for servos

Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Specifications

• 9V to 55V Operating Input Range
• Vx for servos,  5V, 6V, 8V Adj. Default is 5V.
• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
• Supports continuous output current of up to 12A ,  peak current of 20A.
• Standby current: 5~10mA
• No protection for reversed input polarity
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Dropout voltage: 2V  (Input>=10V is required for stable 8V output)
• Pins distance: 2.54mm
• Size & Weight: 50 x 27 x 8mm, 18g
• Packing: 1x SVPDB-12S,  Dupont 2.54mm pins shipped unsoldered
