Matek Power Module PM12S-3 9-55V Input 5.25V/6V/8V/12V

£49.90

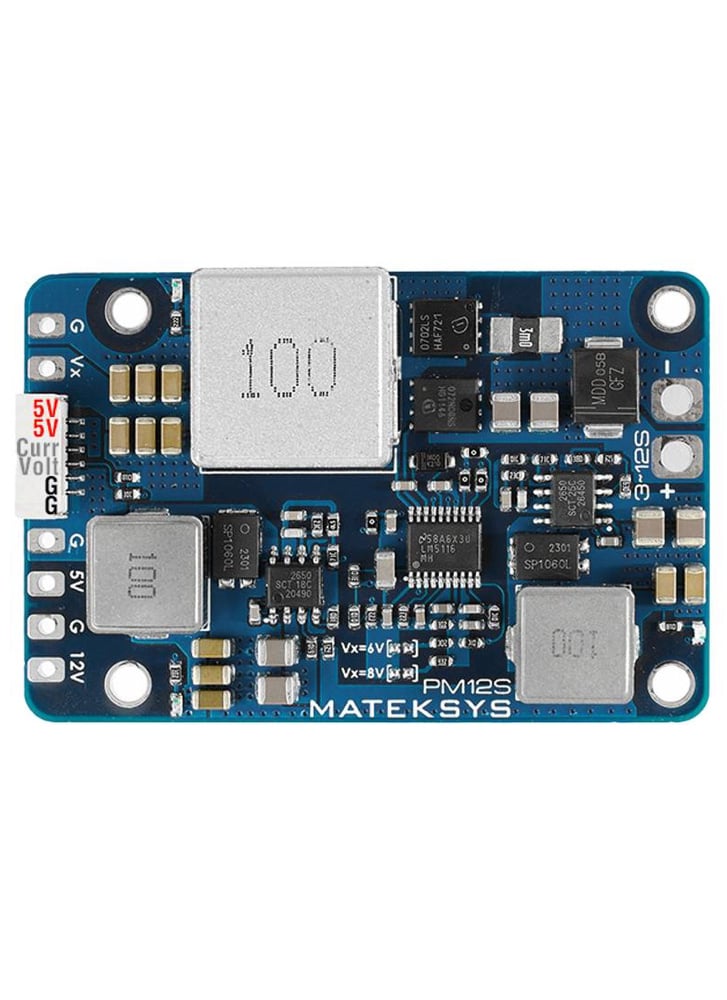

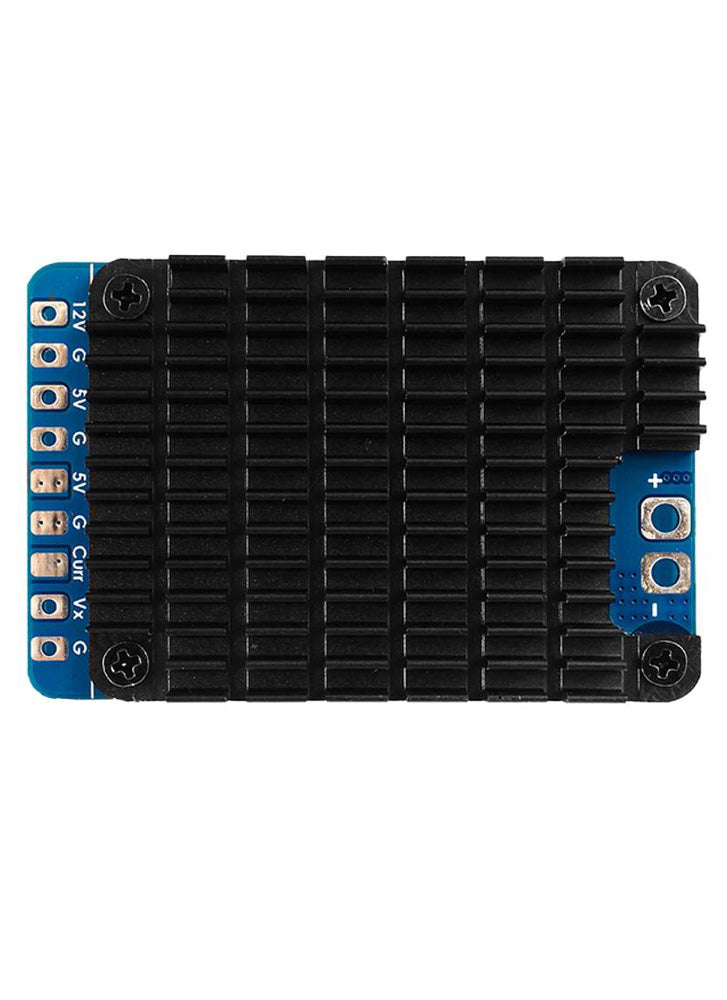

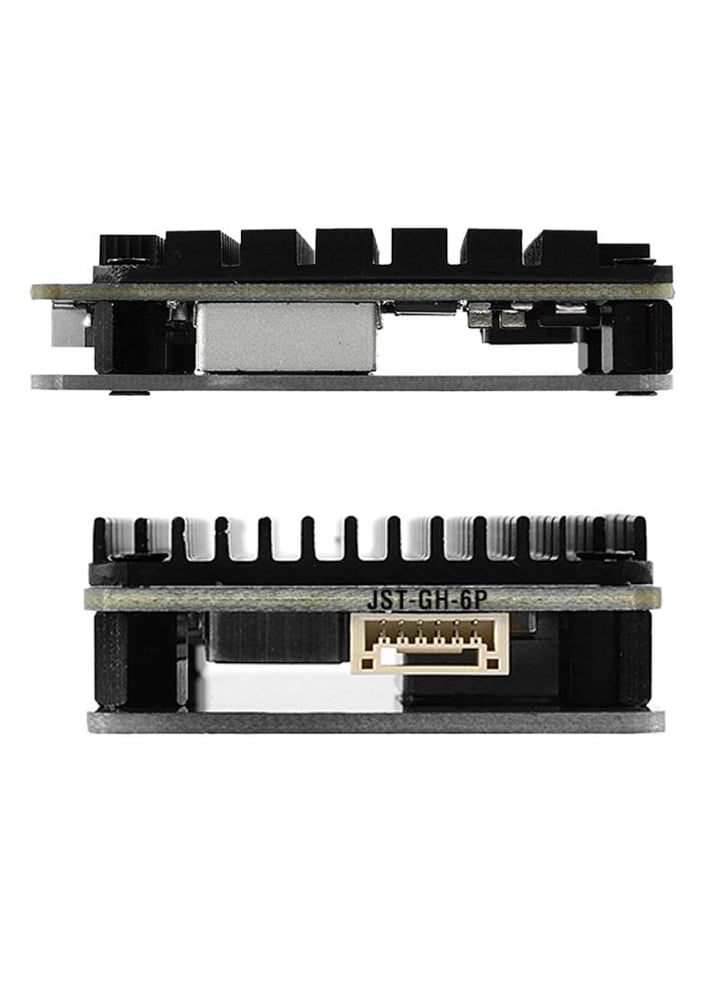

This PM12S-3 from Matek is a high performance power module that can handle high voltage and current (9-55V in, 15A current). It has multiple high capacity outputs 5V/4A, 12V/4A and an adjustable output with 15A continuous current, 25A peak (Vx, 5.25V/6V/8V options). The board has space to add an XT30 connector (not included) for the power input.

Features

• BEC Vx, 5.25V/6V/8V options, 15A cont., 25A Peak 1K:20K voltage divider built-in (Volt 1/21 Input voltage)
• 3x independent Step-Down Voltage Regulators
• BEC 12V, 4A continuous, 6A Peak
• BEC 5V, 4A continuous, 6A Peak
• 9-55V DC IN (3-12S LiPo)

Specifications

• BEC Vx: 5.2V / 6V / 8V output options. supports typical continuous output current of up to 15A, Peak current of up to 25A.
• Operating Input Range with TVS protection: 9V to 55V
• Voltage Divider: 1K:20K (Volt = 1/21 Input voltage)
• Voltage Regulators: 3x independent Step-Down
• BEC 12V: (Fixed), 4A continuous
• BEC 5V: (Fixed), 4A continuous
• Size: 61x40x15mm
• Weight: 53g
• Synchronous switching step-down (or buck) regulator efficiencies: 90% to 96%
• Output ripple: 32mV (VIN=50V, Output 5.25V @ 15A), 43mV (VIN=50V, Output @ 5A)
• Supports typical continuous output current: Up to 15A, Peak current of up to 25A.
• Reverse Input voltage protection: NoOutput voltage tolerance 1.5%
• Output voltage: 5.25V / 6V / 8V options.
• Output Short-circuit tolerance: 2 seconds
• Standby current: 10~20mA
• Output ripple: 20mV (VIN=24V, Output @ 5A), 50mV (VIN=50V, Output @ 5A)
• Continuous output: current of up to 4A, Peak current of 6A
• Output Short-circuit tolerance: 2 seconds
• Reverse Input voltage protection: No
• Output voltage: 5.2V, tolerance 1.5%
• Output ripple: 18mV (VIN=24V, Output @ 5A), 32mV (VIN=50V, Output @ 5A)
• Continuous output current: Up to 4A, Peak current of 6A
• Tip: Input voltage >= 13V is required for stable 12V output
• Output Short-circuit tolerance: 2 seconds
• Reverse Input voltage protection: No
• Output voltage: 12V, tolerance 1.5%

In the box

• 1x Matek PM12S-3 Power Module
• 1x Low ESR capacitor ZLJ 63v 390uf
• 1x PM12S-3
