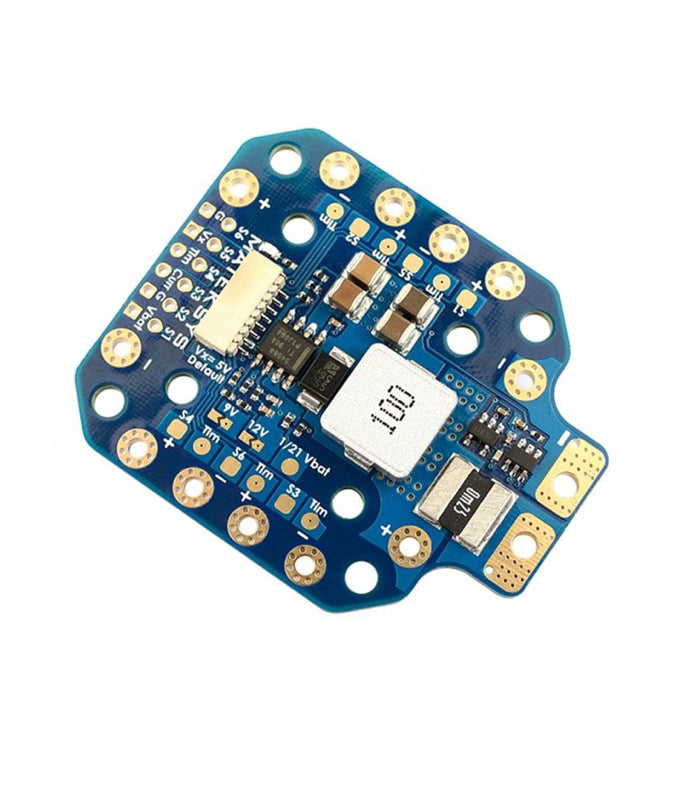

Matek PDB-HEX 2-12S PDB w/ BEC & Current Sensor
£19.90
Matek’s latest HEX-PDB is capable of handling high power draws necessary to push UAV’s or X-Class drones. Capable of providing power for a hexacopter or quad this PDB is capable of handling 140A continuous current and 264A burst current.
It has both 30×30 and 20×20 mounting patterns.
Specifications
- Input voltage range: 6~60V (2~12S LiPo)
- PDB/current sense resistor: 140A cont, 264A burst.
- ESC power pads: 60A cont. 100A burst
- Current Senor: 264A, 3.3V ADC
- Current Scale 125(INAV/BF), BATT_AMP_PERVLT 80 (ArduPilot)

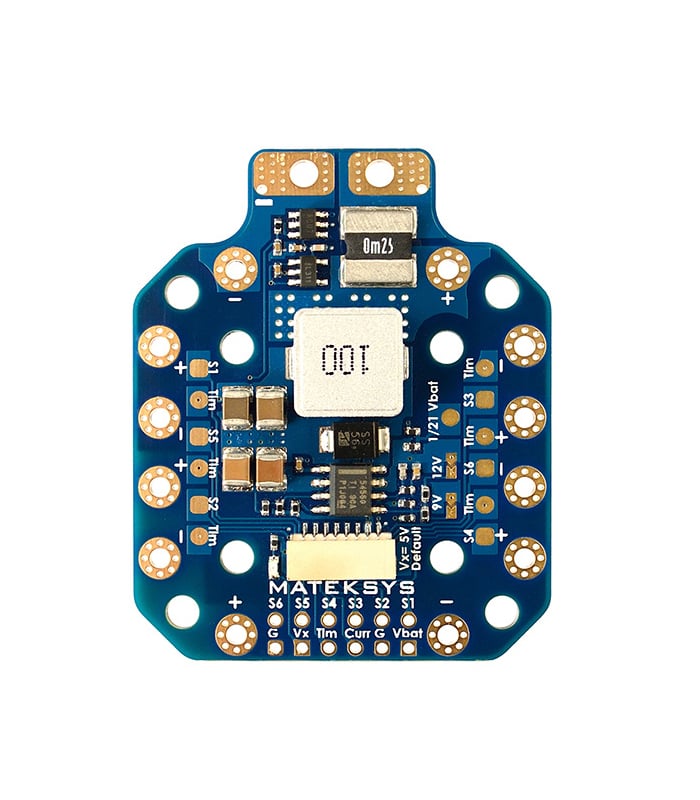

- Vbat: Battery voltage
- G: ground
- Curr: current signal
- Tlm: Duplicates Tlm pads for ESC telemetry
- S1/S2/S3/S4/S5/S6: ESC signal
- Vx: Regulator output
- Vx= 5V by default, Continuous 5 Amps
- Bridge 9V jumper, Vx= 9V, Continuous 4 Amps, Max.5A
- Bridge 12V jumper, Vx= 12V, Continuous 4 Amps, Max.5A
- Output Short-circuit tolerant (1 seconds)
- Overcurrent protection & self-recovery
- 1K:20K resistors
- Output 1/21 Vbat voltage

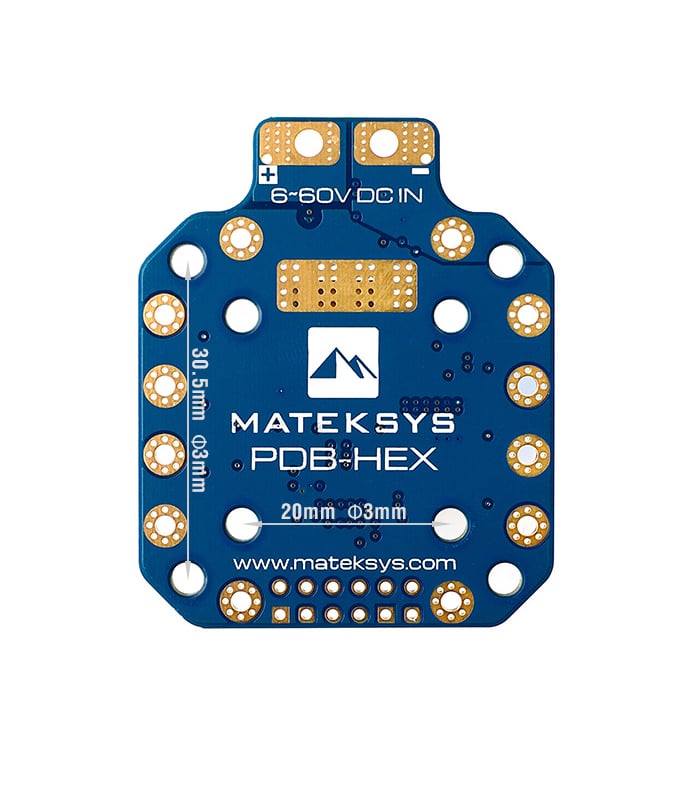

- Mounting: 30.5 x 30.5mm, 20 x 20mm, Φ3mm
- Dimensions: 49 x 40 x 6 mm
- Weight: 12g
In the box
- 6x ESC power /signal/ telemetry pads
- 1 x PDB-HEX 2-12S PDB w/ BEC
- 1 x Rubycon ZLJ 63V 390uF
- 1 x JST-SH1.0_8pin cable, 5cm
- 2 x JST-SH1.0_8pin connectors
