Matek Mini Quad PDB with 5V & 12V BEC Outputs (36x36mm)
£5.90

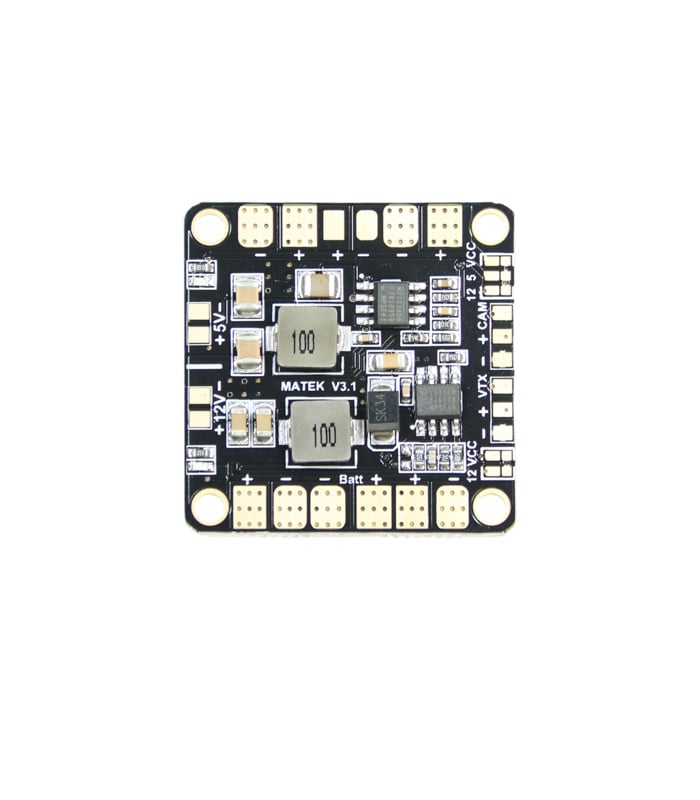

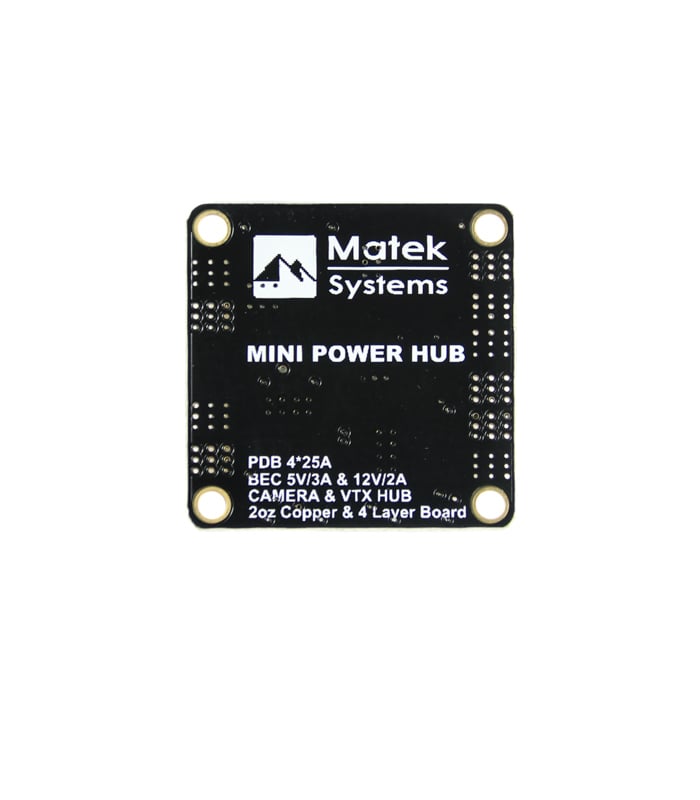

Matek’s mini power distribution board (PDB) has been engineered to provide the highest possible performance and reliability in a 36*36mm, 4 layered PCB. The power hub distributes power from a battery pack to 4 ESCs, as well as providing regulated 5 and 12 volt DC power outputs for powering electronics such as a flight controller, camera, servos, video transmitter, LEDs, etc. Both BECs are compatible with 2-6S LiPo. The 5V BEC is rated at 3amps continuous and the 12V BEC can provide 2 amps continuous. The board has dedicated connections for a FPV camera and a FPV video transmitter (VTX), with solder jumpers that let you select their output voltage (5/12v). So you can use a 5v camera with a 12v VTX, or a 12v camera with a 12v VTX. The board is a standard 36mm sized PDB, so you can stack it cleanly with the CC3D, Naze and most other board type flight controllers. If you require a smaller PDB, Matek’s micro PDB has all the functions of this PDB, except for the dedicated FPV connections.
Features
- Regulated 5V & 12V BEC outputs
- Dedicated FPV camera & VTX connections
- Output LED indicators & short circuit tolerant
- High quality 2oz copper, 4 layer PCB construction
- Perfect for mini quads

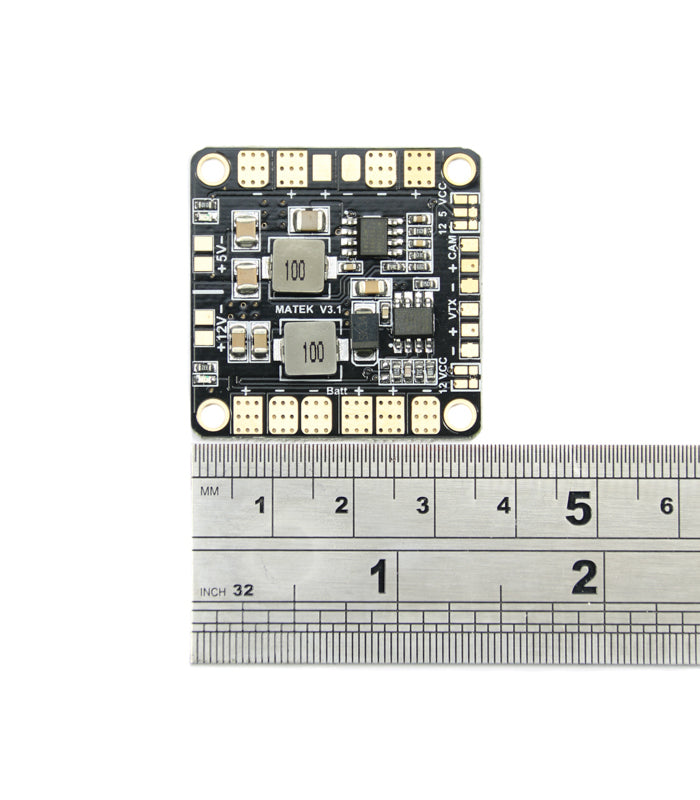

- 36x36mm with 30.5×30.5mm holes (stackable with Naze32, CC3D etc.)
- New
- Matek PDB – with Integrated XT60 Power Connector
Specifications
- Input voltage range: 3S-6S operation (9 – 26V DC)
- BECs: Regulated 5V and 12V
- Construction: 2oz copper & 4-layers PCB
- Dimensions: 36 x 36
- Weight: 6g
- Continuous current: 20A per output
- Peak current (10 seconds/minute): 25A per output
- Designed for RC Receivers, Flight controllers, OSD, and Servos.
- DC/DC synchronous buck regulator, efficiency is up to 95%.
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 3 Amps
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation)
- The battery should be 4S~6S LiPo
- Standard output designed to power cameras and video transmitters,etc.
- Voltage: 12.0 +/- 0.2VDC
- Continuous current: 2 Amps (Max.3A 10s/minute)
- Short-circuit tolerant (10 seconds/minute)
- LED (indicates voltage is in regulation)
- 3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage. –
- 4~6S operation, choose “12” for 12V camera & 12V VTX
- 3~6S operation, choose “5” for 5V camera
- Video pass through from the “CAM” pad to the “VTX” pad
In the box
- 1x Matek Mini Quad PDB with 5V & 12V BEC Outputs
