Matek H743 Mini V3 20×20 Flight Controller

£93.60

FLIGHT CONTROLLER H743-MINI V3

STM32H743VIT6 , ICM42605 & ICM42688, DPS310, OSD, 5.5x UARTs, 2x I2C, 1x CAN, 11x PWM outputs, BEC5V, BEC8V

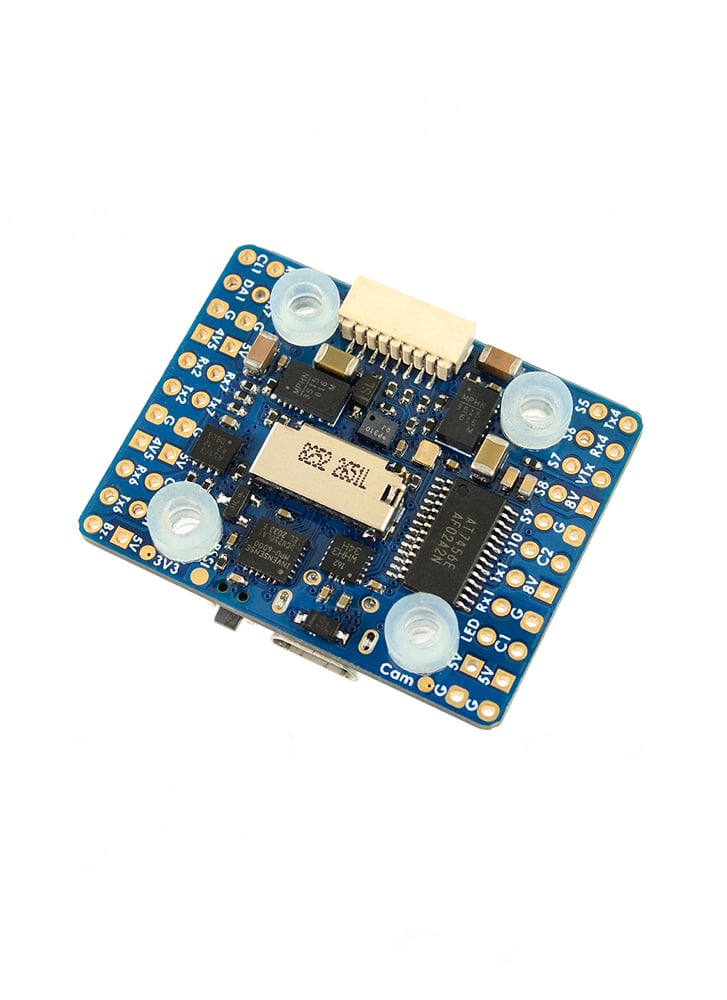

A mini flight controller, but carrying the power and features of a larger FC! The H7 processor running at 480MHz means no job is too big for this mini flight controller. The capable processor is matched with dual gyros (MPU6000 & ICM42605), an Infineon DPS310 barometer, built in AT7456E OSD (On Screen Display), 11 PWM outputs, 5.5x UARTs, 2x I2C, 1x CAN, two on board voltage regulators, a 5V and 8V (can be used for DJI FPV), switchable camera inputs and finally a MicroSD card slot for blackbox logging. The FC is supported by ArduPilot, BetaFlight and iNav. Measuring 36x28x6.5mm, with 20x20mm mounting holes, this is a full-featured and very worthy choice for anyone looking for a flight controller that can work on quads or wings.

Current version is V3.

What is new on the H743-mini V3:

ICM42688-P+ICM42605 instead of MPU6000+ICM42605

PWM 10 & 11 instead of PWM9 & 10 (V1/V1.5)

Other functions, layout and components are same as previous board version

H743-mini V3 has betaflight_4.3.0 preloaded for QC

Specifications

• MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
• IMU: ICM42688-P (SPI1) & ICM42605 (SPI4)
• Baro: Infineon DPS310 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card socket (SDIO)
• 5.5x Uarts (1,2,4,6,7, Rx8)
• Dual Camera Inputs switch
• 8V power ON/OFF switch
• Vbat Input: 6.3~36V (2~8S LiPo)
• BEC: 5V 1.5A cont. (Max.2A)
• BEC: 8V 1.5A cont. (Max.2A), 8V outputs stable when Vbat>=10V, 8V outputs 80% of Vbat when Vbat< 10V
• LDO 3.3V: 200mA
• VB2 pad supports Max. 69V (voltage divider 1K:20K)
• Static power: 200mA@5V with Betaflight, 150mA@5V with ArduPilot
• ArduPilot(ChiBiOS): MATEKH743
• BetaFlight: MATEKH743
• INAV: MATEKH743 (To be supported soon)
• Mounting 20 x 20mm/Φ3mm with Silicon Grommets 20 x 20mm/Φ2mm with Silicon & Brass Grommets

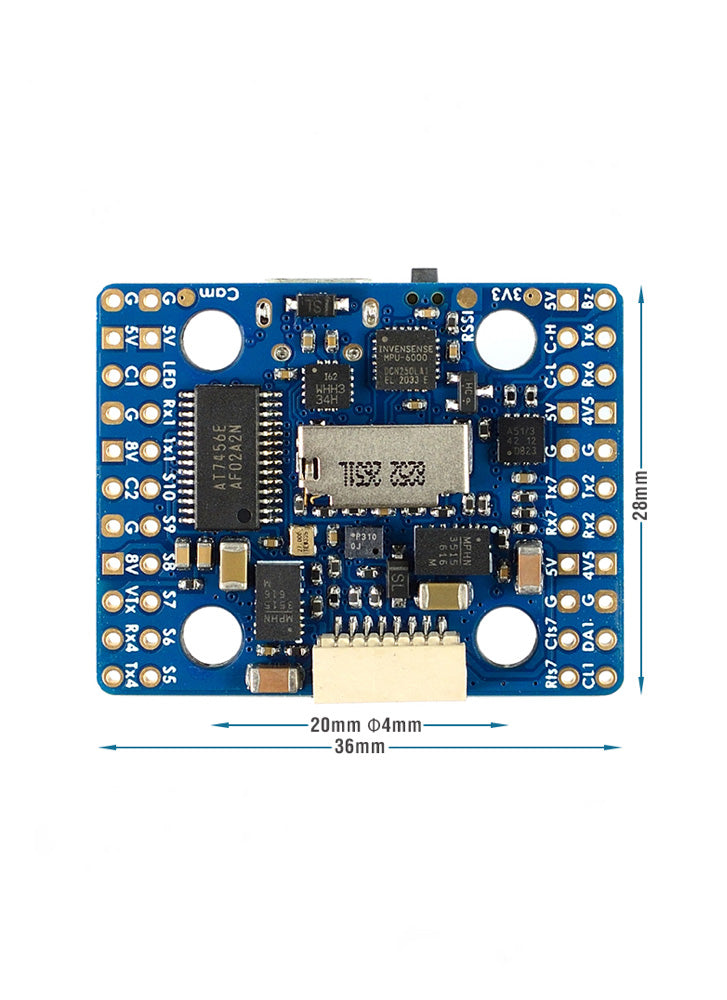

• Dimensions: 36 x 28 x 6.5mm
• Weight: 7g

In the box

• 11x PWM outputs(S1~S10, LED)
• 2x I2C (I2C1/DA1 CL1 pads, no I2C2 breakout)
• 1x CAN (C-H, C-L pads)
• 5x ADC (VBAT, Current, RSSI, VB2, CU2)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
• 20 x 20mm/Φ3mm with Silicon Grommets
• 20 x 20mm/Φ2mm with Silicon & Brass Grommets
• 1 x H743-MINI V3
• 6 x Silicon grommets M4 to M3
• 6 x Brass grommets M3 to M2
• 1 x JST-SH1.0_8pin cable, 5cm
• 2 x JST-SH1.0_8pin connectors
