Matek GNSS SAM-M10Q GPS Module
£28.90

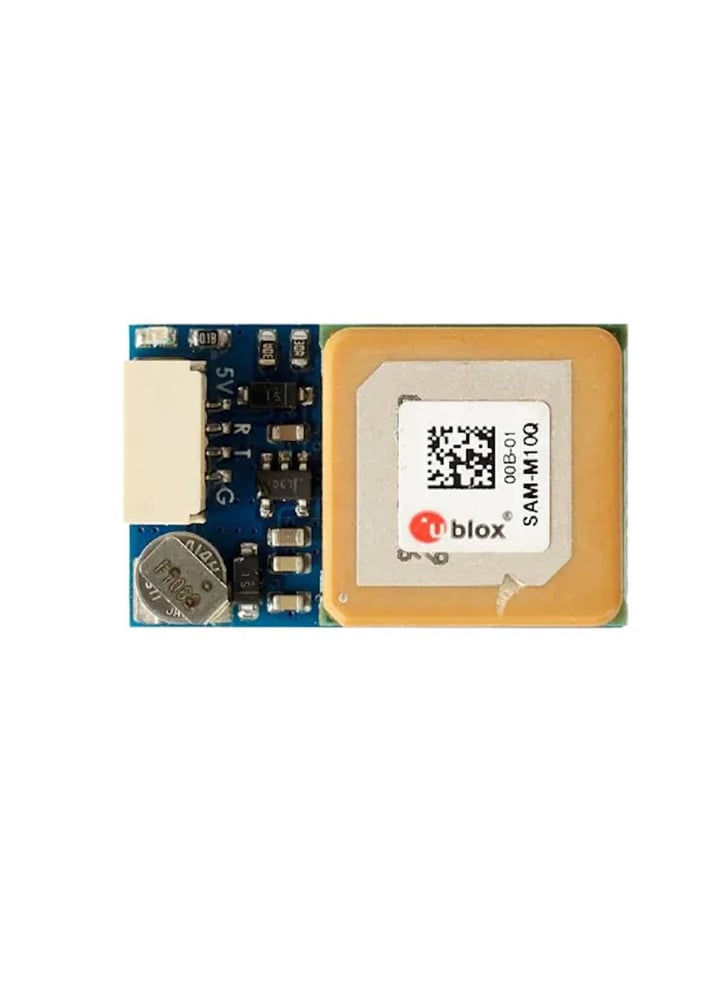

The Matek SAM-M10Q GPS replaced the popular SAM-M8Q edition, now being powered by the U-Blox’s state-of-the-art SAM-M10Q-00B multi-constellation GNSS module. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximises the position availability, in particular under challenging conditions such as in challenging urban environments. It also features U-Blox’s Super-S (Super-Signal) technology which offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios. The module is compact, most of its size being a high-gain 15 x 15 mm2 patch antenna, which provides the best balance between performance and small size.
Please note this module doesn’t not have a built-in Magnetic Compass. For GPS with Compass please see Matek GNSS GPS & Compass Module M10-5883 .
Features
- Simple design-in with no RF expertise required
- Less than 38 mW power consumption without compromising GNSS performance
- Maximum position availability with 4 concurrent GNSS reception
- Advanced spoofing and jamming detection
- Pin-compatible with previous SAM-M8Q
Specifications
- GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
- No Magnetic Compass built-in
- Patch antenna 15 x 15 x 4mm
- Input voltage range: 4~9V (5V pad/pin)
- Power consumption: 10mA
- UART baudrate: 9600 default
- Operating Temperatures: -20~80 °C
- UART(TX, RX) interface for GNSS SAM-M10Q-00B
- JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch
- GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
- Protocol: UBX(u-blox) 5Hz@GPS +GAL+BDS B1C+GLO or NMEA 1Hz

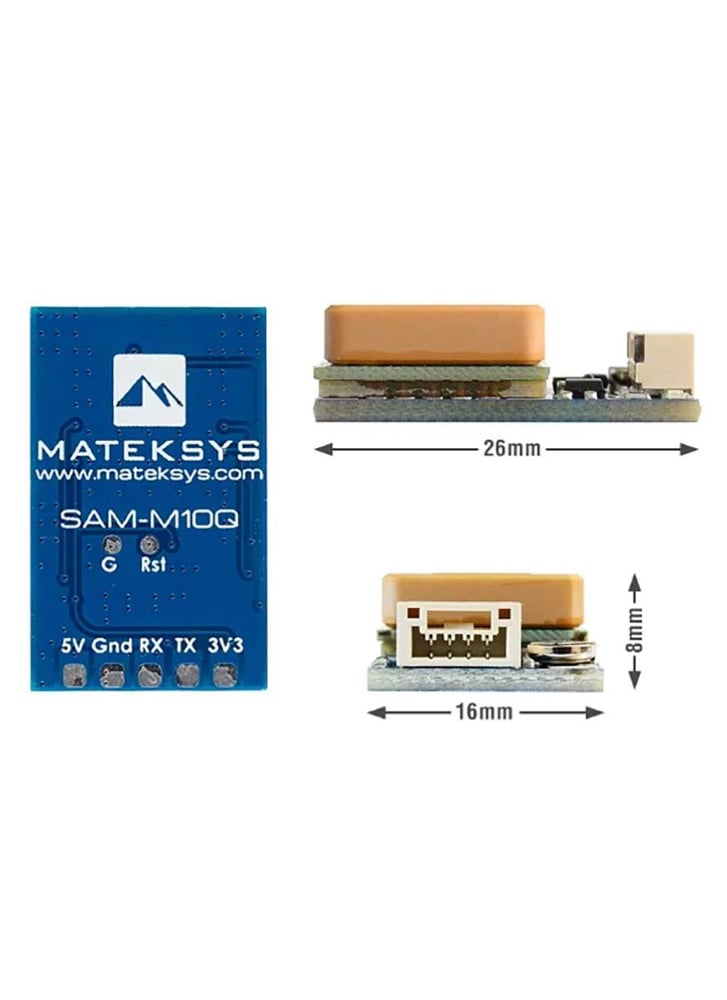

- Size: 26mm x 16mm x 8mm
- Weight: 7.5g
- SAM-M10Q_step.zip
In the box

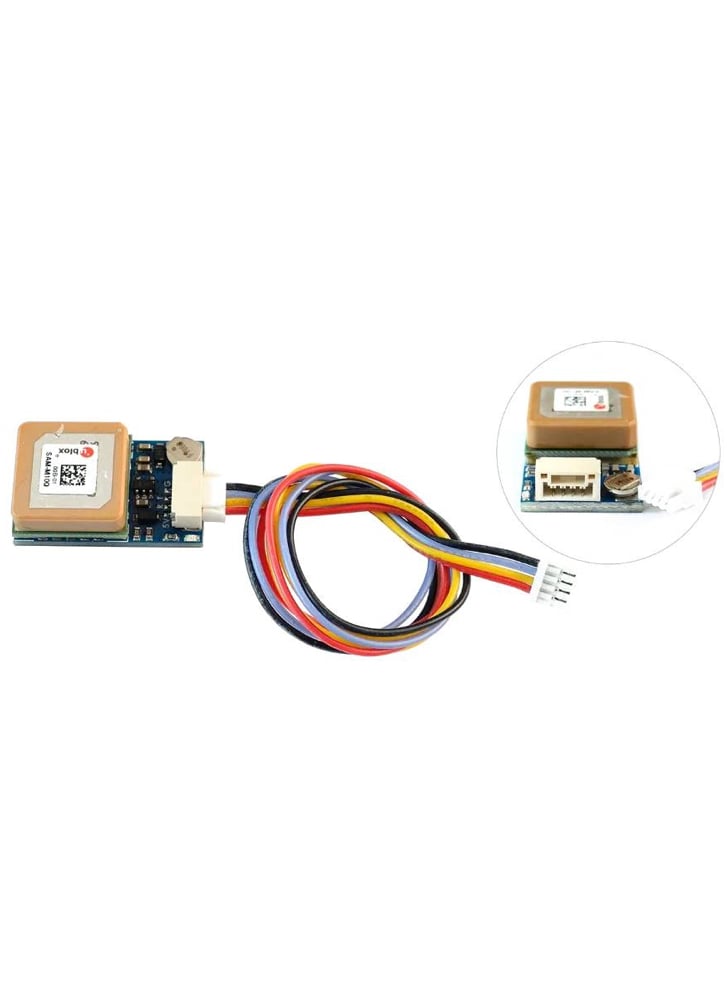

- 1x Mateksys GNSS SAM-M10Q GPS Module – Gallileo/GLONASS/BeiDouB1C
- 1x JST-GH-4P to JST-GH-4P 20cm silicone wire
