Matek FCHUB-12S V2 PDB with 440A Current Sensor & Dual BEC for X Class Quad
£27.90
XCLASS PDB FCHUB-12S
This is the second version of the Matek FCHUB-12S PDB. It has an 8pin JST-SH connector as well as a 1K:20K voltage divider.
There’s a new exciting class of quadcopters emerging in this hobby called X Class. It’s basically a giant racing quad, measuring about 800mm to 1200mm. With the greater size much more powerful motors can be used, but that calls for a PDB which can handle lots of power and hence the need for the Matek FCHUB-12S. This is a seriously capable PDB, it can take up to 12S voltage and has a current rating of 280A continuous / 440A burst. The PDB integrates everything else you need from a PDB, so regulated 3.3V, 5V & 12V outputs and current sensing. The PDB can be connected to compatible FCs via the JST-SH connector.
Features
- Designed for X Class Quadcopters
- Wide Voltage Support 8-60V (3-12S LiPo)
- 280A Current Rating / 440A Burst
- Regulated Voltage Outputs: 3.3v (linear), 5V & 12V
- Switchable 12V Output – can be used as a VTX Power Switch
- 440A Current Sensing / VBAT for FC Voltage Detection
Specifications
- Input voltage range: 8~60V (3~12S LiPo)
- 4x70A cont, 4x110A burst
- Current Senor: 440A, 3.3V ADC, Scale 75
- 1K:20K voltage divider built-in
- “V” pad: 12V or VBat voltage selectable
- G: GND
- Curr: current sensor signal
- TLM: for BlHeli32 ESC telemetry
- S1~S4: ESC signal
- Voltage: 5.0 +/- 0.1VDC
- Continuous current 5 Amps, Max.6A
- Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
- Continuous current 4 Amps, Max.5A
- Input voltage<12V, Output voltage = Input voltage
- Probably there is audible sound in the BEC12V inductor when Input voltage<12V
- Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- 12V ON/OFF can be switched via PINIO
- can be use for powering VTX,LED etc.
- Linear Regulator
- Continuous current: 500mA

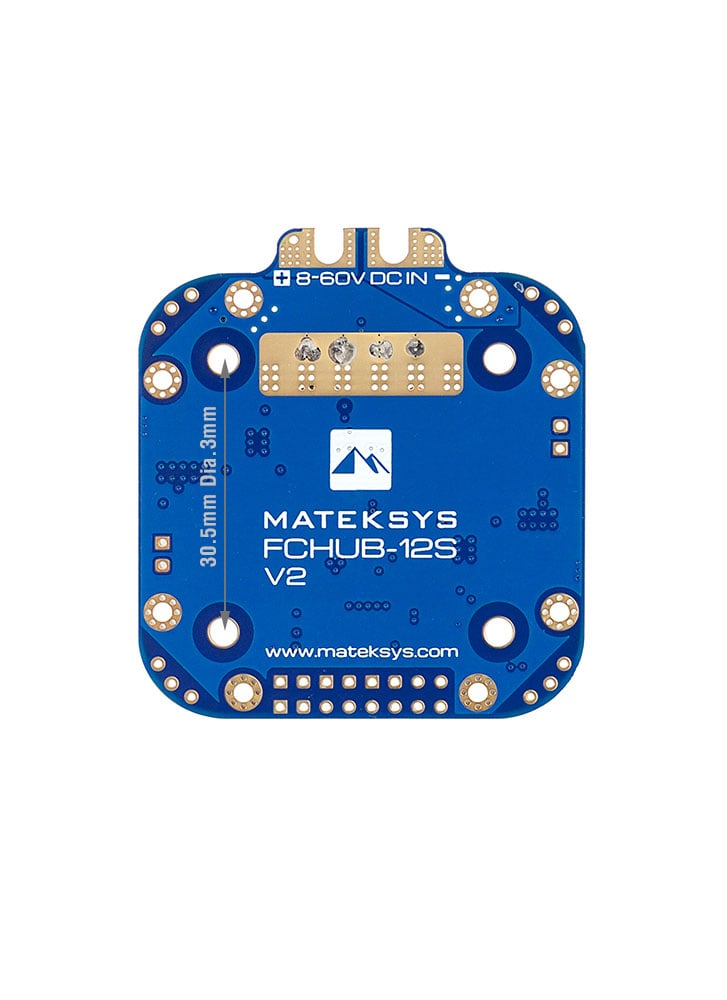

- Mounting: 30.5 x 30.5mm, Φ3mm
- Dimensions: 55 x 50 x 6 mm
- Weight: 21g
- Nylon mounting fixtures
In the box
- 4x ESC power / signal / telemetry pads
- 2x LED indicators for 5V, 12V

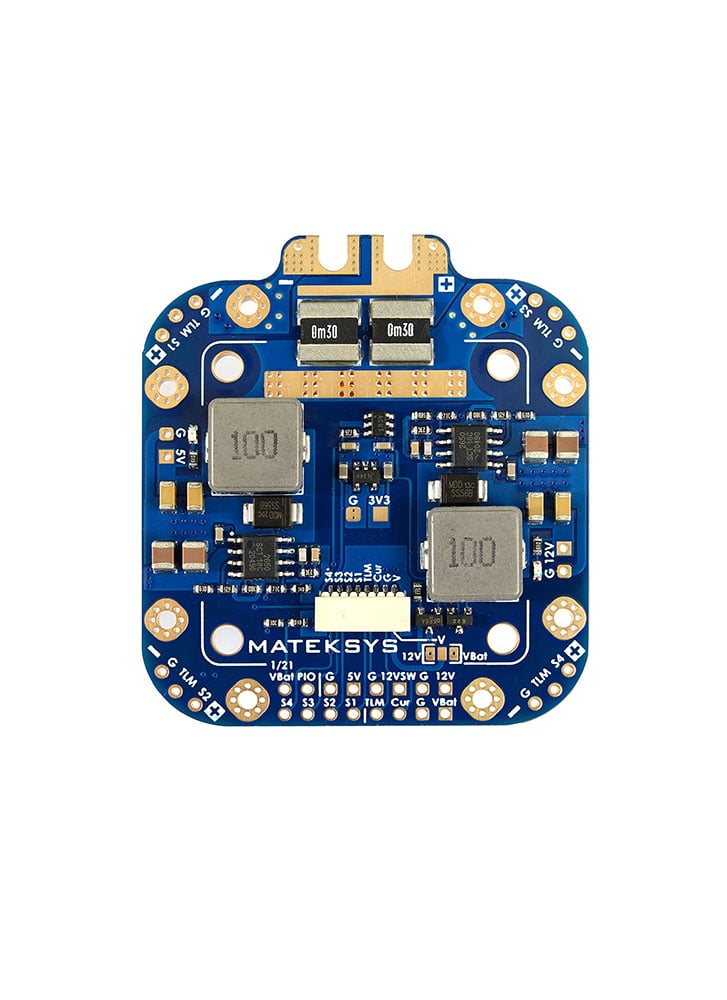

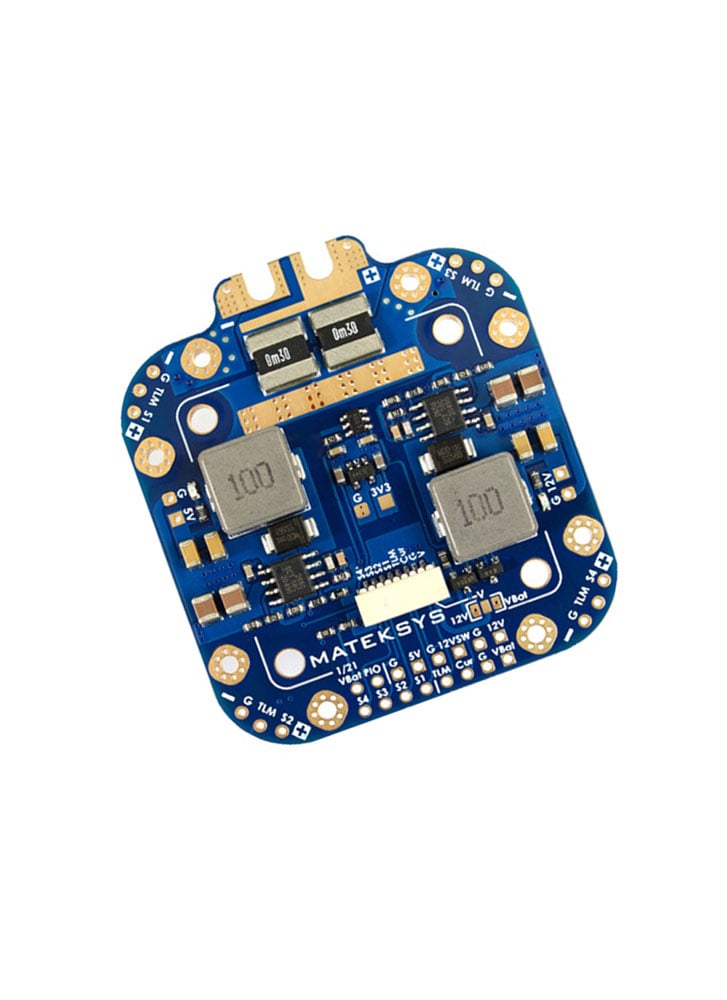

- 1x Matek FCHUB-12S PDB (Power Distribution Board) V2
- 1x Capacitor
