Matek F405-WMO Wing Flight Controller
Matek F405-WMO Wing Flight Controller

Matek F405-WMO Wing Flight Controller

£53.90

Flight Controller F405-WMO

STM32F405RGT6, ICM42688P, SPL06, OSD, SD slot, 4×UARTs, 9×PWM, 1×I2C, 2×ADC

Compact F405 flight controller for fixed-wing and VTOL aircraft with integrated PDB, current sensor and SD blackbox logging.

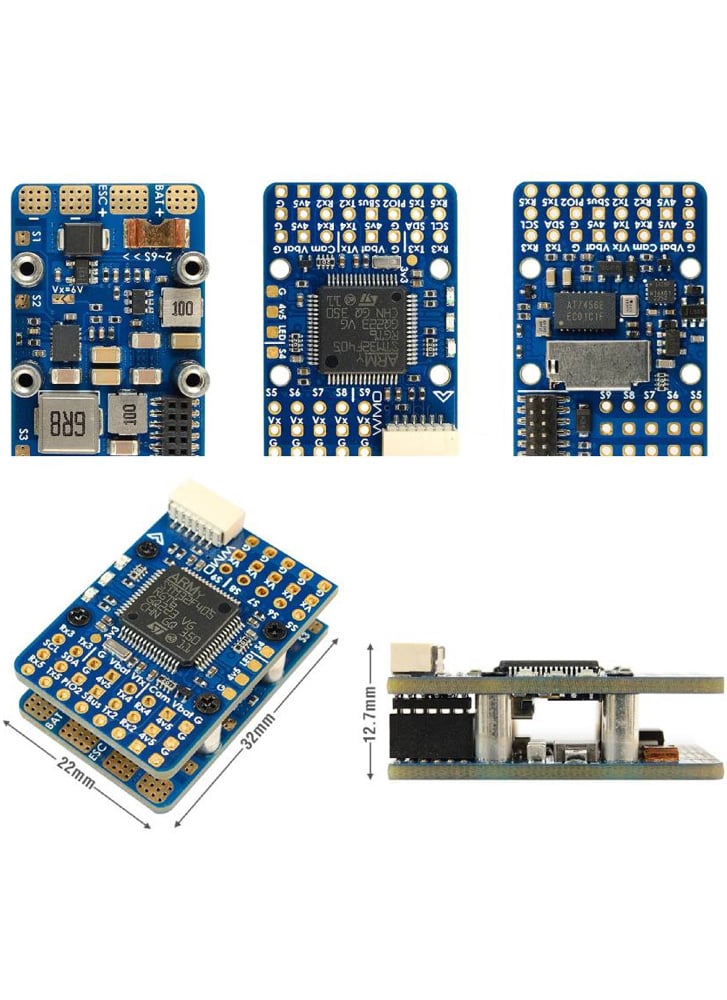

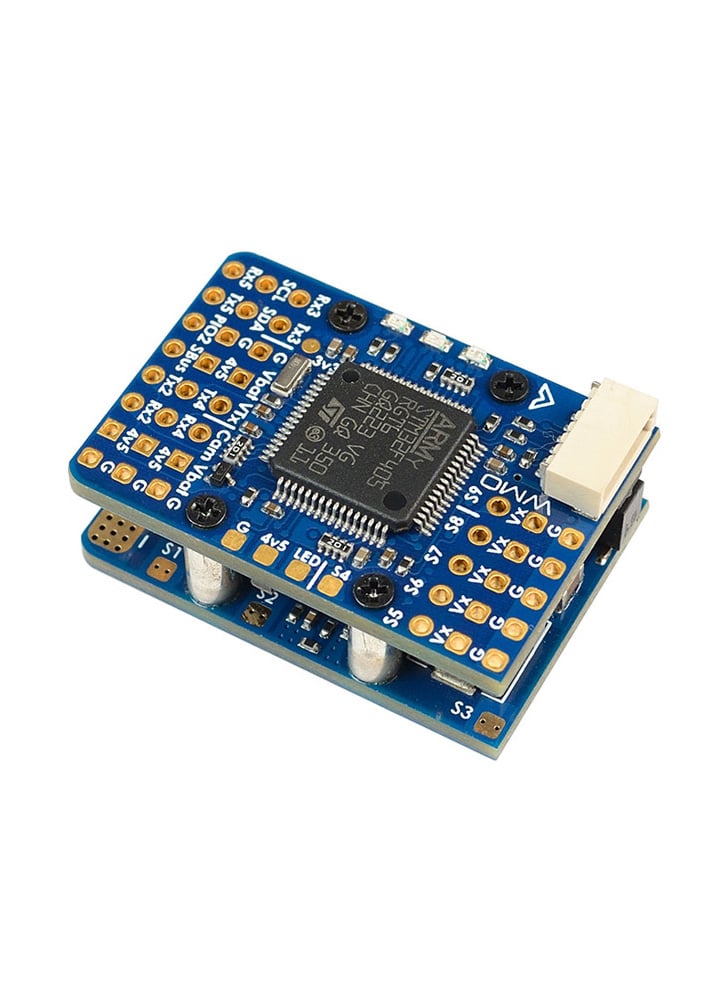

The Matek F405-WMO Wing Flight Controller is a compact all-in-one autopilot designed for fixed-wing UAVs, RC aircraft, and VTOL platforms. Built around the reliable STM32F405 processor , it combines flight control, power distribution, and sensor integration in a lightweight two-board stack.

The controller includes the modern ICM-42688-P gyro and a SPL06 barometer , providing accurate attitude and altitude data for stable flight performance. A microSD card slot allows full blackbox logging, making it easy to analyse and tune aircraft behaviour.

The integrated power distribution board (PDB) supports 5.4–30V input (2–6S LiPo) and includes a 90A current sensor , along with onboard regulators providing 5V/2A for the flight controller and Vx/7A for servos and peripherals .

Connectivity is designed for flexible aircraft builds, offering 10 PWM outputs , 4 UARTs , I²C support , and ADC inputs for voltage and current monitoring . The board also includes filtered VBAT output for video transmitters , helping deliver clean power for FPV systems.

With its compact size, integrated power management, and comprehensive I/O, the F405-WMO provides an efficient and reliable flight control solution for modern fixed-wing and VTOL builds.

Features

Specifications

In the box
