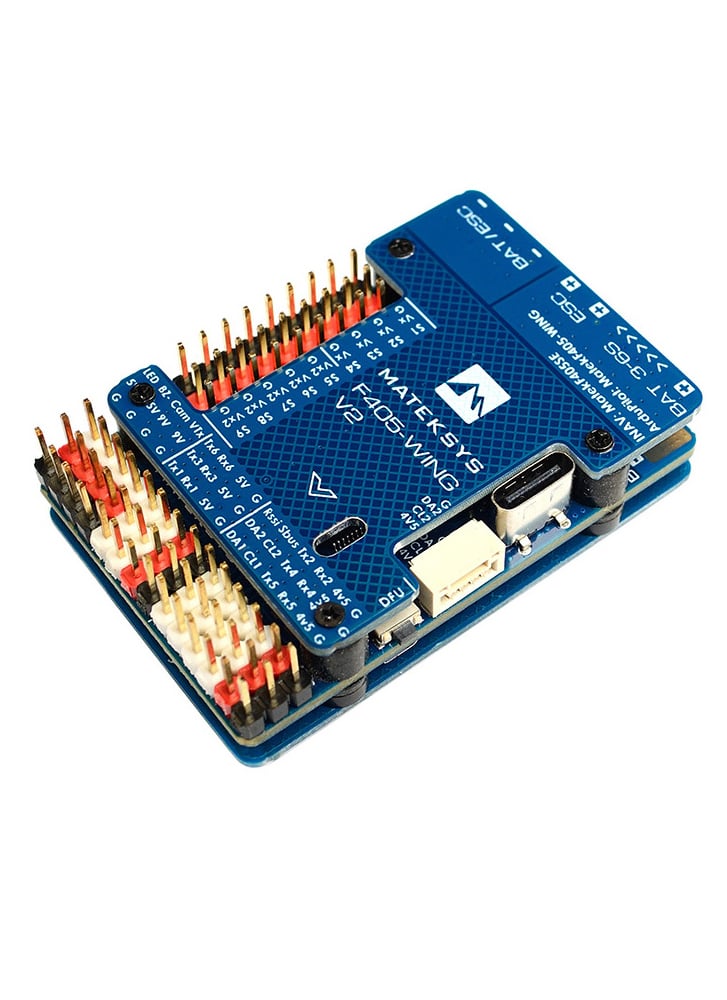

Matek F405-WING V2 Fixed Wing iNAV Flight Controller / PDB
£49.90
FLIGHT CONTROLLER F405-WING V2
STM32F405RGT6, ICM42688P, DPS310, OSD, 6x UARTs, 10x PWM, 2x I2C, 3x BEC
The Matek F405 was the fight controller that started the iNav Wing FC revolution and now it’s back and upgraded!
Differences from V1:
New Layout
USB: Type C (Micro USB V1)
IMU: ICM42688P (MPU6000 V1)
BARO: DPS310 (BMO280 V1)
Current Sensor: 100A Continuous / 220A Peak (60A/104A V1)
The MATEK F405-Wing V2 is a dedicated flight controller that has been designed specifically for fixed wing aircraft. It features a built in PDB and multiple high output BEC’s. Some of these have a variable voltage output, determined by the use of jumpers. BEC options include: 5/6/7.2V 5A BEC for servos, 9/12V 2A for video transmitter, camera or gimbal, and 5V 2A BEC for RC receiver, camera, buzzer, GPS, LEDs and other electronics. A 3-6S Lipo battery can be used to power the board. This FC also has a number of built in features such as 6 usable UARTS ports, 10 PWM outputs, Micro SD for blackbox logging, barometer and built in On Screen Display (OSD). The MATEK F405-Wing V2 can be used with iNav 6.0 or later firmware (MATEKF405SE) and ArduPilot 4.4 or later (MATEKF405-Wing).
This is the perfect flight controller to stabilise your FPV aircraft and to send all the information back to you via the built in OSD.
Specifications
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- IMU: ICM42688-P
- Baro: DPS310
- OSD: AT7456E
- Blackbox: MicroSD card slot
- Built in inverter for SBUS input
- USB Type-C(USB2.0)
- ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
- INAV: MATEKF405SE (INAV 6.0 or newer)
- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
- Sense resistor: 100A continuous, 220A peak
- Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps
- 12V option with Jumper pad
- for stable 9V/12V output, input voltage should > output voltage +1V
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V options
- Continuous current: 5 Amps, 6A Peak
- for stable Vx output, input voltage should > Vx voltage +1V
- Designed for external 3.3V peripherals
- Linear Regulator
- Continuous current: 200mA
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 54 x 36 x 13 mm
- Weight: 25g
In the box
- 6x UARTs, 1x Softserial_Tx option(INAV)
- 10x PWM outputs
- 2x I2C
- 3x ADC (VBAT, Current, RSSI)
- 1x Matek F405 Wing V2 Flight Controller
- 3x header Pin rows (board is shipped unsoldered)
