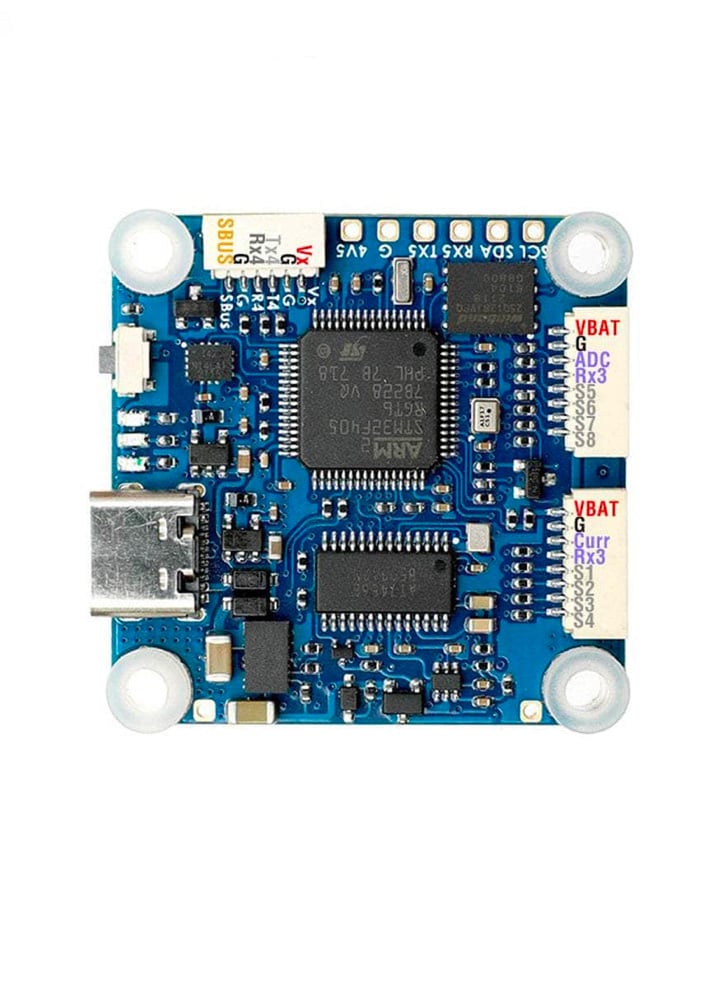

Matek F405-HDTE 30×30 Flight Controller (DJI FPV Compatible)
£58.90
FLIGHT CONTROLLER F405-HDTE
STM32F405RGT6 , ICM42688-P, SPL06, OSD, 6x UARTs, 1x I2C, 12x PWM outputs, Dual BEC, 3-12S LiPo Input
Another feature rich offering from Matek in the 30×30 class. Loaded with features for digital and analog builds. This FC uses the 3rd generation ICM42688-P IMU, provides 6 UARTS, a barometer, OSD and support for analog or digital FPV systems – for DJI HD (Caddx Vista / DJI Air Unit) there is a direct plug connection. It can be used for both quadcopters and octocopters as it features two 4in1 ESC 8 pin connectors for ESC signals 1-8. It also has scope for a further 3 servo output using software mixers. The Matek F405 HDTE FC is a versatile controller, being compatible with Betaflight, Emuflight, INAV, and Ardupilot firmwares. Finally, the FC has a very wide input voltage range of 9-60V DC.
Features
- STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
- InvenSense the 3rd generation IMU ICM42688-P
- 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX
- 8motors+3servos in INAV/BF multirotor mixer.
- SH1.0_8pin connector for PnP with 2x 4in1 ESC
- SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
- USB pin breakout for connecting to external USB adapter
Specifications
- MCU: STM32F405RGT6
- IMU: ICM42688-P
- OSD: AT7456E, DJI OSD
- Baro: SPL06-001 (I2C)
- Blackbox: 16M-byte Flash memory
- 9~16V( VTX’s) output ON/OFF switchable
- Dual analogue camera signal switchable
- Input: 9~60V (3~12S LiPo)
- BEC: 5V 1.5A
- BEC: Vx, 9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
- Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)
- No Current Sensor built-in, supports external current sensor of PDB/4in1
- ArduPilot: MatekF405-TE
- INAV: MATEKF405TE
- BetaFlight: MATEKF405TE
- In the box
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 7g
In the box
- 6x UARTs, 1x Softserial_Tx option
- 12x PWM outputs (8x Dshot)
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, Airspeed)
- 2x PINIO
- 2x SH1.0_8pin connector for 4in1 ESC
- 1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- 1x FC F405-HDTE
- 6x Silicon grommets M4 to M3

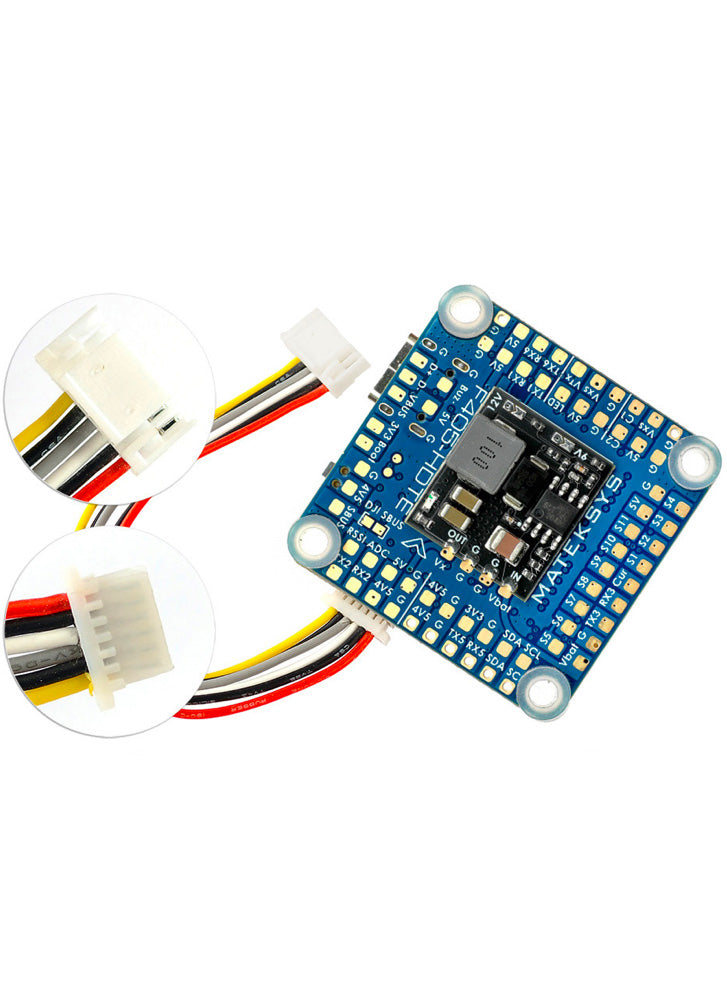

- 1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
- 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit
