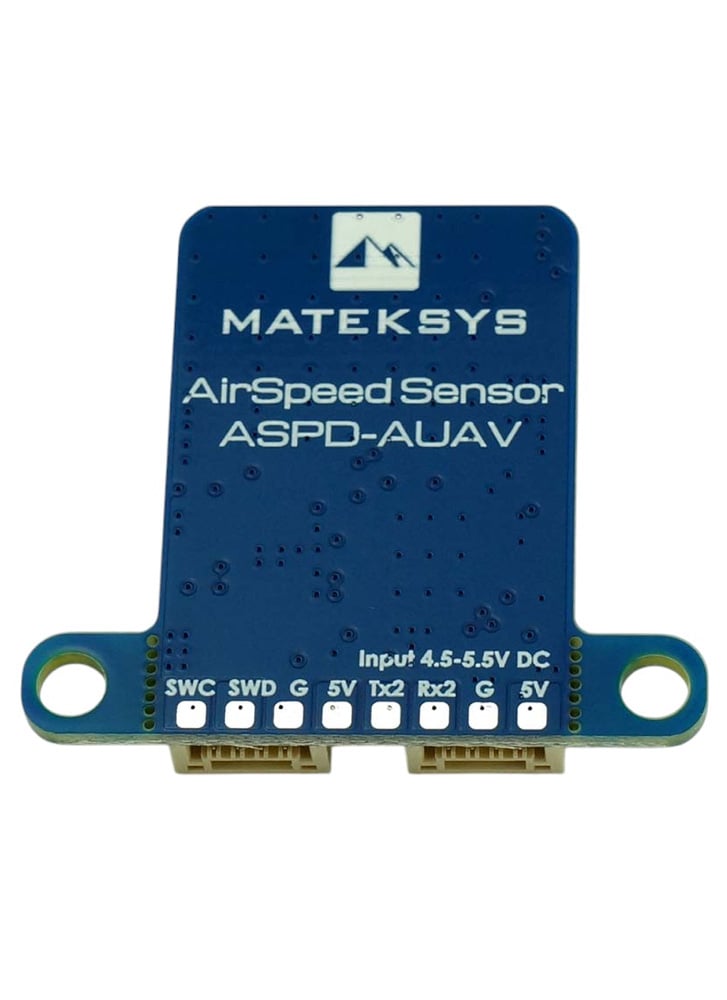

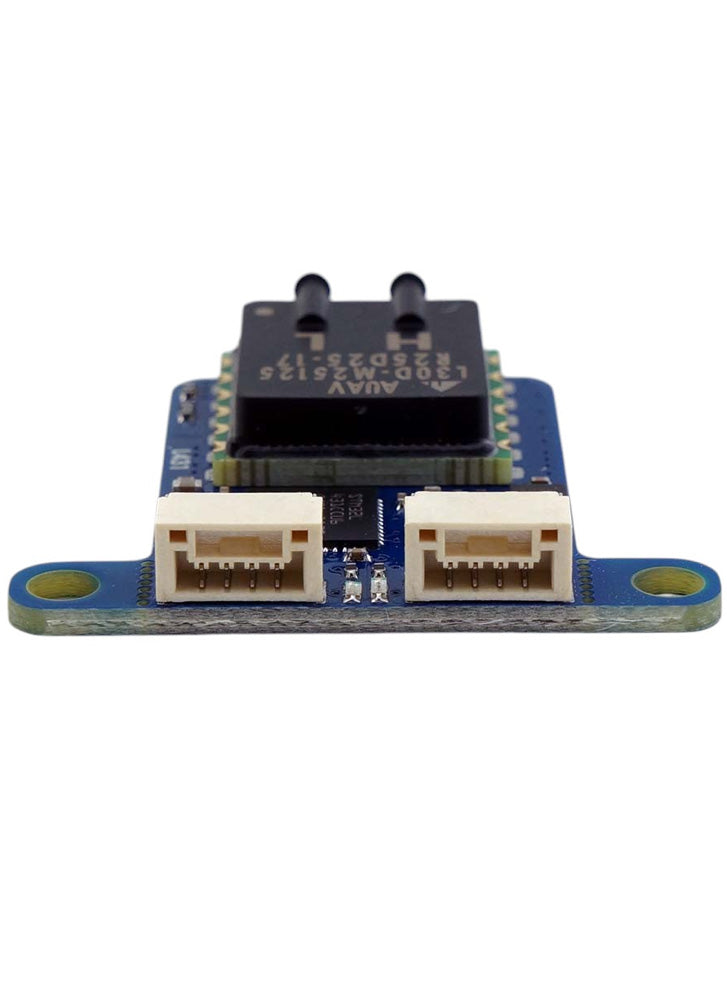

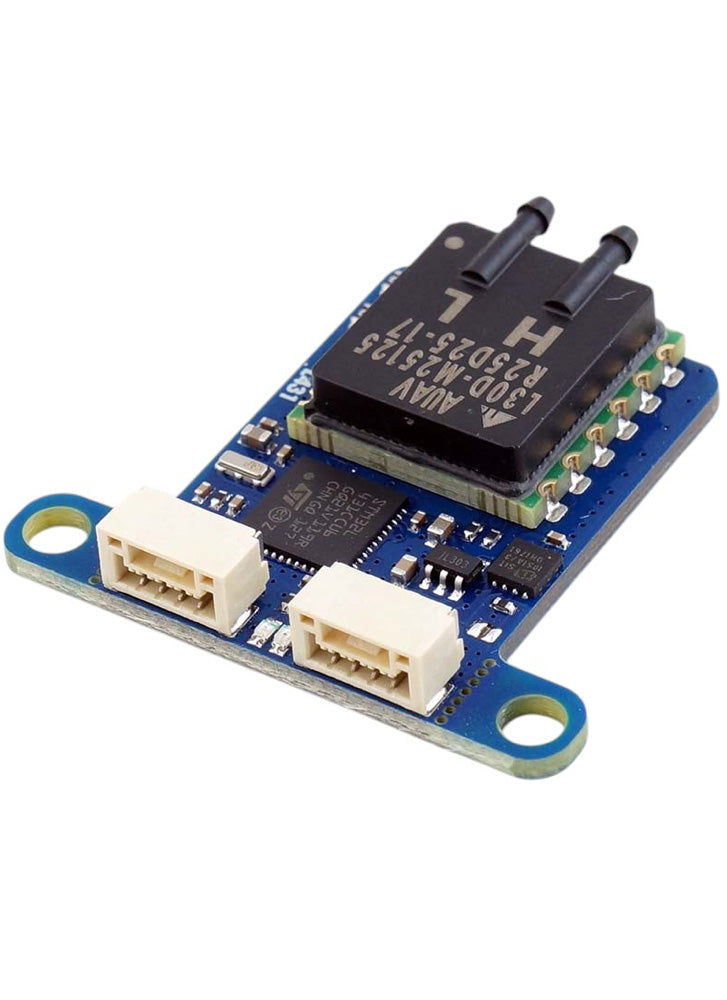

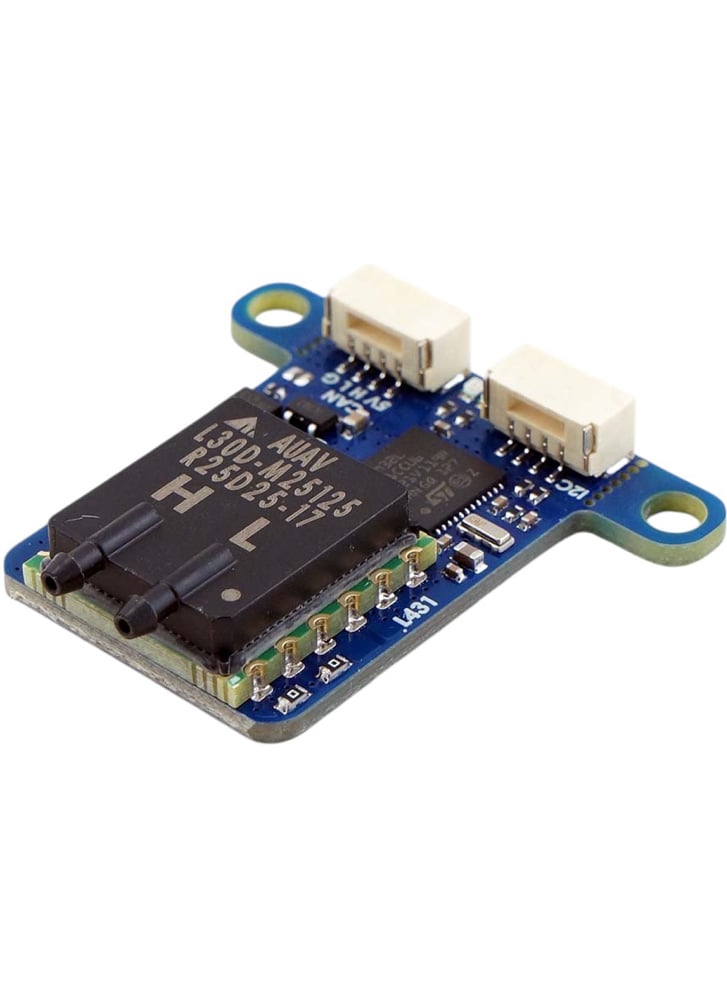

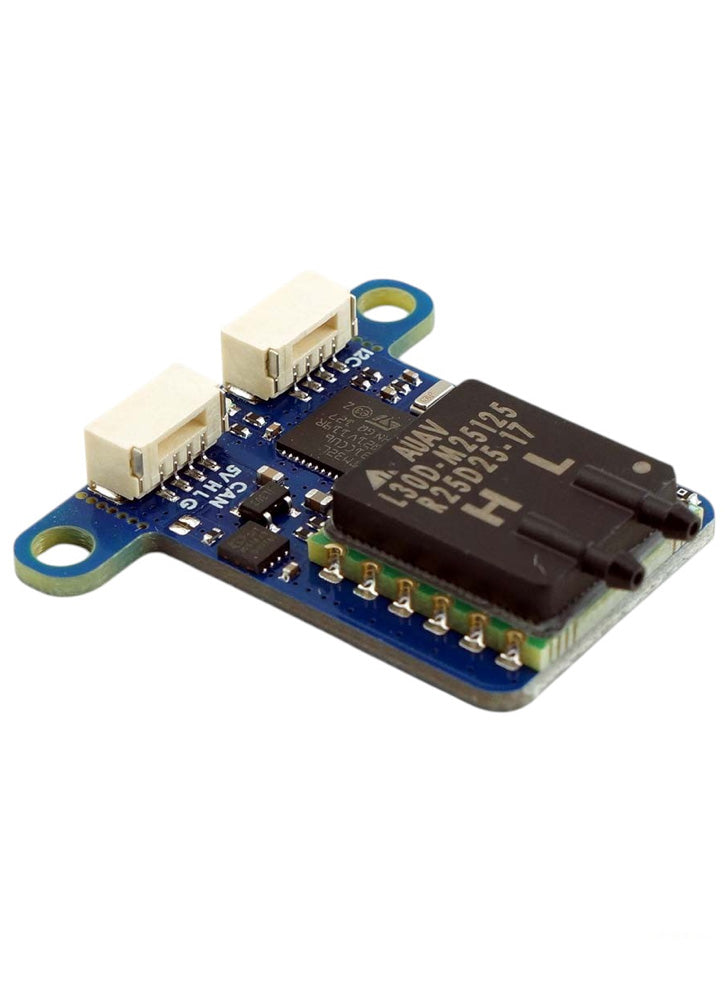

Matek Digital AirSpeed Sensor ASPD-AUAV (UAVCAN)
£97.90
High-precision digital airspeed sensor with UAVCAN support and wide 400 km/h measurement range.
The Matek ASPD-AUAV Digital Airspeed Sensor is designed for fixed-wing UAV and RC aircraft requiring accurate and reliable airspeed data. Based on the AUAV-L30D differential pressure sensor , it offers improved still-air offset performance and a wider measurement range compared with many traditional airspeed sensors.
The sensor supports UAVCAN (DroneCAN), I²C, and MSP interfaces , allowing flexible integration with modern flight controllers and autopilot systems. UAVCAN connectivity provides robust digital communication and simplified wiring for aircraft using CAN-based avionics networks.
With a maximum airspeed measurement of up to 400 km/h , the ASPD-AUAV is well suited for fast fixed-wing platforms, VTOL aircraft, and long-range UAVs. Despite its capability, the sensor remains lightweight and efficient, drawing only around 26 mA and weighing approximately 5 g .
Compact and easy to integrate, the ASPD-AUAV provides precise airflow data that can improve flight efficiency, autopilot performance, and stall protection.
Features
- Dual interface support (DroneCAN/CAN + I2C) for flexible wiring and system compatibility
- Based on the AUAV-L30D differential pressure sensor for high precision and minimal drift
- Wide speed measurement range up to 400km/h (≈111 m/s) covering fast fixed-wing and UAV builds
- Low power consumption (~26mA) and compact form factor (36×32×7.3mm) make it suited to light aircraft
- Compatible with ArduPilot as AP_Periph peripheral node for telemetry and flight-data logging
- Input voltage range of 4.5V–5.5V simplifies power supply integration
Interfaces:
CAN JST-GH connector, DroneCAN Protocol
I2C JST-GH connector, AUAV-L30D I2C mode
TX2, MSP protocol
Wiring and AP Parameters
AP_Periph & DroneCAN protocol
Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
DroneCAN protocol https://dronecan.github.io/
Tips
CAN Baro is enabled by default, If you don’t use the Baro integrated in AUAV, set “BARO_ENABLE = 0” in “Mission Planner->Initial Setup->Optional Hardware->UAVCAN->MAVlink CANx -> Menu Parameters”
ArduPilot has removed AUAV I2C support by default on flight controller with 1MB flash MCU(such as F405, F745 series).
AUAV vs. DLVR
Example log comparison of the AUAV-L30D and DLVR sensors, showing the AUAV providing a cleaner zero-airspeed baseline and wider measurable speed range.
Speed range 400km/h vs 227km/h
Specifications
- Model: Matek Digital Airspeed Sensor ASPD-AUAV
- Input voltage: 4.5V–5.5V
- Power consumption: ~26mA
- Speed range: 400 km/h (≈111 m/s)
- Operating temperature range: -30°C to +85°C
- Dimensions: 36×32×7.3mm
- Weight: ~5g
- Interfaces: DroneCAN (JST-GH), I²C, UART (MSP)

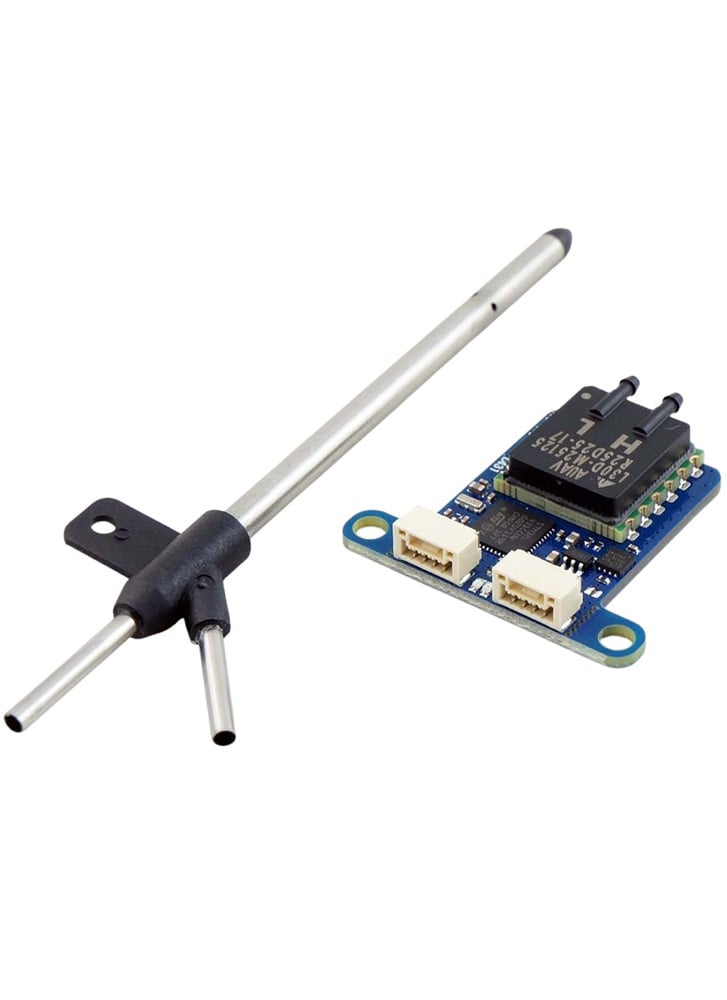

In the box
- 1x ASPD-AUAV Sensor
- 1x Pitot tube
- 2x 20cm connecting cable
- 1x 40cm silicone tubing
