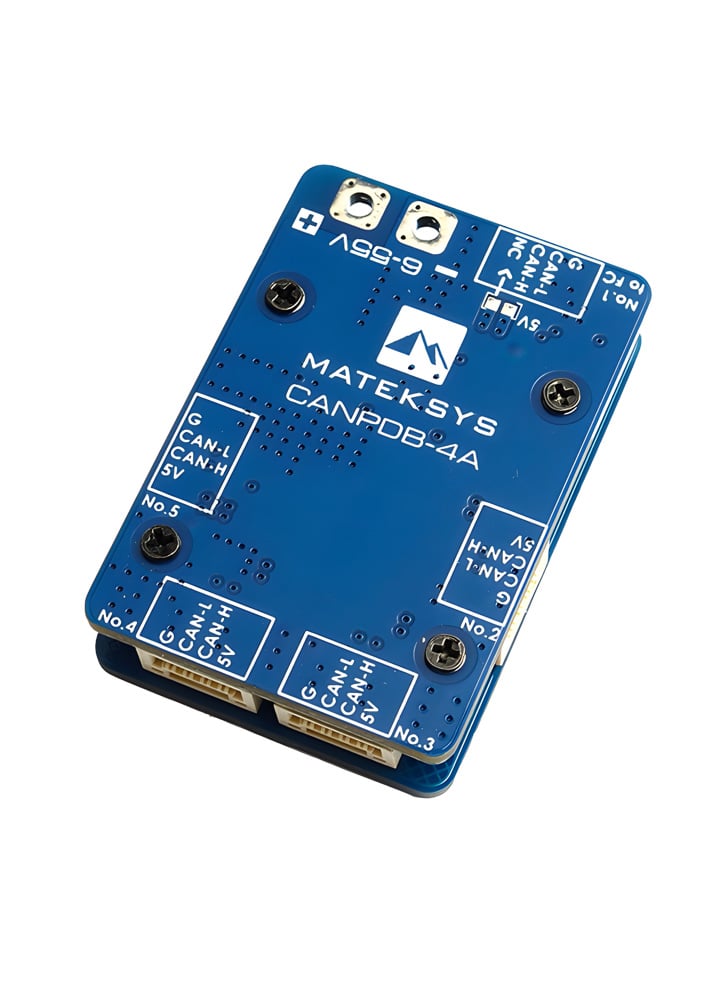

Matek CANPDB w/ 4A BEC & GH Splitter
£17.90
Product Discontinued – Limited Stock Remaining.
Introducing the MATEKSYS CANPDB with 4A BEC & JST-GH Splitter, your solution for efficient power distribution and CAN bus signal management in your RC system.
It supports a diverse range of power supply, compatible with 2-12S power input. Featuring a robust 4A BEC, it ensures stable power delivery to your CAN devices. The integrated JST-GH splitter enables convenient connectivity for multiple peripherals. Using the CANPDB four CAN devices can be connected to one DroneCAN port.
Why use the CANPDB? Most flight controllers have a 5v output on the CAN port, but the voltage can sometime be lower than 5v because it is affected by other devices that is connected to the FC. The power supply of this hub is independent and can guarantee a stable 5V power source to your CAN peripherals, offering 5V/1A power for each port.
Features
- Enhanced Signal Management
- Efficient Power Distribution
- Integrated JST-GH Splitter
- Plug-and-Play Installation
- Reliable Construction
- Streamlined Setup
- Compact Design
- Safety Features
- Robust 4A BEC
Compatibility
What is DroneCan: DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification and multiple open implementations. More info here .
Specifications
- Maximum Duty Cycle: 100% – when the input voltage is less than the setting value
- Load Current: 4A continuous, 1A for each JST-GH port
- CAN port connector: JST-GH 4-pin (SM04B-GHS-TB)
- Operating Input Range (2S-12S Li-xx): 6V to 55V
- Output short-circuit tolerant: 3 seconds
- Size & Weight: 38 x 26 x 7.8mm, 12g
- Output: 5.2V on “5V” pin/pads
- CAN-H/CAN-L in parallel: 5
In the box
- 1x MATEKSYS CANPDB w/ 4A BEC & JST-GH Splitter
- 1x JST-GH-4P to JST-GH-4P 20cm silicone cable
