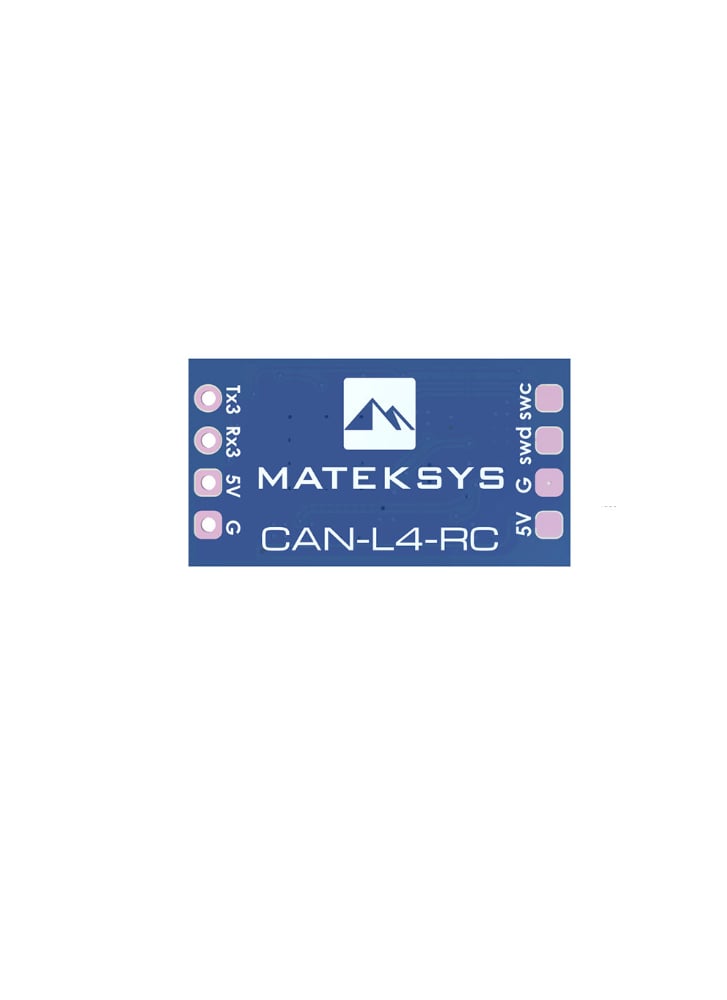

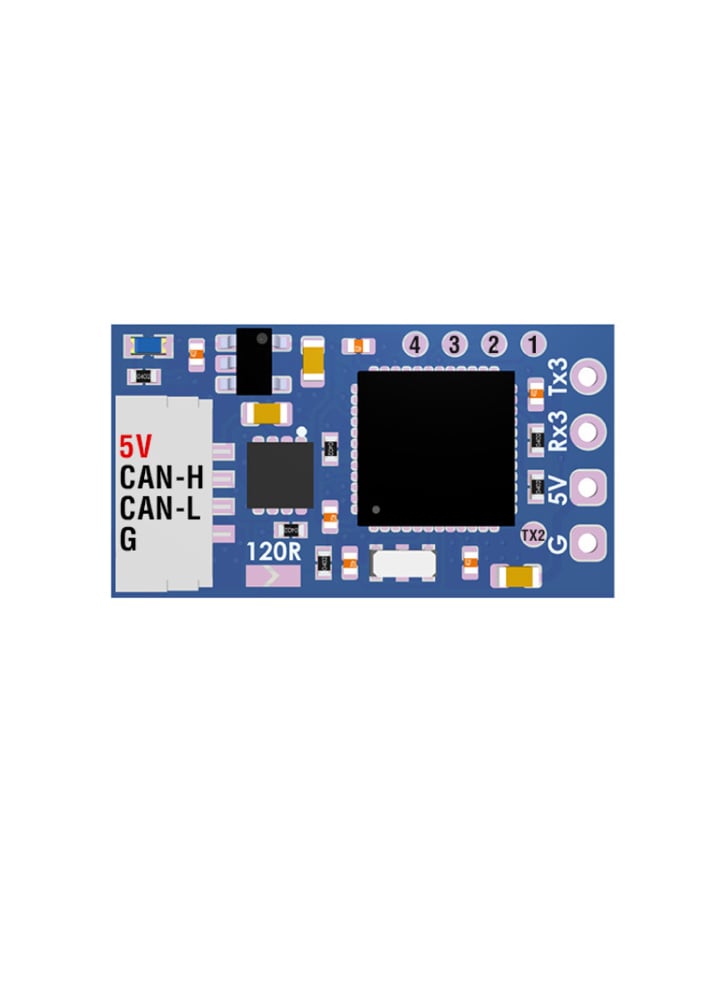

Matek AP Periph RC Input Adapter CAN-L4-RC
£12.50
This L4 RC CAN adapter from Matek is based on the ArduPilot AP_Periph firmware and allows you to turn a serial receiver into a CAN receiver.
Specifications
- MCU: STM32L431xC, 256KB Flash
- ST debug, SWCLK & SWDIO
- LED Blue, Fast blinking, Booting Blue, Slow blinking, working
- Blue, Fast blinking, Booting
- Blue, Slow blinking, working
- Input voltage range: 4.5~5.5V @5V pad/pin
- Power consumption: 10mA
- Operating Temperatures: -40~85 °C
- Physical 1x JST-GH-4P(SM04B-GHS-TB) for CAN 2.54mm pitch holes for UART3 Board Size: 23mm*12.5mm. 2.5g 3D file : CAN-L4-RC_STEP.zip
- 2.54mm pitch holes for UART3
- Board Size: 23mm*12.5mm. 2.5g
- 3D file : CAN-L4-RC_STEP.zip
- Firmware ArduPilot AP_Periph MatekL431-RC Update via DroneCAN GUI Tool
- ArduPilot AP_Periph MatekL431-RC
- Update via DroneCAN GUI Tool
In the box
- 1x CAN, DroneCAN Protocol
- 1x UART(UART3, Tx3/ Rx3)
- 1x JST-GH-4P(SM04B-GHS-TB) for CAN
- 1x CAN-L4-RC board
- 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
