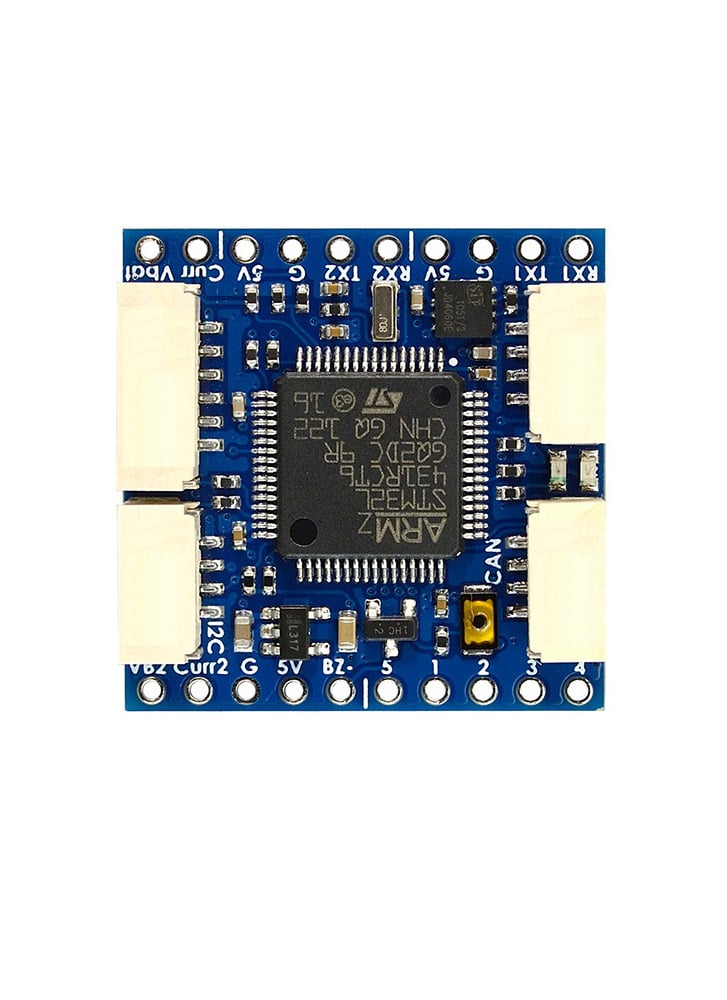

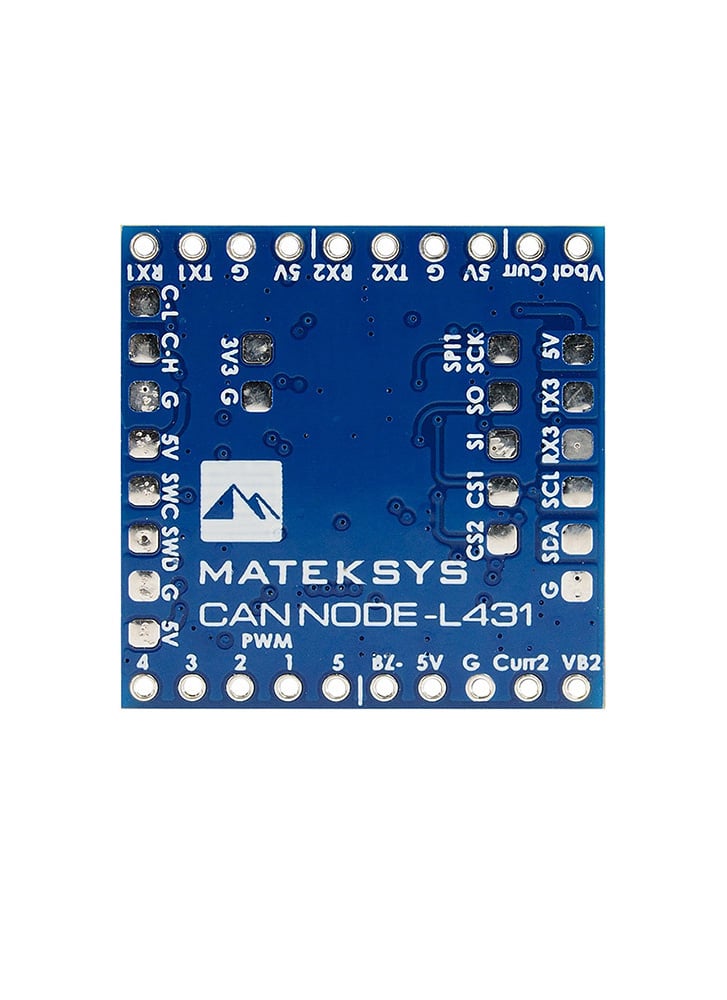

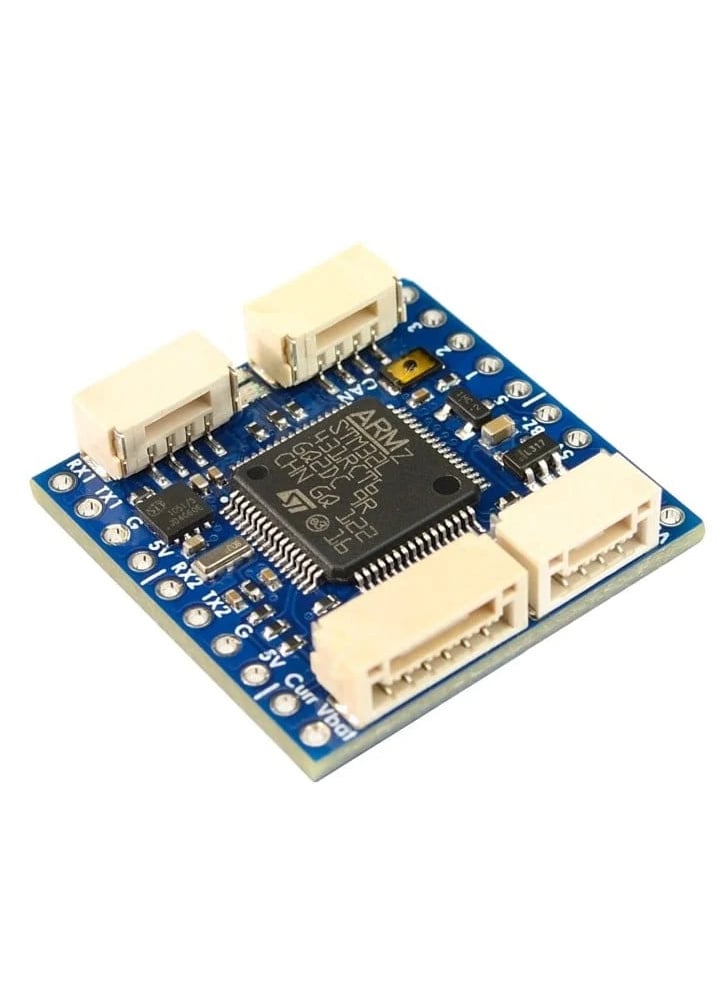

Matek AP_Periph CAN Node L431 DroneCAN Peripheral Interface Board
£15.90
The Matek AP_Periph CAN Node L431 is a versatile DroneCAN peripheral interface board for ArduPilot systems. Running ArduPilot's AP_Periph firmware on an STM32L431 microcontroller, it turns supported UART, I²C, SPI and GPIO devices into native DroneCAN peripherals, which simplifies wiring while making the system more reliable and easier to extend.
It will talk to supported GNSS receivers, compasses, barometers and airspeed sensors, and it also offers PWM outputs, buzzer and LED notification, and battery voltage and current monitoring over the DroneCAN bus. Three UARTs, I²C, SPI, four ADC inputs and five PWM outputs make it well suited to building custom DroneCAN peripherals or folding existing sensors into an ArduPilot CAN network.
Dual JST-GH CAN connectors make daisy-chaining straightforward, and firmware updates go through the DroneCAN GUI Tool, so the CAN Node L431 suits UAV builders and developers alike when extending an ArduPilot-based aircraft.
Features
- Converts supported peripherals into DroneCAN devices using ArduPilot AP_Periph firmware
- Compatible with supported GNSS, compass, barometer and airspeed sensors
- STM32L431 MCU with 256KB Flash memory
- Dual JST-GH DroneCAN connectors for simple network integration
- 3 × UART interfaces
- 1 × I²C interface
- 1 × SPI interface
- 4 × ADC inputs for battery voltage and current monitoring
- 5 × PWM outputs
- GPIO output with buzzer/LED notification support
- Supports firmware updates via DroneCAN GUI Tool
- Compact 26 × 26mm design weighing just 3.7g
Specifications
- MCU: STM32L431xC (256KB Flash)
- CAN Protocol: DroneCAN
- CAN Data Rate: Up to 1Mbit/s
- CAN Connectors: 2 × JST-GH 4-pin (parallel)
- UART: 3 UART1: General purpose UART2: MSP (default), DFU UART3: GPS (default)
- UART1: General purpose
- UART2: MSP (default), DFU
- UART3: GPS (default)
- I²C: 1
- SPI: 1
- ADC Inputs: 4
- PWM Outputs: 5
- GPIO: 1 (TIM16 buzzer output)
- Debug Interface: SWD
- Input Voltage: 4.5–5.5V
- Current Consumption: Approx. 40mA
- Operating Temperature: -20°C to +80°C
- Dimensions: 26 × 26 × 6mm
- Weight: 3.7g
In the box
- 1 × Matek AP_Periph CAN Node L431
- 1 × JST-GH 4-pin to JST-GH 4-pin 20cm cable
- 1 × JST-GH 6-pin to JST-GH 6-pin 20cm cable
