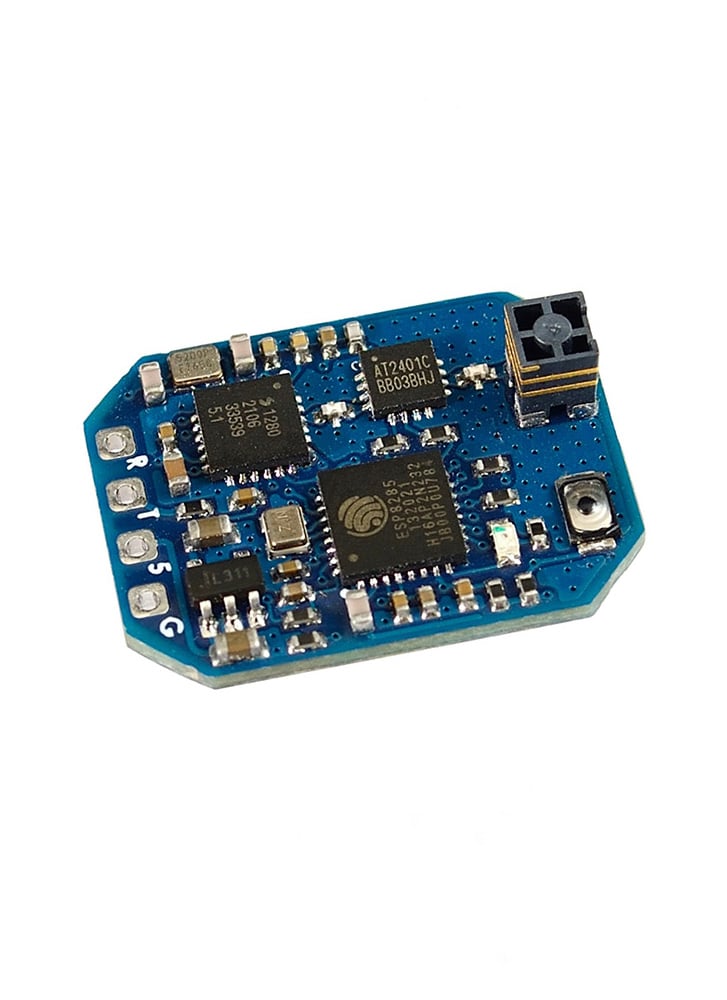

Matek 2.4GHz R24-S ELRS Receiver with Ceramic Antenna

£19.90

Discontinued: Limited stock remaining.

ExpressLRS is rapidly becoming the choice control link for those looking for ultra-low latency and long-range. The Matek R24-S ELRS is a 2.4GHz ExpressLRS receiver that is super compact thanks to having a tiny SMD ceramic antenna. The receiver accepts 4-9V DC input voltage. The RX has a CRSF output – if you need PWM outputs to connect servos to, you can use this receiver with Matek’s CRSF to PWM breakout boards (6CH / 10CH versions). See related products below.

Specifications

• ESP8285, SX1280/1281IMLTRT
• PA/LNA: AT2401C
• Molex 479480001 SMT antenna
• RF Frequency: 2.4GHz ISM
• Telemetry power: 20dbm
• AT2401C Rx_gain: 12dB
• Receiver protocol: CRSF
• Input voltage: 4~9V DC @ 5V pad
• Power dissipation:  40~45mA(before binding), 60~65mA(binding), 90~95mA(wifi mode)
• PCB size: 21mm x 15mm
• Weight: 1.2g
• Packing: 1x ELRS-R24-S

In the box

• 1x Matek ELRS-R24-S 2.4GHz Receiver w/ Ceramic Antenna
