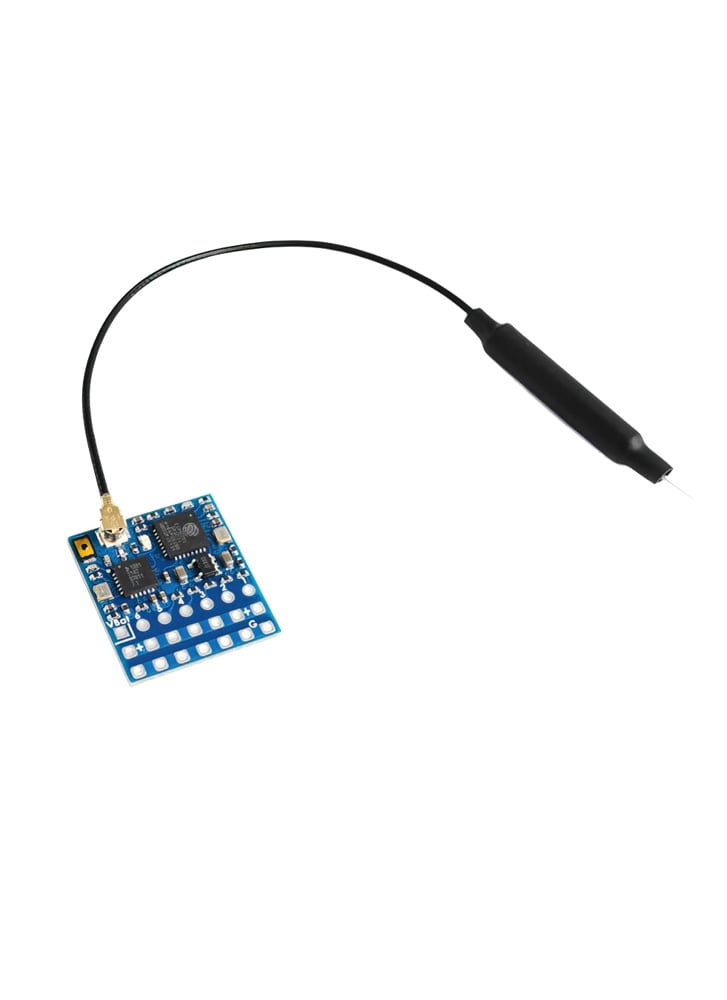

Matek 2.4GHz R24-P6 ELRS Receiver with 6 PWM Channels
£14.90
ExpressLRS is rapidly becoming the choice control link for those looking for ultra-low latency and long-range. The Matek ELRS-R24-P6 is a 2.4GHz ExpressLRS receiver with 6 PWM outputs. It’s perfect for those looking to connect servos directly, without needing to run them through a flight controller. The receiver accepts 4-9V DC input voltage.
Please note, the header pins are included but don’t come soldered.
Advice:
M ake sure Receiver and TX module both are running ExpressLRS 3.0 or newer
Receiver has ExpressLRS 3.0 preloaded with binding phrase “123456”, the receiver will never enter binding mode if using the traditional binding procedure.
You need to reflash it with your binding phrase OR go into WebUI to set your binding phrase.
Features
- ExpressLRS 3.0 firmware
- 2.4GHz Frequency
- 6 PWM Outputs
Specifications
- Power dissipation: 45mA(binding), 85mA(wifi mode)
- RF Frequency: 2.4GHz (2400~2480MHz)

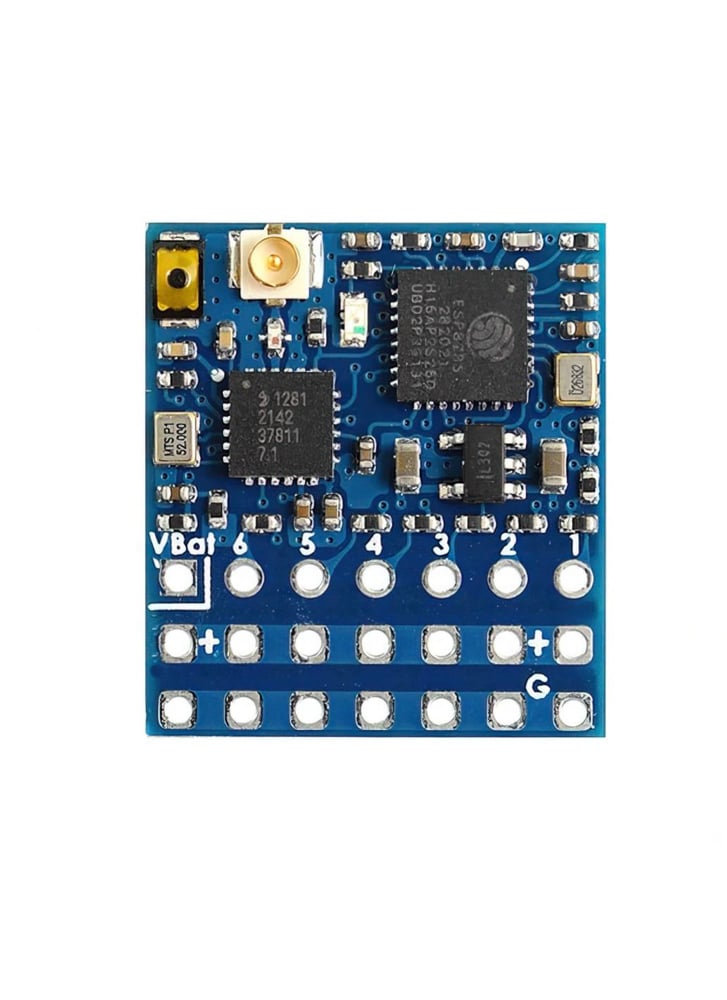

- Voltage sense: 34V Max. @ “VBat” pad
- Input voltage: 4~9V DC @ “+” pad
- Support 2~8S VBat voltage sense
- Antenna connector: IPEX MHF 1
- Receiver output protocol: PWM
- Telemetry power: 12dbm
- PCB size: 20mm x 18mm
- Weight: 2g w/ antenna
- ESP8285, SX1281
- PWM outputs: 6
- ExpressLRS Wiki for PWM
- Flashing via Wifi
In the box
- 1x MATEKSYS ExpressLRS 2.4GHz Receiver – PWM ELRS-R24-P6
- 1x IPEX MHF1 Antennas. 15cm
- 1x Dupont 2.54 pins
