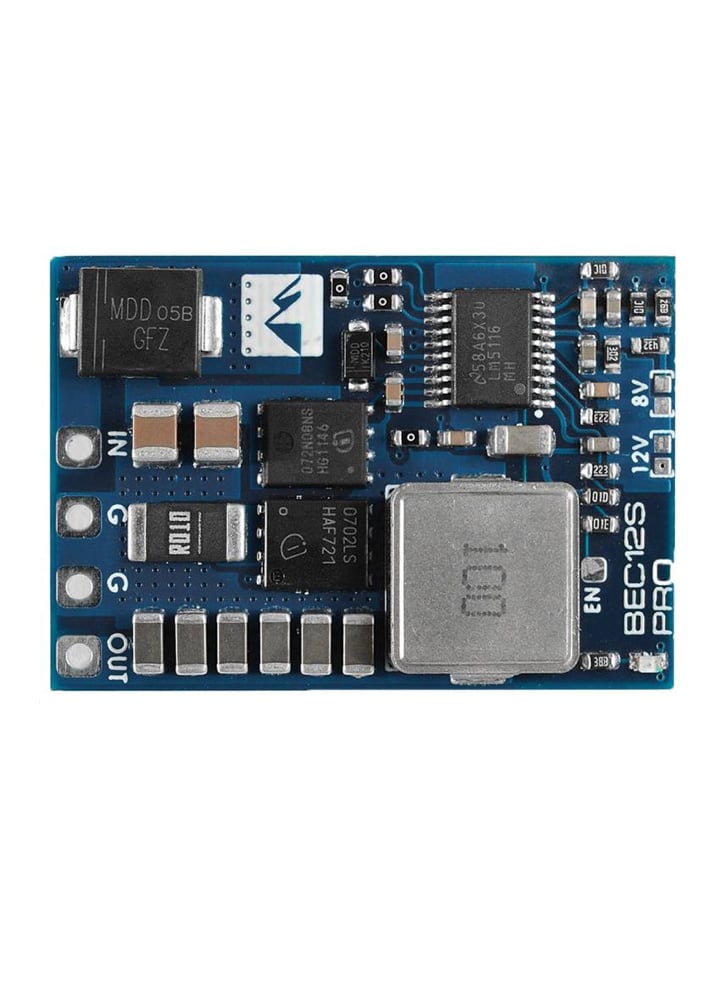

Matek 12S Pro BEC – 9-55V Input 5V/8V/12V – 5A Output
£19.00
The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection and self-recovery.
Features
- Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
- Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Supports continuous output current of up to 5A, peak current of 9A
- Wide 9V to 55V Operating Input Range with TVS protection

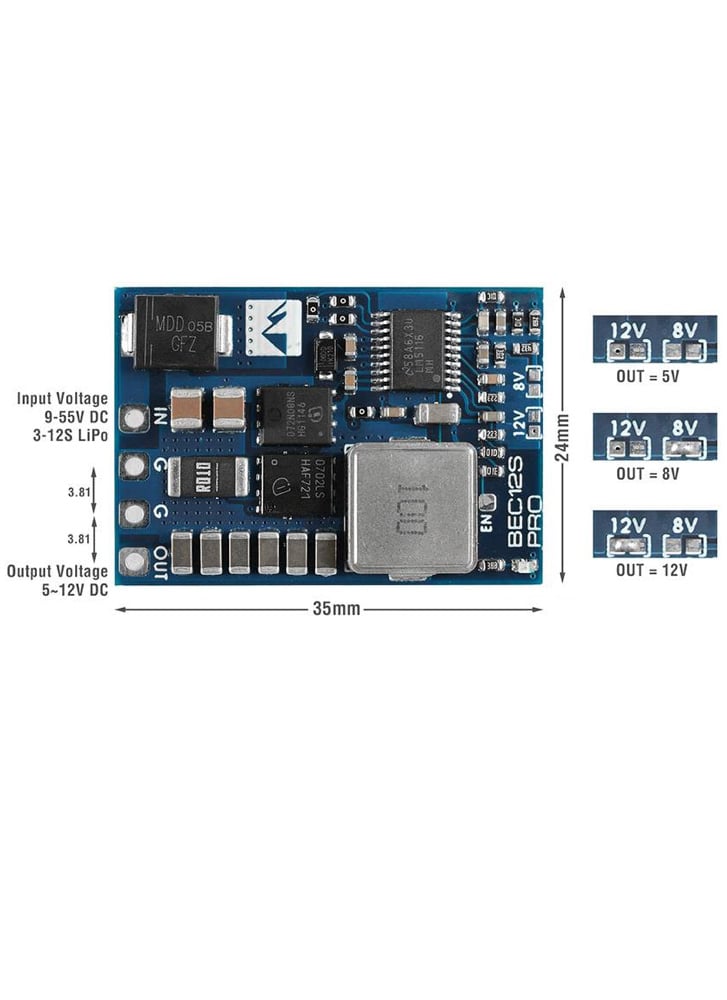

- 3x Output voltage options, 5.2V, 8V or 12V. Default 5.2V
- Output Short-circuit tolerant (2 seconds)
- Overcurrent protection & self-recovery
- Size & Weight: 35 x 24 x 5.5mm, 5g
- No reverse-input voltage protection
- Standby current: 5~10mA
- Pins distance: 3.81mm
- Packing: 1pc/package
- Thermal Shutdown
Specifications
- Output ripple: 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)
- Dropout voltage: 2V (Input>=14V is required for stable 12V output)
- Operating Input Range: 9V to 55V with TVS protection
- Output voltage options: 5.2V, 8V or 12V. Default 5.2V
- Buck regulator efficiency: 88% to 96%
- Standby current: 5~10mA
- Size: 35 x 24 x 5.5mm
- Pins distance: 3.81mm
- Packing: 1pc/package
- Weight: 5g
In the box
- 1x Matek 12S Pro BEC – 9-55V To 5V/8V/12V – 5A
