LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera

LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera

£33.90

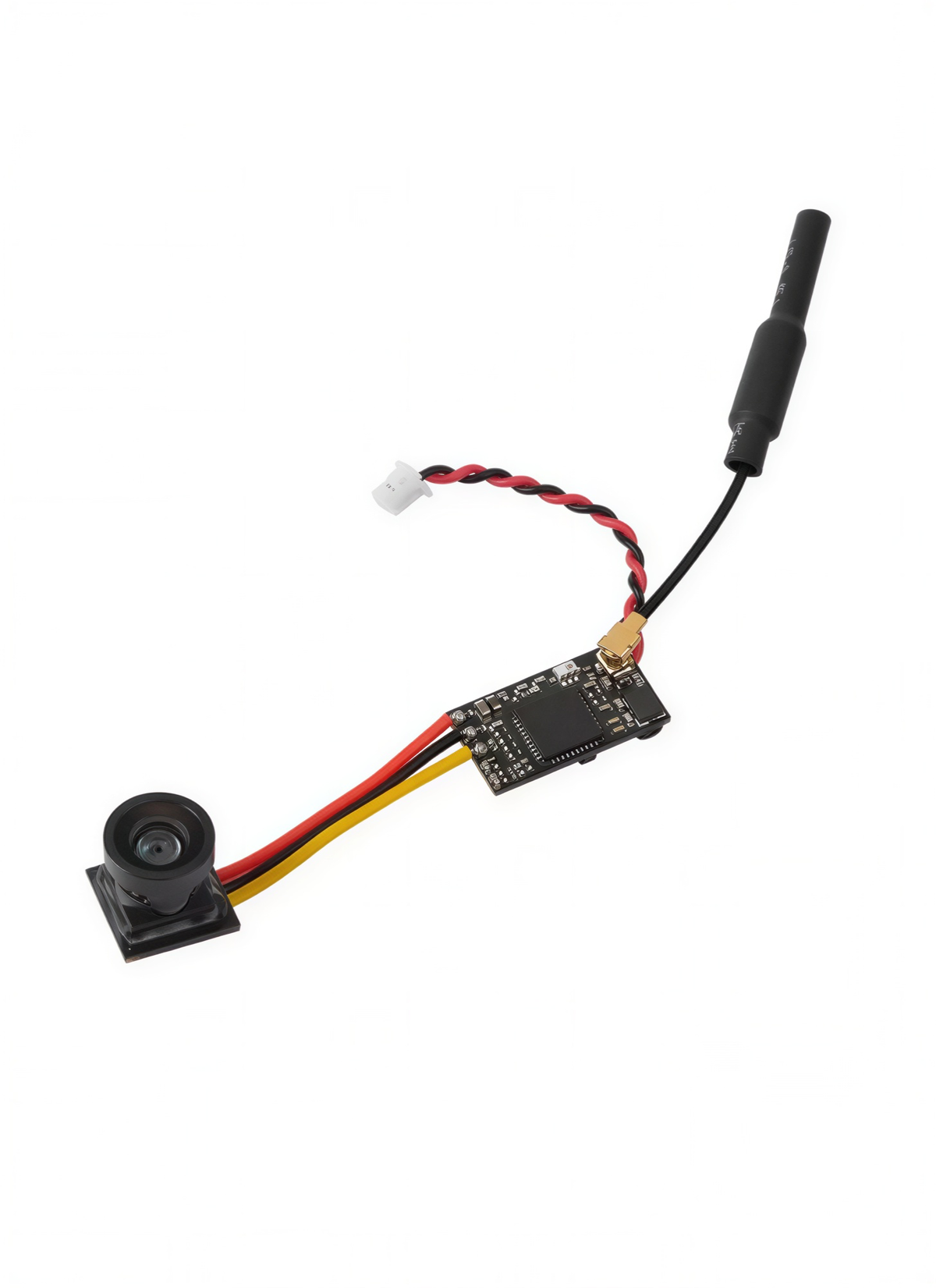

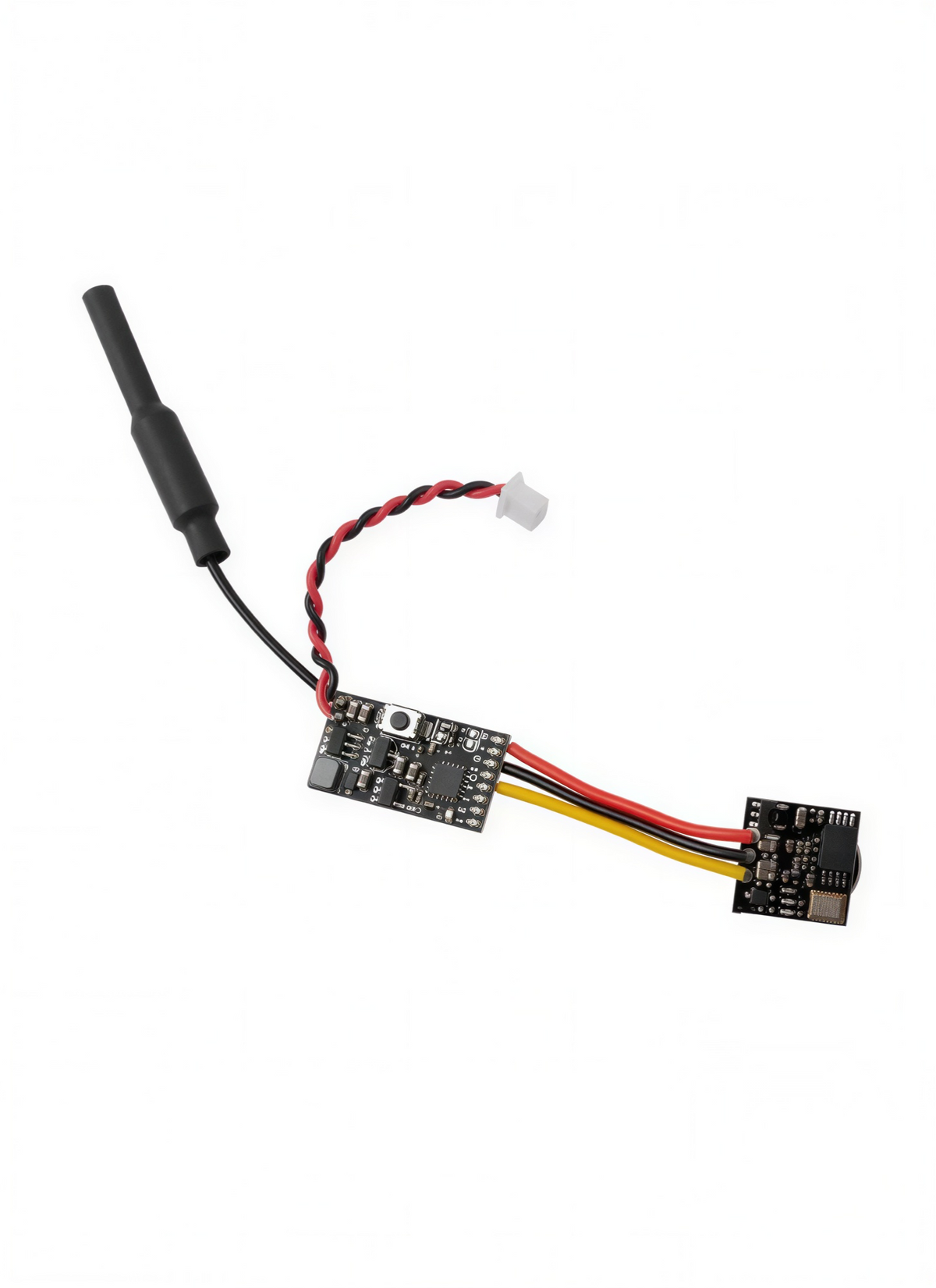

The LST-S4 combines a compact 800TVL FPV camera with a 40-channel 25mW 5.8GHz VTX, offering the same simple plug-and-play setup as the LST-S2 , but with the camera separated from the VTX on a short cable. This layout makes installation more flexible, allowing easier camera positioning in tight frames while keeping the transmitter tucked away safely.

To get up and running, simply provide power. The LST-S4 can be powered from a 1S LiPo or any regulated 5V supply and is compatible with flight controllers that support FPV OSD. It includes video input and output connections, which are soldered together by default but can be separated to route video through an OSD if required.

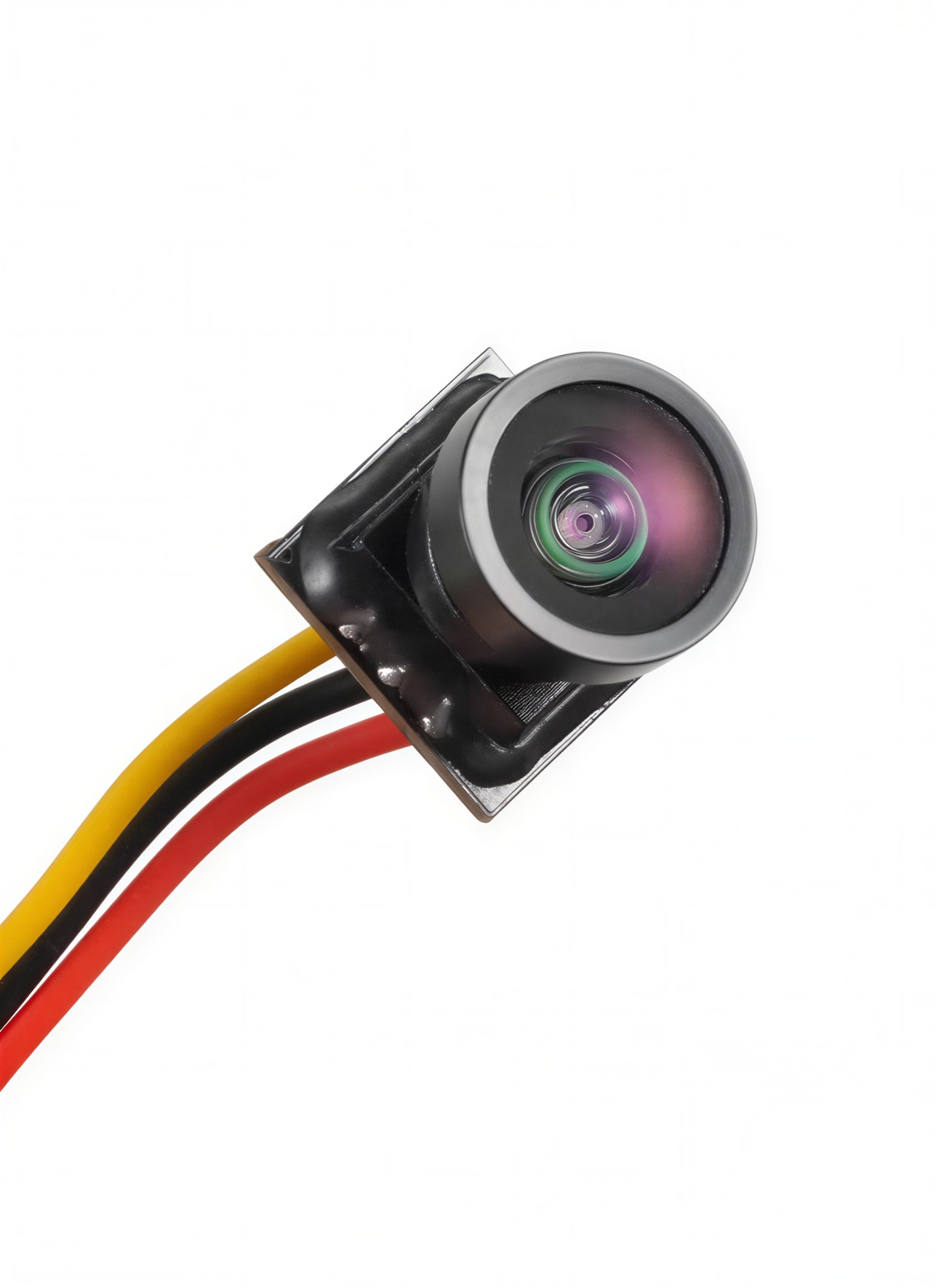

Despite its small size, the camera delivers surprisingly good image quality, and the built-in 25mW UK-legal transmitter provides a practical range of around 100 m — ideal for micro quads, indoor builds, and lightweight FPV projects.

Features: Micro sized and lightweight 800TVL mini FPV camera on a flexible cable 40-channel 5.8GHz 25mW VTX with Raceband Simple plug-and-play installation Compatible with flight controller OSDs Push-button channel and band selection 1S LiPo or 5V power input

Channels:

Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880 Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945 Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725 Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917 Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866

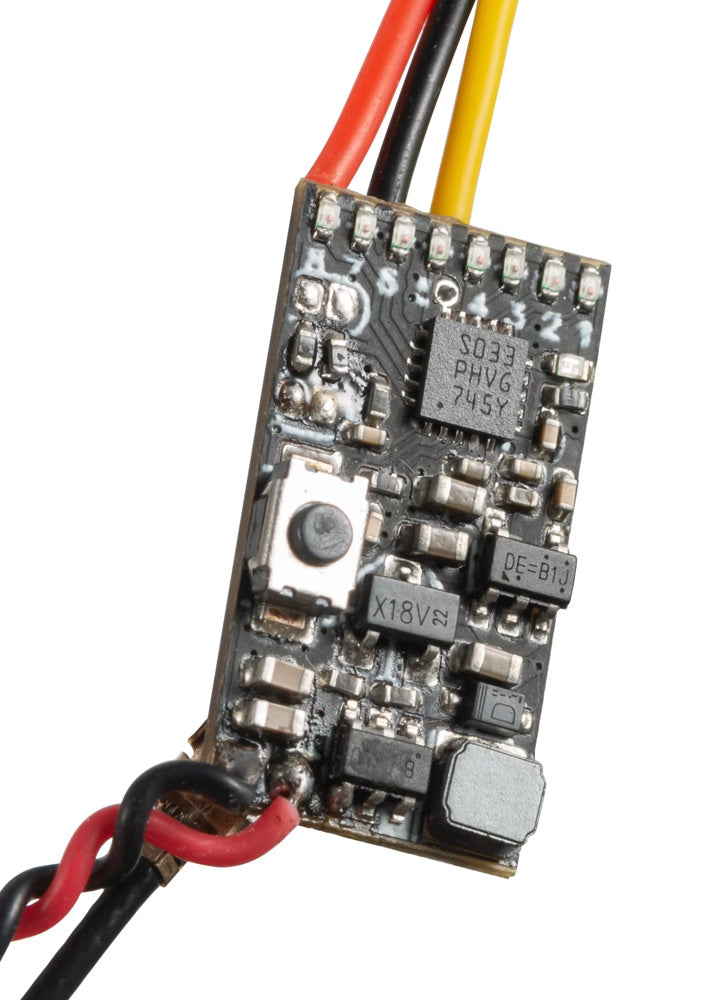

Button function Short press (Apr. 1 sec or less): Change channels 1-8 Long press (More than 1.5 sec): Change bands A-B-E-F-R Long + press (More than 3 sec): Change NTSC/PAL system NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Specifications

In the box
