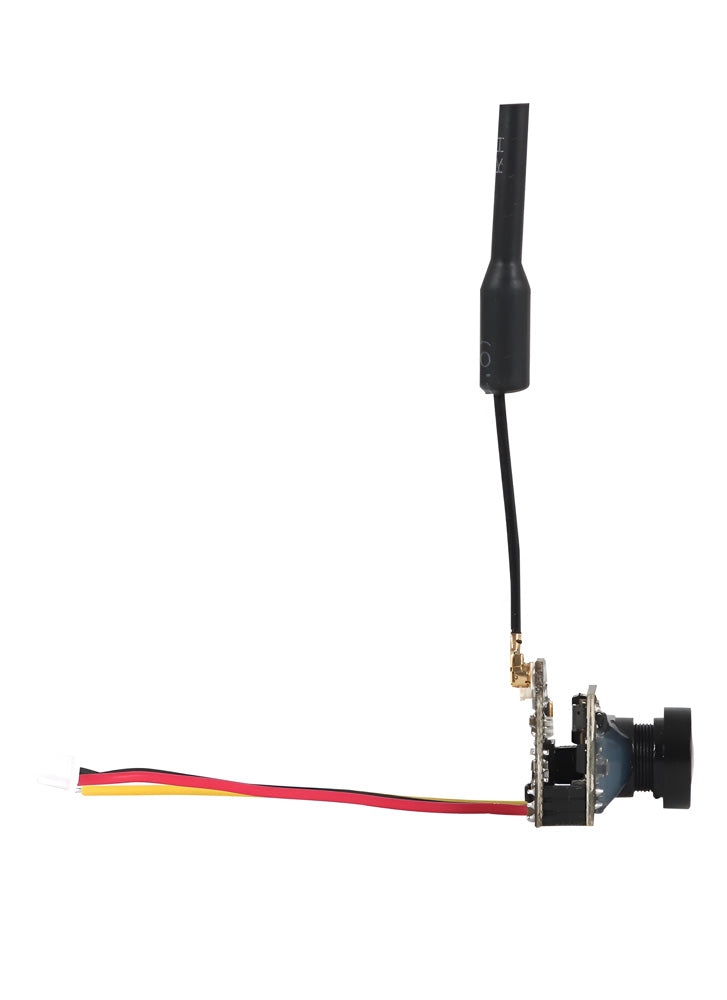

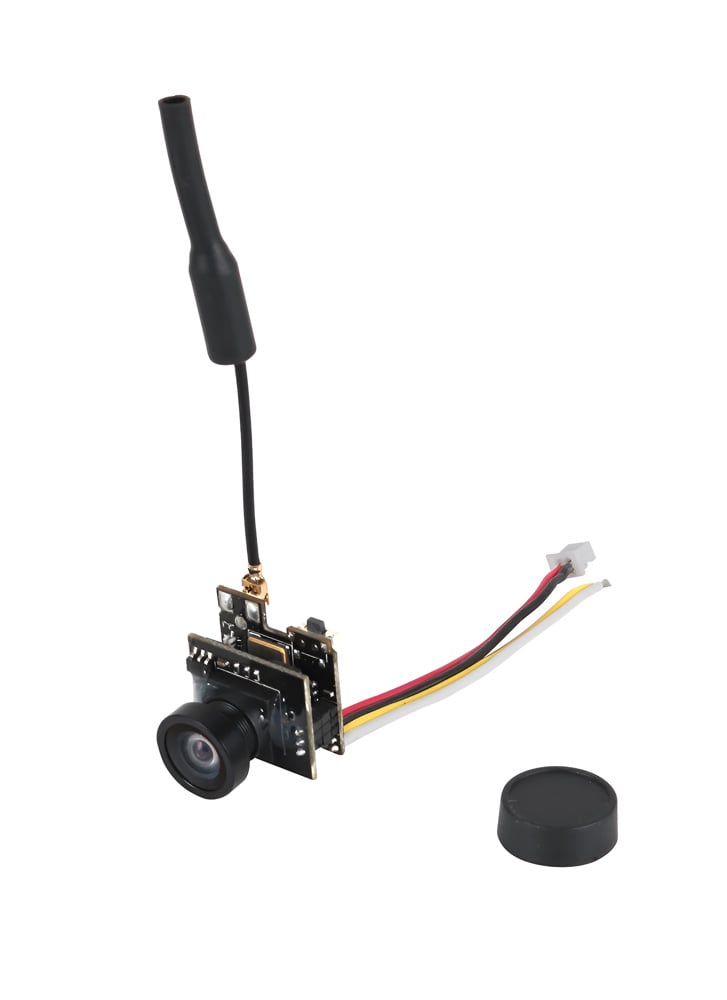

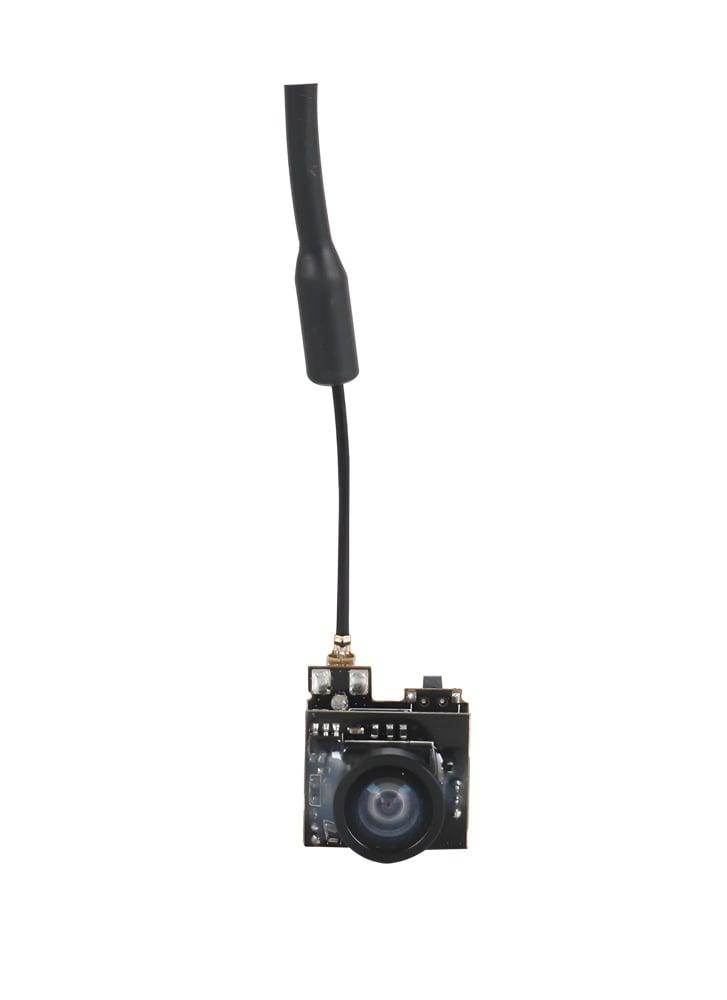

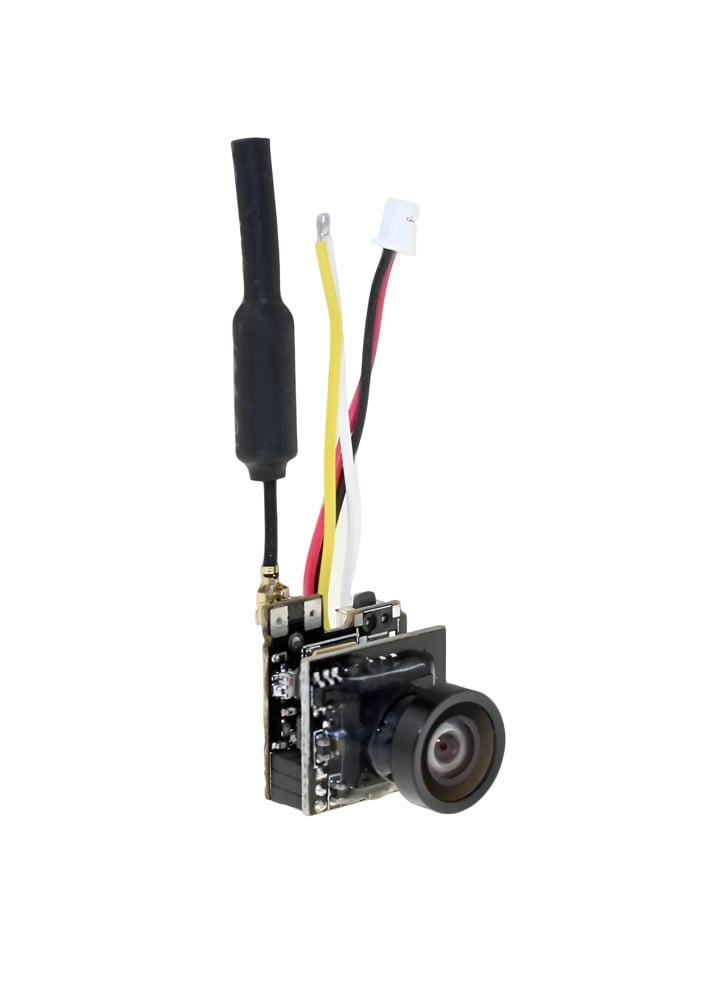

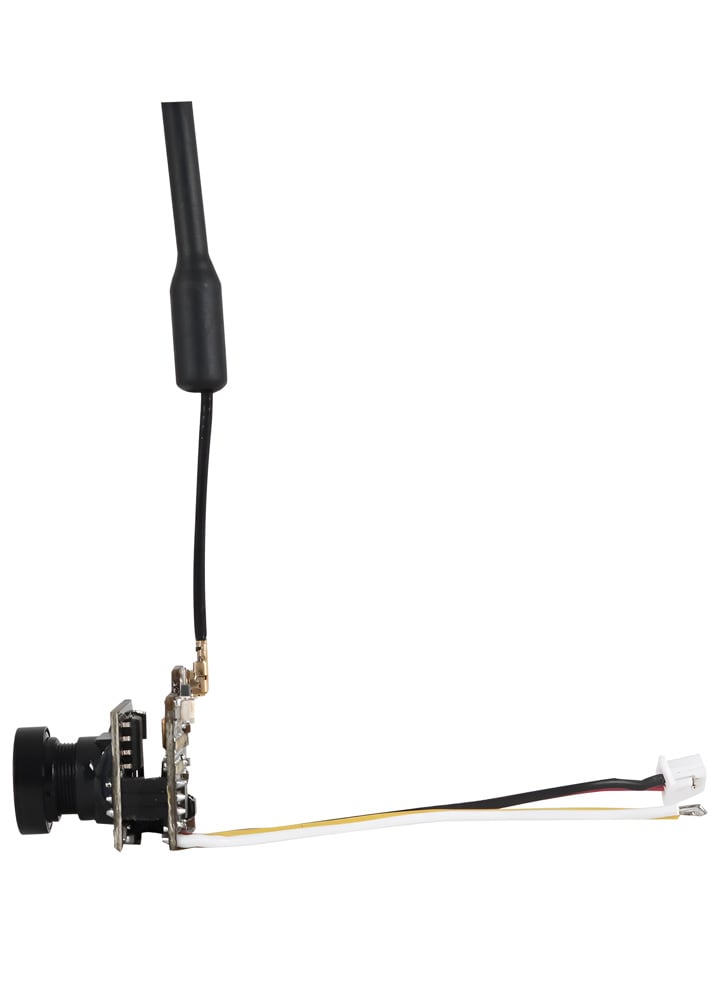

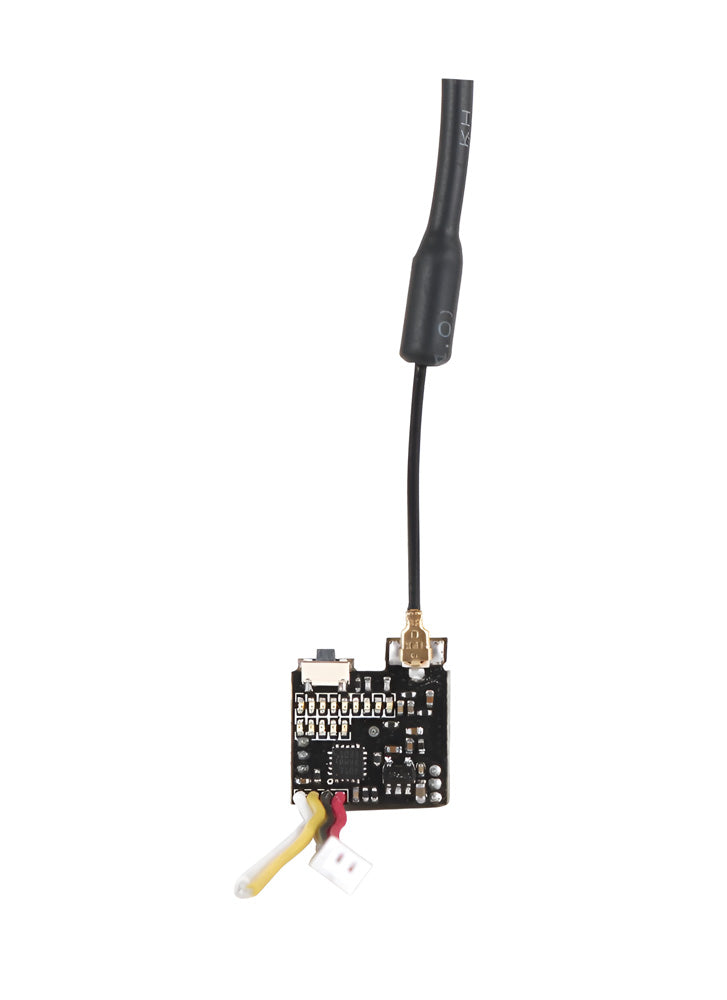

LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera

LST-S2 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera

£32.50

The LST-S2 combines a 800TVL mini camera with a 40CH 25mW VTX into a single unit. With this camera VTX combo, adding FPV to your model couldn’t be simpler; it’s truly plug and play.

To get up and running, you just need to provide power. That can be a 1S Lipo battery or any 5V power supply. It also compatible with flight controllers that have FPV OSDs. The LST-S2 has a video input and video output connection. By default these wires are soldered together, but then can be split to pass the video through an OSD.

Given the size of the camera, its picture quality is surprisingly good, while its 25mW UK Legal transmitter has a range of 100m, which is more than enough for most micro quads.

Features

Channels:

Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880 Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945 Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725 Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917 Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866

Button function Short press (Apr. 1 sec or less): Change channels 1-8 Long press (More than 1.5 sec): Change bands A-B-E-F-R Long + press (More than 3 sec): Change NTSC/PAL system NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Specifications

In the box
