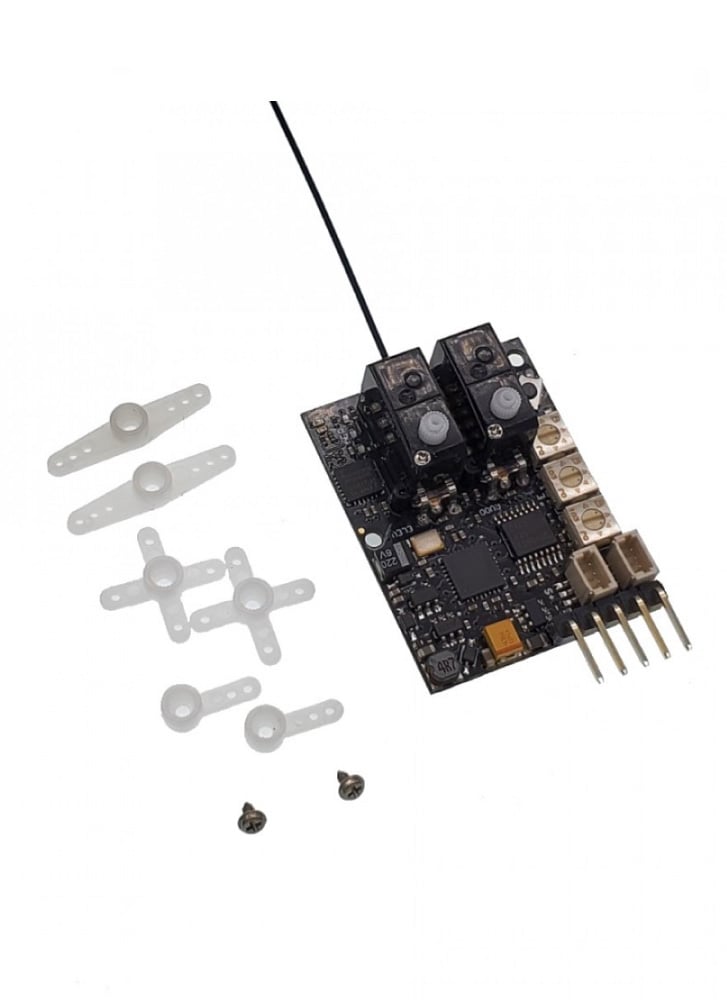

Lemon Rx Microbrick DSMX / DSM2 Compatible Receiver with 2.54MM Header Pins (LM0070H)
£37.90
The Lemon Microbrick combines a full-range DSMXTM/DSM2TM compatible receiver with two onboard ultramicro servos and a 5A brushed speed controller in a package that weighs under 7g. It has connectors for two external servos and can also support a separate brushless ESC. Finally, it provides optional three-axis stabilisation. It is an ideal solution for models up to about 250g, including many light weight UMX type planes. It can run off a 1s or 2s LiPo, recommended 150-220mAh size cells.
The Microbrick can be used with almost any DSMXTM/DSM2TM compatible transmitter.

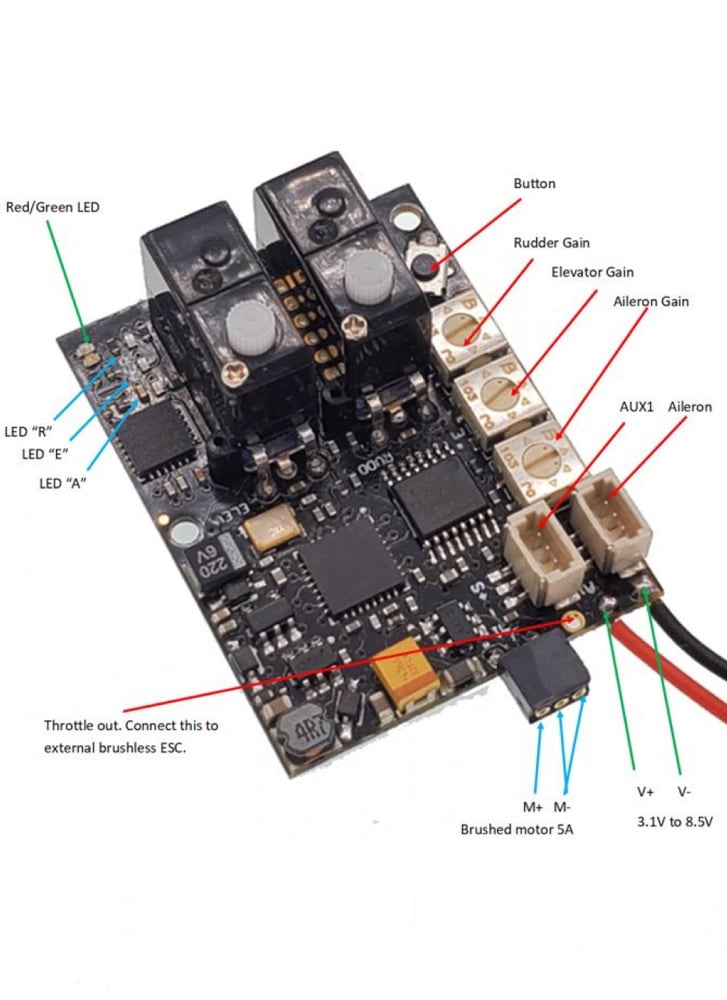

The Microbrick has five available flight channels in standard Spektrum order (1-4, 6), plus two internal control channels:
Channel 1 : Throttle : Onboard 5A brushed throttle and external signal for a brushless ESC Channel 2 : Aileron (or Right Aileron in dual servo aileron setups; optionally the onboard Rudder servo for 3 channels where Aileron stick is used for the Rudder) Channel 3 : Elevator onboard servo Channel 4 : Rudder onboard servo Channel 5: On/Off control of stabiliser (internal to the receiver) Channel 6 : Aux1 (or Left Aileron in dual servo aileron setups) Channel 8: Master gain control of stabiliser sensitivity (internal to the receiver)
Features
- DSMP protocol (fully compatible with DSMX / DSM2)
- Integrated 5A brushed motor driver
- Optional external brushless ESC connection
- Gyro stabilizstion on/off via gear channel
- Delta, fixed wing and V-tail mixing
- Legacy mode for single control stick operates both elevator and rudder channel
- Dual aileron for fixed wing
- Remote gain control on AUX3 (for transmitter with 8-channel or up)
- Servo swap feature (rudder and elevator servo position exchangeable for flexible installation)
- Intended for 1S LiPo application. 2S LiPo (8.4V) operational with dual on-board servo. (Note that the external servo over JST 1.0mm connection may not be able to work at 8.4V)
- Exceptional holding torque with approximately 0.10kg*10mm with 4.2V and 0.13kg * 10mm with 8.2V.
Versions (the difference is the choice of power / motor connetor):
LM0070H – 2.54MM Header Pins
LM0070M1 – Molex 1.25 Connector
Note: This is not a Spektrum product, nor is it a copy of any Spektrum product. Lemon RX develops its own technology to produce receivers which are fully DSM2 / DSMX compatible. Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.
Specifications
- Dimension: 26.5mm x 34.5mm
