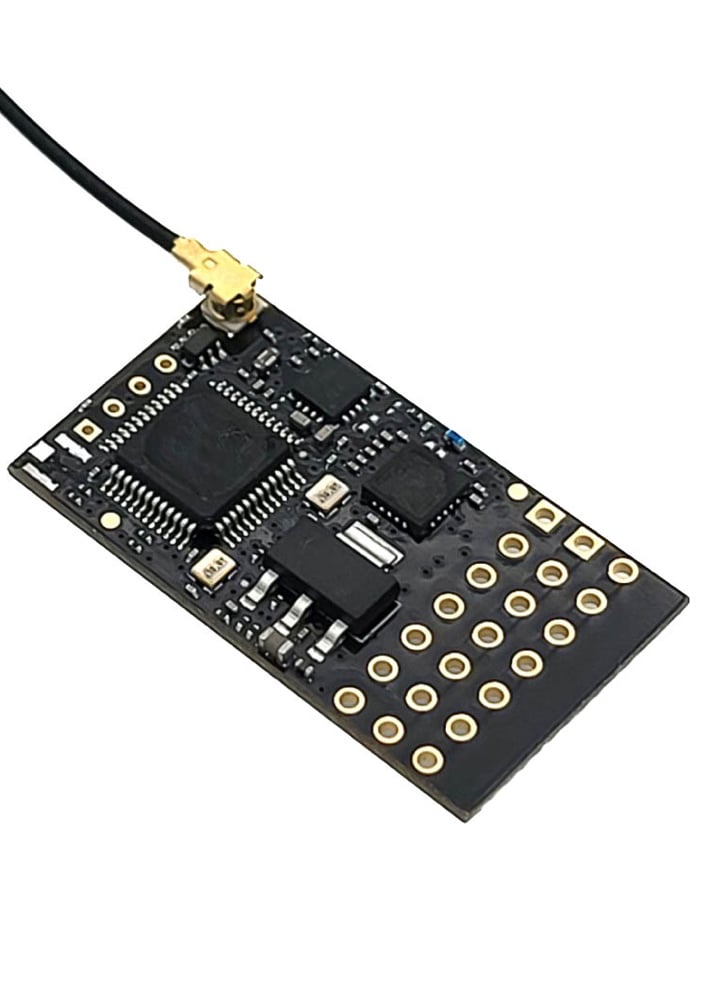

Lemon Rx 6-CH No Pin PWM Receiver DSMX / DSM2 (LM0080N)

Lemon Rx 6-CH No Pin PWM Receiver DSMX / DSM2 (LM0080N)

£14.99

The LM0080N is a 6 channel Lemon RX receiver. It comes without PWM headpins, allowing you to direct solder to this RX to save weight and to suit installations where space is limited.

It is compatible with DSMX and also backward compatible with DSM2 transmitters.

The receiver weighs in at only 2.3g and it’s barely bigger than a postage stamp.

Unlike some other Spektrum compatible products, Lemon Rx products aren’t inferior to Spektrum products in terms of performance or reliability.

Failsafe

Bind receiver and current channel values will be saved. Failsafe will be activated when no signal is received for 2 seconds. All channels will be positioned to failsafe default. For this reason, it is recommended that the throttle should be at 0% while all other sticks are centred during binding.

1S LiPo Application

The minimum recommended safe supply voltage is 3.5V

NOTE: The battery must be capable of maintaining that voltage while delivering the required maximum load current to the receiver and servos. In some cases you MAY be able to operate at a lower voltage (for example a well discharged 1S LiPo cell) but you must test it in practice to be sure.

Note: This is not a Spektrum product, nor is it a copy of any Spektrum product. Lemon RX develops its own technology to produce receivers which are fully DSM2 / DSMX compatible. Spketrum, DSMX and DSM2 are the registered trademark of Horizon Hobby, Inc.

Specifications

In the box
