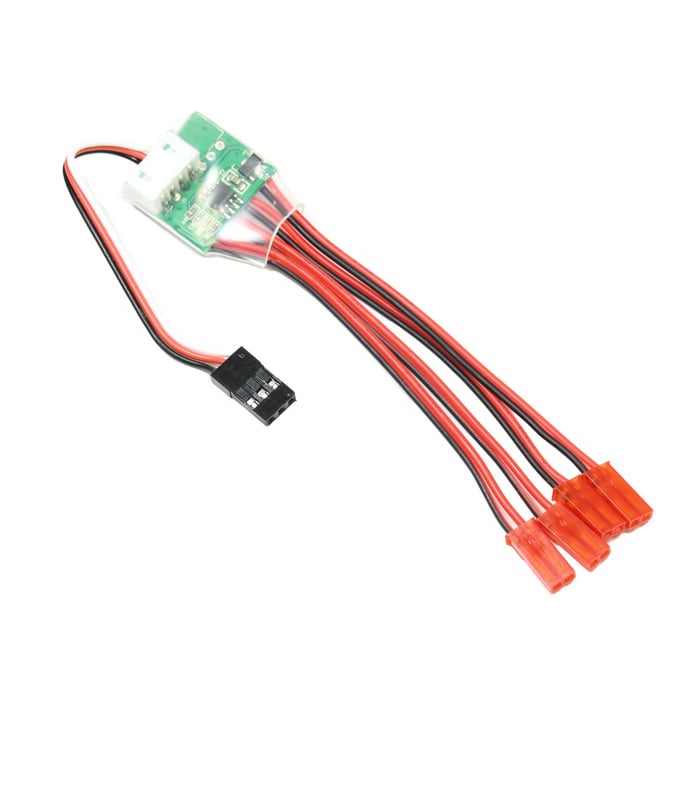

LED Light Bar Controller with 4CH JST Outputs & RC Control

£8.90

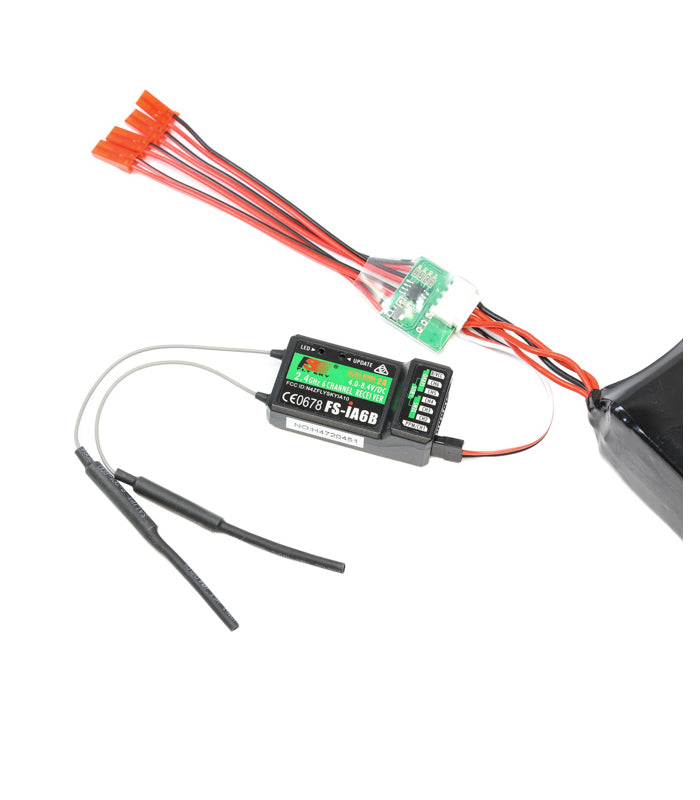

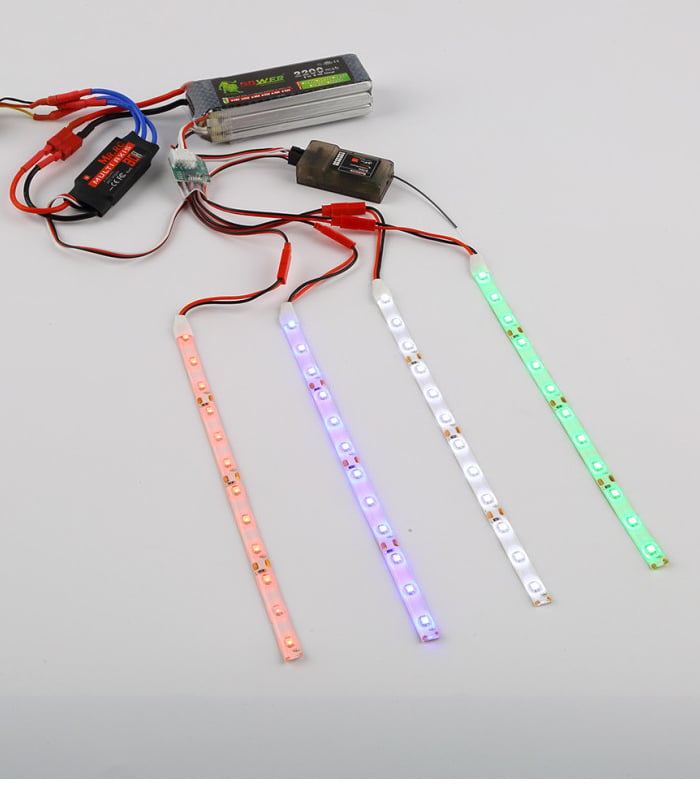

This is a LED bar light controller that is capable of controlling up to 4 LED strips at once. Wiring is simple, there are four power outputs for your LEDs and a balance lead plug for connecting directly with a 3S/4S/6S battery (please select version as required) to power the LEDs. Finally use the attached servo cable to plug the controller directly into your receiver/flight controller.

The controller supports four working modes and these are remotely controlled via your radio transmitter.

The controller uses JST power connections for its outputs, so for a plug and play solution check out our JST compatible LED lights: 200mm LED Strip Lights , LED Headlights .

Four Working Modes:

All Channels ON

All Channels OFF

Channels lighting up individually one after another

Front and back channel lighting up alternatively

Specifications

• Connection: Signal cable into PWM receiver, JST connector with LED lights, and then plug into lithium balance charge connector.
• Operating Voltage: 12V 3S
• Dimension: 12 x 2 x 0.5cm
• Weight: 8g

In the box

• 1x LED Light Bar Controller 4CH JST Outputs with RC Control
