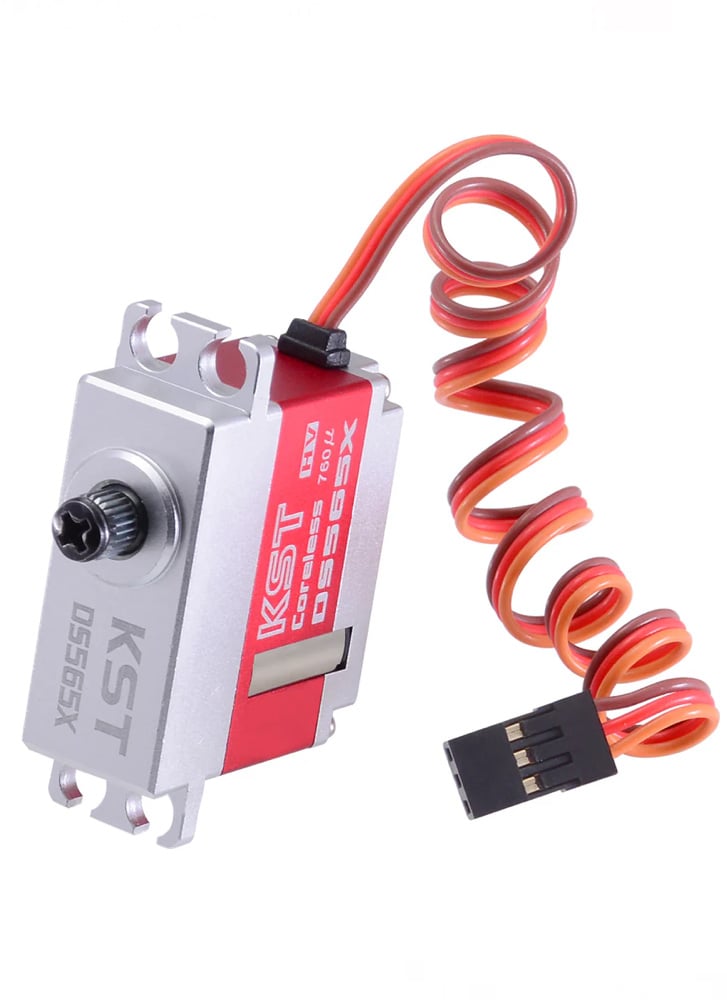

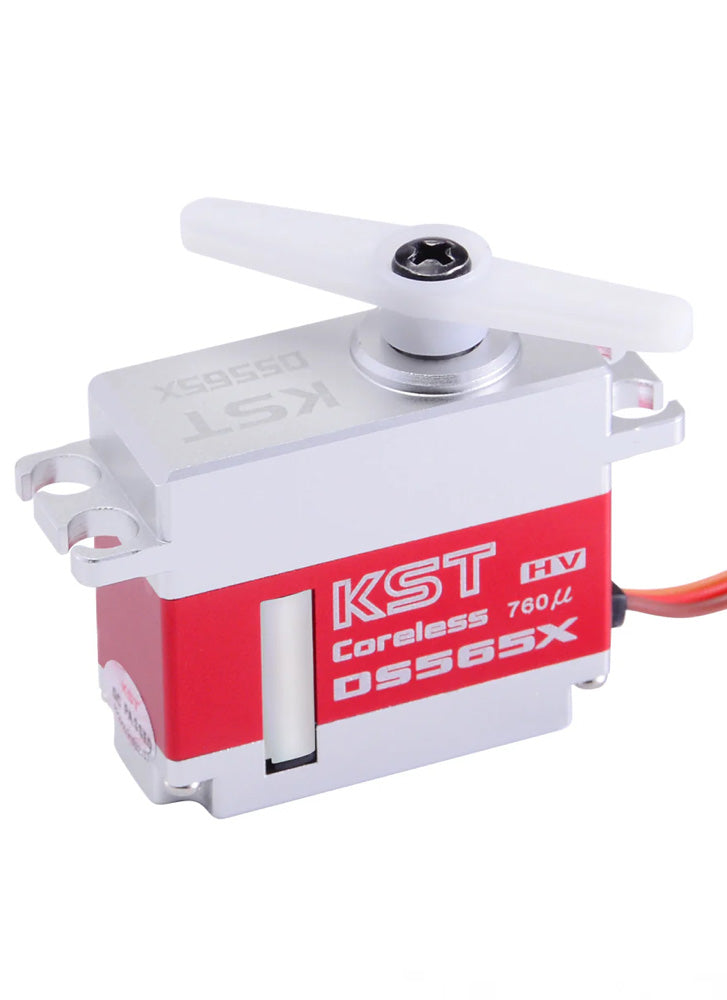

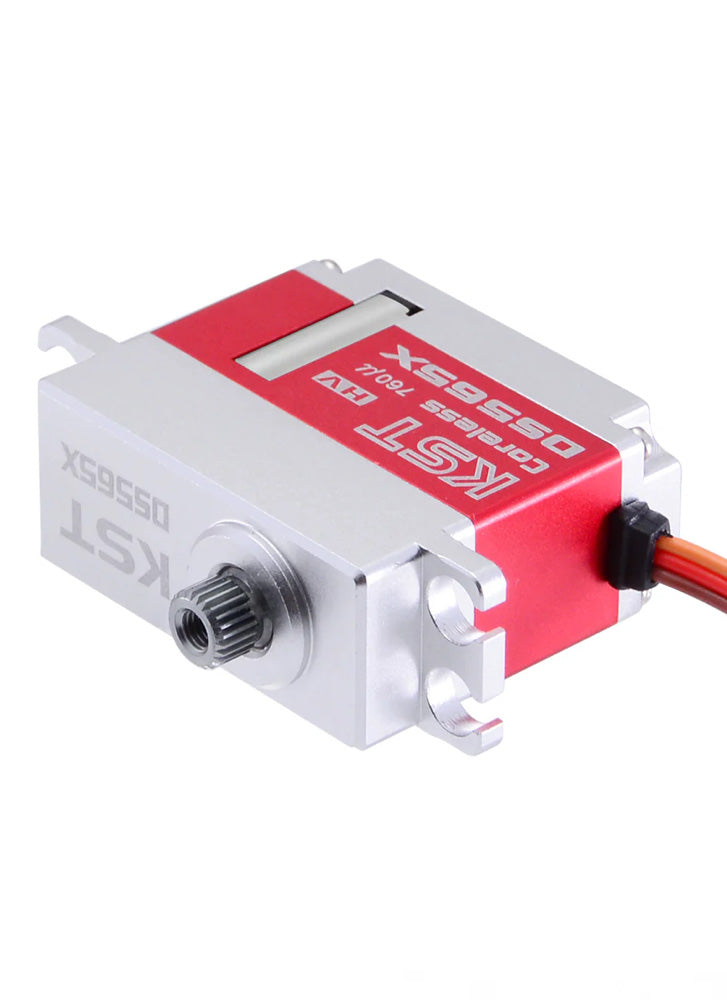

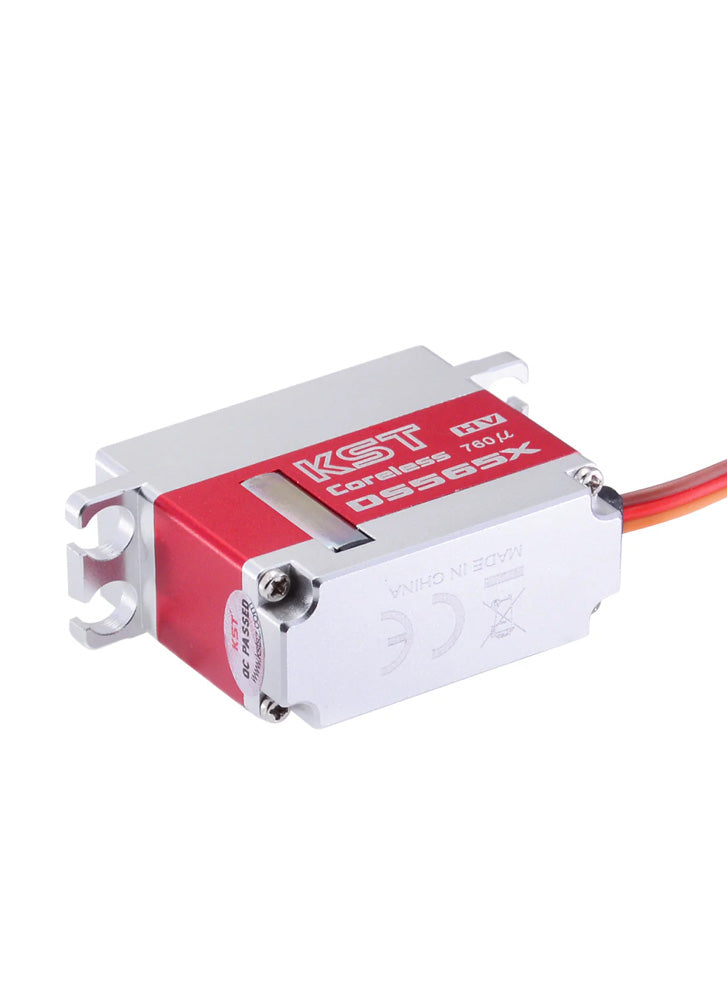

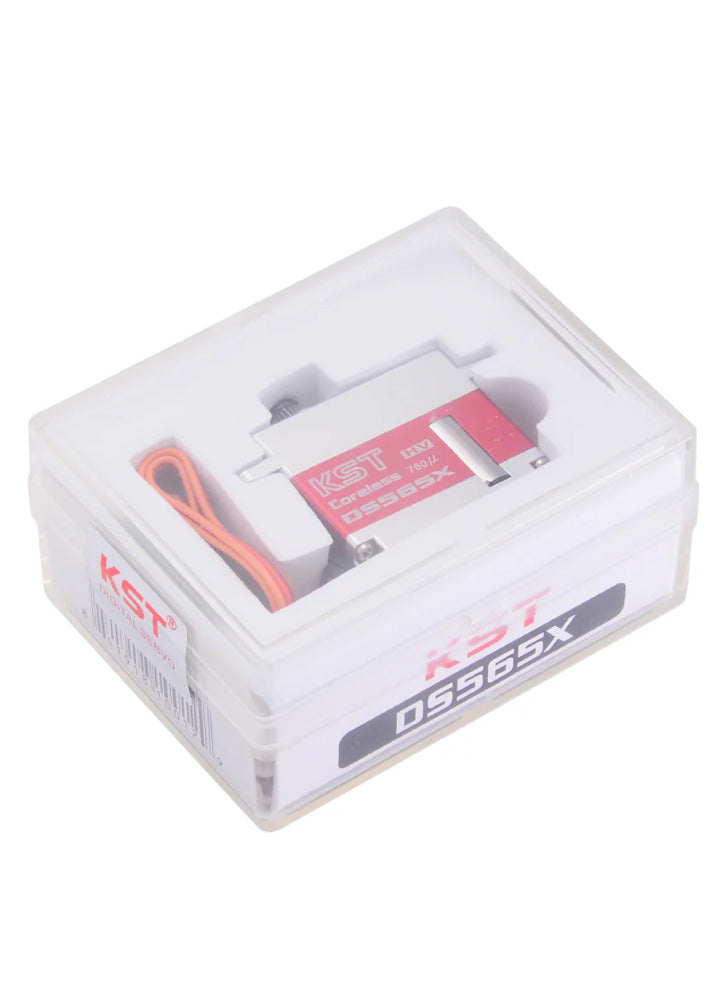

KST DS565X HV Digital Metal Geared Tail Coreless Servo 6.0Kgf.cm 0.04sec for Heli 325-425
£67.99
The KST DS565X HV is a compact, high-performance digital tail servo designed specifically for helicopters with rotor blades measuring 325mm to 425mm. Featuring a coreless motor and hardened steel gears housed in a lightweight aluminium alloy case , this servo delivers reliable, smooth, and responsive control tailored for precise tail rotor adjustments.
With a fast 0.04 sec/60° speed at 8.4V and solid torque up to 6.0 kg·cm , the DS565X offers excellent agility for aerobatic maneuvers.
It runs on 760μs / 560Hz , so be sure your gyro system supports this narrow-pulse, high-frequency specification.
Features
- Fast response time: 0.04 sec/60° @ 8.4V
- Strong torque: up to 6.0 kg·cm
- High-voltage operation: 6.0V – 8.4V
- Coreless motor for smooth, efficient operation
- Durable hardened steel gears
- Aluminum alloy case for lightweight strength
- Programmable soft start and other settings
- Compact size ideal for 325–425 class helicopters
Specifications
- Item: DS565X Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque:
- No-load Speed:
- Working Frequency:760μs/560Hz
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

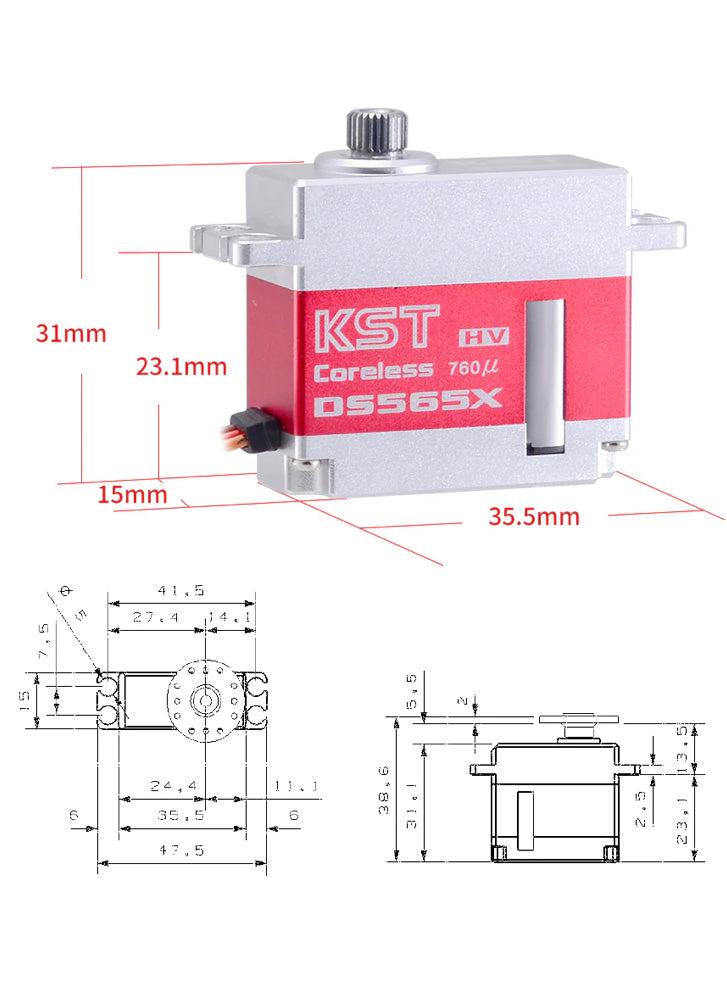

- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%

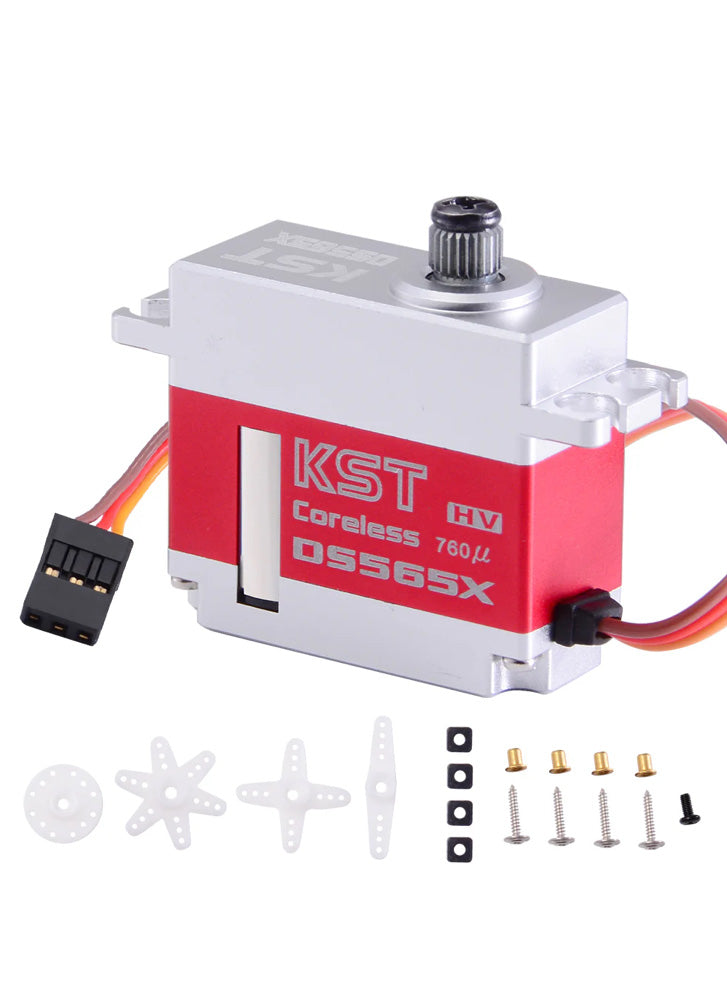

- 1 * KST DS565X Servo
- 1 * Pack of Accessories
