KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07sec for RC Helicopters
£36.99
The KST DS315MG V8.0 is a compact, high-speed mini digital servo designed for RC helicopter cyclic and tail applications where precise, fast response is essential. Featuring a hardened steel gear train and a robust CNC-machined aluminium case, this servo delivers a strong 4.8 kgf.cm torque with impressive speeds as fast as 0.07 sec/60°, ensuring crisp, reliable control during aggressive maneuvers.
Utilizing a 12mm coreless motor, the DS315MG provides smooth, accurate performance across a wide voltage range of 4.8V–8.4V, making it suitable for use directly on 2S LiPo systems. Its lightweight design (only 20g) and high-precision control make it an excellent choice for pilots seeking consistent cyclic and tail performance in 450–500 class helicopters or compact RC models.
Features
- Mini class servo (23×12×27.5mm, 20g) for RC helicopters and compact RC models
- High torque: up to 4.8 kgf.cm @ 8.4V
- Fast response: down to 0.07 sec/60° @ 8.4V
- Wide voltage range: 4.8V – 8.4V (4-cell NiMH to 2S LiPo)
- Coreless motor with hardened steel gears for precision and durability
- CNC-machined aluminium alloy case for strength and heat dissipation
- Programmable soft start and other settings
- Dual ball bearings for smooth, reliable operation
Specifications
- Item: DS315MG V8.0 Mini Servo
- Rated Voltage: DC6.0V
- Voltage Range: DC4.8V-8.4V
- Torque: 2.8Kgf.cm@4.8V / 3.5Kgf.cm@6.0V / 4.3Kgf.cm@7.4V / 4.8Kgf.cm@8.4V
- Speed: 0.10sec/60°@4.8V / 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±70°=140° Total
- Temperature Range: -20℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

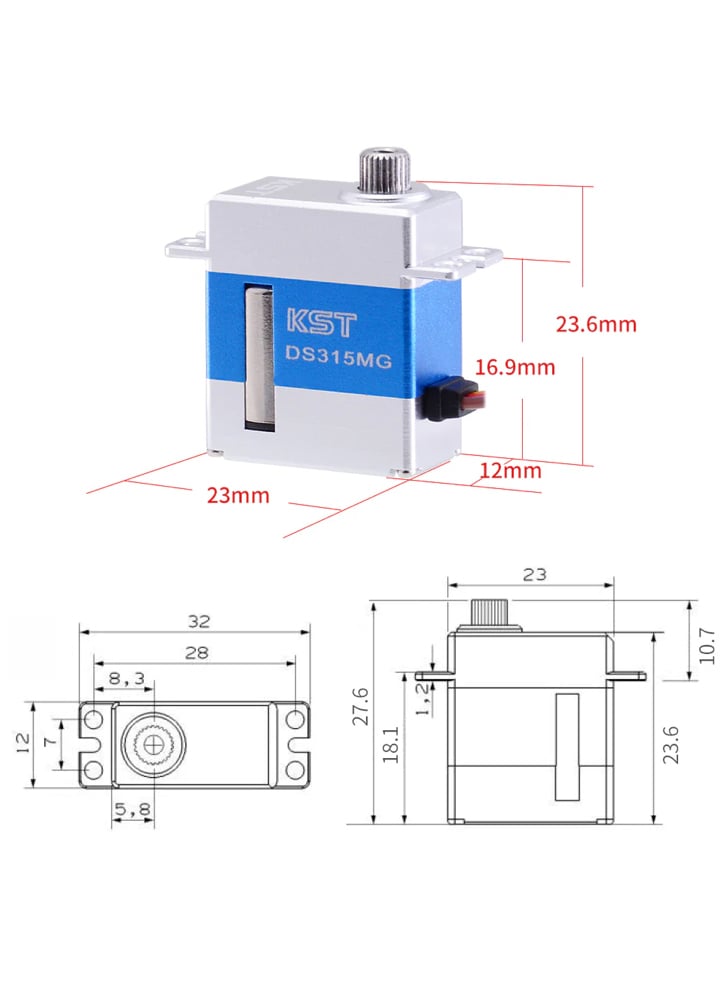

- Case Dimensions: 23mm*12mm*27.5mm±0.2mm
- Weight: 20g±10%

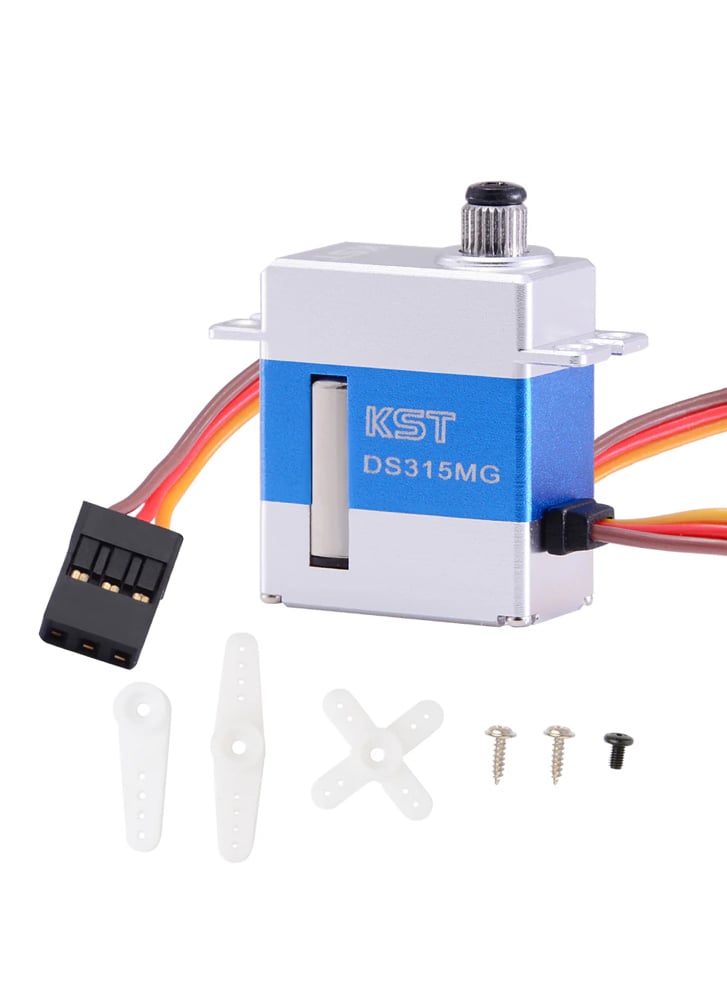

- 1 * DS315MG V8.0 Mini Servo
- 3 * Plastic Servo Horn
- 2 * Mounting Screw
- 1 * Servo Horn Screw
