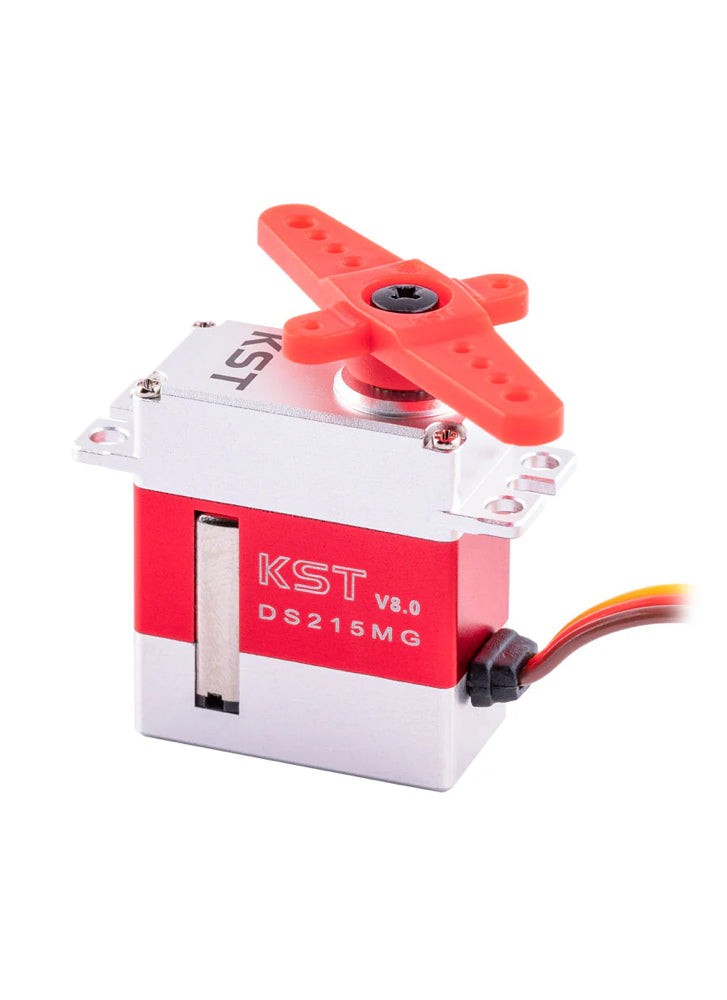

KST DS215MG V8.0 Digital Metal Geared Micro Servo 4.0Kgf.cm 0.05sec for RC Glider and Helicopters
£28.90
The KST DS215MG V8.0 Digital Metal Geared Micro Servo delivers exceptional speed and power in a lightweight, compact package, making it ideal for RC gliders, helicopter cyclic and tail rotor, and EDF jets . Weighing only 20g, it offers a strong 4.0 kgf.cm torque and lightning-fast 0.05 sec/60° speed , ensuring precise and responsive control for your high-performance models.
Designed for direct connection to 2S LiPo or LiFe batteries without the need for a regulator , the DS215MG handles high voltage reliably while maintaining excellent heat dissipation thanks to its robust aluminium alloy case. With hardened steel gears and a coreless motor, it combines durability with smooth, accurate operation, while programmable features including soft start allow fine-tuning to match your setup.
The DS215MG V8.0 is a trusted choice for pilots who demand top-level performance for glider elevators and rudders, helicopter cyclics and tails, and EDF jet control surfaces , where every gram and every millisecond of response matters.
Features
- Fast response time: 0.04 sec/60° @ 8.4V
- Strong torque: up to 6.0 kg·cm
- High-voltage operation: 6.0V – 8.4V
- Coreless motor for smooth, efficient operation
- Durable hardened steel gears
- Aluminium alloy case for lightweight strength
- Programmable soft start and other settings
- Compact size ideal for 325–425 class helicopters
Specifications
- Item: DS215MG Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 3.1Kgf.cm@6.0V, 3.7Kgf.cm@7.4V, 4.0Kgf.cm@8.4V
- Speed: 0.060sec/60°@6.0V, 0.055sec/60°@7.4V, 0.050sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

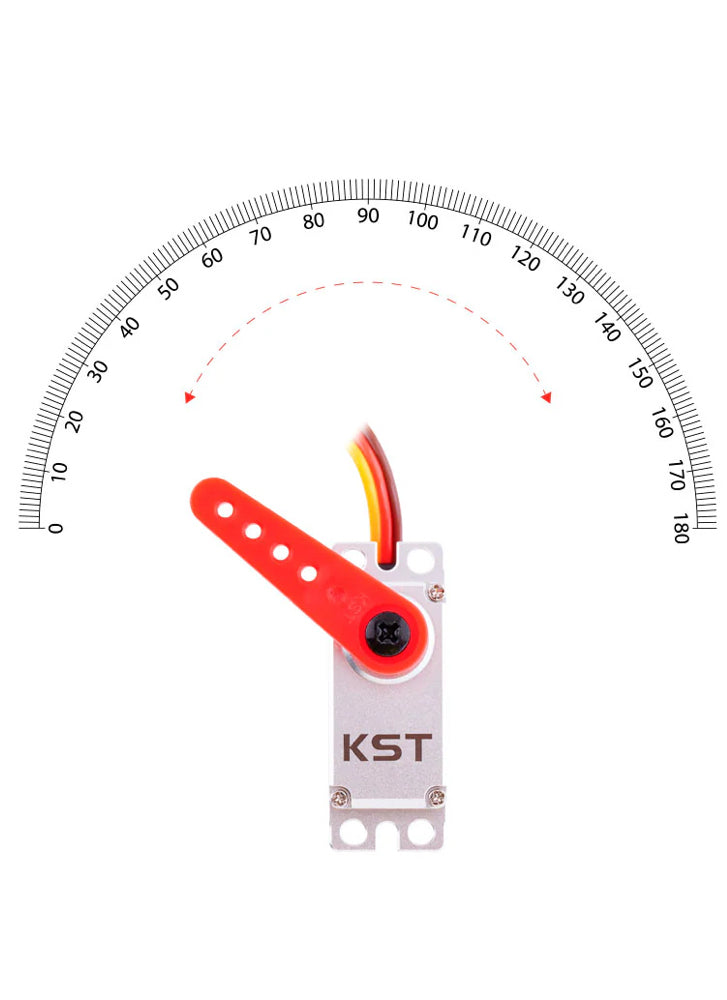

- Default Travel Angle: ±70° = 140° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

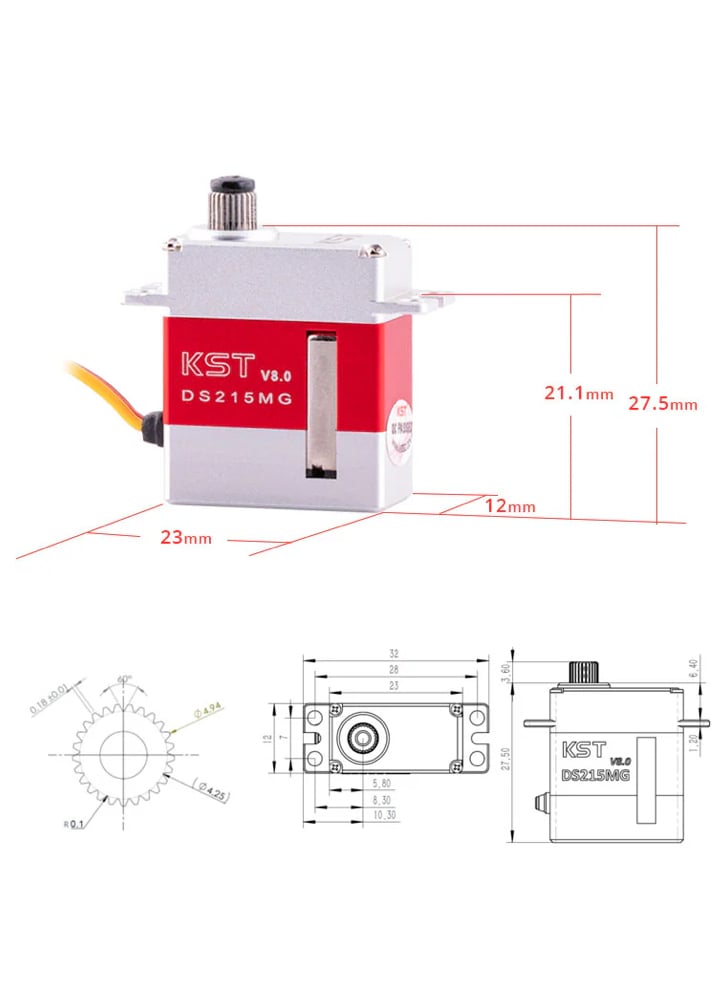

- Case Dimensions: 23mm*12mm*27.5mm±0.2mm
- Weight: 20g±10%

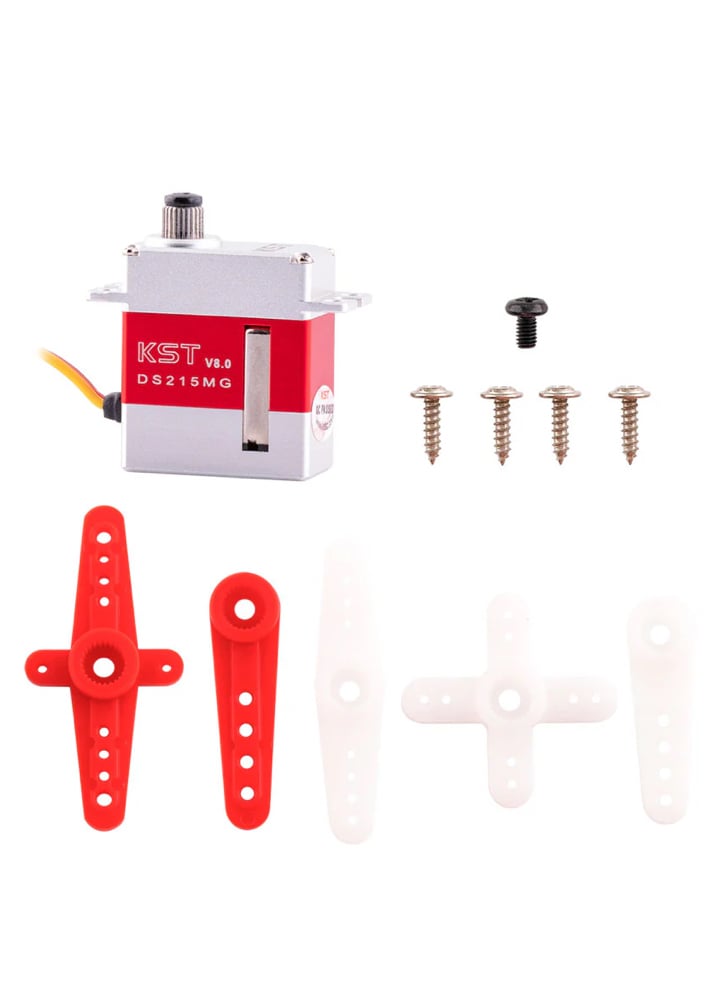

- 1 * DS215MG V8.0 Servo
- 1 * Servo Horn Screw
- 4 * Mounting Screw
- 5* Plastic Servo Horn
