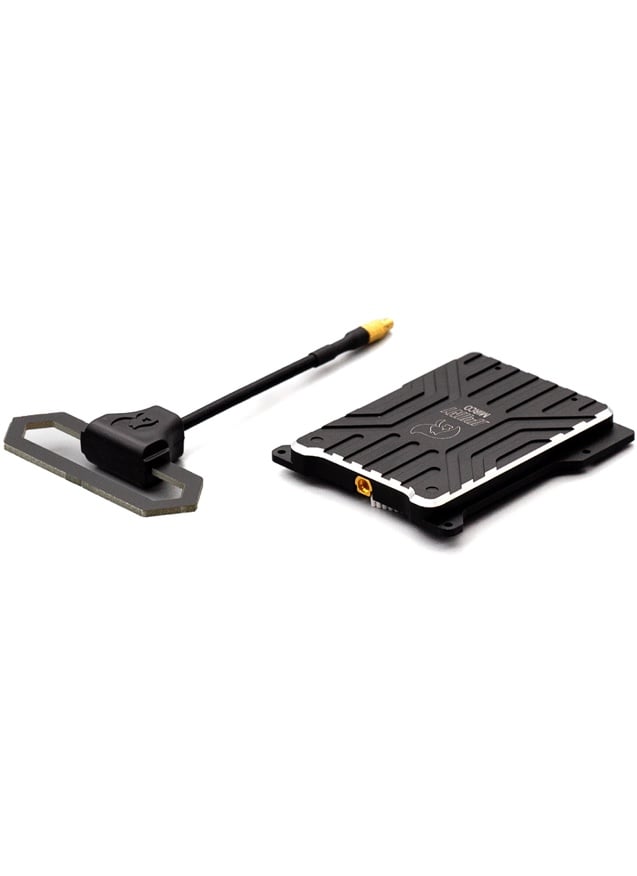

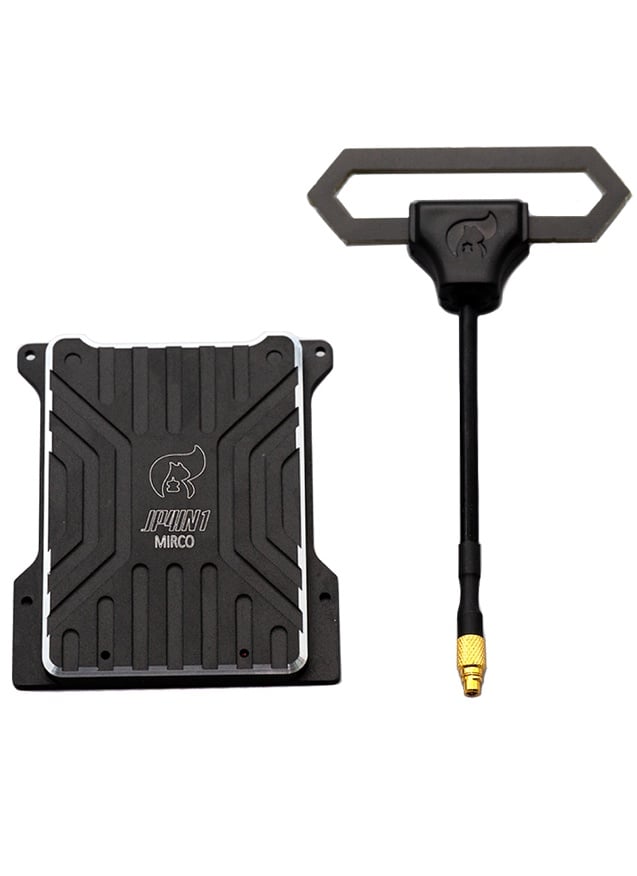

Jumper T20 JP4IN1 Micro Multi-Protocol Radio Module
£47.99
This multiprotocol module incorporates four RF chips into one transmitter module and supports pretty much all of the communication protocols used in the RC hobby. With it you can control everything from a single radio; from toy grade Syma models to FrSky racing drones or Spektrum BNF aircraft. A full list of compatible protocols can be found in the Jumper JP4IN1 Manual .

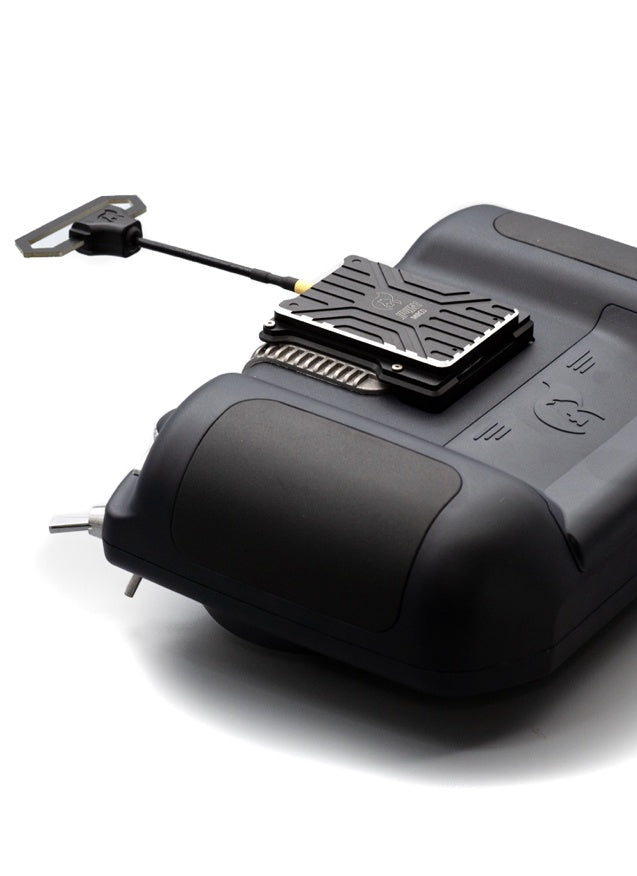

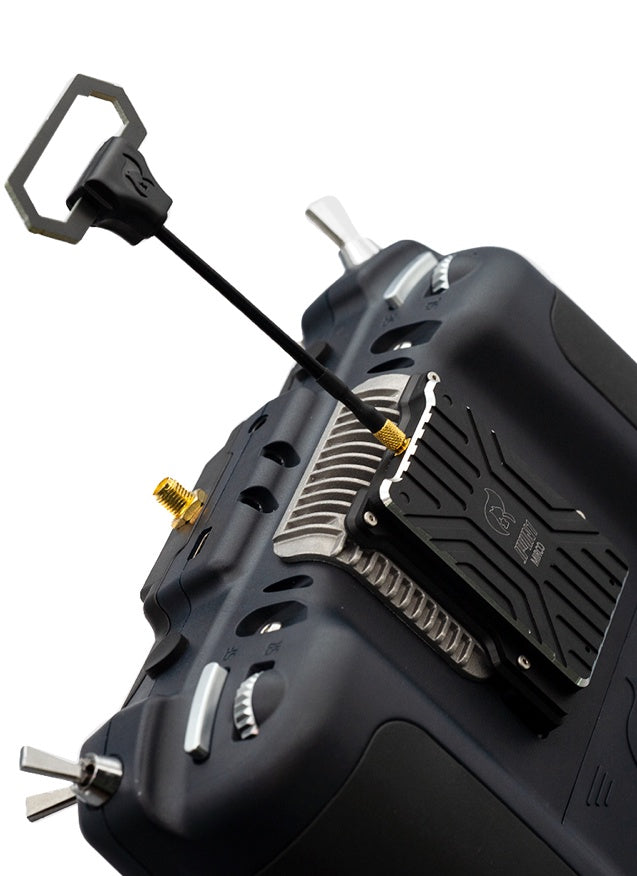

This module is plug and play with Jumper T20/T20S radio.
RF chips integrated in this multiprotocol module are: CC2500, NRF24L01, A7105 and CYRF6936
Specifications
- Working voltage: 6-9v
- Working current: <=100ma
- Operating frequency: 2.4G ISM band
- RF power: +22DBM
- Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
- Module bay compatibility: T20
- Net Weight: 42g (including antenna)
- Firmware updatable: Yes, via USB.
- Cyprus Semiconductor CYRF6936: DS M/DS M X, Walkera Devo
- Texas Instruments CC2500: FrSky, Futaba SFHSS
- Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
- Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
In the box
- 1 x Jumper JP4IN1 MICRO Transmitter Module
- 1 x Antenna
