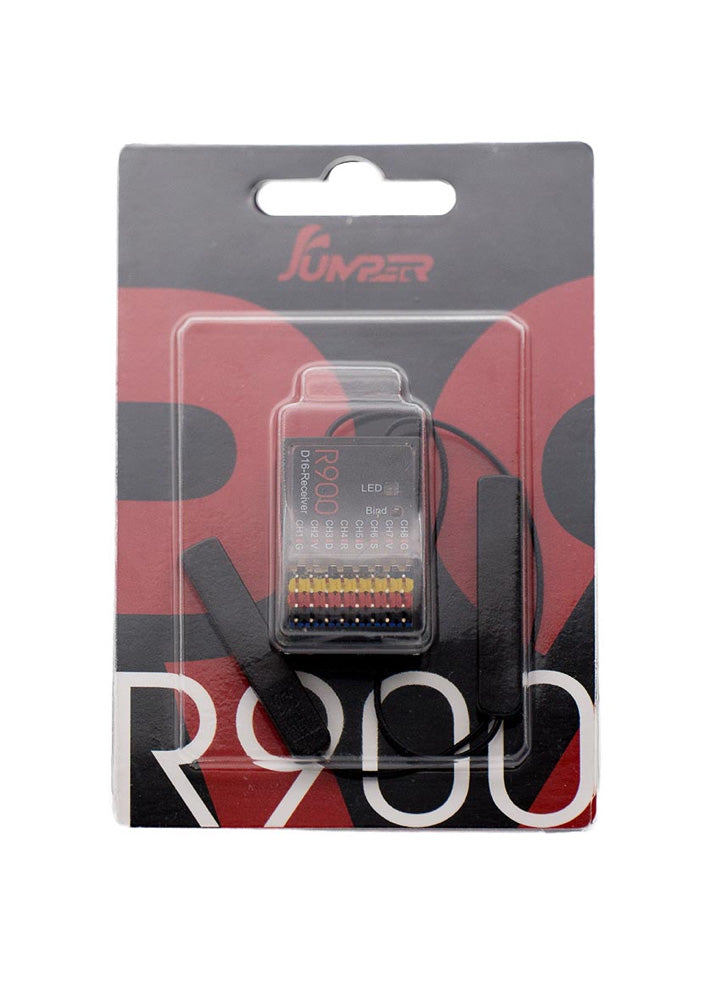

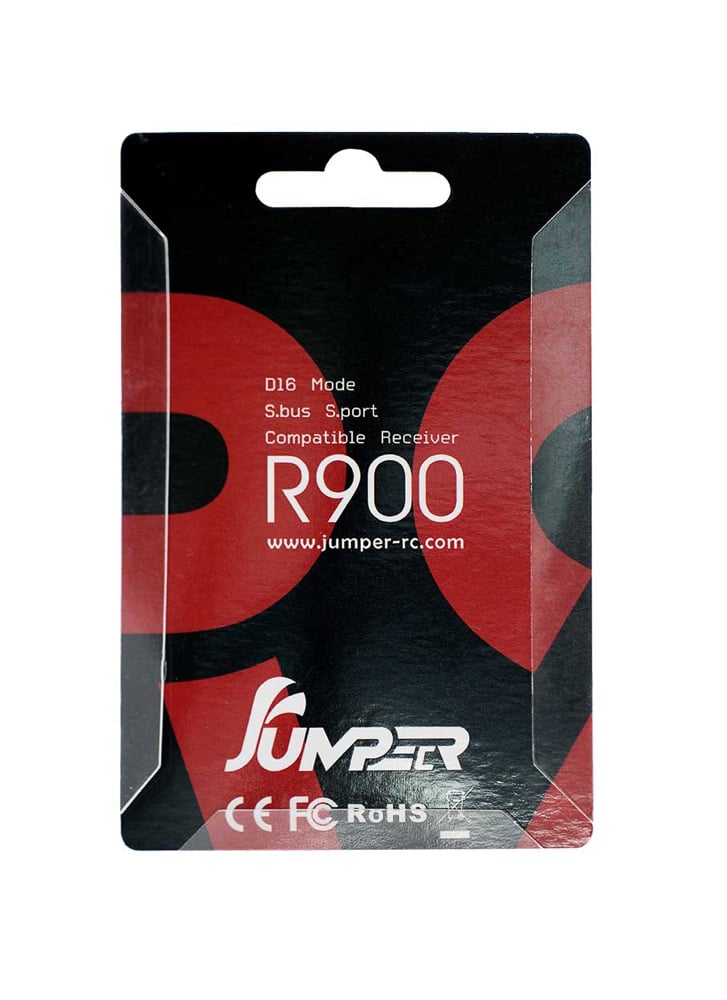

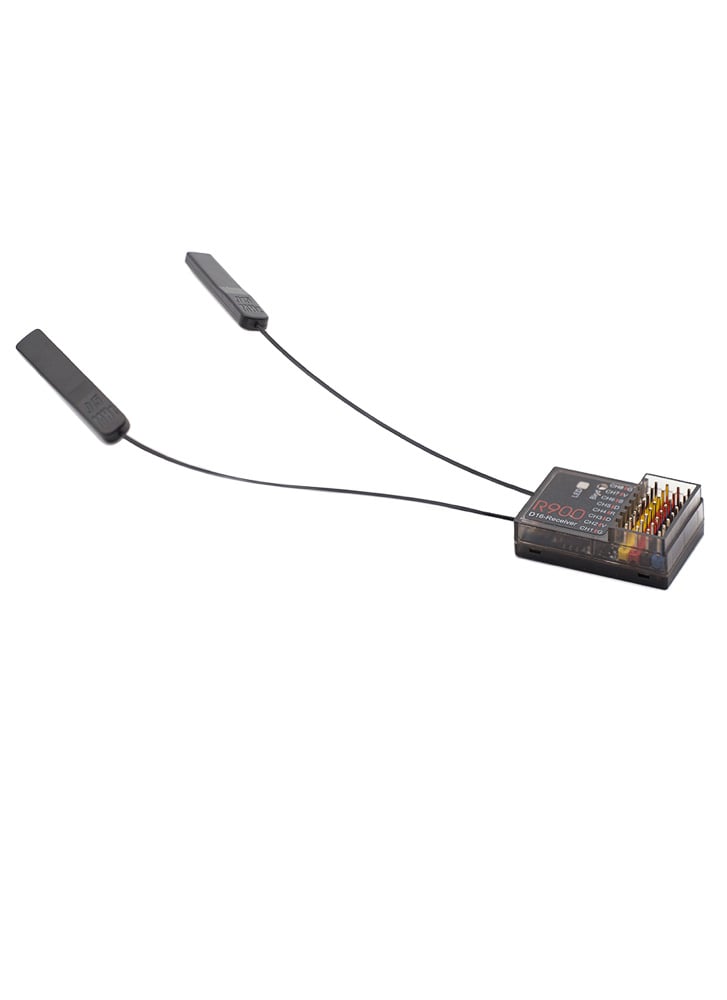

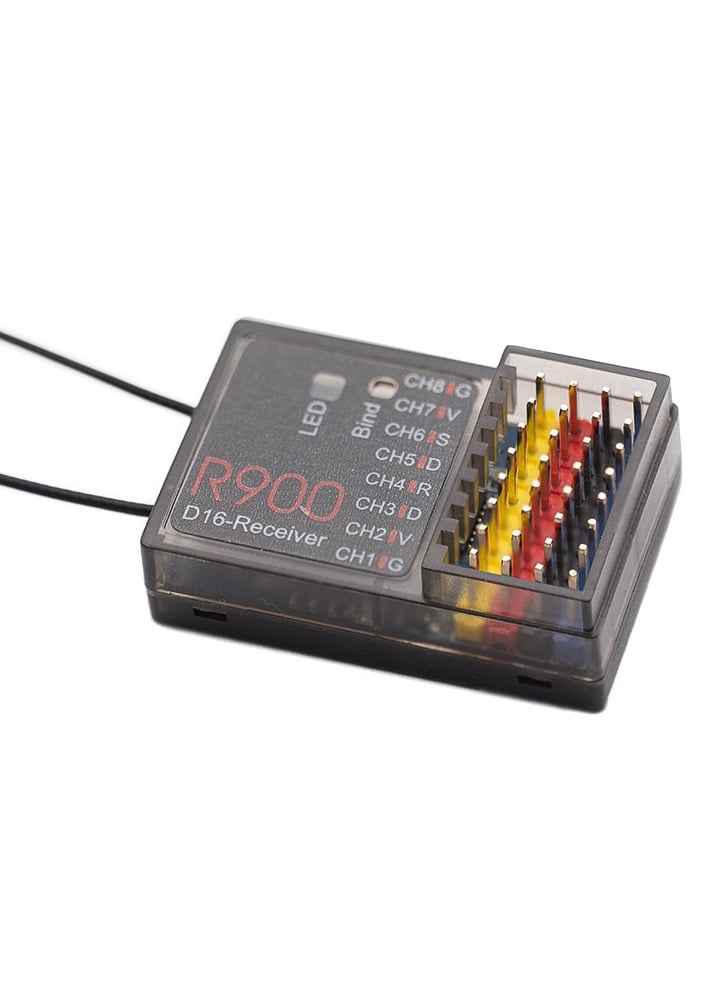

Jumper R900 Receiver 900MHz Long Range RX
£14.40

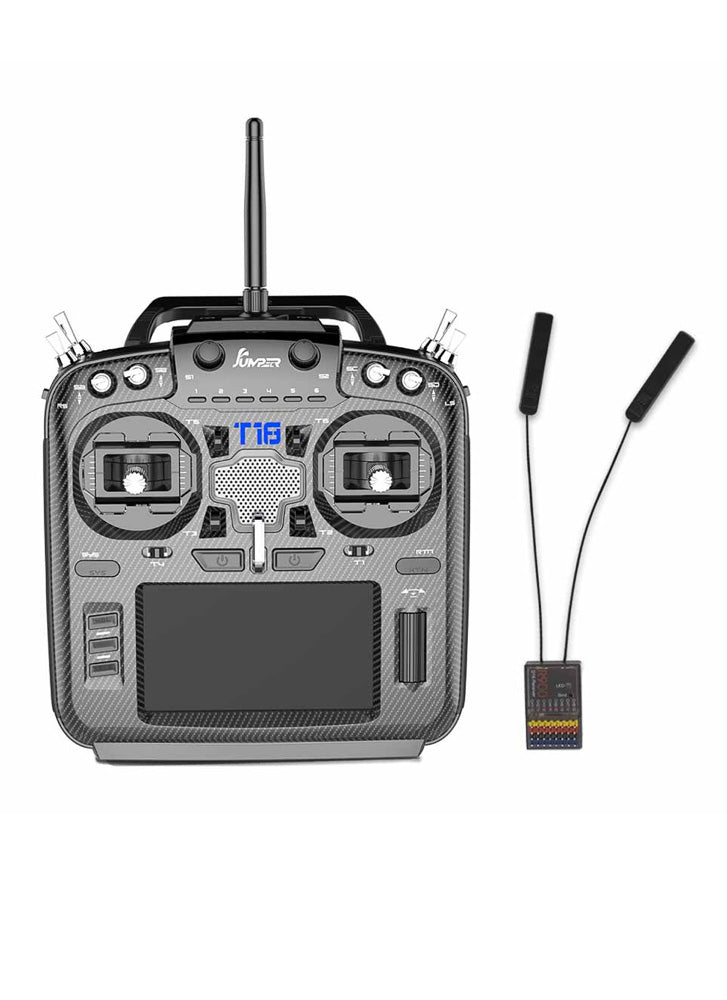

The R900 is a new long-range receiver designed to accompany Jumper’s T18 5-in1 Multi-Protocol Radio . The Rx is compatible with R9 systems on 900MHz. It offers 8 PWM channels or 16-channels on SBUS. Like it’s 2.4GHz brother the Jumper R8 , the R900 has a useful TX/RX telemetry output, which allows you to connect it to a Pixhawk, PX4 or APM Flight Controller to receive a live telemetry on a compatible RC transmitter, for example the Jumper T18 or Taranis X9D. This is a super useful feature as it means you can get lots of useful information such as flight modes, battery level and error messages direct to your radio in real time without the need for a Mavlink Ground control station.
Yaapu Telemetry Script – Here
Arducopter Wiki Information – Here
Features
- 8 PWM Channels / 16CH SBUS
- Compatible with the T18 5in1 / FRSKY R9 series (ACCST) RF module
- Operates on 915MHZ frequency, suitable for long range flight
- Strong signal penetration and good anti-interference ability
- TX/RX Pins support Pixhawk telemetry without an adapter
Specifications
- Output: SBus RSSI TX/RX (For PIX) PWM (1-8CH)
- Channels: 16CH
- Operating Voltage: 3.5V – 7.4V
- Operating Range: Full Range
- Compatibility: 915 Mode (Jumper T18 / R9M (ACCST))
- Weight: <10g
- Dimensions: 35.8×23.7×12.6mm
In the box
- 1x Jumper R900 900MHz Long Range Receiver
