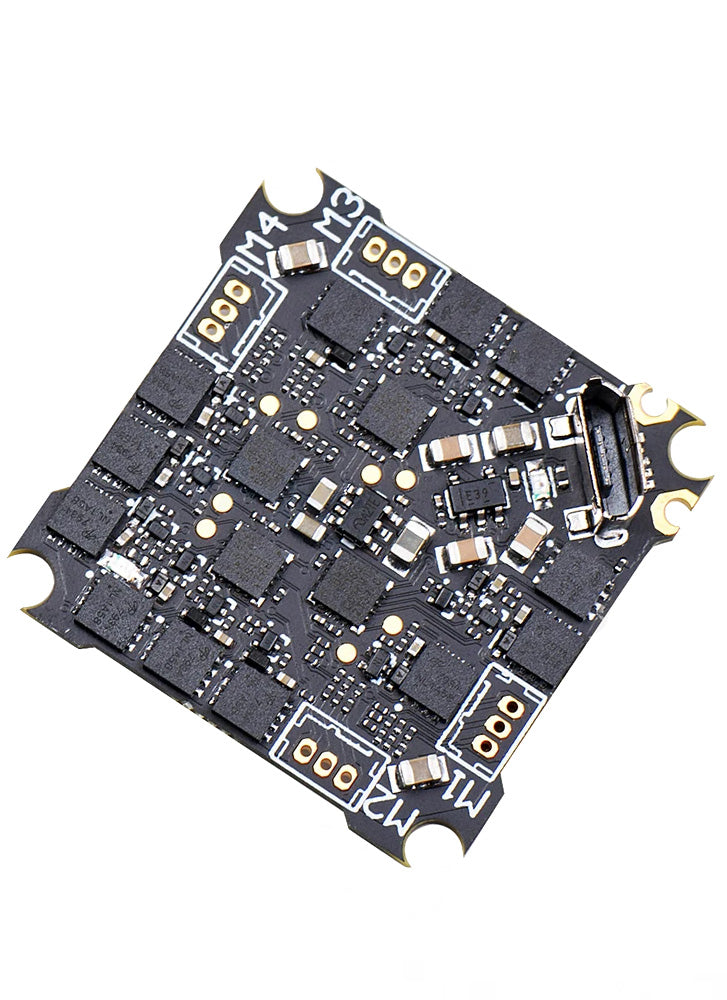

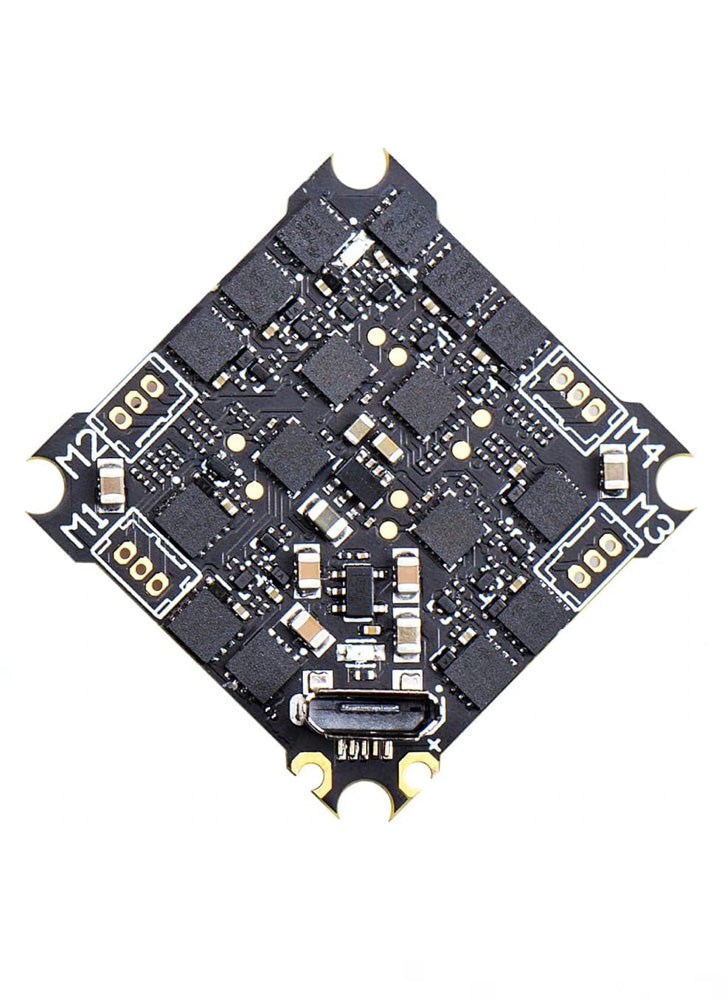

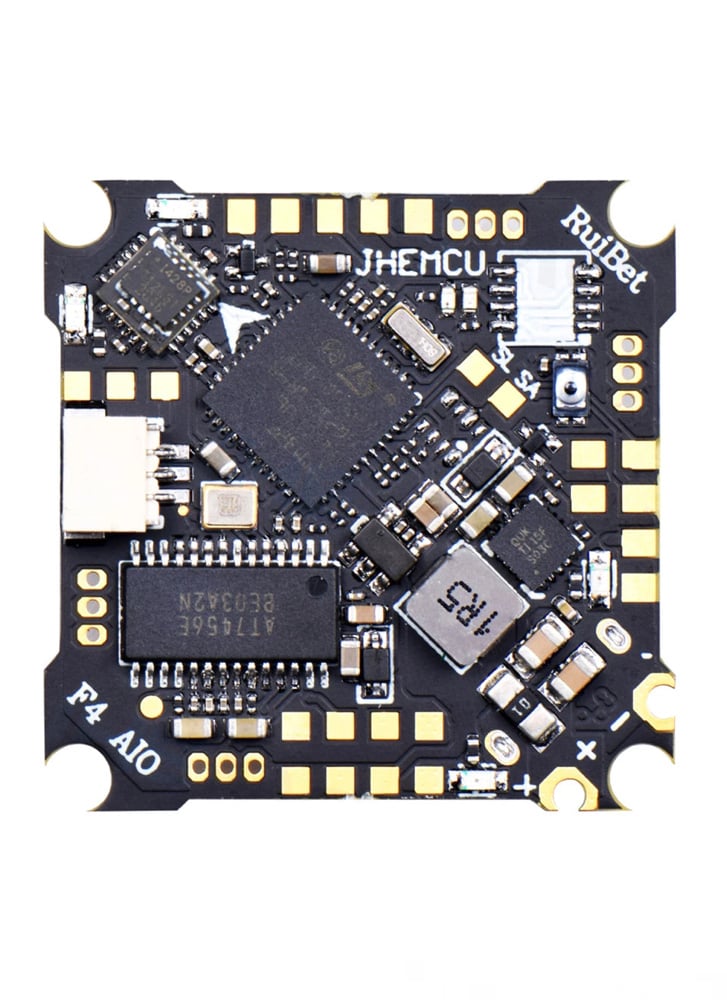

JHEMCU Ruibet 1-2S F4 AIO 12A ESC Whoop Flight Controller w/ OSD 5V BEC
£42.00
The JHEMCU Ruibet AIO Flight Controller offers an integrated solution for mini drones, known as Whoops. It combines a F4 flight controller with a 1-2S compatible, 12A four-in-one brushless ESC, delivering smooth and responsive flight performance. The controller includes 2 serial ports (UART 1, UART 2), a 12C port, and an SBUS interface (RX2). It also features a reserved WS2812 interface for addressable LEDs, along with a buzzer interface and camera socket interface for added functionality. With its lightweight design and multiple connectivity options, it’s an excellent choice for whoops and other small drones.
Specifications
- Brand: JHEMCU
- Model: RuiBet F4
- CPU: STM32F411
- ICM: ICM42688
- OSD: AT7456E
- Barometer: NO
- Blackbox: NO
- USB Port: Micro usb
- BEC: 5V
- UART: UART1, UART2
- IIC: Support
- Mounting Hole: 25.5×25.5mm, M2
- Weight: 4.4g
- Supports PWM, Oneshot125, Oneshot42, Multi Shot, DShot 150 DShot 300, Shot 600
- Input voltage: 1S-2S LIPO
- Continuous current: 12A
- Firmware: BLHELI_S Z_H_30_REV 16_7.HEX

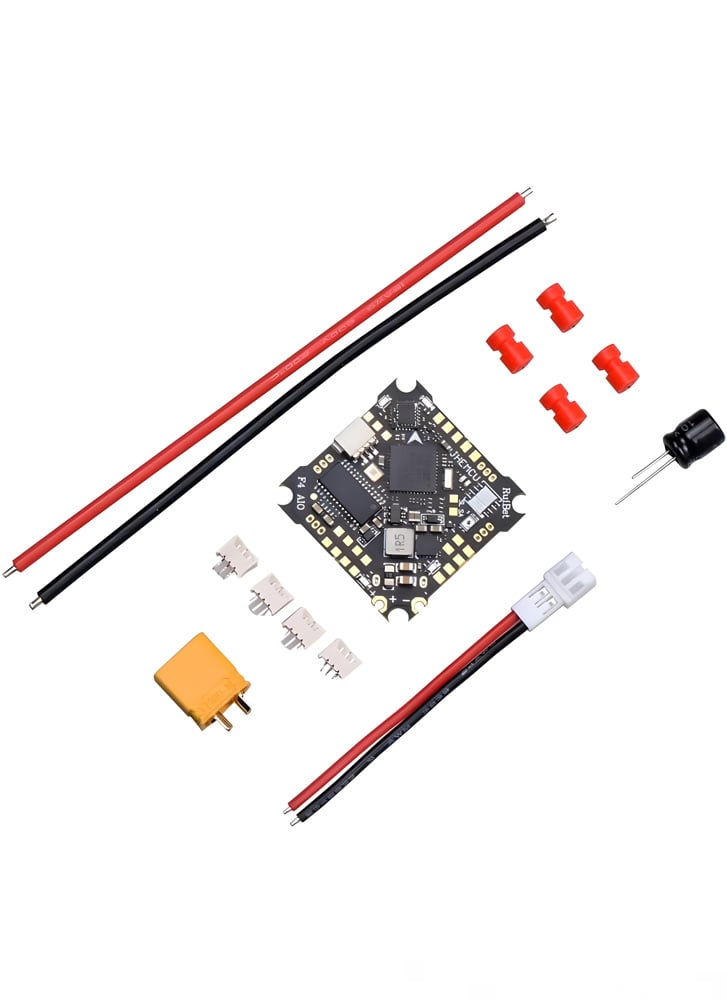

In the box
- 1x RuiBet F4 AIO

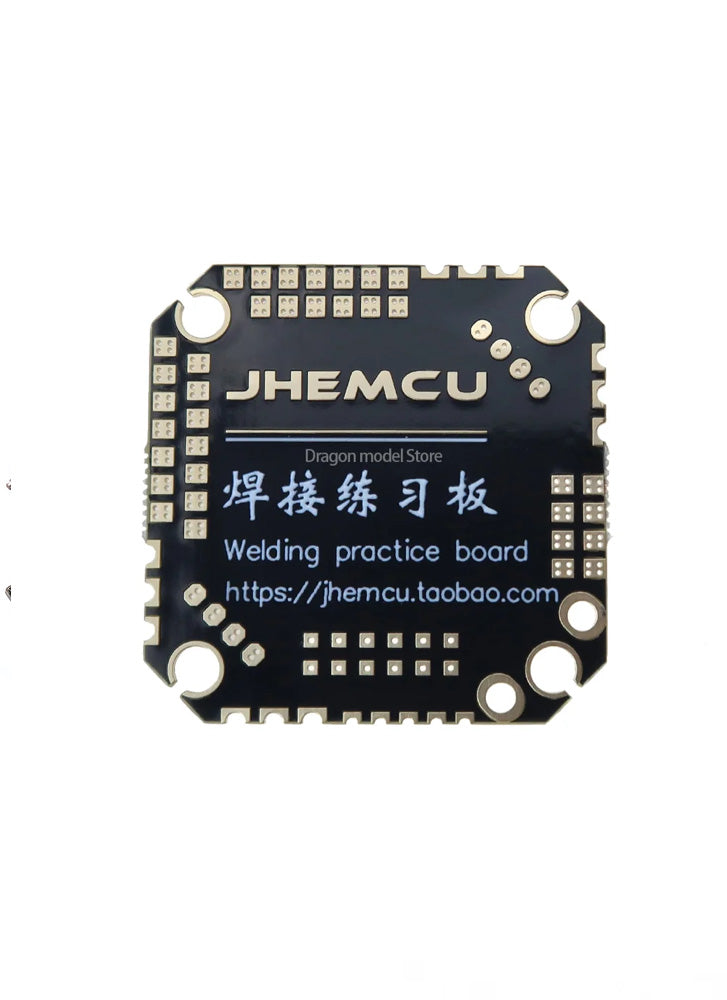

- 1x Practice Soldering Board
- 2x 18AWG Cable
- 1x XT30 Connector
- 4x M2x6.5 Anti-vibration Ball
- 1x 10V 470UF Capacitor
- 1x 2P Cable
