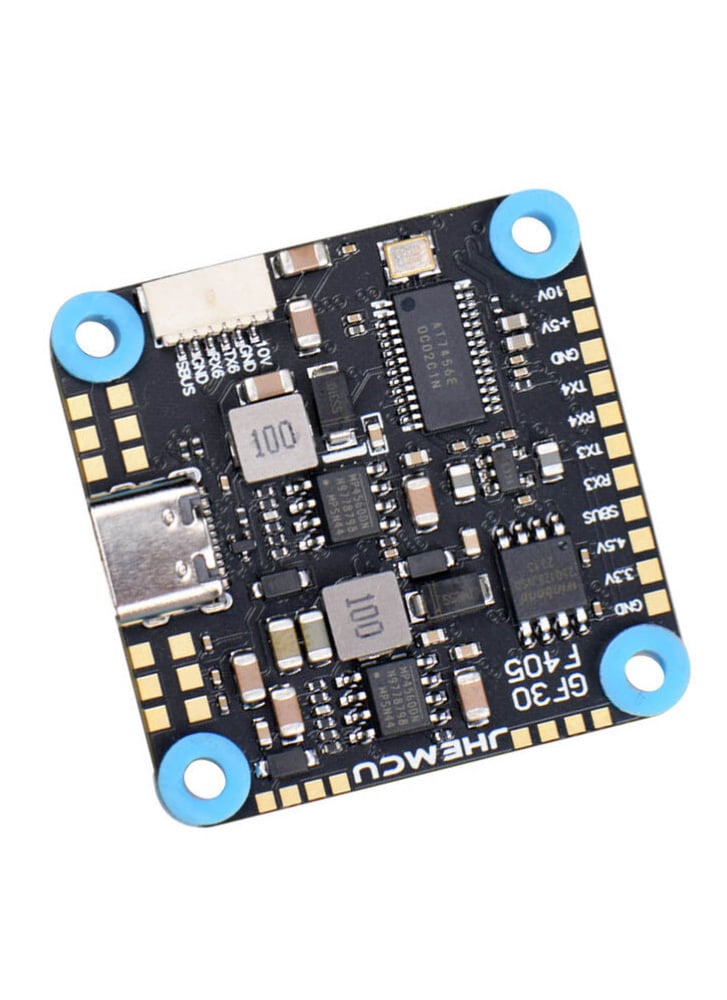

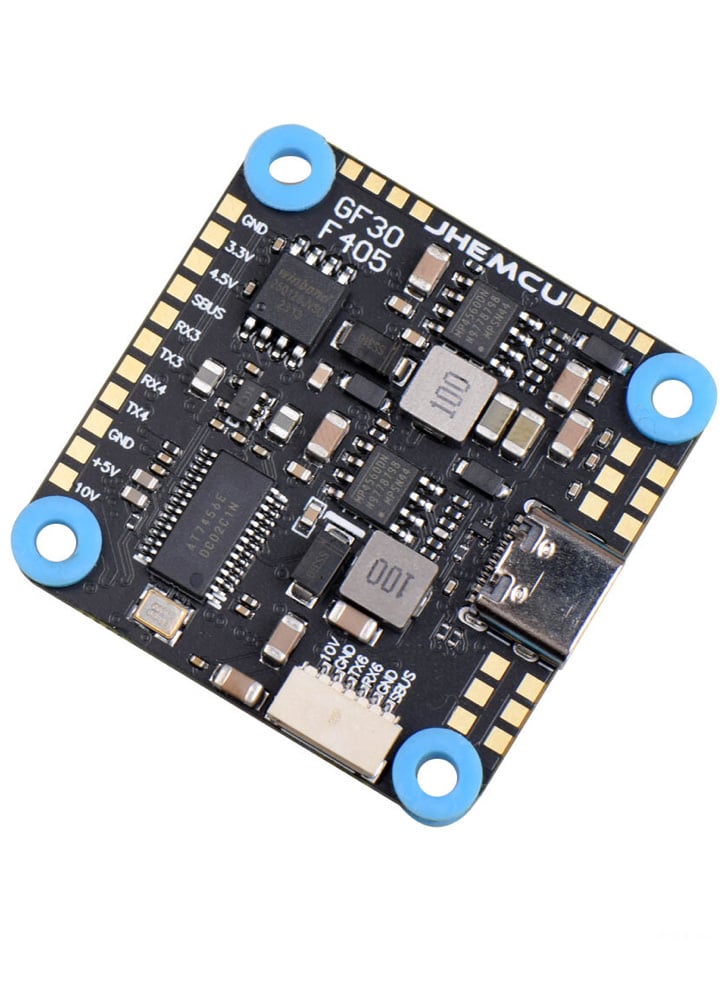

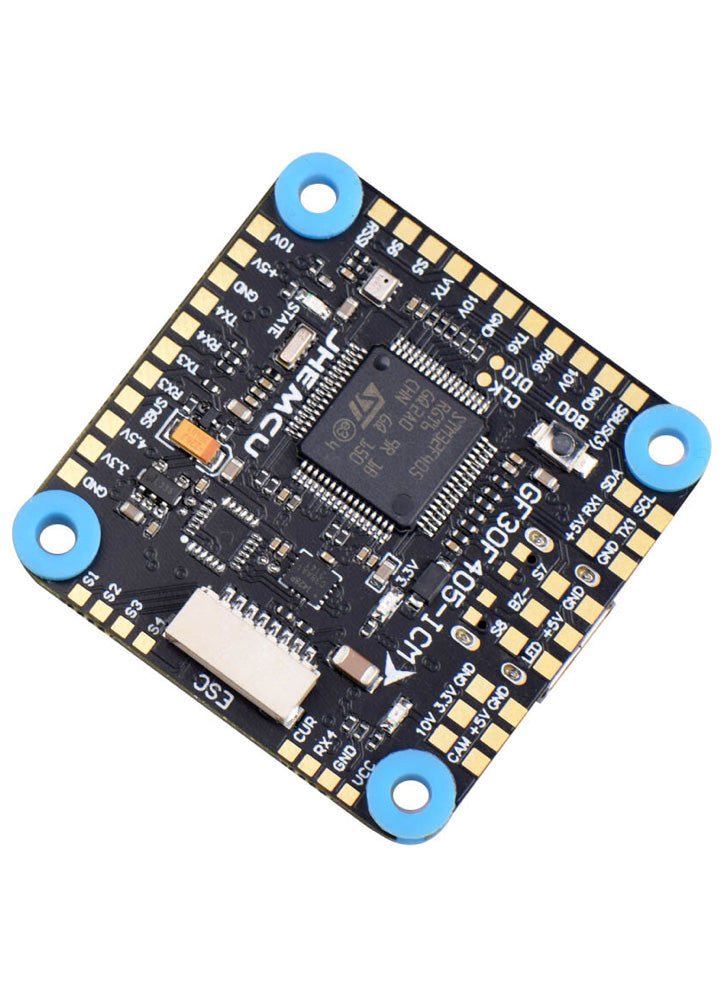

JHEMCU GF30F405-ICM 5V 10V Dual BEC F405 Flight Controller 3-8S 30X30

£36.99

Affordable F405 flight controller with ICM-42688 gyro, dual BEC outputs and 3–8S input support.

The JHEMCU GF30F405-ICM Flight Controller is a reliable and cost-effective option for FPV drone builds, combining a powerful STM32F405RGT6 processor with a wide 3–8S LiPo input range .

It features the modern ICM-42688-P gyro for accurate flight performance, along with a SPL06 barometer , 16MB onboard blackbox logging , and an integrated OSD . Dual onboard BEC outputs (5V 3A and 10V 2A) provide stable power for receivers, cameras, and video transmitters.

Connectivity includes four UARTs, I2C support, WS2812 LED output, buzzer support , and a reserved interface for DJI digital VTX systems . A Type-C USB port allows quick configuration and firmware updates.

With its 30.5 × 30.5mm mounting pattern , lightweight design, and practical feature set, the GF30F405-ICM offers excellent value for a wide range of FPV builds.

Specifications

• MCU: STM32F405RGT6
• Power supply: 3-8S (11V-36V)
• Signal Protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600.
• Sensor: ICM-42688-P
• Size: 36*36mm (30.5mm mounting hole, 4MM diameter)
• Firmware version: Betaflight JHEF405pro / INAV_6.1.0_JHEMCUF405
• Black box: 16MB
• Barometer: SPL06
• OSD: Support
• Support DJI VTX: with reserved interface
• USB: TYPE-C interface
• IIC: Support
• UART: 4 ways, UART1, 3, 4, 6, where UART3 is the receiver
• BEC: BEC 5V/3A and 10V/2A
• Receiver: SBUS, IBUS, DS M2/X, TBS, CRSF, etc.
• Support WS2812 programmable LED
• Support buzzer
• Built-in voltage sensor with current detection port

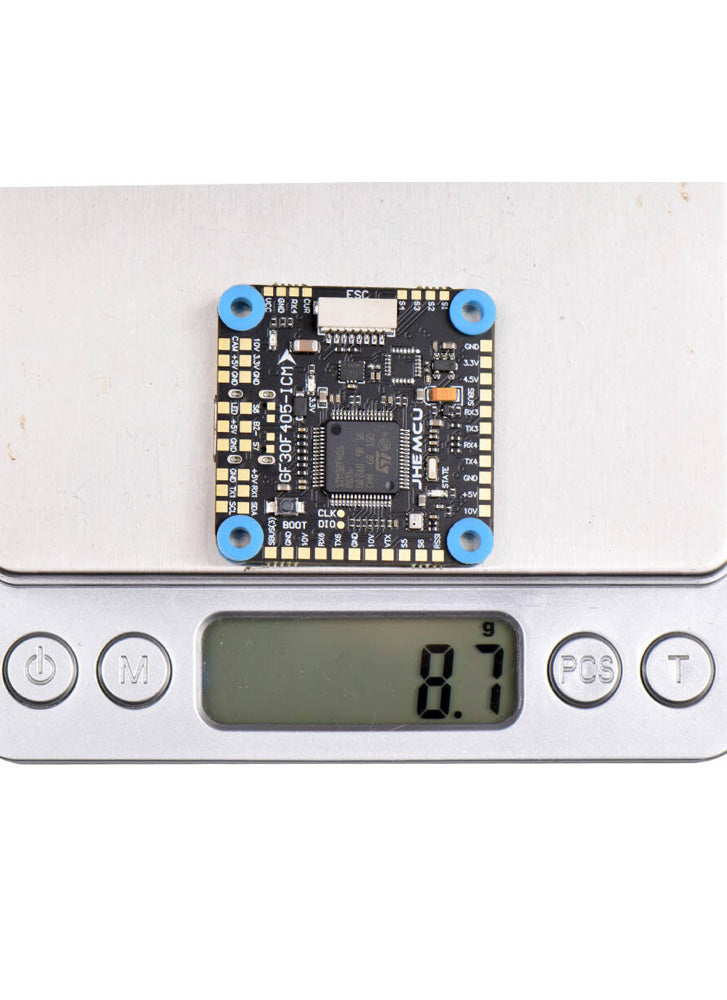

• Weight: 8.7g

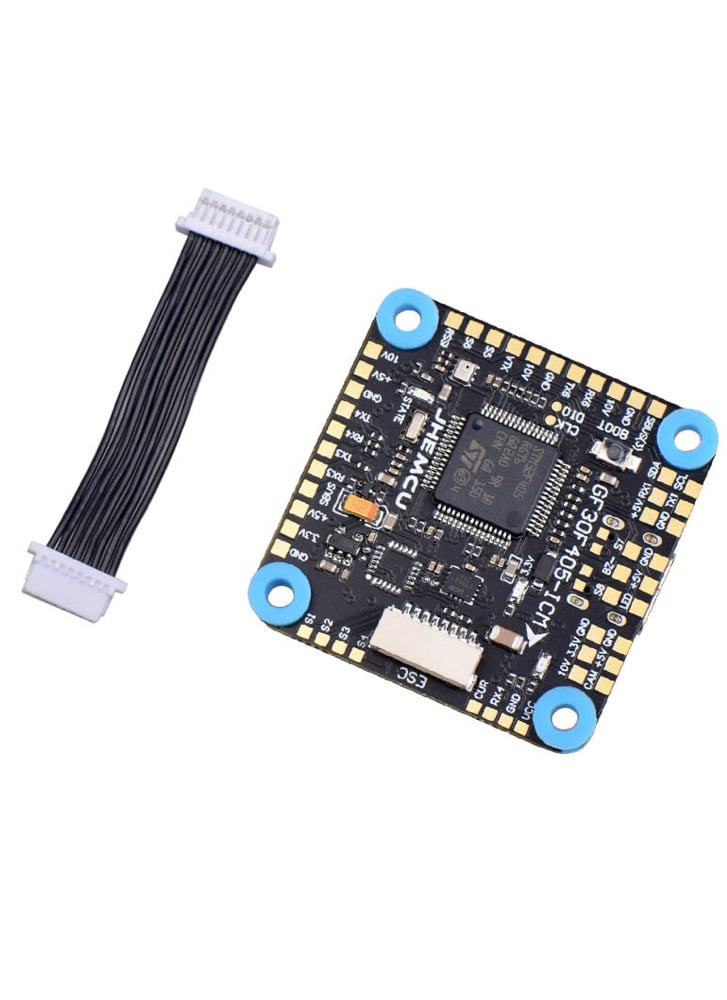

In the box

• 1 x GF30F405-ICM
• 1 x 8P Plug Cable
• 4 x M3 Shock Absorption Ball
