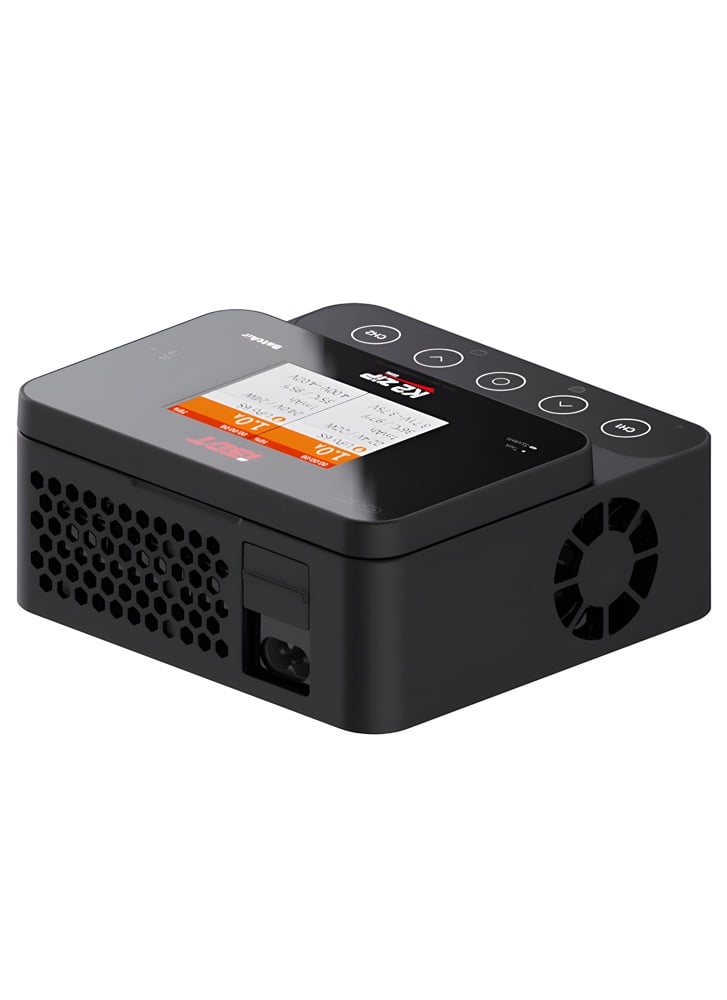

ISDT K2 Zip Dual Port 1~8S AC200W / DC500W Smart Charger

£139.90

The ISDT K2 Zip Lipo Battery Balance Charger is a versatile, smart charging solution compatible with various battery types, including LiPo, LiHv, Li-ion, NiMH, and Pb. It supports both charging and discharging functions for 1-8S batteries. Featuring dual channels, the charger allows simultaneous operation, providing up to 500W per channel (max 200W with AC mains power) and a 20A current capacity. When used in parallel mode, the output increases to 800W and 30A. The charger also doubles as an adjustable power supply, capable of operating in constant current (1.0-5.0A) or constant voltage mode (2-30V).

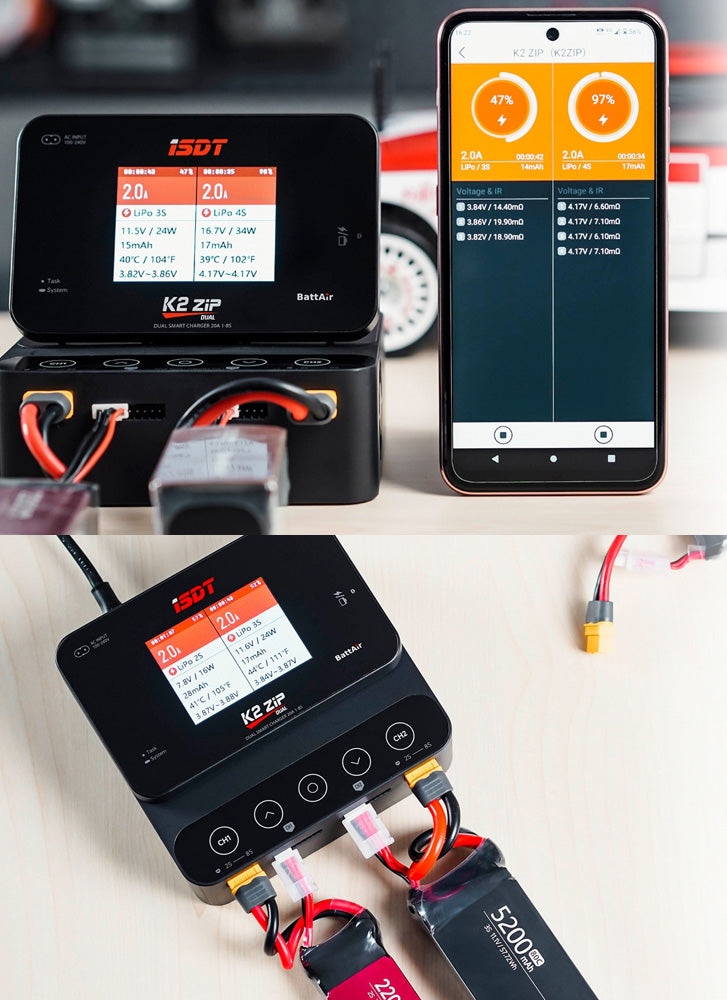

With wireless connectivity, the charger can be controlled via your phone and supports ISDT’s BattAir smart battery technology. The iSDT BattAir Plugins allows BattAir chargers to monitor battery charging status in real time and recognise power levels, battery parameters, and usage records – more info about that here .

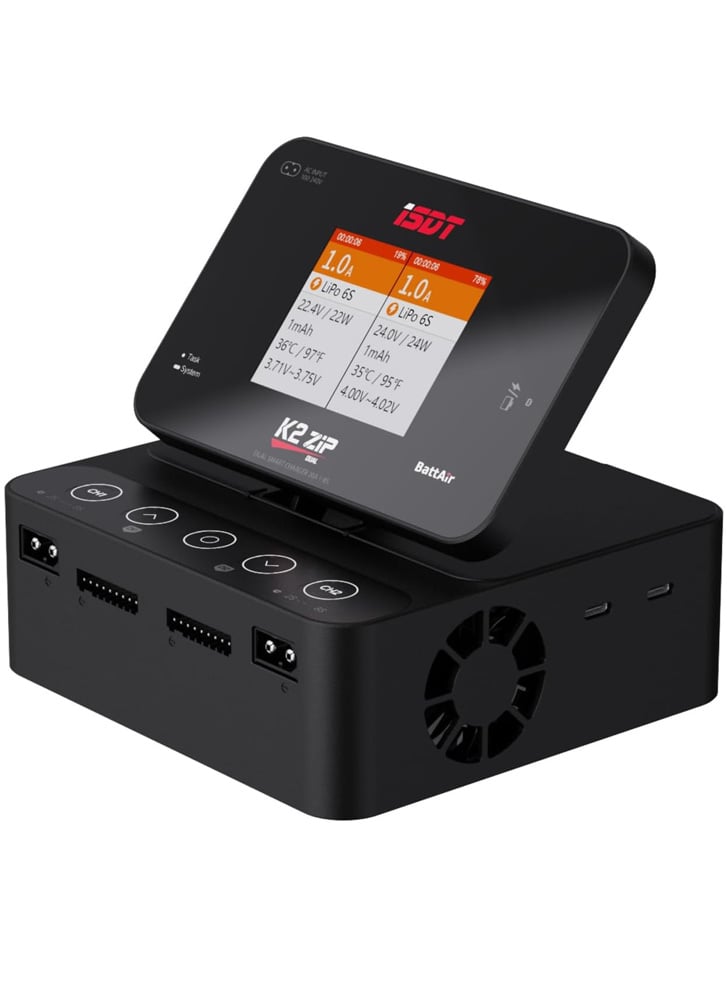

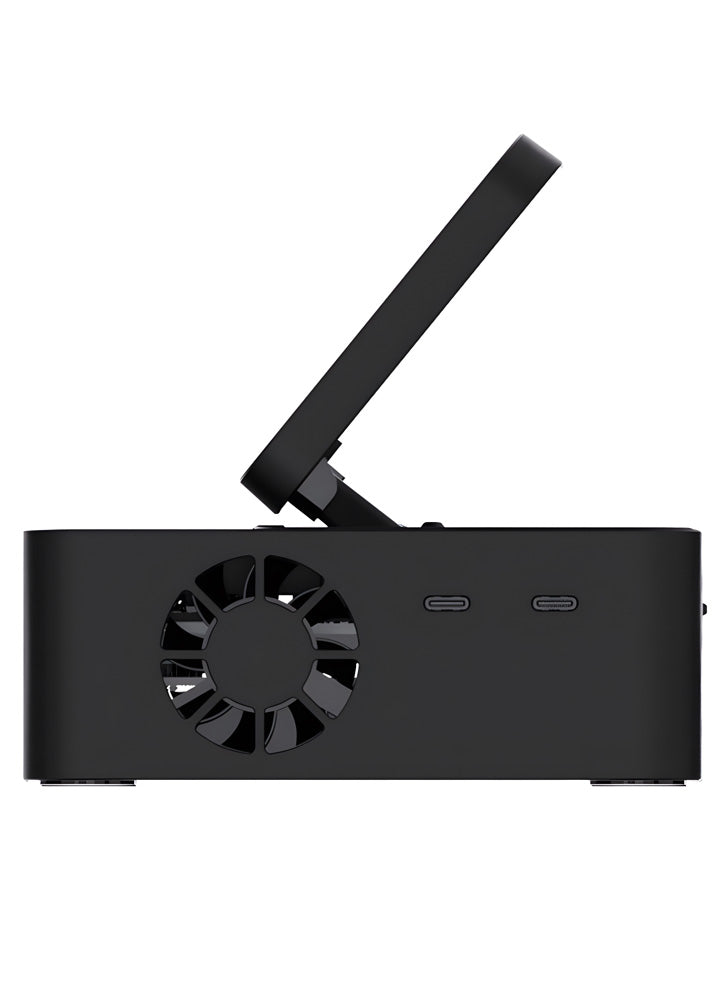

With a flip screen, users can easily adjust the display angle to ensure optimal viewing from various perspectives. Its intuitive interface and compact design make it an excellent choice for hobbyists and professionals seeking reliable and safe battery management.

Features

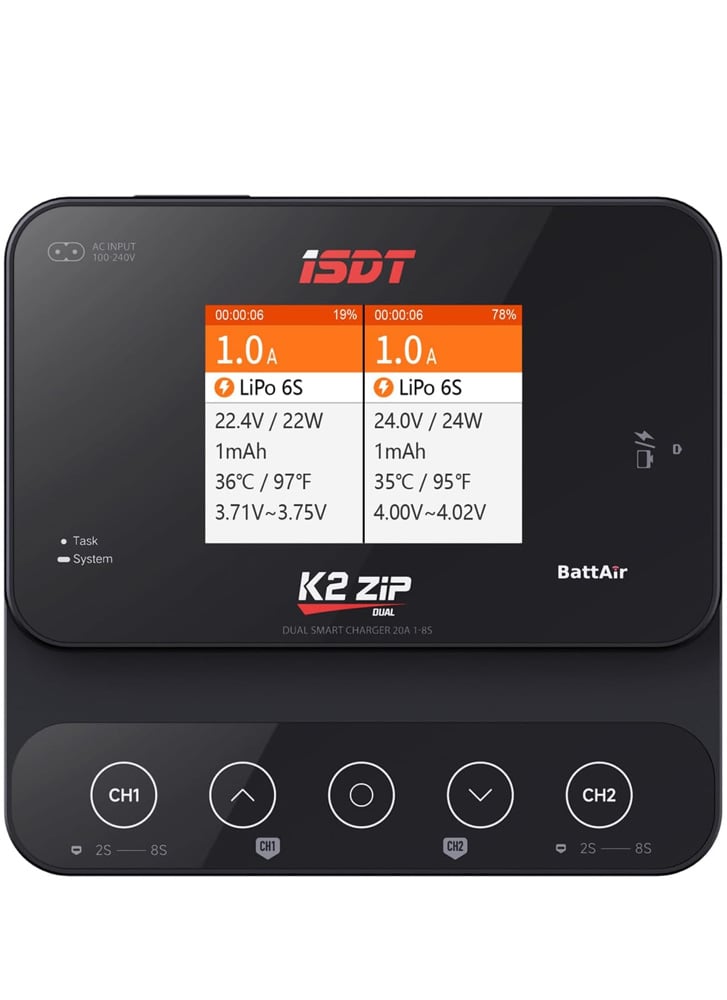

• 2.8″ IPS display with auto-brightness
• Compact charger, flip-out LCD display
• AC Input (200W charge rate) or DC (500Wx2 max charge rate)
• 800W parallel charging mode
• USB-C PD power/charging port (max. 65 W)
• Upgradeable Firmware
• Adjustable Digital Power Supply (CC 1.0A~5.0A / CV 2~30V)
• Battery destroy mode (discharges battery safely down to 0V)
• BattAir support

Specifications

• Input voltage range: AC 100~240V / DC 10~34V
• Max input current: DC 35A
• Output voltage range: DC 1~34V
• Charging current: 0.2~20A x2
• Discharge current: 0.2~1.5A x2
• Balance current: 1.5A/Cell Max
• Maximum charging power: AC 200W / DC 500W x2
• Maximum discharge power: 15W x2
• Supported battery types and cell count: LiFe
• Lilon
• LiPo 1~8S
• LiHv,ULiHv 1~7S
• Pb 1~14S
• NiMH/Cd 1~18S
• Parallel charging power and current: 800W/30A
• Parallel discharge power and current: 30W/3A
• Battery voltage abnormal alarm: Supported
• String number setting error alarm: Supported
• Operating temperature: 0~40℃
• USB-C1: PD 65W
• USB-C2: PD 65W
• Storage temperature: -20℃~60℃
• Size: 135x126x57.7mm
• Weight: About 776g

In the box

• 1x iSDT K2 Zip Air Smart Dual Charger AC200W / DC500W x2
• 1x UK AC Power Cable
