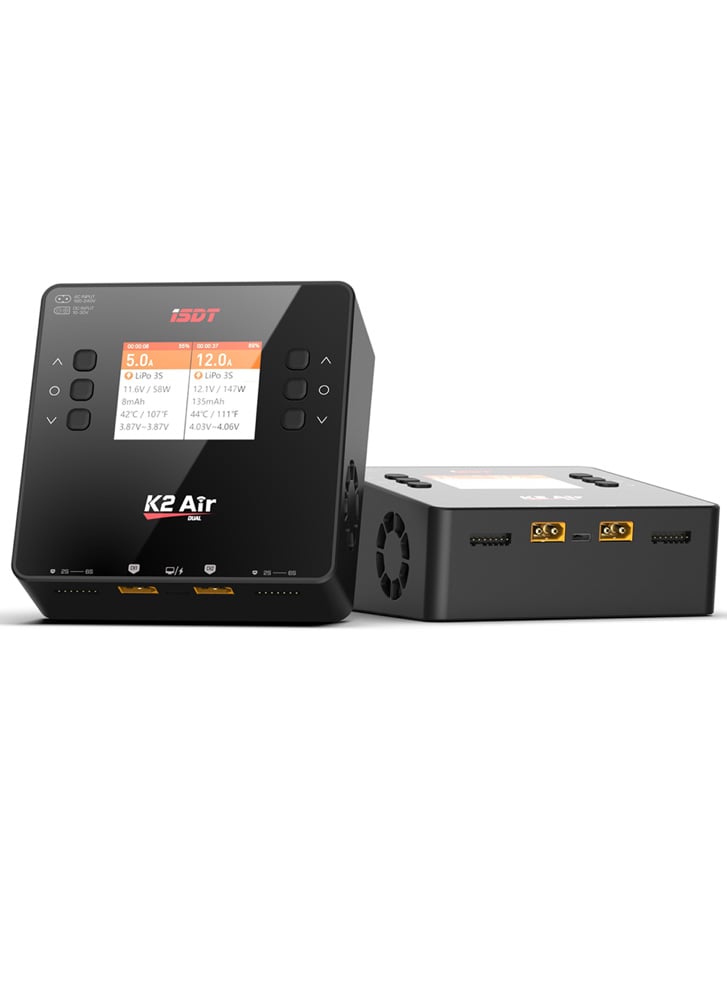

ISDT K2 Air Dual Port 1~6S AC200W / DC500W Smart Charger
£134.90
The K2 Air is the updated version of the K2 – It adds wireless connectivity, allowing you to control the charger through your phone, as well as support for ISDT’s BattAir smart battery technology. The iSDT BattAir Plugins allows BattAir chargers to monitor battery charging status in real time and recognize power levels, battery parameters, and usage records – more info about that here .
The iSDT K2 Air is a Smart Dual Channel Charger. This charger’s maximum charging power is 200W(AC) and 500W(DC), with a discharge power of 15W. Charge at up to 20A per channel, or put the two channels in parallel to increase the output. Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S. The charger also features a mode where it becomes an adjustable power supply able to operate in constant current or constant voltage mode.
Features
- 2.4″ IPS display with auto-brightness
- AC Input (200W charge rate) or DC (500Wx2 max charge rate)
- Upgradeable Firmware
- Adjustable Digital Power Supply (CC 0.2A~5.0A / CV 5~24V)
- Battery destroy mode (discharges battery safely down to 0V)
- BattAir support

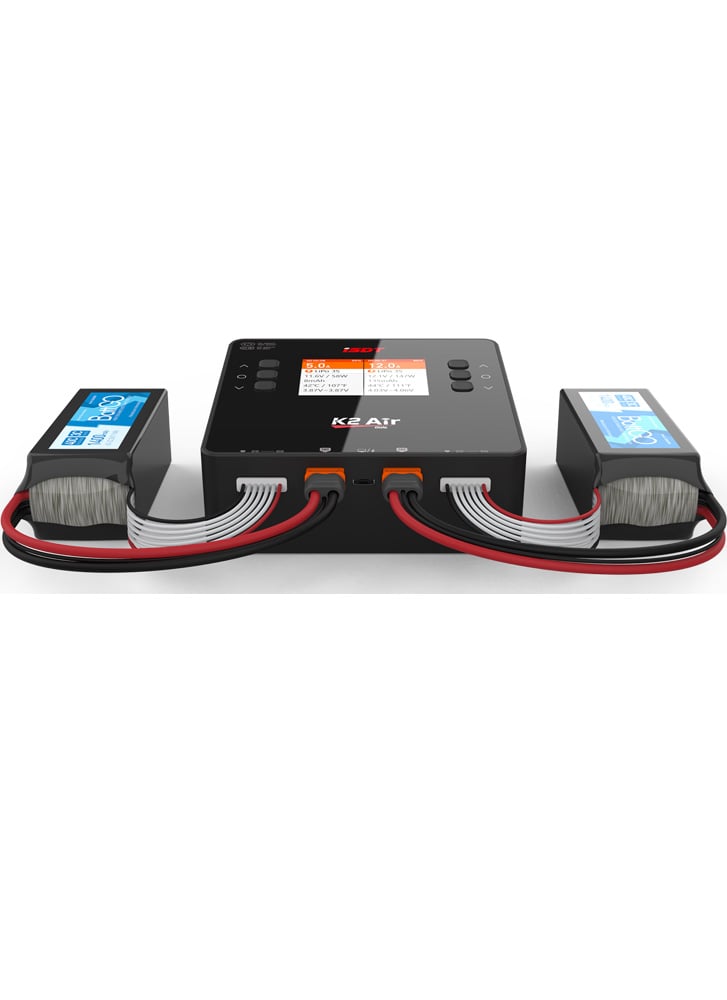

- STRONG PERFORMANCE, HIGH-POWER DUAL-CHANNEL
- High-power dual-channel, the two channels are independent and do not interfere with each other. The maximum charging power of a single channel is up to 500W. A two-pronged approach, one step faster.
- TWO-WAY USB INTERFACE

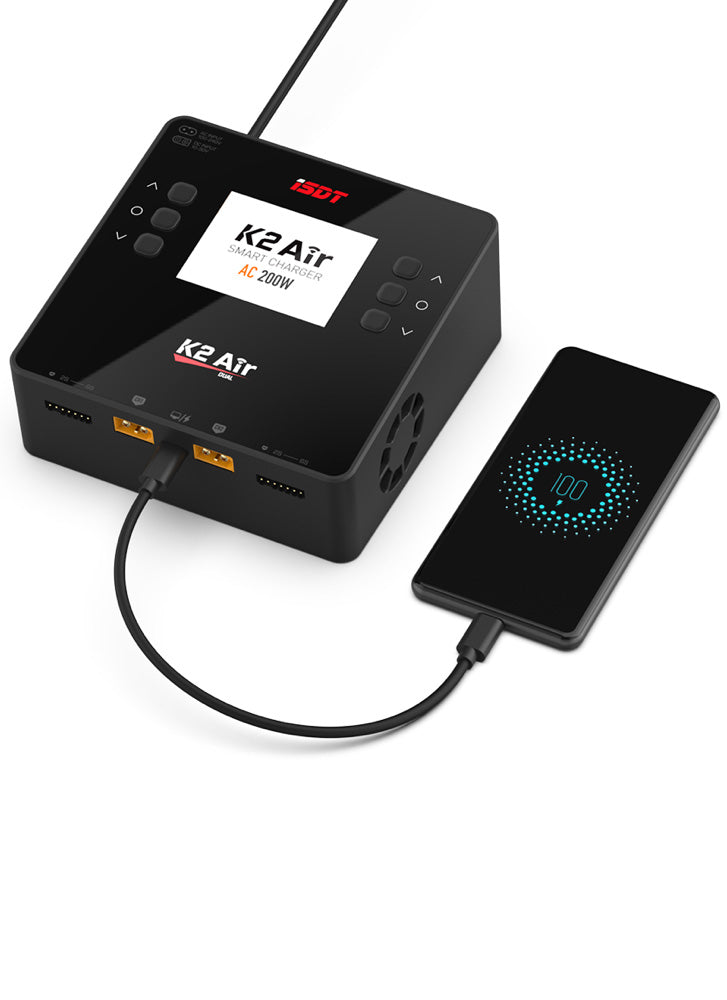

- It can be connected to a computer through the USB Type-C interface to upgrade the firmware. It can also output 5V/2A power through the USB Type-C interface for charging mobile devices.

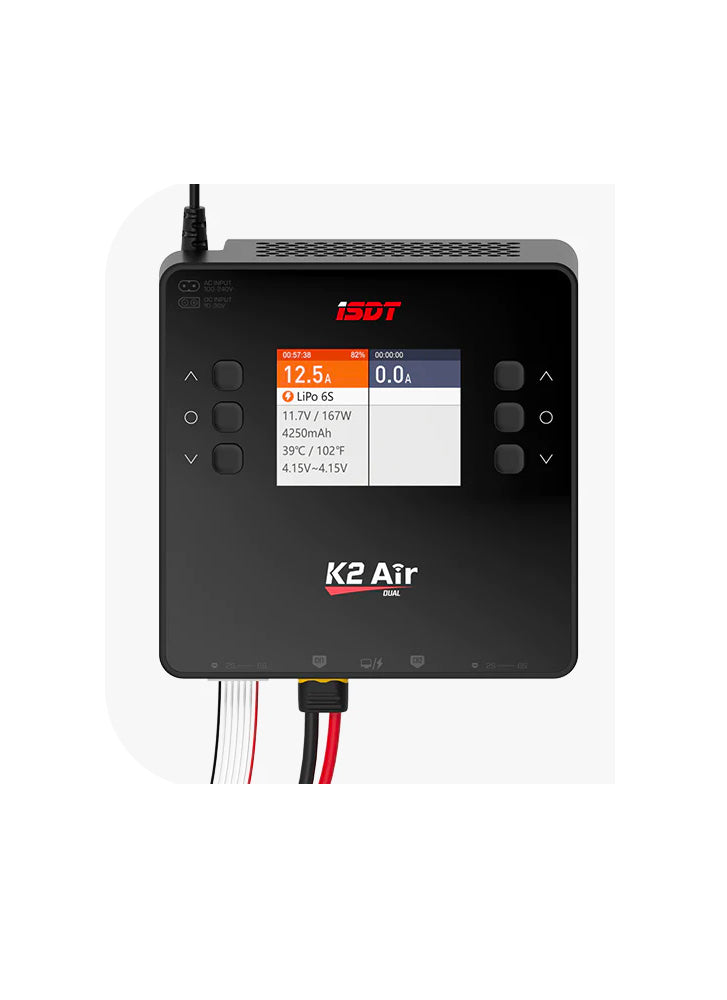

- 2.8” IPS LCD SCREEN
- Low-power 2.8-inch IPS sunlight screen, 178° viewing angle, without fear of the field environment and tricky angles, the display effect is still clear and delicate under the sun.

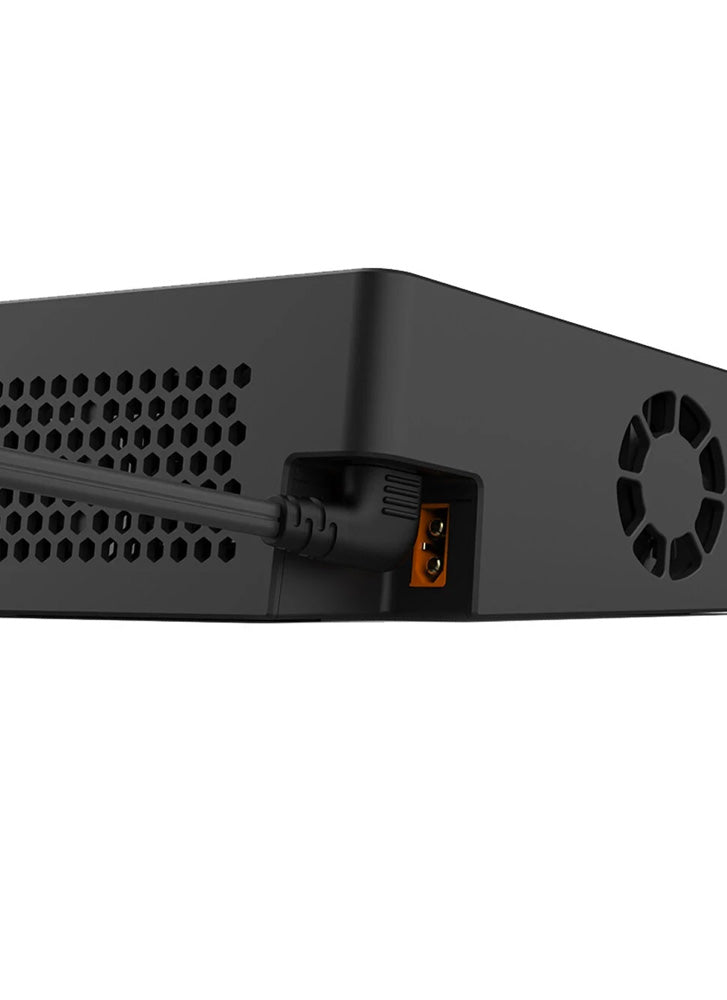

- AC/DC DUAL MODE
- You can choose AC input or DC input to meet the needs of different scenarios. The output power in AC mode is 200W, and the output power in DC mode is 500Wx2.
- SECURE ACCESS
- Fool-proof input interface design. Through the clever arrangement, the DC input port and AC input port are mutually exclusive. Only one input method can be selected at the same time to ensure the safety of operation.
Specifications
- Support battery type and number of strings: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
- Maximum charging power: AC 200W / DC 500W x2
- Input voltage range: AC 100~240V / DC 10~30V
- Parallel charging power and current: 800W/35A
- Set the number of strings error alarm: stand by
- Parallel discharge power and current: 30W/3A
- Abnormal battery voltage alarm: stand by
- Maximum discharge power: 15W x2
- Storage temperature: -20℃~60℃
- Output voltage range: DC 1~30V
- Maximum input current: DC 35A
- Recharging current: 0.2~20A x2
- Operating temperature: 0~40℃
- Balance current: 1.5A/Cell Max
- Discharge current: 0.2~1.5A x2
- Size: 142x135x64mm
- Weight: 700g
In the box
- 1x iSDT K2 Air Smart Dual Charger AC200W / DC500W x2
- 1x UK AC Power Cable
