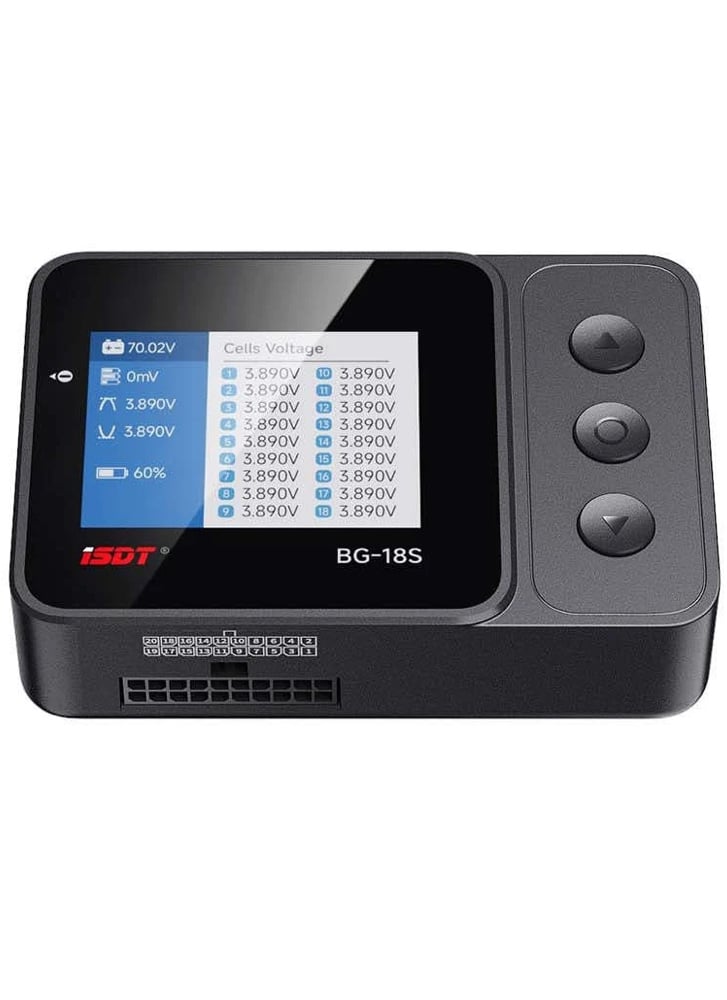

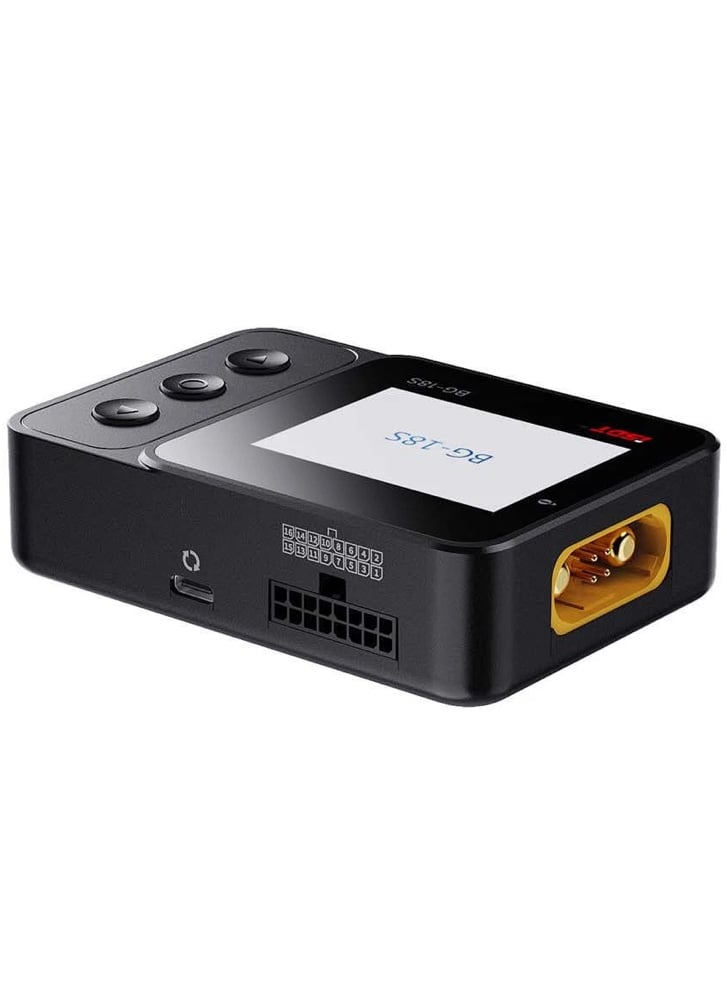

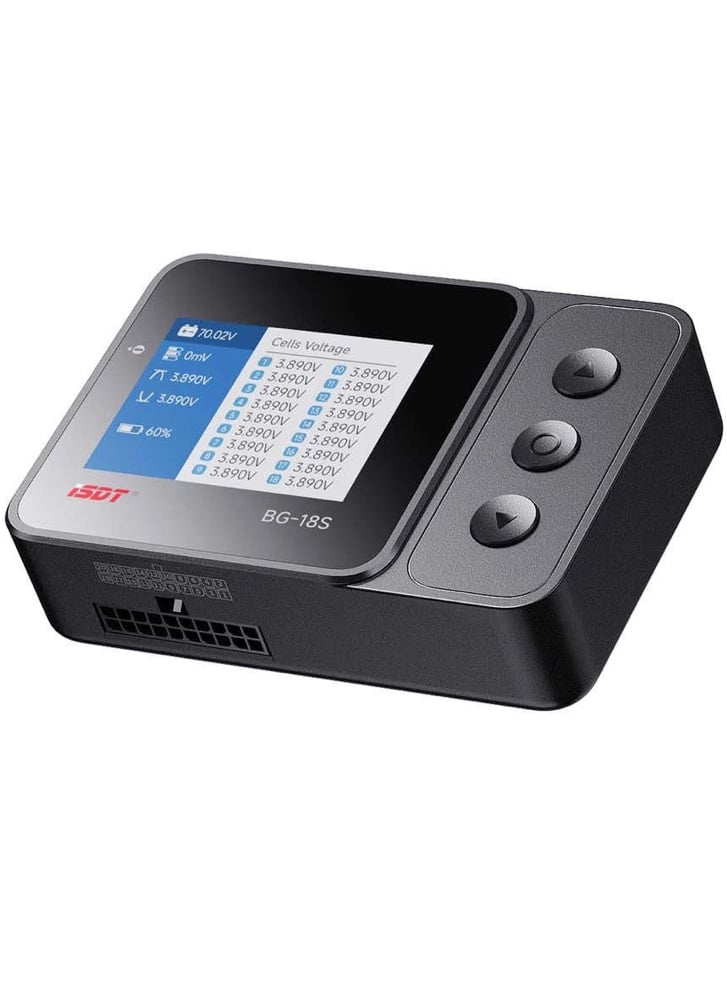

ISDT BG-18S Smart Battery Checker & Cell Monitor (12–18S, 10–90V)
£49.99
The ISDT BG-18S Smart Battery Checker & Cell Monitor makes it quick and easy to check the health of high-voltage lithium battery packs. Designed for 12–18S (10–90V) batteries, it provides accurate readings of total pack voltage and individual cell voltages, helping you quickly spot imbalances or potential issues before use.
Simply connect via the balance port to instantly view cell data on the bright 2.4″ colour IPS display. The BG-18S also shows key information such as highest and lowest cell voltage and overall voltage difference, giving you a clear picture of pack condition at a glance. A built-in low voltage alarm adds an extra layer of safety during checks.
With support for LiPo, LiHv, LiFe, and ULiHv batteries, plus multiple connection options including AS150U-M and Molex balance ports, it’s a versatile tool for both RC and industrial high-voltage battery setups. Compact and lightweight, it’s ideal for use in the workshop or out in the field.
Specifications
- Working voltage: DC 10–90 V
- Battery support: LiPo, LiHv, LiFe, ULiHv
- Balance port range: 1.5 V–5 V per cell
- Voltage accuracy: ±0.005 V @ 4.2 V
- Display: 2.4″ 320×240 IPS LCD
- Connectivity: AS150U-M Connector (Main Power Input) Molex 16-Pin Port USB Type-C Port Molex 20-Pin Port
- AS150U-M Connector (Main Power Input)
- Molex 16-Pin Port
- USB Type-C Port
- Molex 20-Pin Port
- Size: ~102 × 70 × 27 mm
- Weight: ~121 g
- Temp range: 0 °C–40 °C operating, −20 °C–60 °C storage
In the box
- 1x iSDT BG-18S Battery Checker
