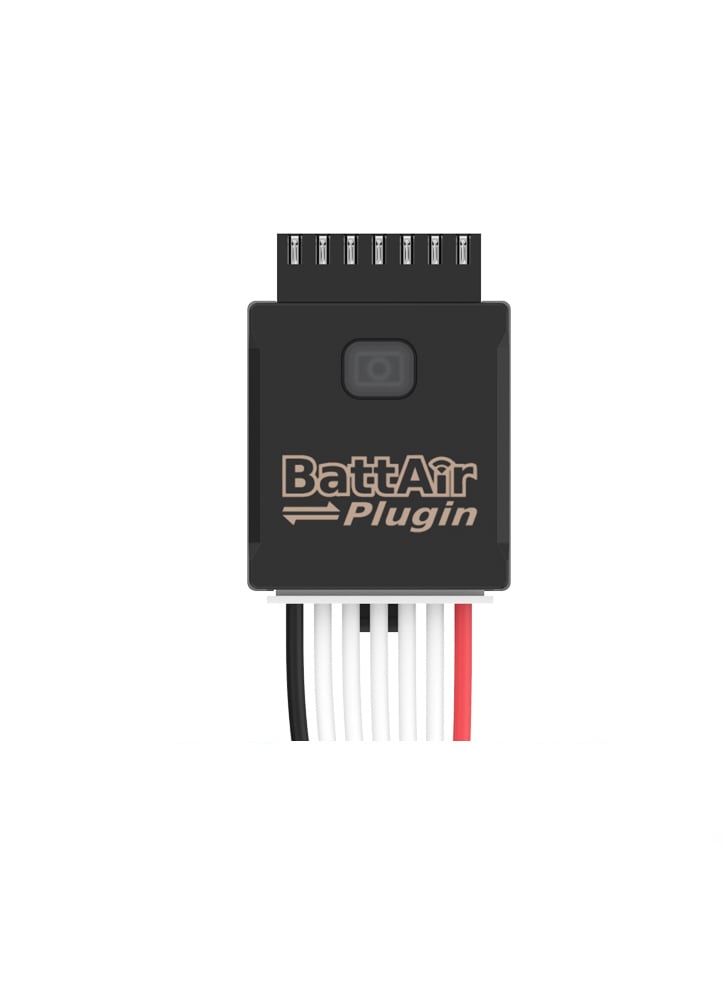

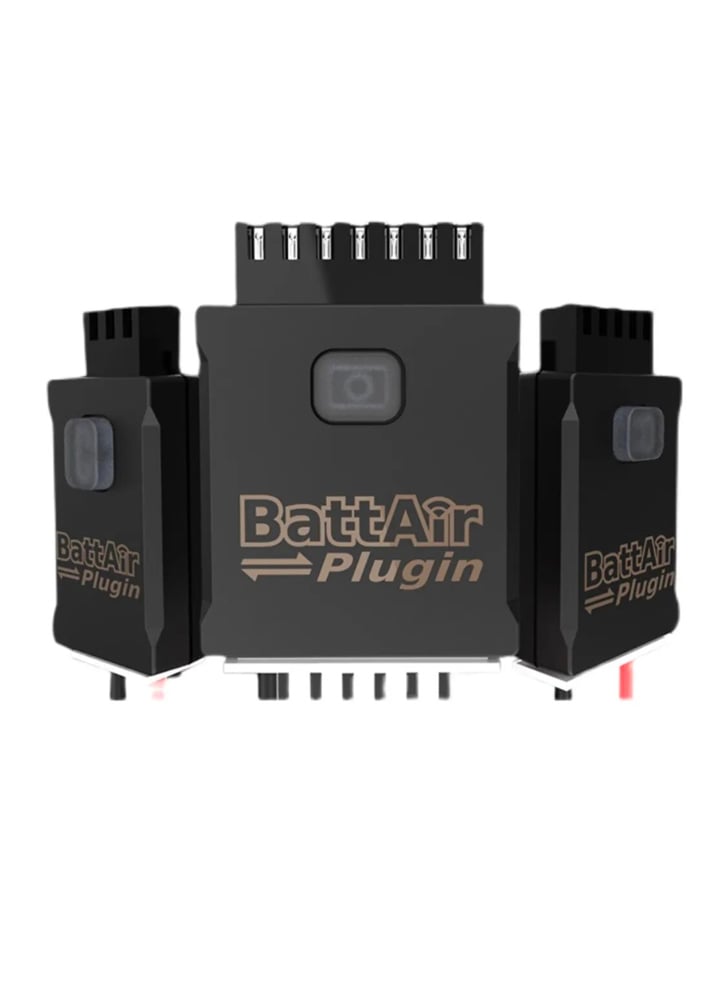

iSDT BattAir Plugins – Smart Battery Balance Adapter

£6.40

The BattAir Plugin makes all batteries smart. The BattAir Plugin is placed between the balance port of BattAir compatible ISDT chargers and the XH2.54 balance plug on your LiPo battery. From there, using the iSDT BattAir smart device app, you can monitor battery charging status in real time, recognise power levels, battery parameters and usage records.

Note: This plugin is currently supported by the iSDT Air8 , K4 and K2Air .

Features

• Fully compatible with existing balance port structure, just plug it in.
• Upgrades your Battery to a Smart Battery
• XH2.54 Universal Port
• Press and Show – LED indicates charge status

Specifications

• Supported Battery Type: LiFe, LiPo, LiHv, ULiHv
• Supported Battery Cells: 3-4S BAP4 / 5-6S BAP
• Dimensions: 36x19x9mm BAP4 / 36x24x9mm BAP6
• Quiescent Current: 50uA
• Weight: 3.8g BAP4 / 4.7g BAP6
• BattAir Plugin is not calibrated/Error
• BattAir Plugin is not initialized
• 20% < Power < 90%
• Firmware upgrading
• APP Connected
• Power > 90%
• Power < 20%
• Discharging

In the box

• 1x iSDT BattAir Plugin
