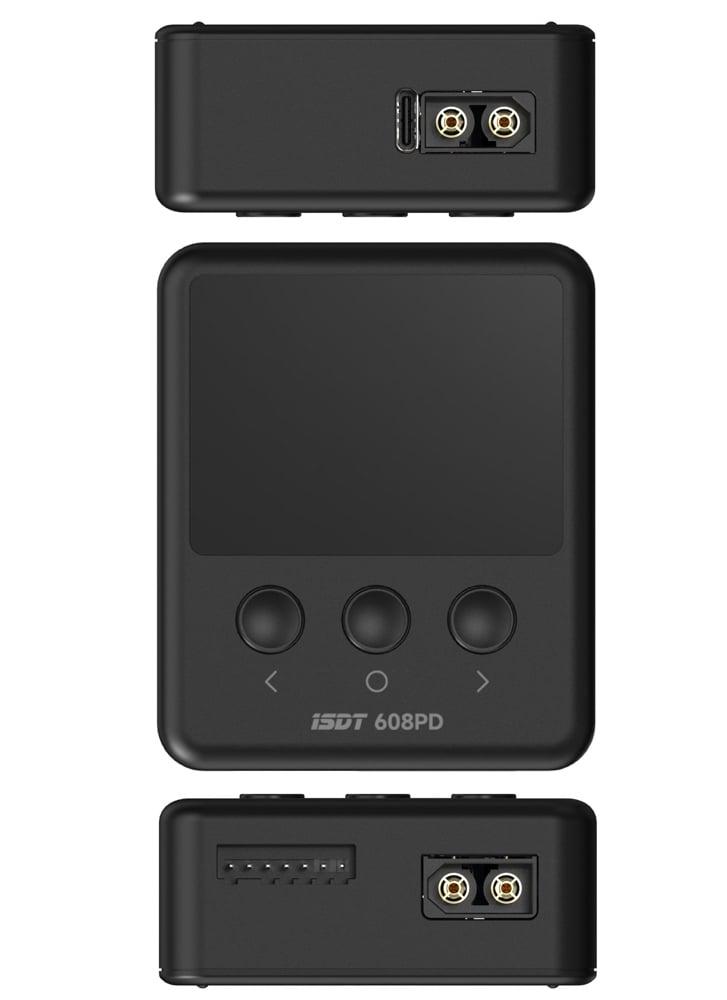

ISDT 608PD DC 240W Smart Charger with DC / USB-C PD Dual Input
£29.99
The ISDT 608PD Smart Charger is the new generation of pocket chargers. It is a compact and powerful charger for most common battery types and via its USB-C port it can charge gadgets too. It offers a choice of power inputs, either either via XT60 DC Input (5-30V) or from a USB-C power supply (5-28V). Using the XT60 input, the max charging power is 240W/10A, via the USB-C input the max charging power is 140W 5A. By connecting a LiPo battery to the input on the 608PDB, you can use it as a USB power brick with support for PD2.0/3.0/3.1
Features
- New generation of pocket chargers: DC 240W high power/max 10A output with USB-C 140W/5A max output, meet your multi-scenario high power for LiPo battery charger needs.
- Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.
- IPS screen: Low power consumption, 2.4-inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.
Powerful cooling system: Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.
Universal charger: Supports charging and discharging for most batteries, including LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

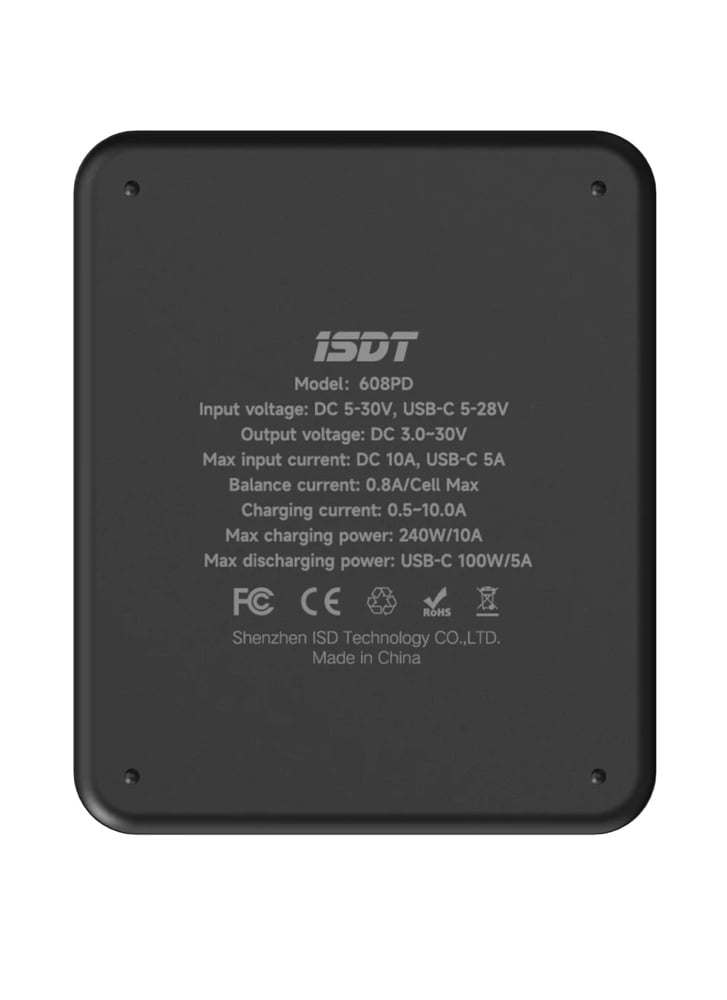

Specifications
- Maximum Input Current: DC 10A, USB-C 5A
- Input voltage range: DC 5-30V, USB-C 5-28V
- Output Voltage Range: DC 3.0~30V
- Charging Current: 0.5~10.0A
- Maximum charging power: 240W/10A,140W/5A
- Maximum Discharge Power: USB-C 100W/5A
- Support battery type and series: LiFe, LiPo, LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
- Balance Current: 0.8A/Cell Max
- Operating Temperature: 0~40℃ Storage Temperature: -20~60
- Abnormal battery voltage alarm: Support
- Alarm for string number setting error: Support
- Dimension: 72.5×60×26.6mm
- Weight: 85g(±10%)
In the box
- 1 x 608PD Charger
- 1 x Manual
