IBCrazy 5.8GHz 11dBi FPV Multi-Phase Patch Antenna (RHCP)

£13.50

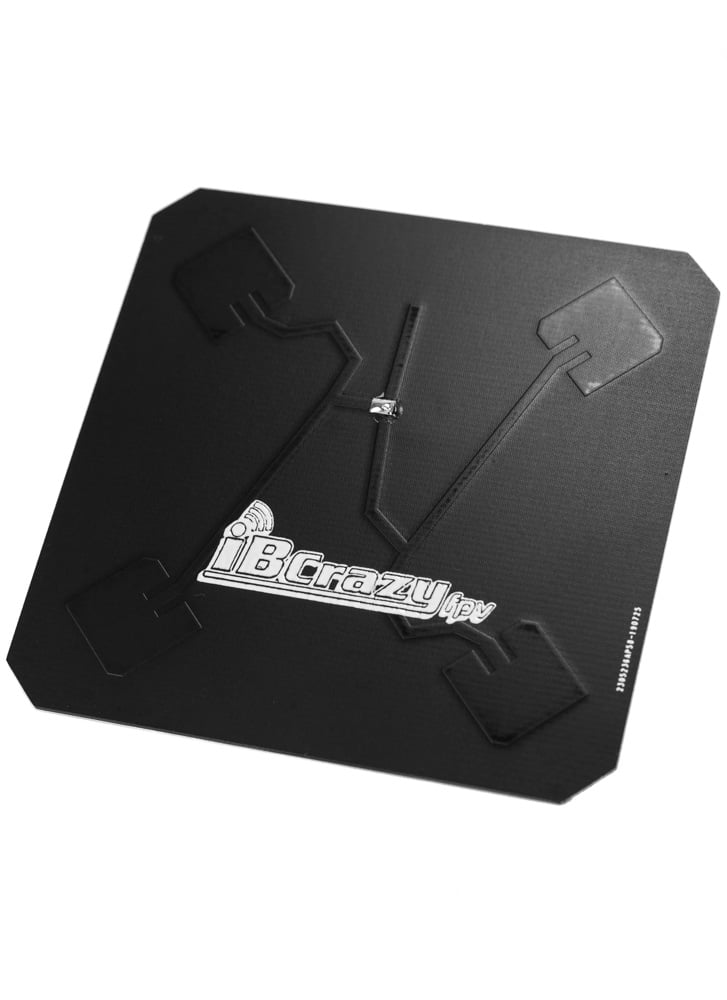

Designed by IBCrazy, this compact Multi-Phase Patch Antenna delivers high gain and excellent circular polarisation in a small, goggle-mountable package. Instead of relying on a single patch element, it uses four patches arranged in a phased array , each carefully phase-shifted so their signals reinforce in the forward direction. This multi-phase design creates a stronger, cleaner beam with better range, higher efficiency, and improved rejection of multipath interference.

With an 11 dBiC gain , 0.88 axial ratio , and a 72° beamwidth , it provides solid long-range performance while still maintaining a practical field of view for FPV. A 16 dB front-to-back ratio helps block unwanted reflections from behind, and the antenna is fully RHCP-polarised for use with right-hand circular systems.

Perfect for pilots who want high performance in the smallest possible format.

SMA and RP-SMA. Please select as required.

Specifications

• Axial ratio: 0.88
• Gain: 11dbic
• F/B ratio: 16db
• Beamwidth: 72 degrees
• Polarisation : RHCP
