Holybro XT60 Power Module (PM02 V3) for Pix32, Pixhawk, Pixhawk 4, Pixhawk Mini & Durandal
£24.00

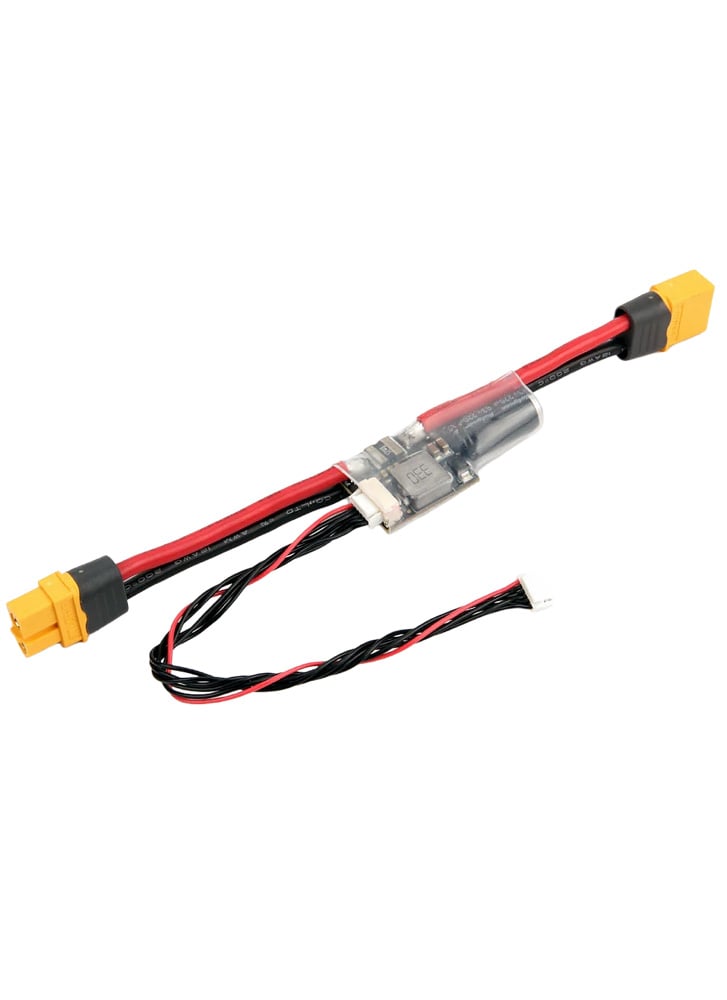

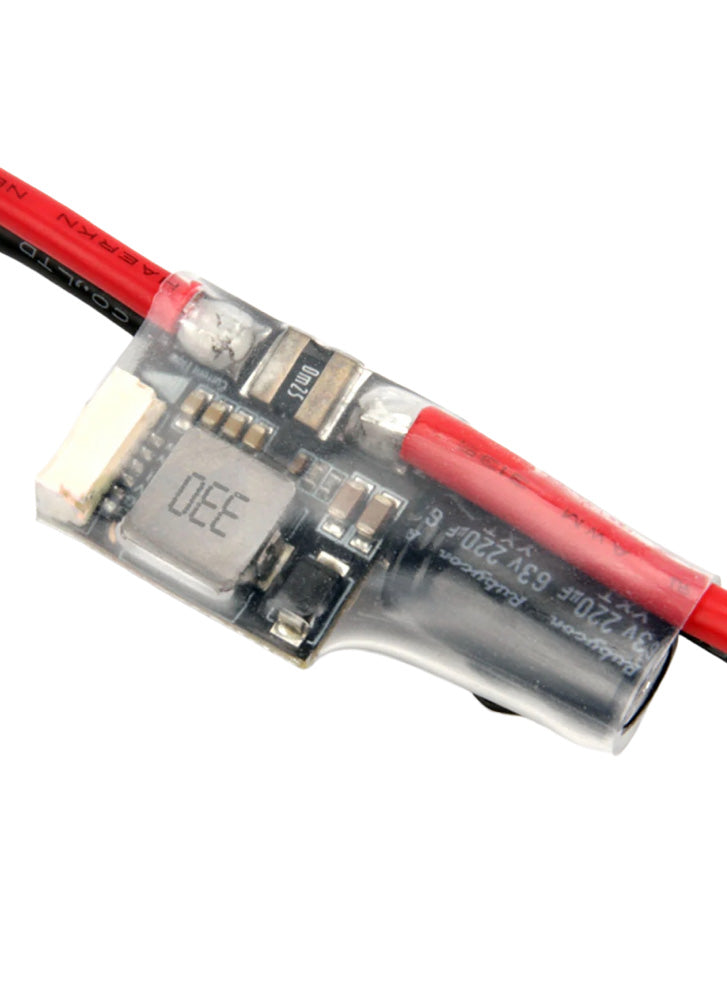

Holybro’s PM02 V3 Power Module is a simple way of providing your Holybro Flight Controller with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is compatible with various flight controllers including the APM, Pix32, Pixhawk, Pixhawk Mini, Pixhawk 4 and Durandal. The module is designed to power the flight controller itself and accessories like GPS & RC receiver, it is not designed to power servos so use your aircraft’s own ESC/BEC for that.
Features
- Max input voltage: 60V
- Max current sensing: 120A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.2V and 3A max
- 6-pos Molex cable plugs directly to APM/Pix32’s ‘PM’ connector
- 6-pos GH cable plugs directly to Pixhawk4 / Pixhawk4 mini / Durandal ‘PM’ connector
- The PM07 is compatible with 2-12S LiPo and is rated at 120amps.
Specifications
- Max input voltage: 60V
- Max current sensing: 120A
- Supports 12S battery
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.2V and 3A max
- Weight: 20g

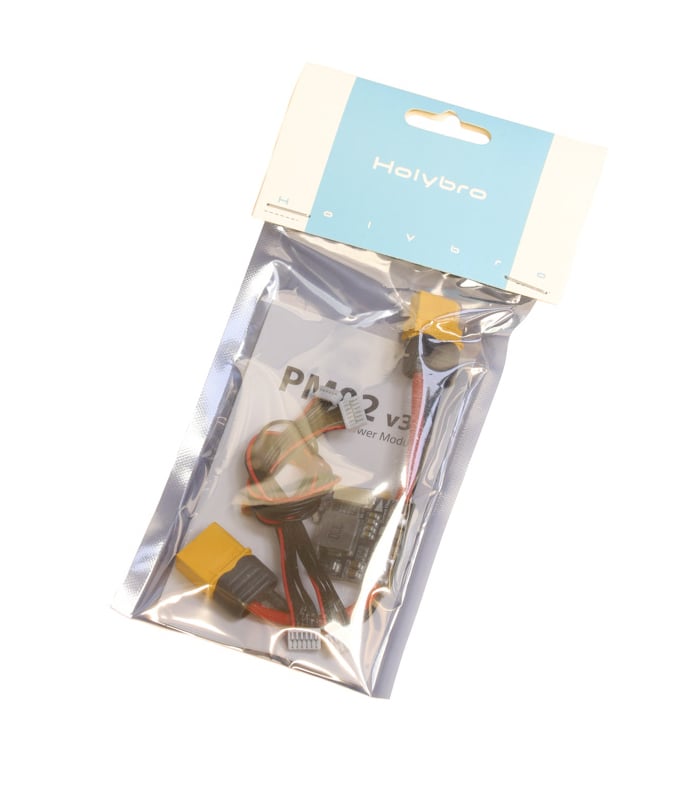

In the box
- 1x PM02 V3 Module
- 1x 6pin MLX cable
- 1x 6pin GH cable
