Holybro X650 Quadcopter Frame Kit
Holybro X650 Quadcopter Frame Kit
Holybro X650 Quadcopter Frame Kit
Holybro X650 Quadcopter Frame Kit
Holybro X650 Quadcopter Frame Kit
Holybro X650 Quadcopter Frame Kit

Holybro X650 Quadcopter Frame Kit

£199.00

The X650 is an ideal platform for UAV developers and enthusiasts.

As the bigger brother to the Holybro X500, the X650 has been designed to be a more spacious aircraft. It offers ample room for various payloads and sensors, enabling versatile customisation to meet your specific needs. It’s also more powerful. The X650 works with the brawny T-Motor MN4014 330KV Brushless Motor , rated for 6S voltage and matched with a 15×5.5 Prop . The recommended takeoff weight limit is 6300g. With the kit weight being approx 2kg, this leaves plenty of capacity for a generously sized battery and payload.

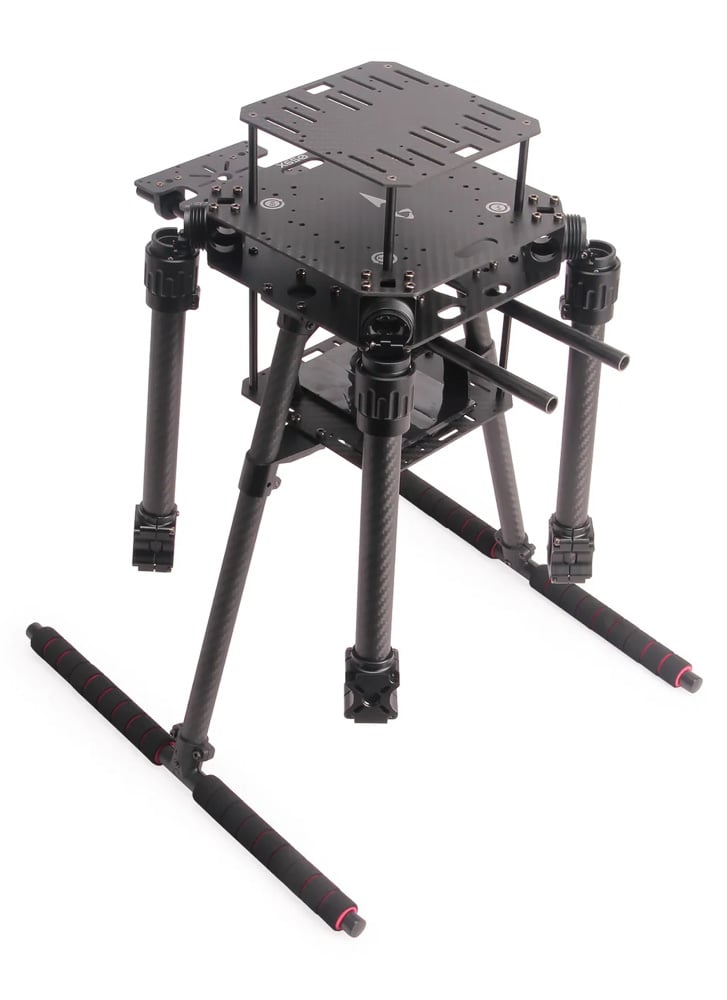

While it is bigger than the X500 frame, the X650 features a foldable arm design, allowing it to remain portable and requiring less room for storage.

The frame lends itself to being a fantastic development platform for student projects, engineers doing R&D, hobbyists wishing to build their first drone, or aerial photographers looking for an alternative to DJI – allowing them to build a custom platform to suit their specific requirements.

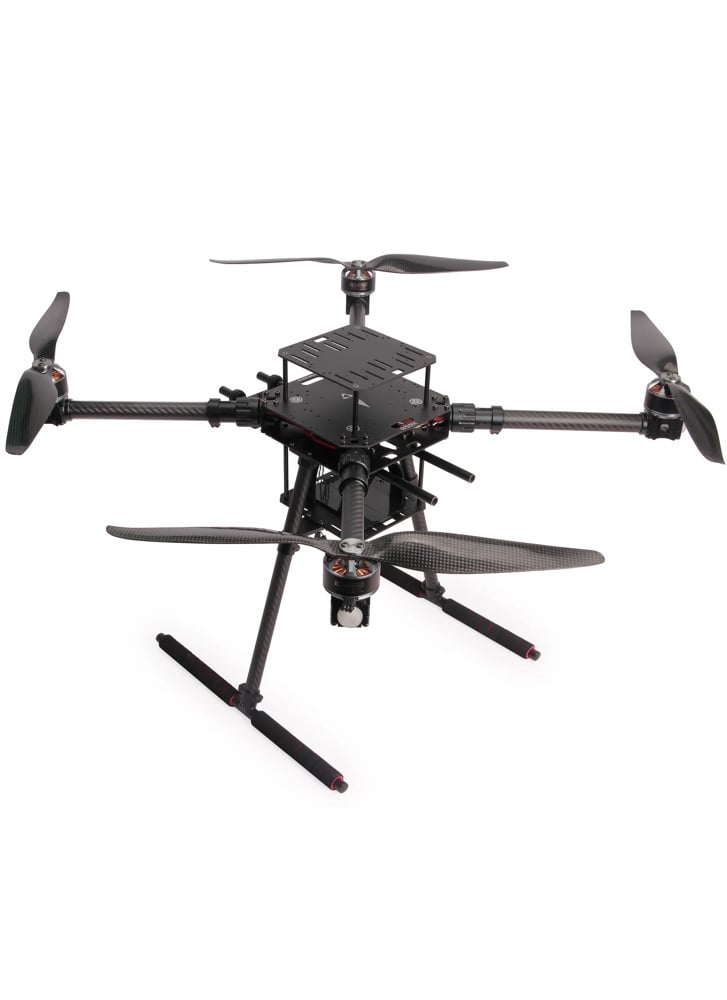

The X650 V2 Quadcopter is available as either the frame kit on its own or as the ARTF set which includes the X650 Frame Kit with motors, ESCs, power distribution boards and propellers preinstalled – please select as required.

As with the X500, Holybro have made this kit easy to assemble and the ARTF version doesn’t even require solder work to put together the powertrain.

We also now sell the Holybro X650 Quadcopter PX4 Development Kit which includes FC, GPS and Telemetry radio kit.

X650 Development Kit Includes:

Autopilot Flight controller: Pixhawk 6C & PM02 V3 or Pixhawk 6X & PM02D

GPS: M10 GPS Module

Telemetry Radio: SiK Telemetry Radio V3 433/915MHz

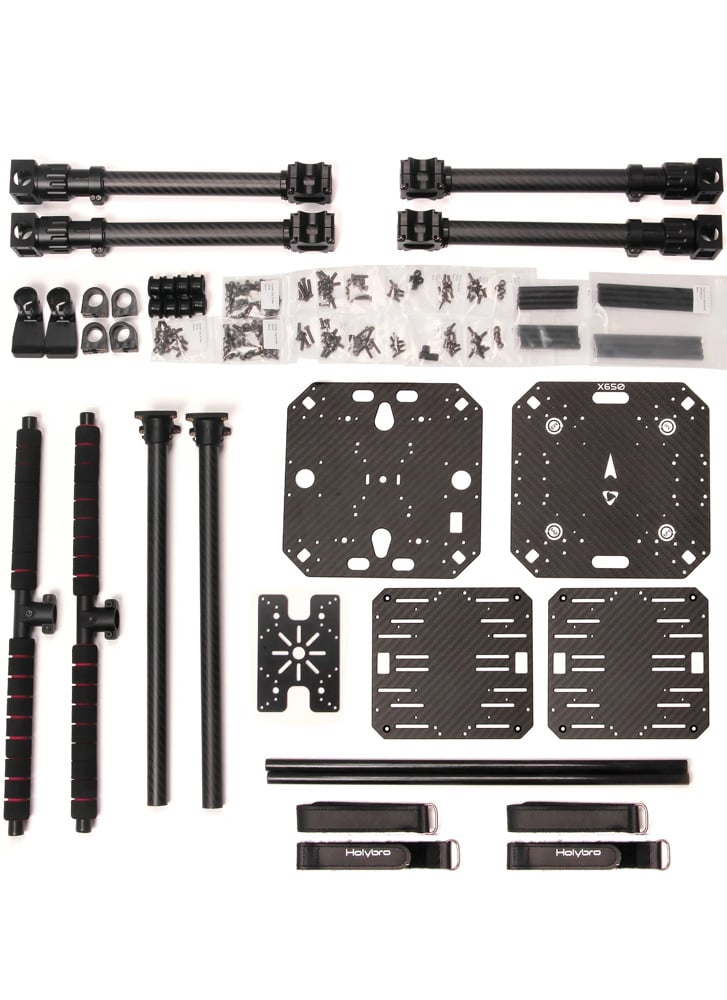

X650 V2 Frame Kit

Preinstalled Items: 4 Motors – Tmotor MN4014 KV330 Motor with XT30 Plug 4 LED – NeoPixel WS2812 LED ( Setup Instruction ) 4 ESCs – Tekko32 F4 45A ESC with XT30 Plugs

4 Motors – Tmotor MN4014 KV330 Motor with XT30 Plug

4 LED – NeoPixel WS2812 LED ( Setup Instruction )

4 ESCs – Tekko32 F4 45A ESC with XT30 Plugs

1555 Carbon Fiber Propellers (4 pcs)

Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)

Recommendation Combination (Not Included):

Flight Controller – Pixhawk 6C or Pixhawk 6X

Power Module – PM02D , PM03D Power Module , PM02 V3 ,

GPS – M10 GPS Module , H-RTK F9P Rover Lite & Helical

RC Radio & Receiver: RadioMaster TX16S RC Controller & RadioMaster R81 Receiver

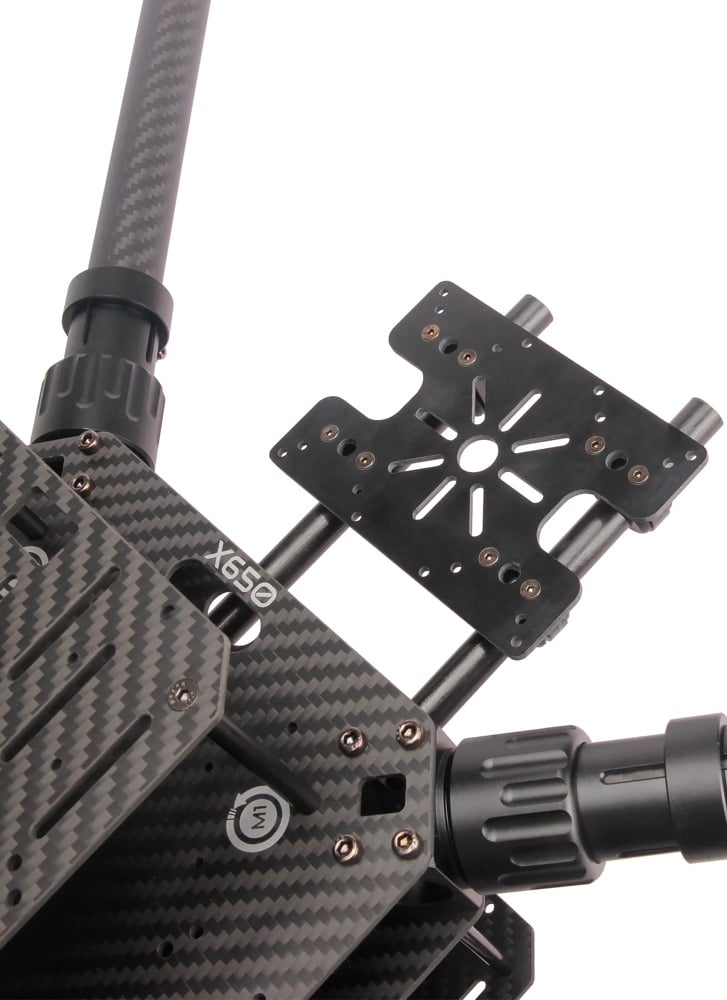

Depth Camera Mount

Note: Full development Kit can be purchased here .

Dimensions:

Reference Link

3D CAD File

X650 Assembly Guide

Motor specification

NeoPixel WS2812 LED Setup Instruction

Specifications
