Holybro Tekko32 F4 Mini 4-in-1 50A ESC BLheli_32 Dshot 1200
£69.90
Edition, V1.4 – AM version here

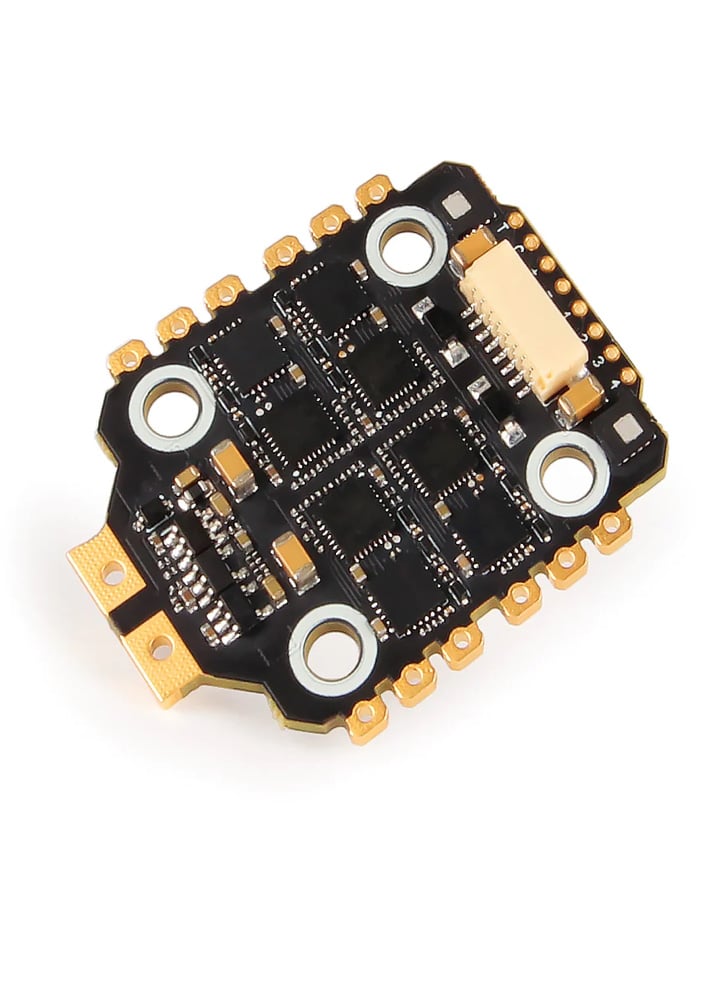

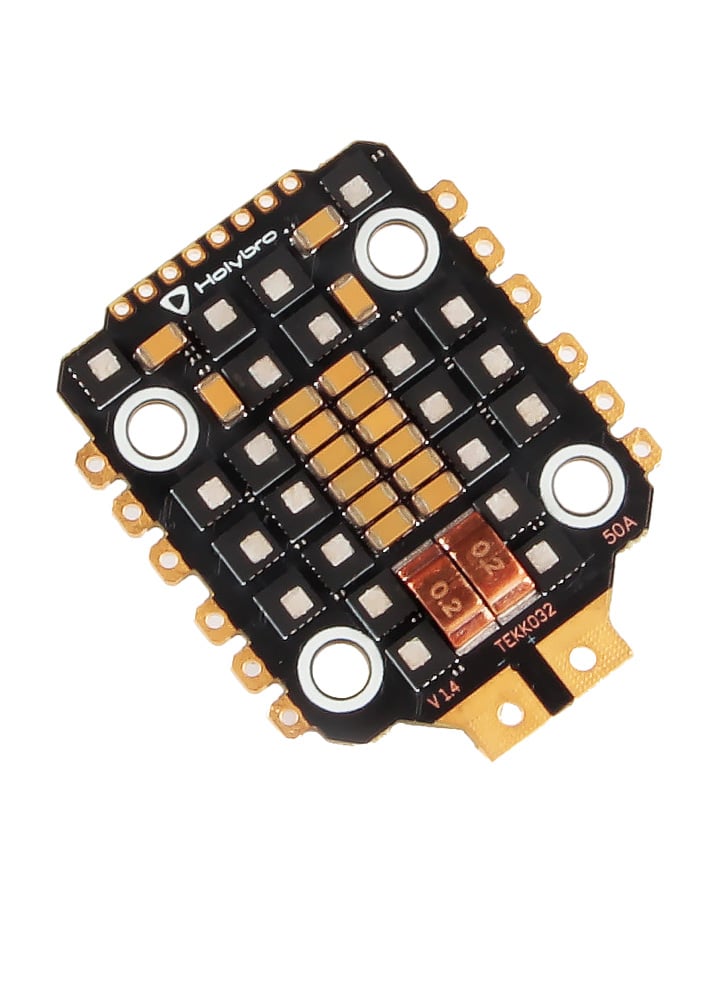

The Tekko32 F3 Mini is a 50A ESC with 20x20mm mounting holes from Holybro. It’s designed for smaller builds, but delivers big on performance. It’s a BLHeli-32 based ESC with a F4 MCU that delivers a smooth and fast response. It also boasts a true 50A per channel / 60A burst current rating and it is compatible with 4-6S LiPo; so who’s now planning a giant killing 6S micro drone build then? Being a Holybro ESC you can be confident of excellent reliability and low noise for a trouble free experience.
Summary specification: 4x 50A F4 BLHELI32 ESC in a 20×20 mounting pattern. Compatible with 4-6S LiPo.

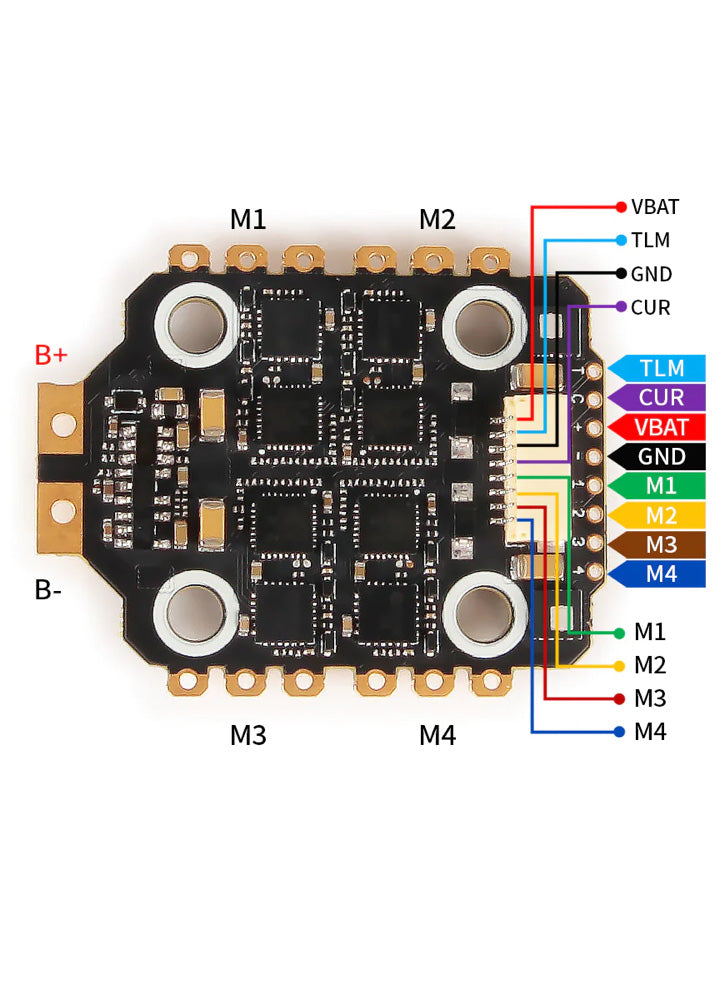

Included with the ESC is an 8 pin JST-SH 1.0 connector which allows you to hook this ESC up to your FC, like for example the Kakute F7 Mini , for a very easily setup and neat stack.
Features
- All new High-quality MOSFETs with low internal resistance & heat generation. Also individual metal heatsink
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- Separate drive & control circuit, reducing the electrical interference to the control circuit
Specifications
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Mounting holes: 3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
- Dimension: 32 x 40 mm

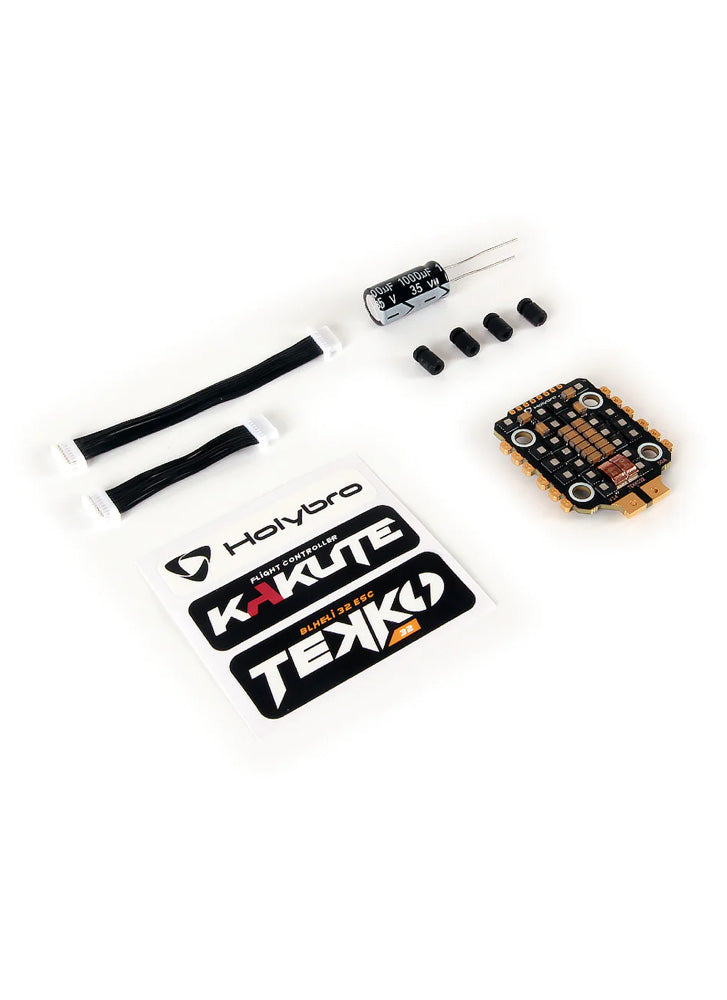

- Tekko32 F4 4in1 mini 50A ESC x1
- M2 Anti-Vibration Silicone Grommet Insert x4
- M3 Anti-Vibration Silicone Grommet Insert x4
- Electrolytic capacito: 1000uF 35v x1
- 8pin to 8pin 1mm pitch 65mm cable x1
- 8pin to 8pin 1mm pitch 25mm cable x1
