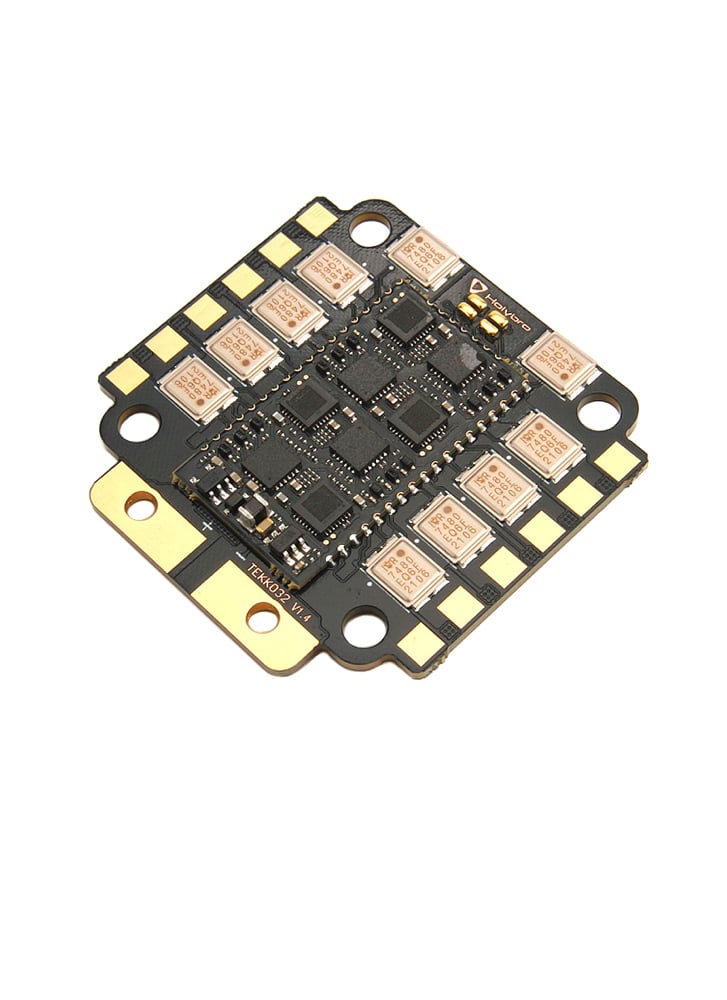

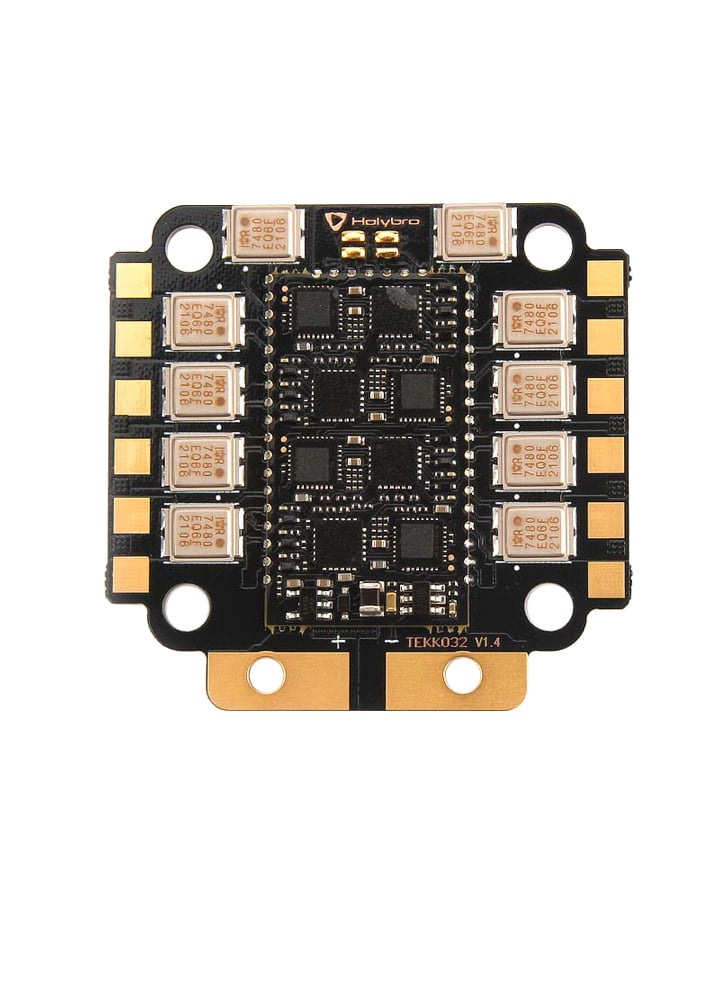

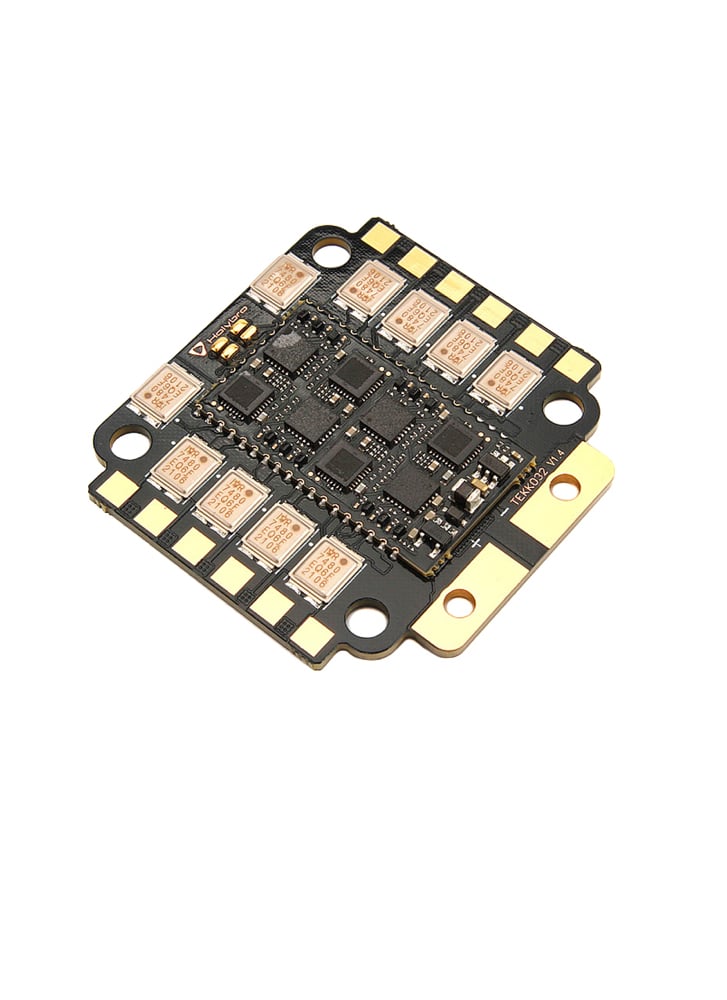

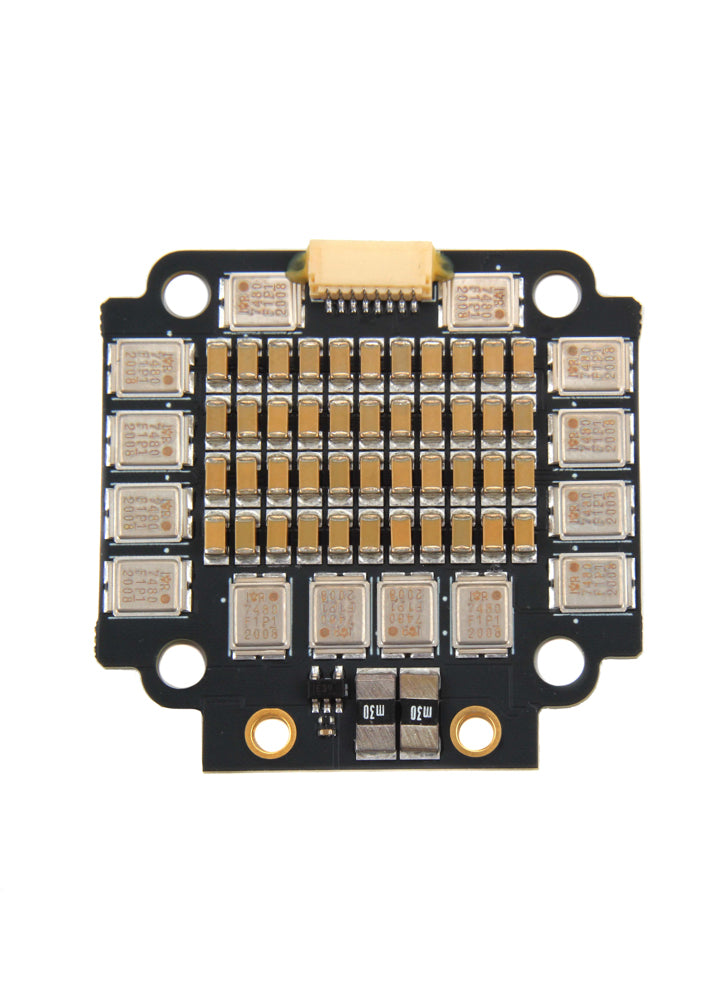

Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200
Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200
Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200
Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200
Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200

Holybro Tekko32 F4 Metal 4-in-1 65A ESC (AM32) Dshot 1200

£89.40

Since support for BLHeli32 has ended, this ESC is now flashed with AM32_Firmware.

F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output: 16k ~96k PWM / 4~6S / AM32_Firmware

Looking for a 4-in-1 ESC that can handle a powerful 6S motor setup? Look no further than the Holybro Tekko32 Metal 4-in-1 ESC. It supports 4-6S and thanks to its new metal encased mosfets and substantial copper busbar which can dissipate lots of heat quickly, its rated at a massive 65amp per channel. Furthermore, while most other ESCs are still running an F0 MCU, this ESC boasts a super fast F4 processor. The F4 MCU allows tons of headroom for processing power, ensuring smooth and fast response.

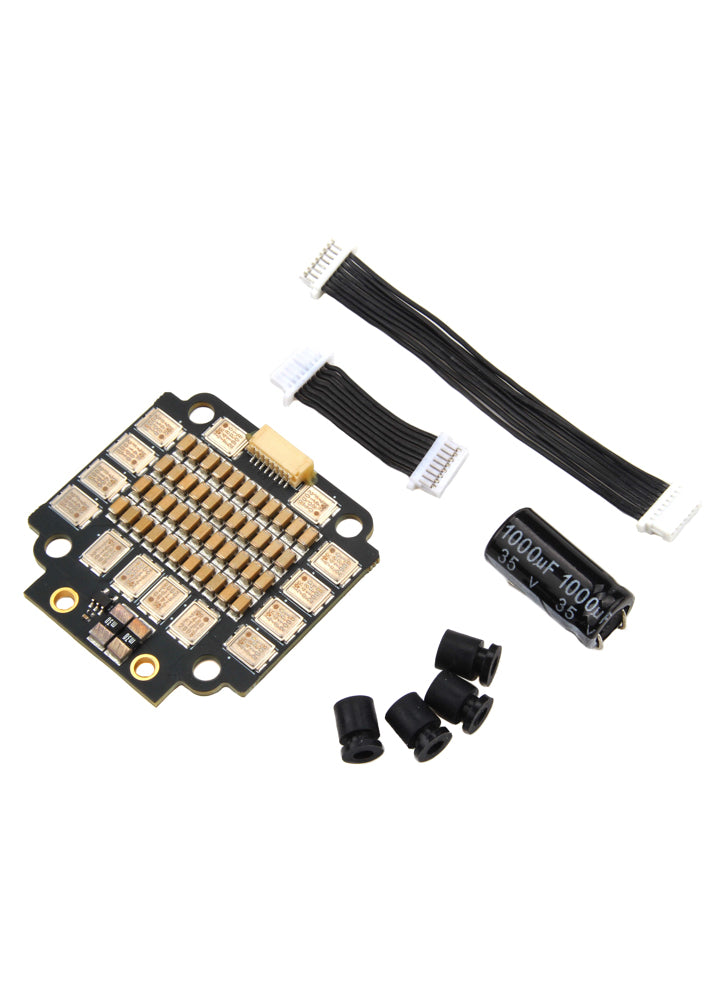

For 6S setups it’s recommended to use the included extra low ESR 35V capacitor.

Features

Note: The latest Tekko32F3 Metal 4in1 ESC has made various improvements on its performance compared to the previous version

1) Better optimized power path, providing a more stable performance. 2) Doubled capacity of on-board capacitors, now capable of 2068uf. 3) Amperage meter scale ratio has been adjusted to 168. 4) Added 3 fault detection indicators to indicate faults better. 5) Enhanced and more robust Lipo input pad for soldering. 6) PCB with 3oz copper design, capable of handling bigger current, and better heat dissipation capacity. 7) The PCB design uses a design in which the drive circuit and the control circuit are separated. This design broadens the overcurrent capability of the drive circuit, and at the same time reduces the electrical interference to the control circuit.

Note:

Air flow for the ESC is very important if you want to run this 4in1 in high current. The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

Some Tips:

ESC Current Sensor Scale

AM32 ESC Firmware Overview

Specifications

In the box
