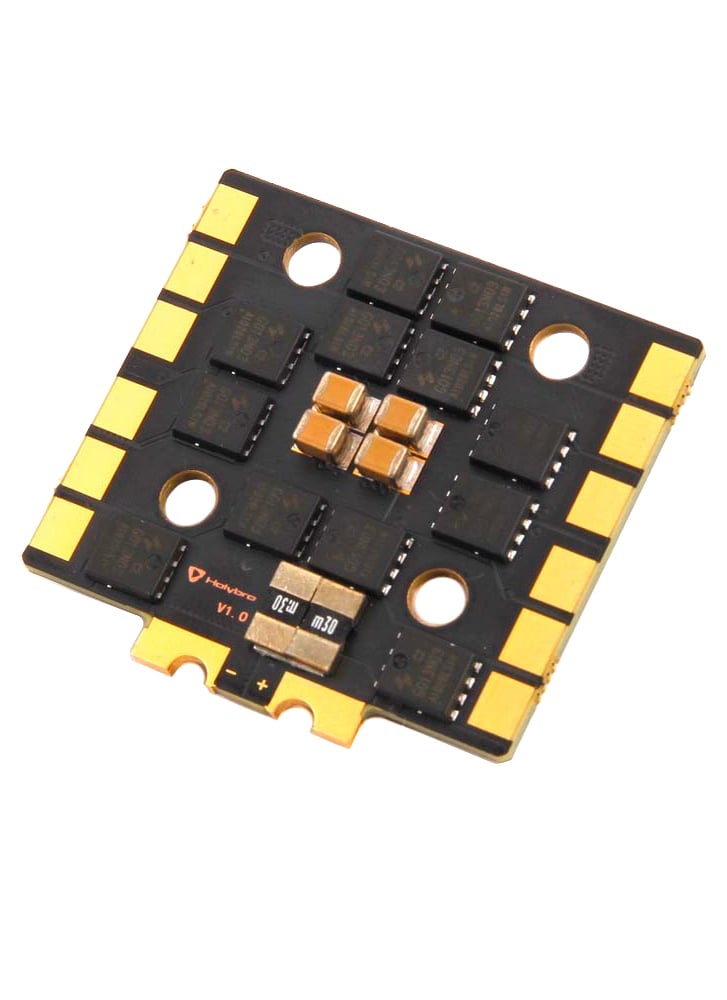

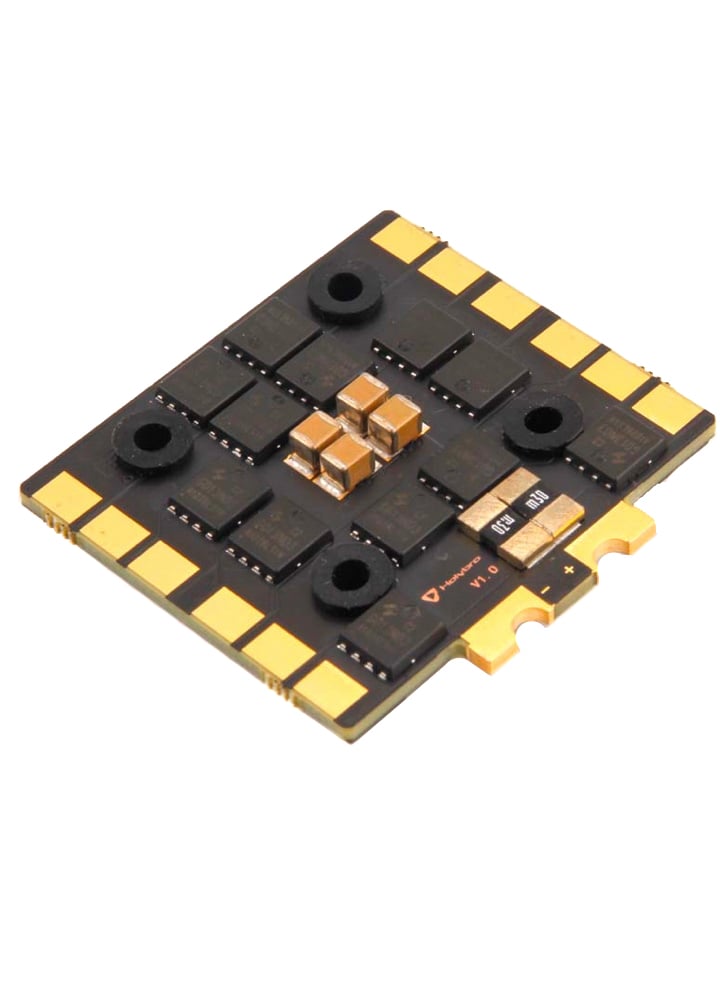

Holybro Tekko32 F4 BigFET 4in1 2020 50A ESC
£54.90
Tekko32 F4 BigFET 4 in 1 ESC is made for those that use the smaller 20×20 mount, but also need the power of big MOSFETs found in larger ESCs. The F4 MCU & quality MOSFET onboard will provide smooth control, quick response, and big power for racers and freestyle pilots.
Features
- New F4 MCU, much faster than F3 & F0
- PWM output up to 96K (default 48K)
- 20×20 Mount design with big MOSFET

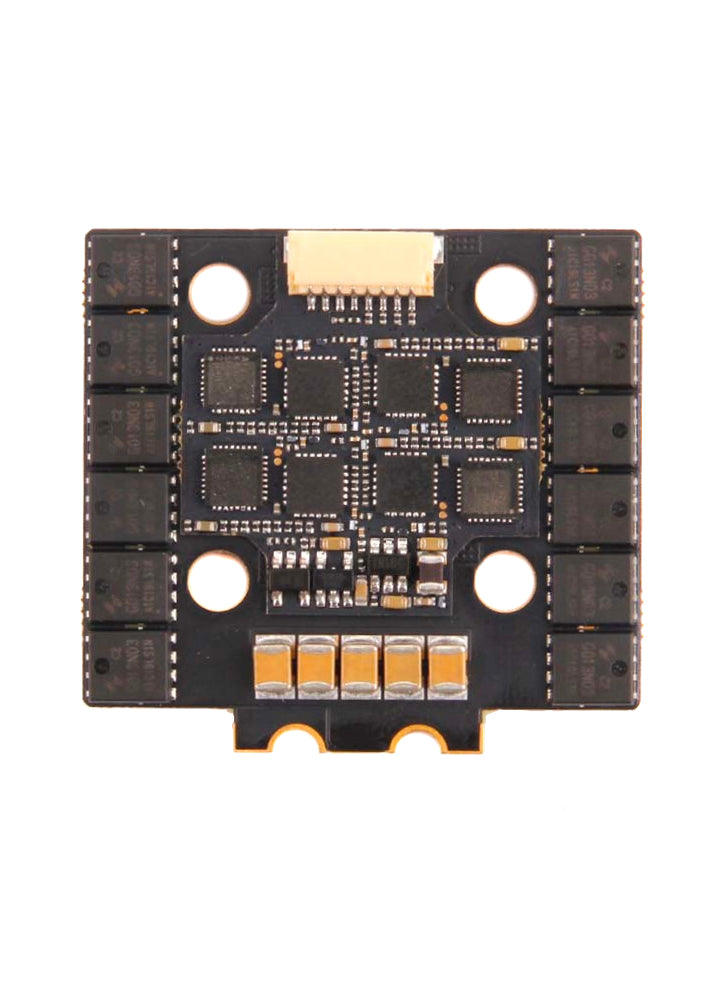

- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specifications
- Continuous Current: 50A x4
- Burst Current: 60A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- BLHeli_32 firmware
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 168

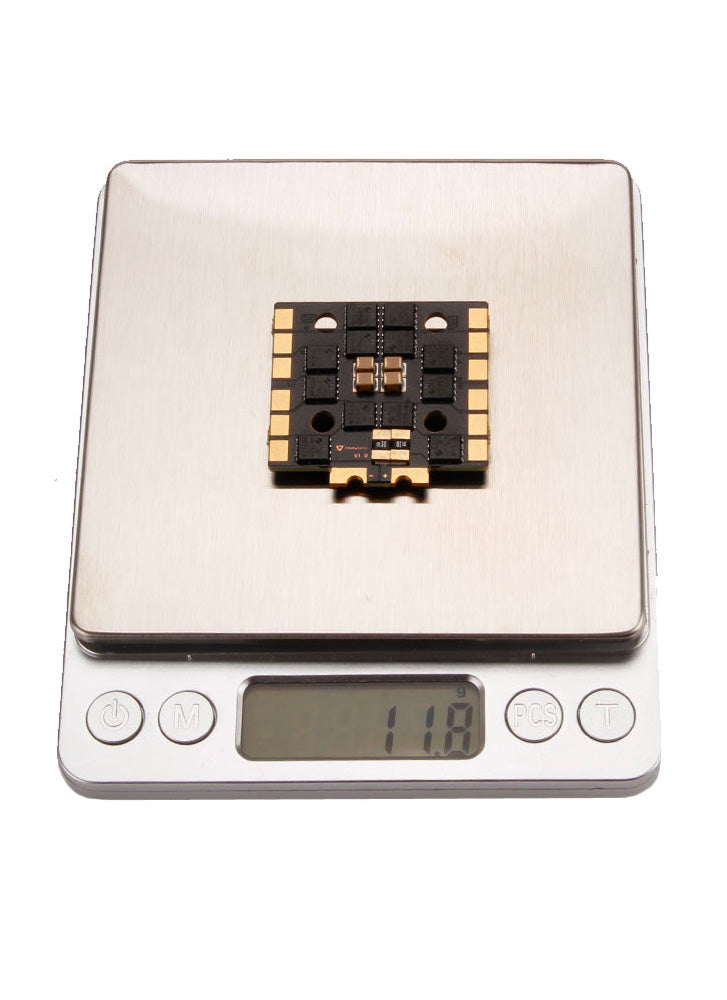

- Dimensions: 39×36.5x6mm / Weight: 11.8g
- Mounting holes: M4 30.5×30.5mm (M3 grommets included)

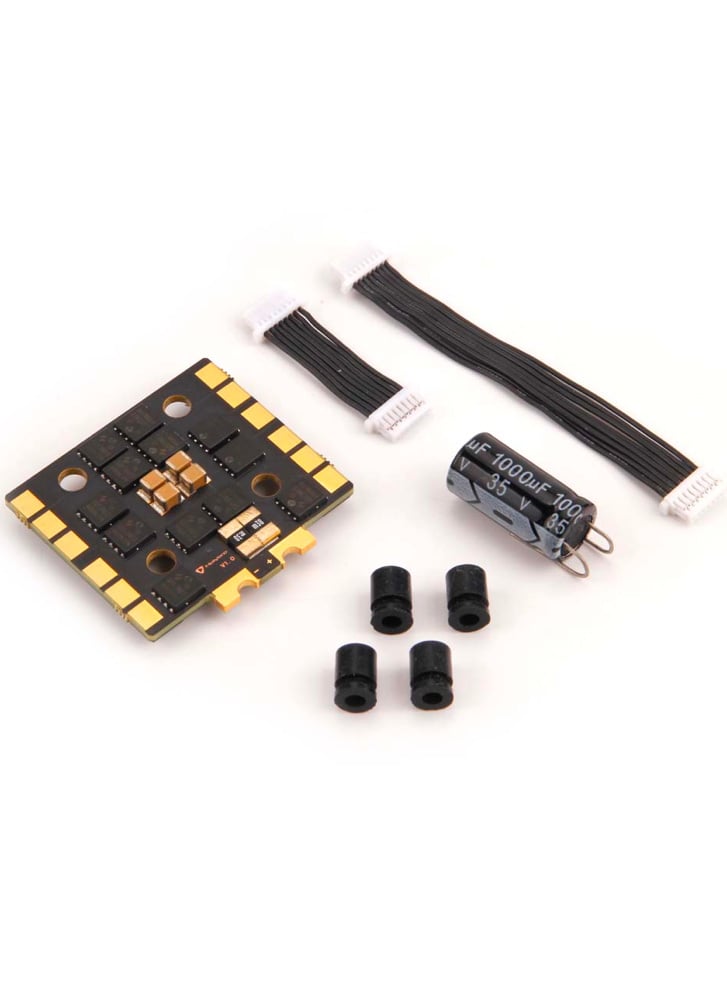

In the box
- 1x Tekko32 F4 BigFET 4in1 50A ESC
- 4x M3 Anti-Vibration Silicone Grommet Insert
- 1x Electrolytic capacitor: 1000uF 35v
- 1x 8pin to 8pin 1mm pitch 65mm cable
- 1x 8pin to 8pin 1mm pitch 25mm cable
