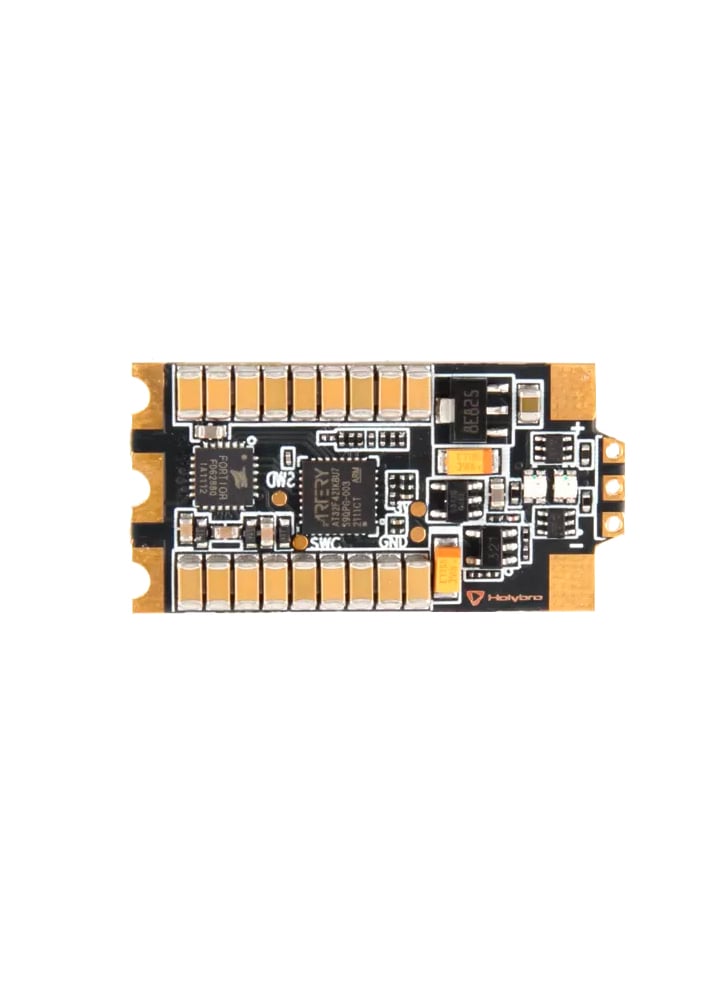

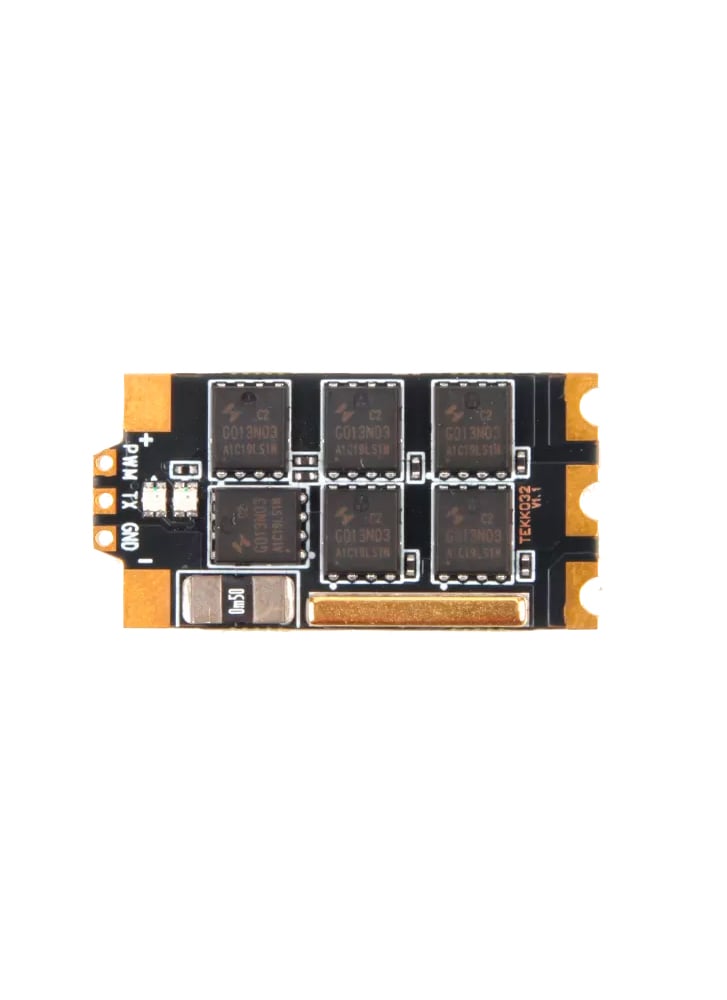

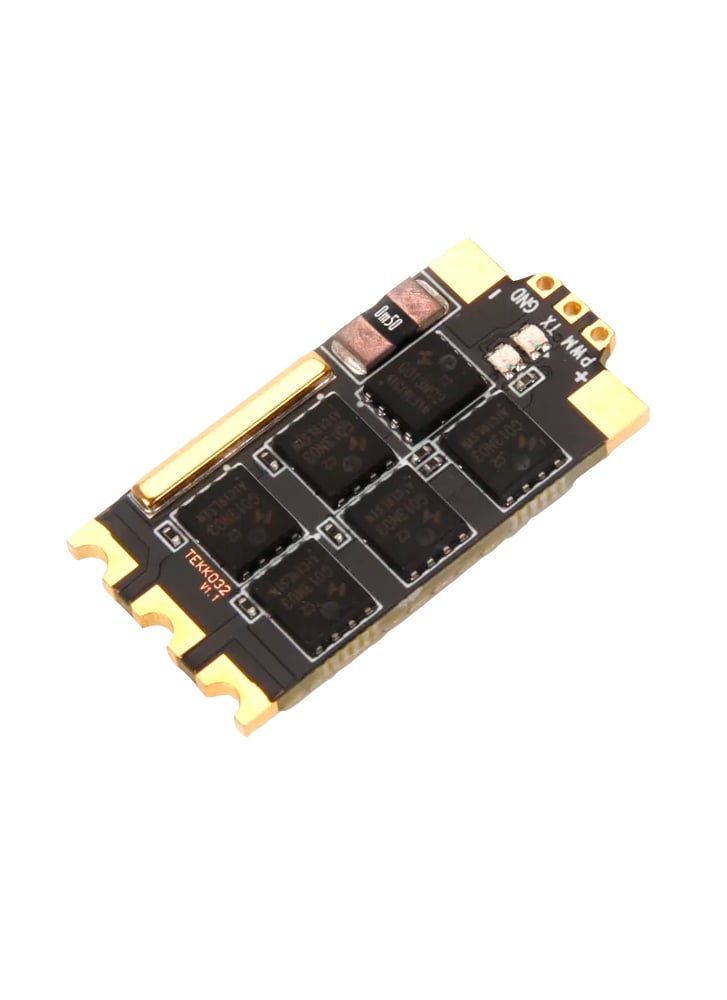

Holybro Tekko32 F4 45A ESC (AM32) Dshot 1200
£17.90
Since support for BLHeli32 has ended, this ESC is now flashed with AM32_Firmware.
The Holybro Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU, which delivers tons of headroom for processing power, ensuring smooth and fast response. The ESC is also capable of both voltage and current monitoring, as well as offering customisation of the brake on stop force. Despite its tiny footprint this is a really powerful ESC. It supports up to 45A continuous.

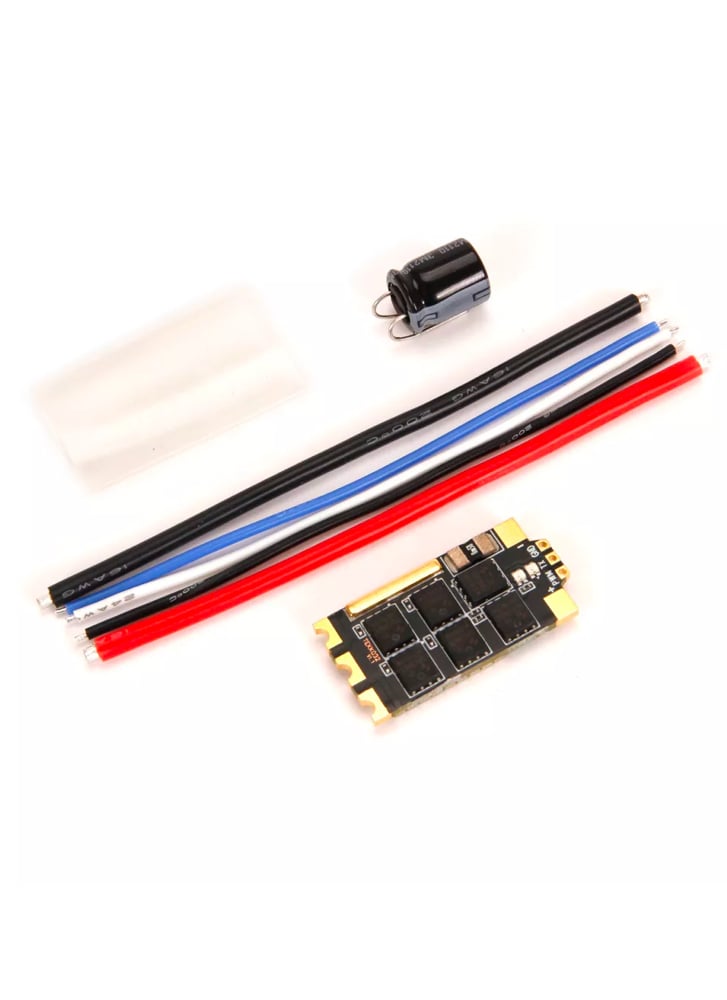

We sell these ESCs individually and as a set of four. All come with 16 AWG silicone wires for power, and 24 AWG wires for signal, signal ground and ESC telemetry.
Features
- F4 MCU with AM32 firmware Dshot1200 up to 32kHz
- PWM up to 48k
- Small size & low weight
- Auto Timing Feature
- On-Board RGB LED
- Build in Current sensor
- Smooth Response
- Reference Link AM32 ESC Firmware Overview AM32 ESC Configurator
Specifications
- F4 MCU with AM32 firmware Dshot1200 up to 32kHz
- Current rating: 45A
- Supports Lipo 2-6S
- Ext. cap recommended for 6s (330uf 35v for 6s usage.)
- Size: 17×3 x 34×3 x 4.5 mm

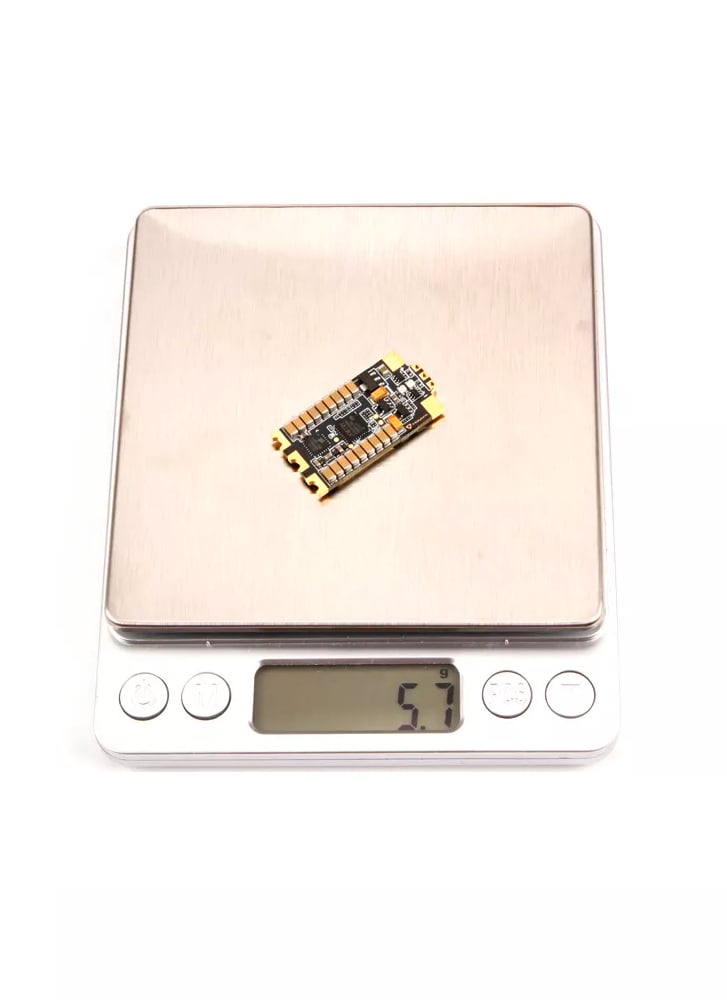

- Weight: 5.8g (1pcs)
