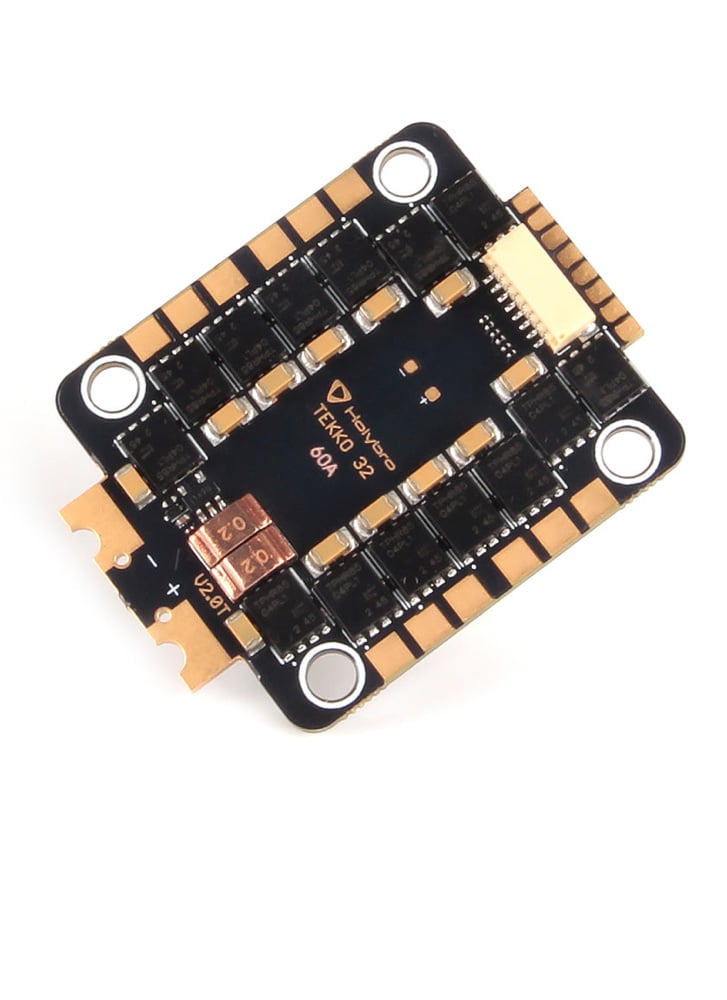

Holybro Tekko32 F4 4-in-1 60A ESC BLheli_32 Dshot 1200
£66.00
The Tekko32 F4 4-in-1 now upgraded to 60A
The Tekko32 F4 4in1 60A ESC is a high-performance electronic speed controller. This compact 4-in-1 ESC is designed with a 30×30 mounting pattern and supports 4-6S LiPo batteries. It has all new High-quality MOSFETs with low internal resistance and low heat generation, ensuring efficient power delivery and a smooth flight experience while allowing the ESC to boast a continuous current of 60A. It has a separate drive and control circuit to broaden the current capability of the drive circuit while reducing electrical interference in the control circuit. With its cutting-edge BLHeli_32 firmware and 96K PWM frequency, enjoy lightning-fast response times and exceptional motor control. The layout of the PCB is very logical and with large contact pads it’s also easy to solder.
For 6S setups please use the included extra low ESR 35V capacitor. This can be attached to the dedicated + / – pads on top of the ESC.
Features
- All new High-quality MOSFETs with low internal resistance and low heat generation
- Fast F4 MCU @150MHz (compared to F3 @108MHz & F0 @48MHz)
- A separate drive and control circuit, reducing the electrical interference
- Continuous Current Rating of 60 Amps
- 32bit ESC with BLHELI32 firmware
- Supports Oneshot / Multishot / Dshot PWM / DSHOT 1200 / Damped light
- Separate current sensors for each motor, Voltage output (VBAT), ESC Telemetry (TELEM)
- 4-in-1 ESC with 30.5×30.5mm mounting holes
- 4S – 6S LiPo Input
- No BEC
Specifications
- Continuous Current: 60A x4
- Burst Current: 70A x4
- Battery Supports: 4-6S
- PWM Frequency: 16k to 96k
- Supports DShot 150/300/600/1200/2400
- Supports MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- BLHeli_32 firmware

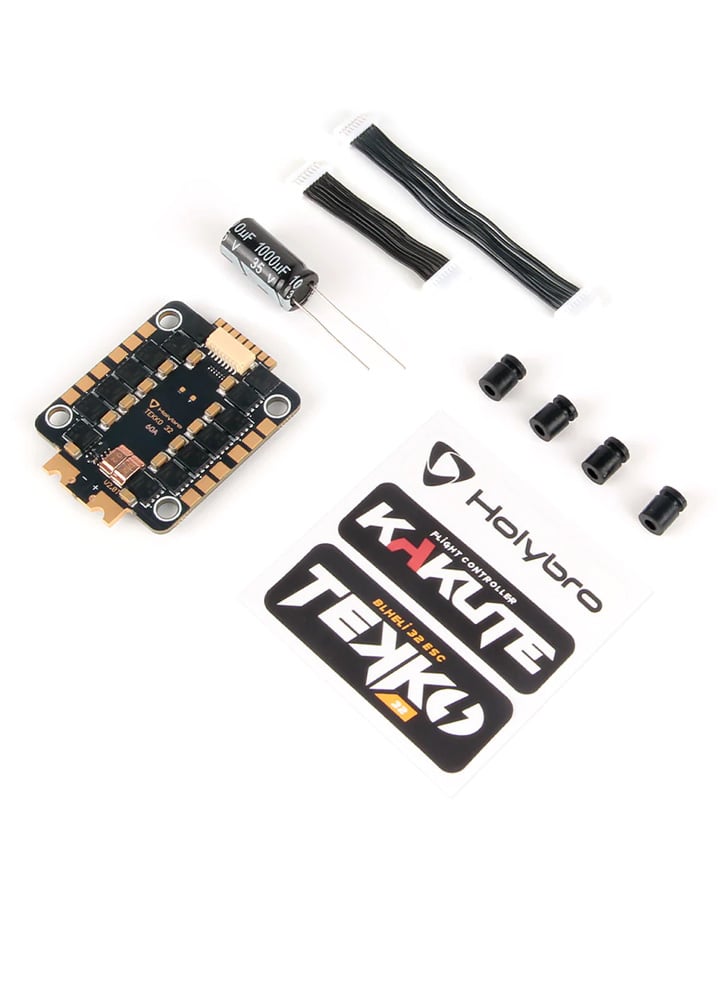

- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 120

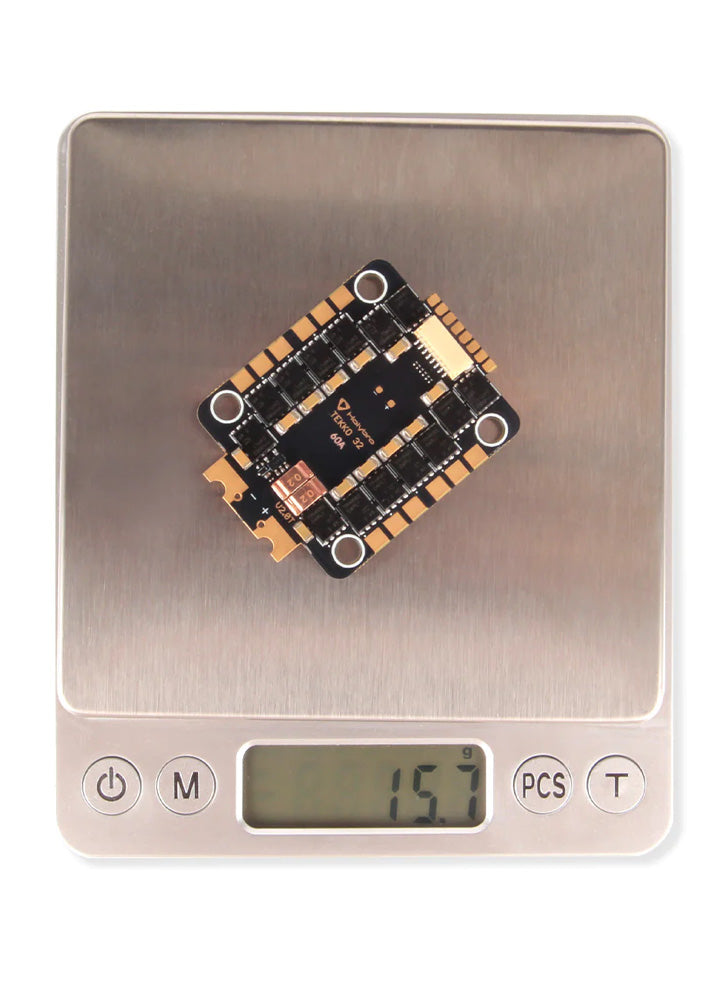

- Dimensions: 48x37x6mm / Weight: 15.7g
- Mounting holes: M4 30.5×30.5mm (M3 grommets included)
